Description
- Ensures that the inverter functions at an appropriate rate and there's zero reverse feed going into the grid
- Excess power is exported to the utility/electric grid, and when the required load is greater than the generated power, the discrepancy is supplied by the grid
- IP65 rated enclosure ensures protection from moisture and dust
- Natural heat dissipation means no fan is required resulting to low noise operation
- Easily check the inverter status - if the inverter is functioning normally on-grid, a fault is detected, etc. User specifications can be set via the controls
- Tested and IEC certified to meet international standards. Includes a five (5) year warranty from the date of purchase
Registered with the Distribution Network as V-TAC Exports Limited VT-6605110.
|
Input (DC)
|
Maximum Input Power |
6kW
|
|
Maximum Input Voltage |
600V |
|
|
Starting voltage/Minimum operating voltage |
120V / 100V
|
|
|
Maximum Power Point Tracking (MPPT) voltage range |
120V-550V
|
|
|
Maximum Power Point Tracking Rated Voltage |
360V
|
|
|
Number of Maximum Power Point Trackers / String per Maximum Power Point Tracker |
2/1
|
|
|
Maximum current per MPPT |
12A |
|
|
Output (AC)
|
Maximum Output Current |
20A |
|
Rated AC Power |
4.6 kW |
|
|
Rated Mains Frequency |
50 Hz / 60 Hz |
|
|
Rated Mains Voltage |
230V, L+N+PE |
|
|
Power Factor |
≥0.99 (Nominal Power) |
|
|
THDi (Harmonic Distortion Distortion in Signal) |
＜3% (Nominal Power)
|
|
|
Productivity
|
Max. Productivity |
97.8% |
|
Productivity in Europe |
96.8% |
|
|
MPPT Productivity |
99.9% |
|
|
Protection |
Protection |
DC switch, AC short-circuit protection, overload protection, overvoltage protection, insulation protection, RCD, overvoltage protection, trip protection, overheating protection, earthing def. |
|
Communication
|
Display |
LED (Optional) / LCD (Standard) |
|
System language |
English / Chinese / German / Dutch |
|
|
Communication |
RS485 standard |
|
|
Certificates
|
Network connection standards |
IEC 61727:2004, IEC62116:2014, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-14:2009, IEC 60068-2-30:2005, IEC 61683:1999, DIN VDE 0126-1-1:2013, DIN VDE V 0124-100:2020, VDE-AR-N 4105:2018, G98:2019, C10/11:2019, AS/NZS 4777.2:2020, NB/T 32004-2018, PEA, ZVR |
|
Safety / EMC |
IEC/EN 62109-1:2010, IEC/EN 62109-2:2011, EN 61000-6-2:2019, EN 61000-6-3:2007/A1:2011 |
|
|
Basic data
|

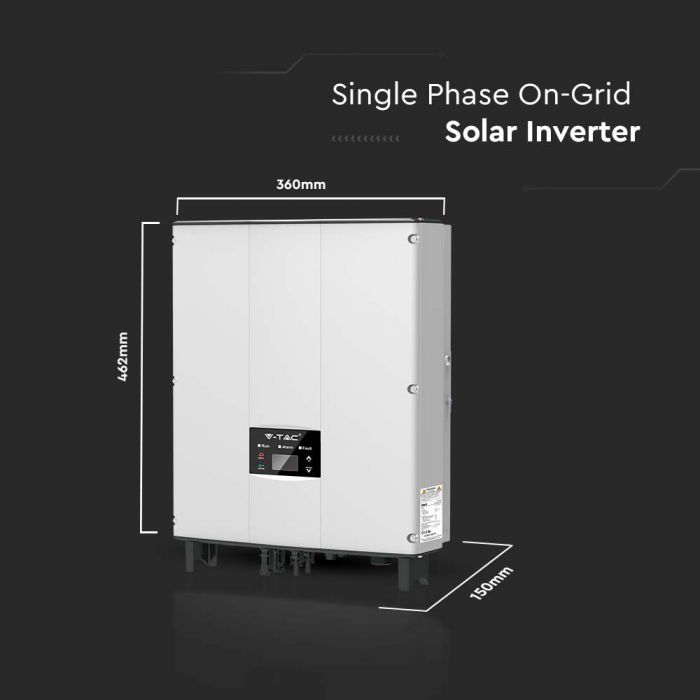

Dimensions |
360 x 462 x 150 mm |
|
Weight |
18kg |
|
|
Operating Temperature Range |
-25º~+60º (Power drops above 45ºC) |
|
|
Cooling method |
Natural cooling |
|
|
Noise level |
＜30dB |
|
|
Protection standard |
IP65 |
|
|
Maximum height |
3000m (Power drops 2000m) |
|
|
Relative Humidity |
0~95% |
|
|
Topology |
Without transformer |
|
|
Power Consumption At Night |
<1W |
|
|
Warranty |
5 years |
