Technical rear view cameras

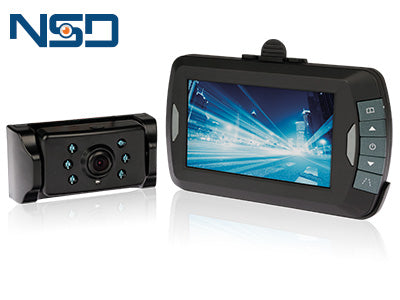

Description:

Digital Wireless Rearview Camera System

The NSD 1705-00204 is a digital wireless rearview camera system with a color camera and a TFT LCD monitor. It is designed to improve visibility behind cars, RVs, trailers, minivans, and other vehicles. The wireless connection simplifies installation, as no long video cable is needed to transmit the video signal between the camera and the monitor.

2.4 GHz digital wireless transmission

The system uses the 2.4 GHz ISM frequency band for digital video transmission. The maximum transmission range in open space is 100 m. The digital transmission technology is designed to ensure a stable connection and minimize interference from Wi-Fi, Bluetooth, cell phones, and other sources of electromagnetic interference.

Color CMOS Camera

The rearview camera is equipped with a color CMOS image sensor and offers a resolution of 640x480 pixels. The optical lens specifications are F1.7 mm/F2.0, and the field of view reaches 120°, providing a wide field of view behind the vehicle.

Night vision with 6 infrared LEDs

The camera is equipped with 6 infrared LEDs, which ensure visibility in low-light conditions and at night.

IP68 protection rating

The camera has an IP68 rating, which provides a high level of protection against dust and water ingress. This makes the camera suitable for permanent installation on the exterior of a vehicle.

10.9-cm TFT LCD color monitor

The system's TFT LCD monitor has a screen diagonal of 10.9 cm and a resolution of 480x272 pixels with a 4:3 aspect ratio. The monitor allows you to adjust brightness and contrast, as well as select between normal and mirror modes.

Parking Guide Lines

The monitor can display parking guide lines that help the driver assess the vehicle's position and the distance to obstacles when reversing.

Dual-camera support

The wireless system supports up to two cameras. Once both cameras are connected to the monitor, you can switch between their images, allowing the system to be used for broader monitoring of the vehicle’s surroundings.

For 12/24V vehicle systems

The system is designed for use in vehicles with 12V and 24V electrical systems. The specified operating voltage range for the cameras and monitor is 8–28V DC.

Easy installation

The kit includes a monitor, a monitor mount, a camera with a mounting plate, mounting accessories, and a monitor power cable. Wireless video transmission reduces the need to run a video cable the entire length of the vehicle.

Specifications:
Product Type: Digital Wireless Rearview Camera System
Number of Channels: 2
Wireless Transmission Frequency: 2.4 GHz
Maximum Wireless Transmission Distance: 100 m
Camera image sensor: color CMOS
Camera resolution: 640x480
Optical lens: F1.7 mm/F2.0
Viewing angle: 120°
Infrared LEDs: 6
Camera protection rating: IP68
Camera operating voltage: 8–28V DC
Camera current consumption without IR LEDs: <120mA
Camera current consumption with IR LEDs: <170mA
Monitor type: TFT LCD
Monitor screen diagonal: 10.9cm
Monitor resolution: 480x272
Screen aspect ratio: 4:3
Monitor operating voltage: 8–28 V DC
Monitor current consumption in standby mode: 60 mA
Monitor current consumption in active mode: 150 mA
Display modes: normal, mirror image
Display adjustments: brightness, contrast
Parking assist lines: Yes
Operating temperature: -10°C to +50°C
Certifications: CE, E24, 10R
EAN code: 6438255102042

Weight: 2,00 kg (net 2,00 kg)
Voltage: 12V/24V
Plug type: 4-pin

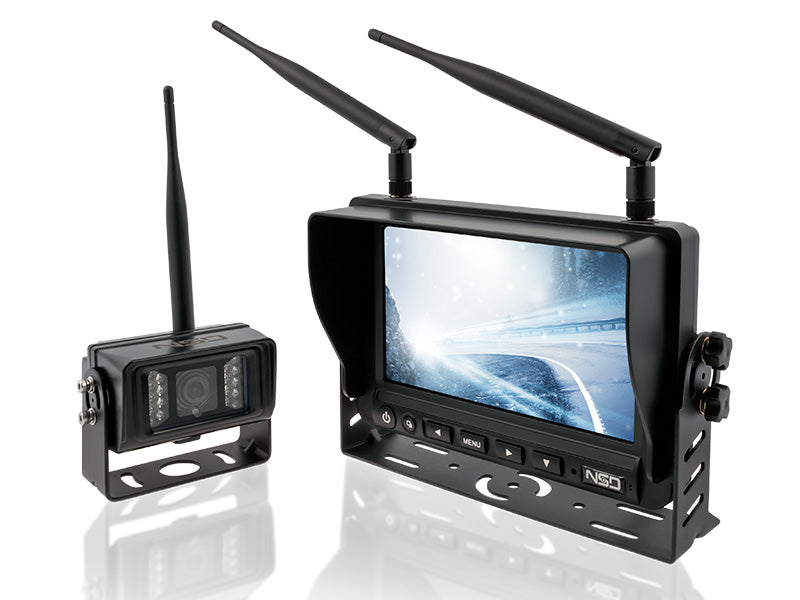

Information: NSD 7" Full HD 1080P, DISPLAY: 7" 1080P LCD Full HD, 1024x600 px, 800:1, 600 cd/m², 2 cameras max, split view, viewing angle (all directions) 85°, response time 25 ms, operating voltage: 8-32 V DC, operating temperature -20°C ... +70°C, 225x150x85 mm, U-bracket and shadow cap incl. - CAMERA: 1080P Full HD 1/2.8" Sony, 1920x1080 px, auto LEDs, operating voltage: 12V DC, 15m cable, IP69K, operating temperature: -20°C ... +60°C - RH max 95% , 77x66x77 mm - suitable for ADDITIONAL CAMERA = 1705-00146
Warranty (months): 12

NSD 7" Full HD 1080P WIRELESS DISPLAY: Wireless 7" LCD Full HD IPS, 1024x600 px, 800:1, 600 cd/m², maximum 4 cameras, split view, viewing angle (all directions) 85°, response time 25 ms, operating voltage: 8-32 V DC, operating temperature -20°C ... +70°C, 225x150x85 mm, U-bracket and shade cap incl. - CAMERA: 1080P Full HD 1/2.9" colour CMOS, 1920x1080 px, minimum illumination 0 lux: auto LEDs, operating voltage: 11-32V DC, IP69K, shockproof 5G, operating temperature: -20°C .. +60°C - RH max 95%, 107x70.5x75 mm - suitable for ADDITIONAL CAMERA = 1705-00148
Warranty (months): 12

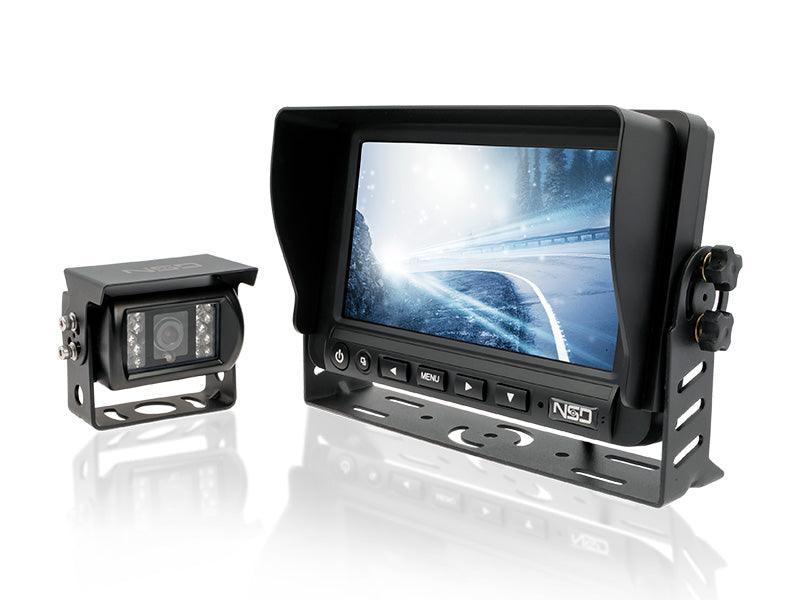

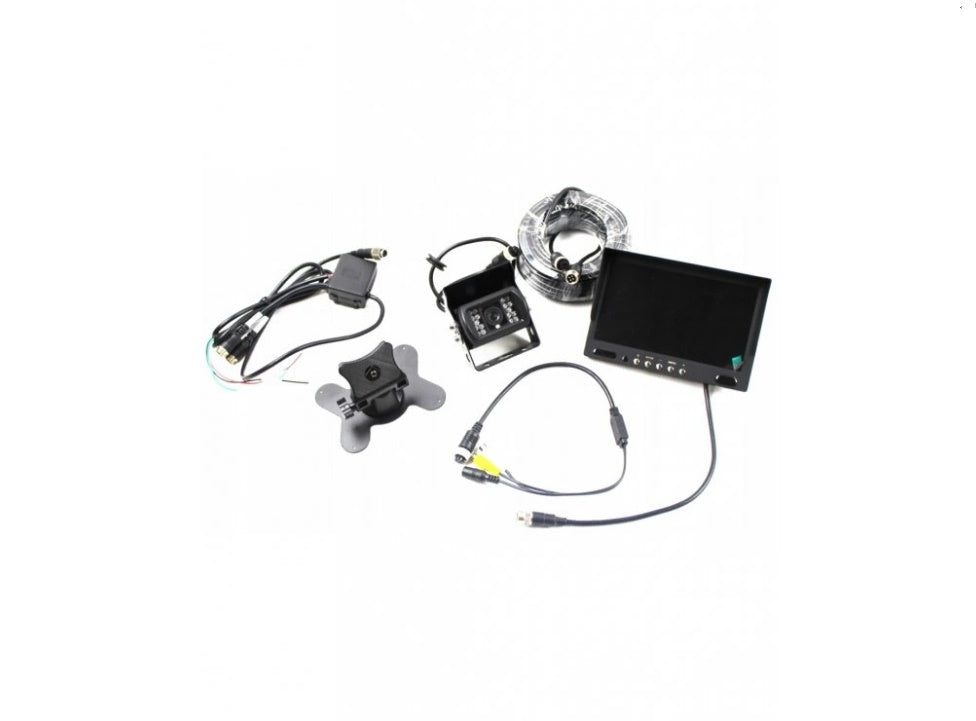

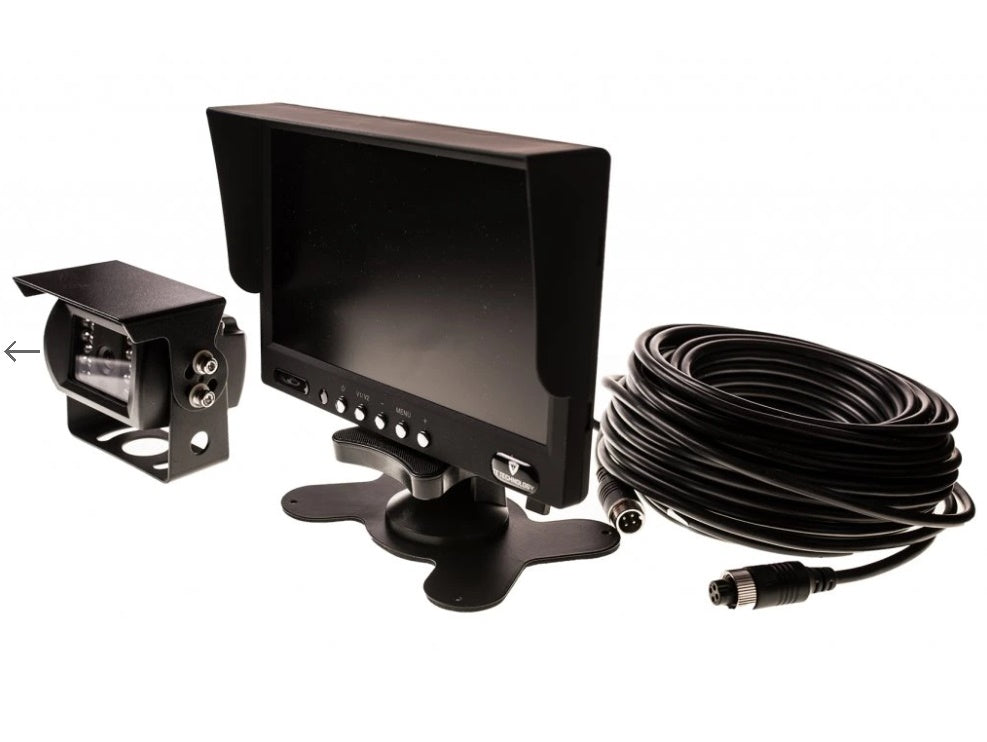

Detailed product description
Includes 7" colour monitor with simultaneous dual-camera capability and 800x480 resolution + Parking camera with 120 degree viewing angle and 18 infrared LEDs for night vision + 15 m 4-pin connecting cable + remote control.

Monitor with possibility to connect two cameras simultaneously. 7" screen with 800x480 resolution.

Technical specifications:

System: PAL/NTSC
Power supply: 12-24 V
Resolution: 800 RGB x 480
Format: 16:9
Viewing angle: 120°
Brightness: 300 cd/m²
Dimensions: 172 x 115 x 22 mm
Remote control

Camera specifications:
The parking camera with 120° viewing angle and 18 infrared LEDs for night vision is mainly designed for large vehicles (trucks, buses, trailers, agricultural machinery, campers, etc.). Ideal for parking manoeuvres, providing a view in reverse. The camera can be connected to an LCD monitor via an RCA cable or this cable can be replaced by a video transmission device (cable not included). The camera is dust, water and shockproof. The camera canopy can be removed. The camera is not equipped with auxiliary parking lines.

Resolution: 512 x 492
Horizontal lines: 420 TV lines
System: PAL/NTSC
Field of view: 120°
Power supply: 12-24 V
Power consumption: 1,3 W
Operating temperature: -30 to +70 °C
IP class: IP67, outdoor
Dimensions: 80 x 54 x 80 mm

Technical specifications and pictures are provided by the manufacturer and are for information only!

Additional specifications
Category: Rear View Cameras
Weight: 1,6 kg
EAN: 5904730462228
Screen: 7 inch
System: PAL/NTSC
Resolution: 800 RGB x 480
Brightness: 300 cd/m²
Power: 12-24 V
Dimensions: 172 x 115 x 22 mm
Camera Resolution: 512 x 492
Viewing Angle: 120°

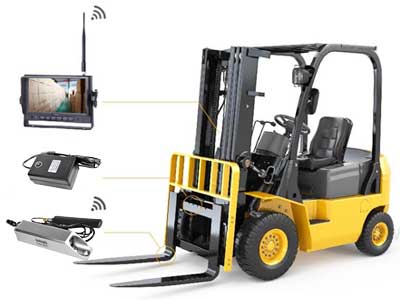

Details: wireless forklift camera, magnetic: easy to mount on fork arm - powered by rechargeable battery, 7" display, automatic pairing, wireless transmission range up to 100 m, 4 channel inputs: Supports dual screen mode, single screen mode and automatic display mode loop switching, each channel can be individually set for scanning, built-in recorder (supports 128 GB Micro SD card), real-time recording and video playback CAMERA: Wireless: operating frequency 2400-2483.5 MHz, IP69K - 10G - Metal housing: robust and reliable, CMOS, PAL/NTSC, 756x504px, internal sync, scanning system: 2:1 Interlace, video output: 1.0Vp-p 75Ω, 1-3m night vision, minimum illumination 0.1 Lux, 100 m viewing range, lens f=6.0 mm, 45° viewing angle, gamma consumption: 0.45, automatic AGC, S/N ratio better than 46.5 dB, automatic white balance, electronic shutter: Auto 1/60 (NTSC) / 1/50(PAL) - 1/100,000 sec, Auto BLC, MPEG4 video code, PAL frame rate: 25f/s, NTSC: 30f/s, Spread spectrum FHSS, Delay 120ms, RF bit rate 4Mbps, Operating temperature -20℃... +70 ℃ RH95%MAX, storage temperature -30 ℃ ... +80 ℃ RH95%MAX, power supply 10-32VDC - BATTERY PACK for camera, rechargeable, 8700mAh - 31.32Wh, charging voltage 5-16V: usb-cord, supplied cable with wires and 240VAC power supply, charging time 12h (5V) - 4h (12V), discharge time (@160-180mA): 12-14h, charging temp -20°C ... +45°C, discharge and storage temp -20°C ... . +60°C, IP69K, magnetic mount, 110.5x64.5x40.7mm, 400g - DISPLAY: 7", wireless: operating frequency 2400-2483.5MHz, 800x3x480 px, 500:1, 400 cd/m², 16:9, viewing angle U: 50/D: 70, R/L: 70, remote control, 4 channels, MPEG4 decompression format, reception sensitivity -89 dBm, modulation 2.4G FSK /GFSK, memory capacity. 128G, power supply 10-32VDC, power consumption max. 6W, Speaker: 1.5W/8Ω, Operation: -20~+70ºC, RH 90%, Storage: -30~+80℃, RH 90%, Supplied with U-bracket and stand for fixing in the center

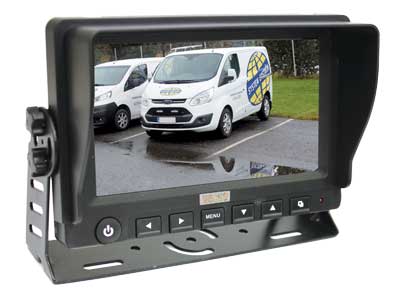

Description

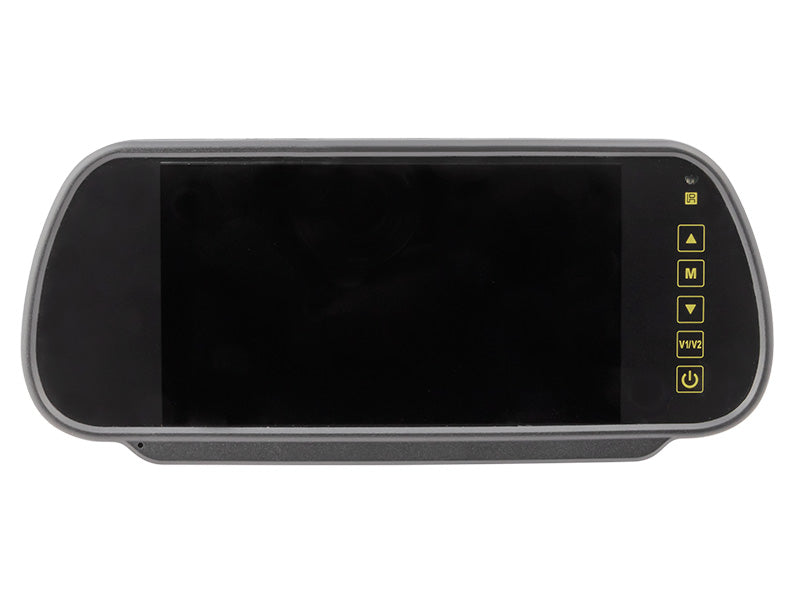

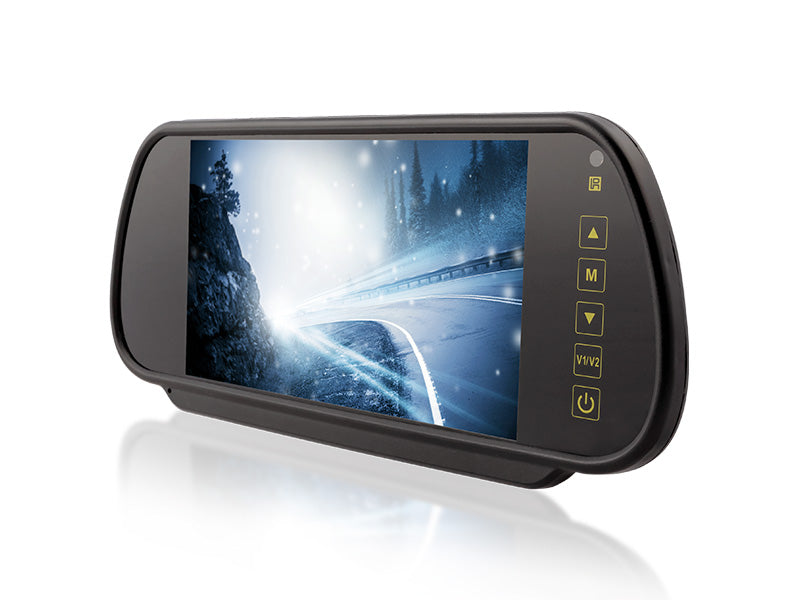

Clear 17.8 cm IPS Screen: The monitor is equipped with a 17.8 cm IPS LCD screen, 1024 × 600 pixel resolution, 800:1 contrast ratio, and 600 cd/m² brightness. It supports 1080p, 720p, and CVBS video input, ensuring a clear camera image.

Dual-camera connection: The AHD1 and AHD2 channels allow you to connect two backup cameras to the monitor. You can switch between the camera views using the V1/V2 button, and each channel has a separate activation wire.

Safer Reverse Driving: You can enable reverse assist lines on the monitor and set the image activation delay for each camera channel from 0 to 30 seconds.

Customizable Display: The images from the AHD1 and AHD2 channels can be rotated or mirrored to match the camera's position. Screen brightness, contrast, color saturation, and hue are also adjustable.

Wide vehicle compatibility: The 11–32 V power supply range allows the monitor to be used in passenger cars and trucks, buses, RVs, SUVs, agricultural and construction equipment, as well as forklifts.

Durable and protected design: The housing is made of high-temperature-resistant ABS and PC materials. Built-in reverse polarity protection helps safeguard the device from incorrect connections.

Specifications

Product Code: 1705-00149
Manufacturer: NSD
Display type: IPS LCD
Screen diagonal: 17.8 cm
Resolution: 1024 × 600 pixels
Number of camera channels: 2
Camera inputs: AHD1 and AHD2
Video signal support: 1080p, 720p, CVBS
Video standards: PAL and NTSC
Brightness: 600 cd/m²
Contrast ratio: 800:1
Response time: 25 ms
Viewing angle: 85° left, right, up, and down
Power supply voltage: 11–32 V DC
Screen-on delay: 0–30 seconds
Image functions: rotation and mirroring
Reverse assist lines: can be turned on and off
Controls: touch-sensitive buttons
Menu languages: 6
Housing material: ABS and PC
Protection: against incorrect power supply polarity
Operating temperature: –20 to +70 °C
Storage temperature: –30 to +80 °C
Dimensions: 249.5 × 108 × 39 mm
Weight: 1.58 kg
EAN code: 6438255501494
Package contents: monitor and connection cable

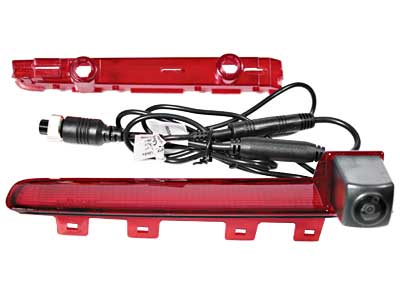

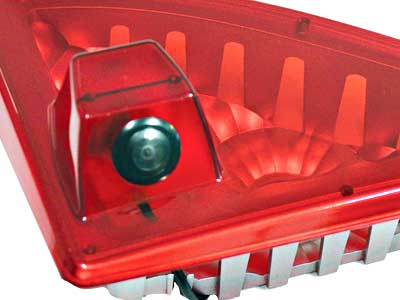

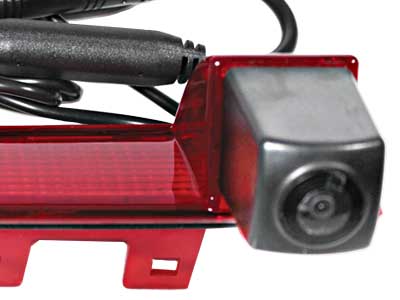

Information for: brake light camera kits. Single image monitor, 2 channel video, mirror/normal set separately for each channel, reverse image delay 0-30 s, trigger priority, removable sunshade, 500:1, 800x480px, 400cd/m², 199x128x28mm, operation: -20°C...+70°C, storage: -30°C...+80°C

Information: touch screen, high resolution colour TFT-LCD, LED backlight, 2-channel: both with separate trigger, image settings: normal - mirror - up - down, adjustable time delay: 0-30s, suitable for all types of vehicles especially for vans, high impact resistance 8G, guards: ESD, reverse polarity, 4-pin connector with thread, also compatible with brake light cameras. 16:9, digital TTL, 800 x 480 pixels, 500:1, brightness 400 nits, response time 25 ms, load discharge DC 12+87V/Td 400 ms, viewing angle: L/R 70° - U 50° - D 70°, operating temperature -20°C ... +60°C

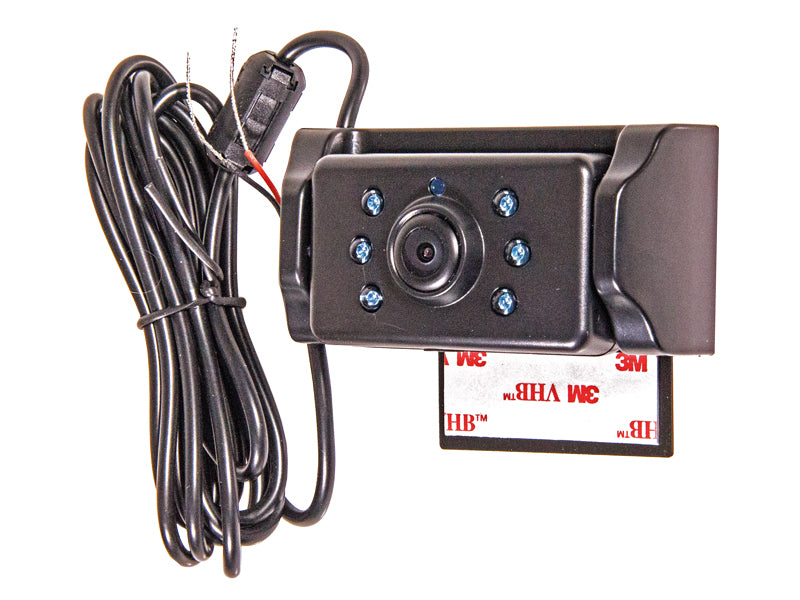

Description:

Wireless Auxiliary Camera for the Rearview System

The NSD 1705-00207 is a digital wireless auxiliary camera designed for use with the NSD 1705-00204 rearview camera system. It is suitable for vehicles that require an additional field of view behind or to the sides of the vehicle. The camera is compatible with 1705-00204 kits with serial numbers starting with 012021.

2.4 GHz digital wireless transmission

The camera features a built-in 2.4 GHz wireless transmitter that transmits the video signal to a compatible monitor without the need for a separate video cable. The maximum wireless transmission range in open space is 100 meters.

Color CMOS Image Sensor

The camera is equipped with a color CMOS image sensor and offers a resolution of 640x480 pixels. It is designed for stable image transmission in vehicle rearview and surveillance systems.

120° field of view

The optical lens, with specifications of F1.7mm/F2.0, provides a 120° field of view, allowing you to see a wide area behind the vehicle. The maximum frame rate is 30 frames per second.

Night vision with 6 infrared LEDs

The camera is equipped with 6 infrared LEDs, which enable image capture in low-light conditions and at night.

IP68 protection rating

The IP68 protection rating ensures a high level of protection against dust and water ingress, making the camera suitable for outdoor installation on a vehicle and for use in varying weather conditions.

8–28 V operating voltage

The camera operates within a DC voltage range of 8–28 V, making it suitable for both 12-volt and 24-volt vehicle electrical systems. Current consumption is less than 120 mA when the infrared LEDs are off, and less than 170 mA when they are on.

Compatibility with a dual-camera system

The NSD 1705-00204 wireless system supports the use of two cameras, and the 1705-00207 is designed as an additional camera for this system. This allows for expanded monitoring of the vehicle’s surroundings using the second camera.

Specifications:
Product Type: Wireless Rearview Auxiliary Camera
Compatibility: NSD 1705-00204 system, serial number starting with 012021
Image sensor: color CMOS
Resolution: 640x480
Wireless transmission frequency: 2.4 GHz
Maximum wireless transmission range: 100 m
Optical lens: F1.7 mm/F2.0
Field of view: 120°
Maximum frame rate: 30 frames/s
Night vision: 6 IR LEDs
Operating Voltage: 8–28 V DC
Current Consumption with IR LEDs Off: <120 mA
Current Consumption with IR LEDs On: <170 mA
Protection rating: IP68
Net weight: 0.2 kg
EAN code: 6438255052071

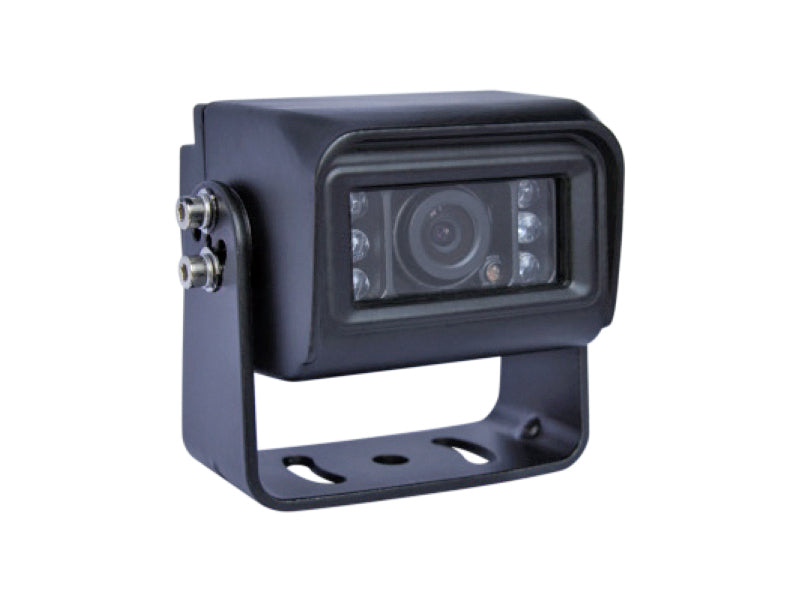

Description:

Full HD AHD 1080p image quality

The NSD camera provides Full HD 1920x1080 resolution and uses AHD 1080P video signal technology, providing detailed and clear images for vehicle backup and surveillance systems.

1/2.9" color CMOS sensor

The camera is equipped with a 1/2.9" color CMOS image sensor and operates on the PAL system. The combination of the sensor and Full HD resolution ensures high-quality video transmission to a compatible monitor or a vehicle video surveillance system.

100° viewing angle

The 2.8 mm lens provides a 100° field of view, allowing you to see a wide area behind the vehicle. The camera is suitable for use as an auxiliary or rearview camera in vehicles.

Night vision with 6 infrared LEDs

The camera is equipped with 6 infrared LEDs for operation in low-light conditions. The minimum illumination level is 0.01 lx, and automatic day/night mode switching adapts the camera's operation to changing lighting conditions.

Protection against lens fogging

The camera body is filled with nitrogen to reduce the risk of the internal optics fogging up due to changes in temperature and humidity. This helps maintain a clear image under various operating conditions.

Automatic Exposure Control

The electronic shutter's operating range in PAL mode is from 1/50 to 1/100,000 of a second. The camera provides automatic scanning and adapts to changing lighting conditions.

Durable aluminum alloy housing

The camera housing is made of an aluminum alloy, ensuring a durable design for use in vehicle camera systems. The operating temperature range is from -20°C to +70°C, and the maximum allowable relative humidity is 95%.

Compact size

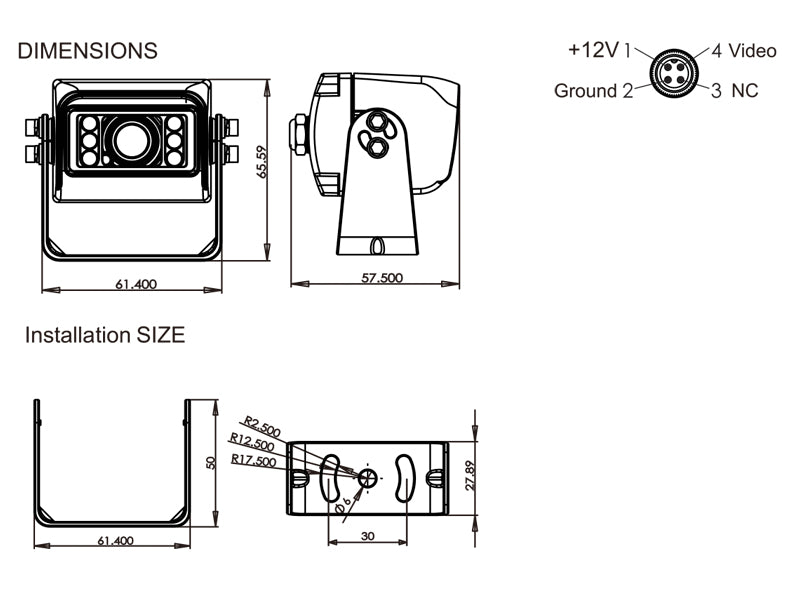

The camera measures 61.4 x 57.5 x 65.6 mm, allowing for compact installation in various types of vehicles. The camera operates on a 12V DC power supply.

2-year warranty

This product comes with a 2-year warranty.

Specifications:
Product Type: Full HD Rearview Camera
Video Signal: AHD 1080P
Video System: PAL
Resolution: 1920x1080
Image sensor: 1/2.9" color CMOS
Lens: 2.8mm
Viewing angle: 100°
Minimum illumination: 0.01 lx
Infrared LEDs: 6
Day/Night mode: automatic
Electronic shutter speed: 1/50–1/100,000 s
Signal-to-noise ratio: <48 dB
Supply voltage: 12 V DC
Housing material: aluminum alloy
Operating temperature: -20°C to +70°C
Maximum relative humidity: 95%
Dimensions: 61.4 x 57.5 x 65.6 mm
Warranty: 2 years

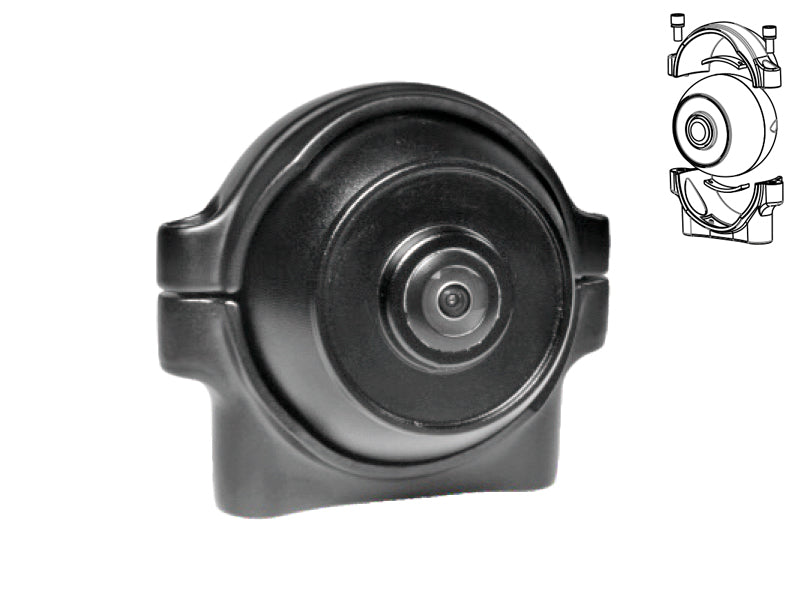

Full HD image quality

The AHD 1080p camera provides a resolution of 1920 × 1080 pixels, allowing for clear monitoring of the area behind the vehicle and a more accurate assessment of the location of obstacles.

Adjustable viewing angle

The camera's position can be adjusted to adapt the field of view to the vehicle's design and installation location.

Wide 130° viewing angle

The 2.1 mm lens provides a 130° field of view, covering a wide area behind the vehicle and minimizing blind spots.

Starlight Night Vision

Starlight technology provides enhanced visibility in low-light conditions. The camera's minimum required illumination is 0.01 lx.

Protection against sweating

The camera is filled with nitrogen, which helps prevent condensation from forming on the inner surfaces of the lens and the camera body during changes in temperature and humidity.

Durable aluminum housing

The cast aluminum housing ensures mechanical strength and is suitable for long-term use on the exterior of a vehicle.

IP69K protection rating

The IP69K protection rating provides a high level of protection against dust, water, and high-pressure water jets.

A simple 4-pin connection

The camera is equipped with a 4-pin connector and is designed for use with compatible Full HD rearview camera monitors and connection cables.

Operation in Various Weather Conditions

The camera is designed to operate at temperatures ranging from −20 °C to +70 °C and at relative humidity levels up to 95%.

Specifications

Manufacturer: NSD
Product code: 1705-00158
EAN: 6438255011580
Device type: Adjustable rearview camera
Video standard: AHD 1080p
Video system: PAL
Image sensor: 1/2.9-inch color CMOS
Resolution: 1920 × 1080 pixels
Lens focal length: 2.1 mm
Field of view: 130°
Minimum illumination: 0.01 lx
Night vision: Starlight
Electronic shutter speed: 1/50 to 1/100,000 s
Scanning: Automatic
Anti-fog protection: Nitrogen-filled
Connection type: 4-pin
Operating voltage: 12 V DC
Protection rating: IP69K
Housing material: Cast aluminum
Operating temperature: −20 °C to +70 °C
Maximum relative humidity: 95%

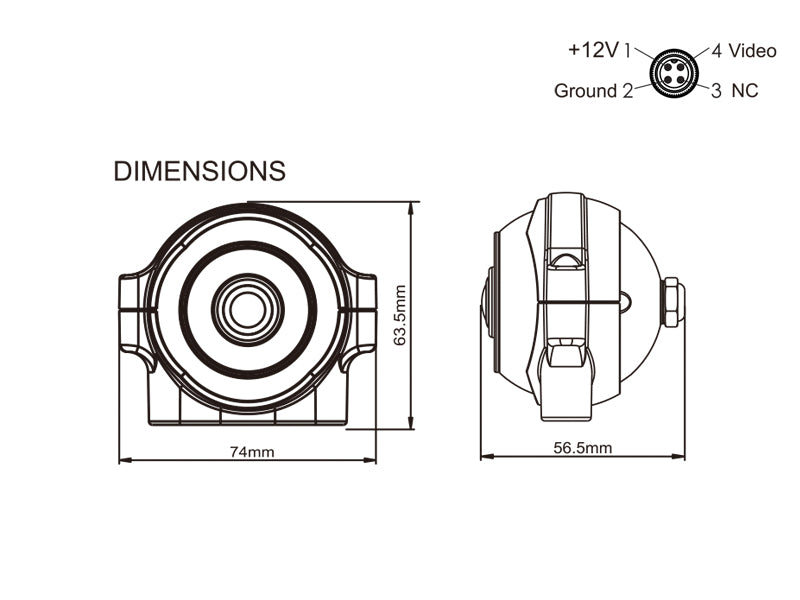

Dimensions: 74 × 56.5 × 63.5 mm
Net weight: 200 g
Gross weight: 200 g

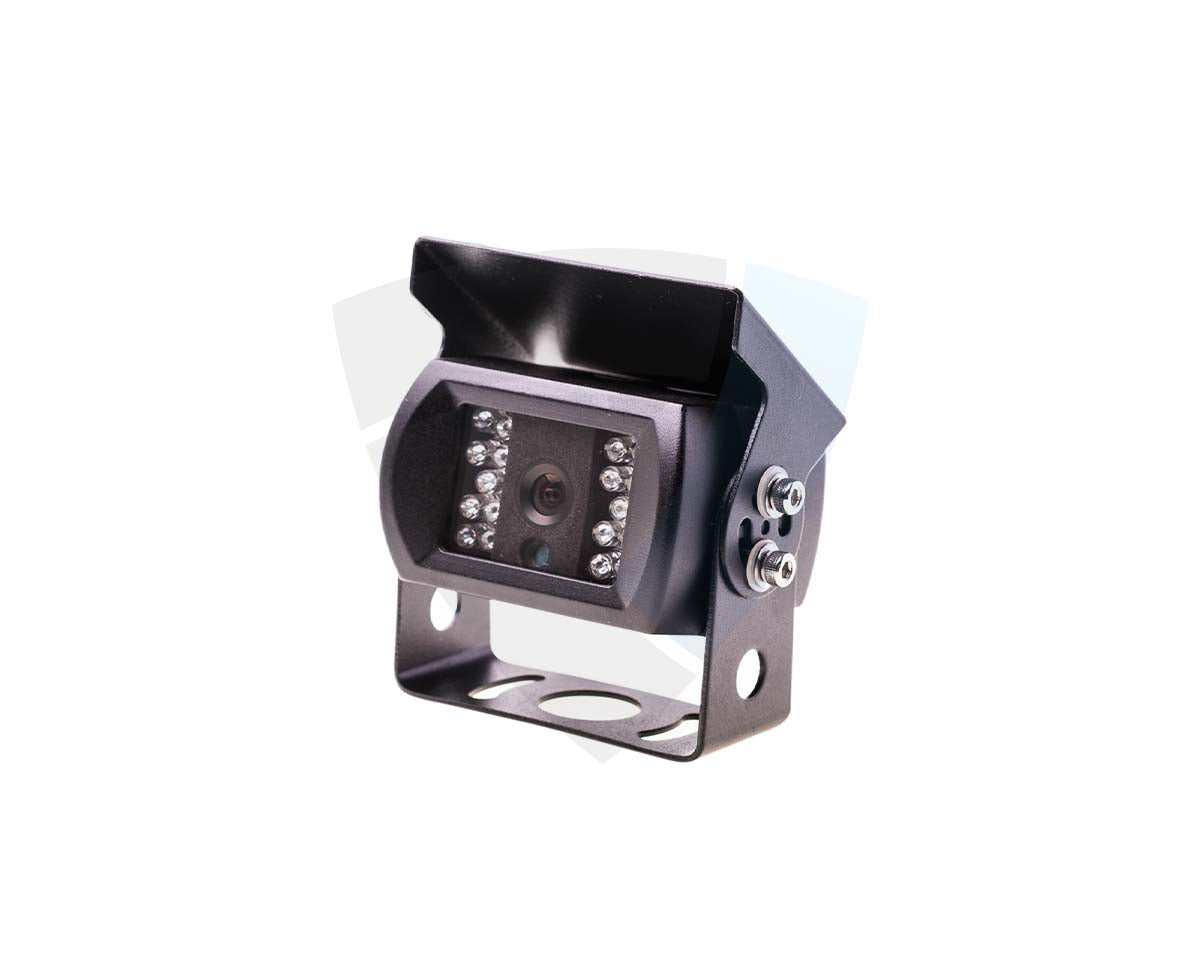

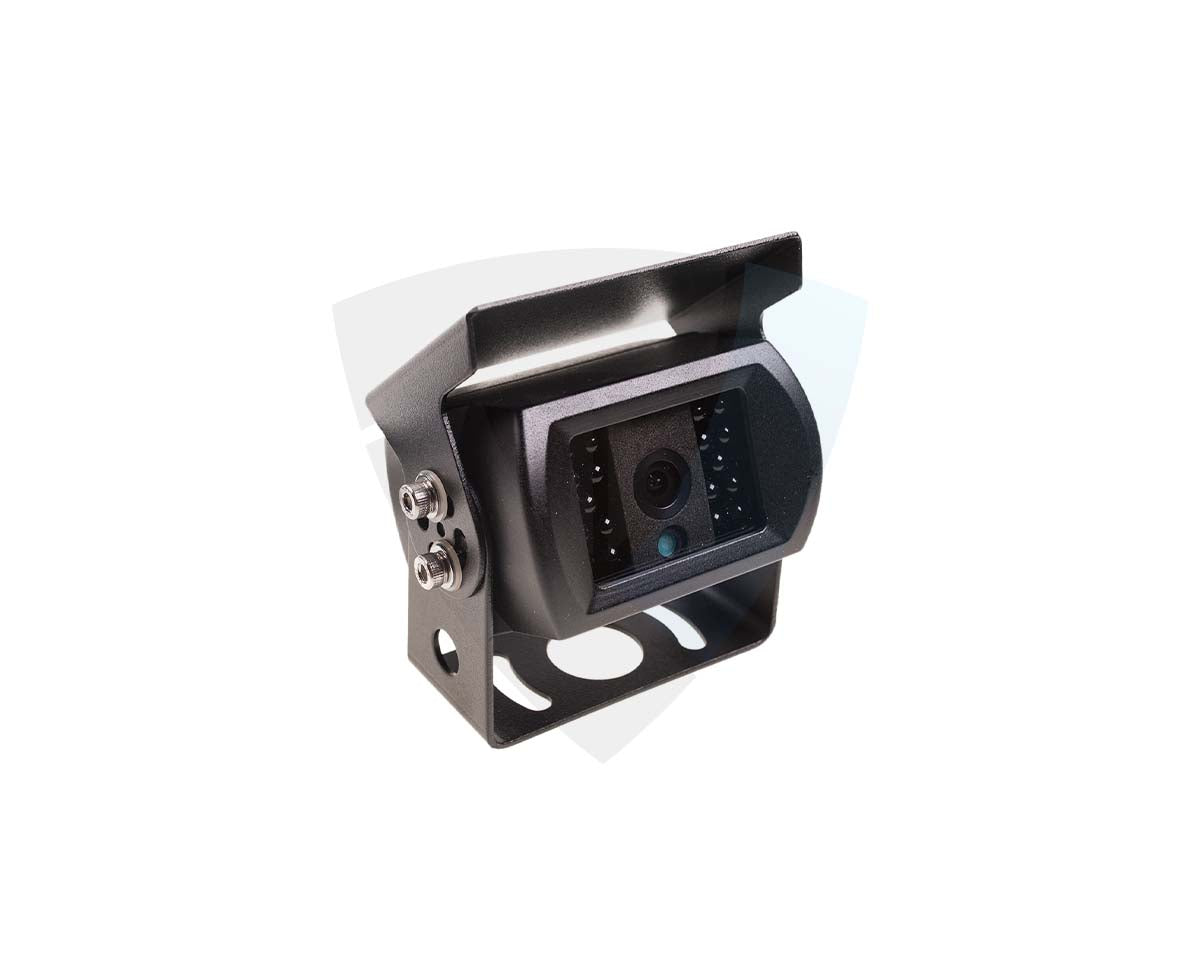

Impact-resistant rearview camera with a short hood, metal housing, night mode, and IR LEDs

A versatile rearview camera with a 120° field of view that makes it easier to maneuver, such as when driving in reverse or parking the vehicle. The camera can be installed in any location of your choice.

Key Features:

• Voltage: 12–24 V

• Field of view: 120°

• Horizontal resolution: 420 TVL

• Protection Class: IP67

• Operating temperature: -10 to +60 ºC

• Connection type: 55 cm cable with a 4-pin connector

Additional features:

• SONY CCD, 1/3-inch color image sensor

• Night vision with 18 LEDs

• Aluminum alloy housing, designed for outdoor installation

Uses:
Rearview cameras for vehicles such as tractors, excavators, trucks, minibuses, and others.

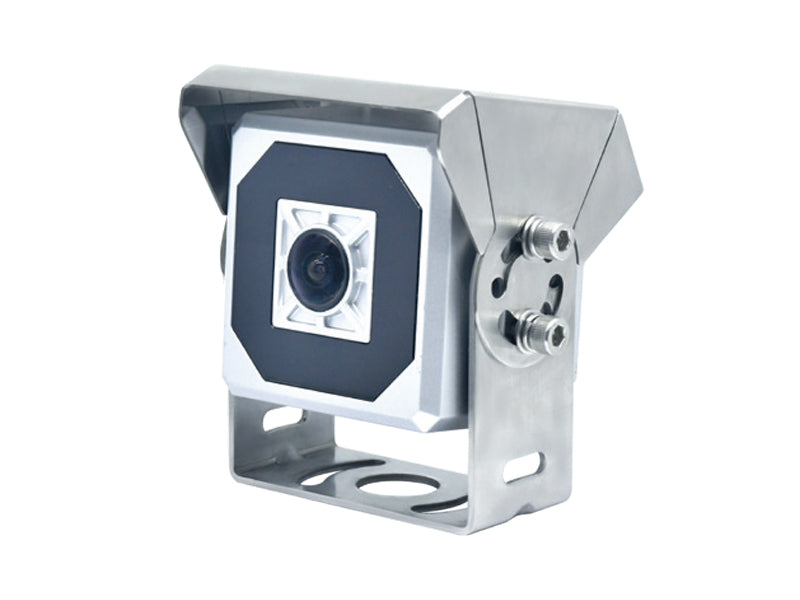

Description:

Full HD AHD 1080p image quality

The NSD heavy-duty camera provides 1920x1080 Full HD resolution and an AHD 1080P video signal. The camera is designed for vehicle rearview and video surveillance systems where a detailed and stable image is required.

Color CMOS Image Sensor

The camera is equipped with a 1/2.9-type color CMOS image sensor and operates in the PAL video system. Internal synchronization ensures stable video signal performance in compatible vehicle camera systems.

150° wide viewing angle

The 1.8 mm lens provides a 150° wide viewing angle, allowing you to see a wide area behind the vehicle. It is particularly well-suited for larger vehicles and machinery where the widest possible field of view is required.

Automatic switching between day and night modes

The camera automatically adjusts to daytime and nighttime lighting conditions. In low light, the image switches from color mode to black-and-white mode, and the minimum illumination required for the camera to operate at night is 0.1 lx.

Nitrogen fill to prevent fogging

The camera body is filled with nitrogen to minimize fogging of the lens and internal camera components caused by humidity and temperature fluctuations. This helps maintain a clear image under challenging operating conditions.

Heavy-duty stainless steel construction

The camera housing is made of stainless steel and is designed for heavy-duty use. Its heavy-duty construction makes the camera suitable for trucks, commercial vehicles, work equipment, and other vehicles used in harsh environmental conditions.

IP69K protection rating

The IP69K protection rating provides a very high level of protection against dust, water, and high-pressure water jets, which is essential for cameras installed on the exterior of a vehicle.

Wide operating temperature range

The camera is designed to operate at temperatures ranging from -20°C to +70°C and at relative humidity levels of up to 95%, ensuring it is suitable for use in a variety of climatic and operating conditions.

4-pin connector

The camera is equipped with a 4-pin connector for connecting to compatible vehicle video surveillance and rearview systems.

Specifications:
Product Type: Heavy-Duty Full HD Rearview Camera
Video Signal: AHD 1080P
Video System: PAL
Resolution: 1920x1080
Image sensor: 1/2.9-type color CMOS
Lens: 1.8 mm
Viewing angle: 150°
Minimum illumination in night mode: 0.1 lx
Day/night mode: automatic
Synchronization: internal
Signal-to-noise ratio: ≥38 dB
Supply voltage: 12V
Connector type: 4-pin
Housing material: stainless steel
Protection rating: IP69K
Operating temperature: -20°C to +70°C
Maximum relative humidity: 95%

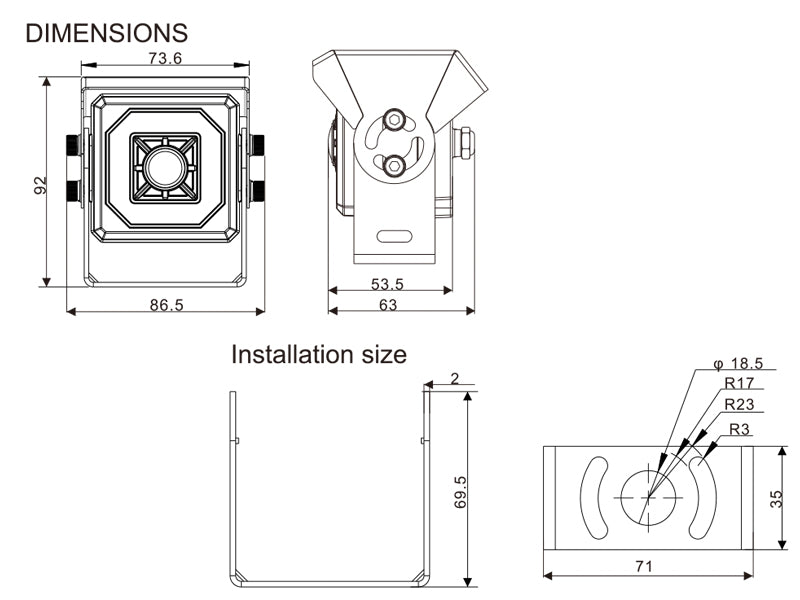

Dimensions: 86.5x63x92mm
Net weight: 0.2kg
Warranty: 2 years

Description

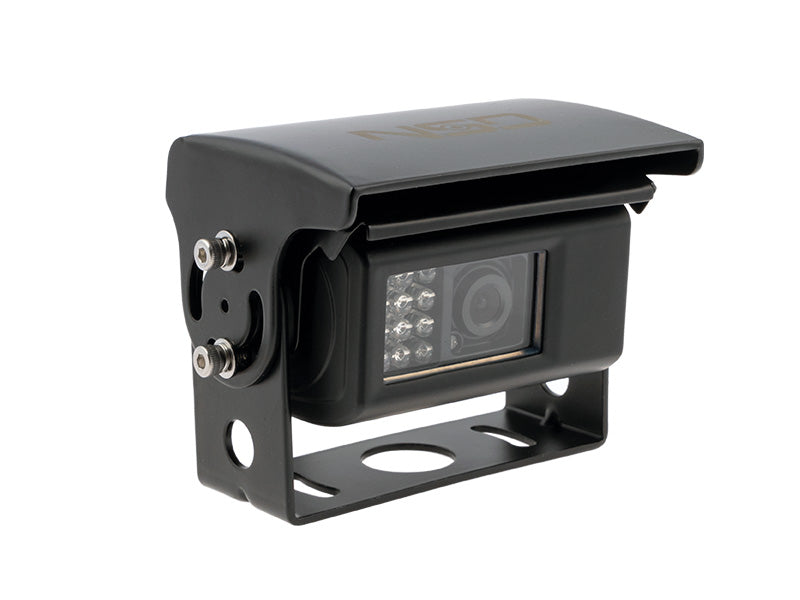

Full HD image quality

The NSD rearview camera offers a resolution of 1920 × 1080 pixels, providing a clear view of the area behind the vehicle. It is suitable for trucks, buses, agricultural machinery, trailers, and other vehicles.

Automatic safety lock

The built-in automatic lens cover closes when the camera is not in use, protecting the lens from dust, dirt, moisture, and physical damage. This helps keep the lens clean and ensures better visibility during extended use.

Wide 110° viewing angle

The 3.6 mm lens provides a 110° field of view, helping you see a wide area behind the vehicle and reduce blind spots when reversing or maneuvering.

Infrared Night Vision

Automatic infrared LEDs ensure visibility in low-light and dark conditions. The camera automatically switches between day and night modes.

Automatic heating and anti-fogging protection

The camera is equipped with an automatic heating system that improves performance at low temperatures. The nitrogen-filled body helps prevent the lens from fogging up and moisture from forming inside the camera.

Normal and Mirror Mode

A magnetic switch located on the back of the camera allows you to select either standard or mirror image mode, depending on the installation location and your needs.

IP69K protection

The IP69K protection rating ensures high resistance to dust, water, and high-pressure washing. The camera is designed for use in harsh weather conditions and demanding operating environments.

Compatible with the NSD camera system

The camera is equipped with a 4-pin connector and is suitable as an additional camera for the NSD Full HD rearview camera kit 1705-00144.

Specifications

Manufacturer: NSD
Product code: 1705-00147
EAN: 6438255011474
Camera type: Full HD rearview camera with automatic defogging
Resolution: 1920 × 1080 pixels
Video signal: AHD 1080p
Lens focal length: 3.6 mm
Viewing angle: 110°
Minimum illumination: 0.1 lx
Night vision: automatic infrared LEDs
Day/night mode: automatic
Image modes: normal and mirror image
Heating: automatic
Anti-fog protection: nitrogen-filled housing
Signal-to-noise ratio: at least 48 dB with automatic gain control disabled
Operating voltage: 11–32 V DC
Rated voltage: 12/24 V
Connector: 4-pin
Protection class: IP69K
Operating temperature: −20 to 70 °C
Maximum relative humidity: 95%
Dimensions: 83 × 78 × 94 mm
Net weight: 300 g
Compatibility: NSD Full HD Rearview Camera Kit 1705-00144

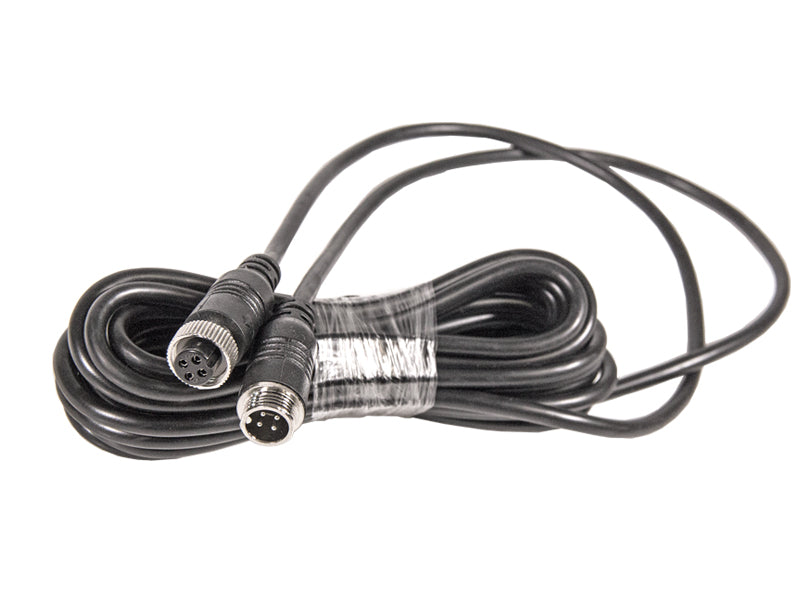

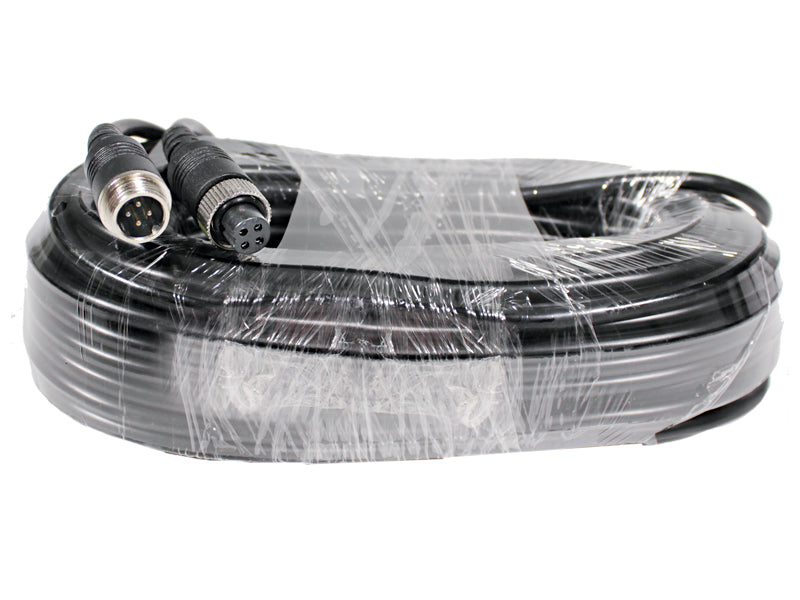

Details: 180 degree perspective, 4-pin, 4x ir-led, 5m IR, mirror image, IP69K. Additional camera for series 1705-00010, -00011, connection cable 1705-00050 (10m), -00051 (15m), -00052 (20m)

Dimensions: 118.5x76x70.5 mm
Voltage: 8-32V

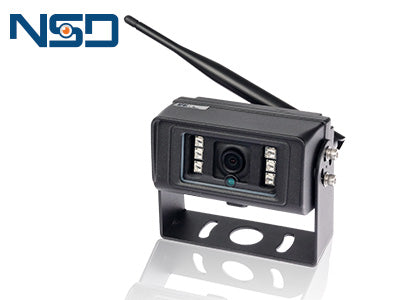

Details: 720p, built-in 2.4GHz transmitter, IR-cut: day/night mode with auto-switching, advanced colour separation, IR-LED, IP69K, 10G, 1/3.6" colour CMOS, 6 IR LED (min 0 lux), horizontal resolution 720 TV lines, viewing angle 120°, 118.5x76x70.5 mm (with mount)

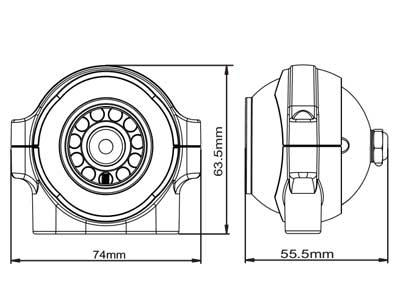

Details: 720p AHD, adjustable, IR-cut: day/night mode with auto switch - improved colour separation, IR-LED, heating, shutter, die-cast aluminium housing, IP69K. 1/3" Sony CMOS, 18 LEDs (min 0.01 lux), 2.8mm - 110° lens, electronic shutter, PAL 1/50 ... 1/100000s, S/N ratio: < 48dB, video output AHD 720p, automatic heating when temperature is below 10°C, operating temperature -40°C ... +60°C RH95% max, 74x63.5x55.5mm (w bracket)

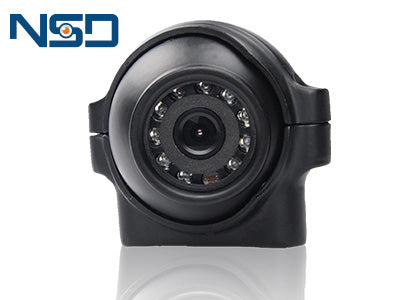

Details: 120 degree perspective, 4 contacts, 5x ir-led, 5m infrared visibility, anti-theft, IP69K. Adjustable camera lens, no heating, no microphone, additional camera for kit 1705-00010, -00011

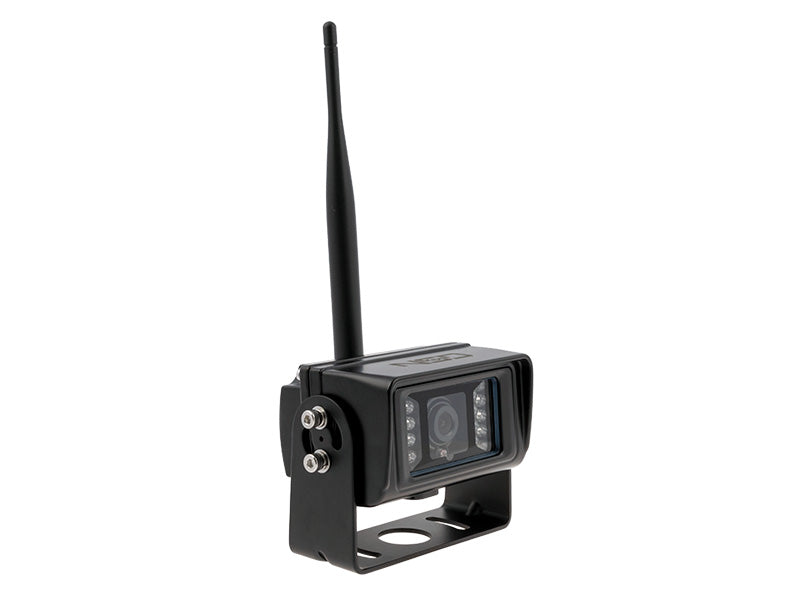

Dimensions: 75.00 x 70.50 x 91.00 mm
Weight: 300g (net 300g)
Type: Full HD wireless
Voltage: 12/24V
IP rating: IP69K
Details: NSD 1080P Full HD 1/2.9" Colour CMOS, 1920x1080 px, Frequency: 2.4GHz, transmission power 18dBm (with power control), anti-fog, nitrogen filled, minimum illumination 0 Lux: ir-led, automatic night/day switch, operating voltage: 11-32V DC, vibration resistance: 5G, IR-CUT -filter: accurate colors, suitable for additional camera set 1705-00145
Warranty (months): 12

4-pin cable, LEDs, IP69K. 1/3" Sharp CCD. 700 TV lines, minimum illumination 0,1 lux, mirror option, operation: -20°C ... +60°C, 270g

Information: for van, with microphone, 150 degree view, 10m night vision, rear view, IP69K

Citroen Jumpy, Peugeot Expert, Toyota Proace 07-16. 1/3" CCD, with LEDs, lens: 2.8 mm - 120°, shutter speed 1/60 ... 1/100000s, S/N ratio ≥48dB, PAL (500x582px), automatic backlight compensation (BLC), automatic white balance, 4P lock connector, IP69K, 10G, works: -30°C ... +70°C RH95%, storage: -40°C ... +80°C RH95%, FCC, CE, E-mark, ISO9001, TS16949 , RoHS

Information for Fiat Ducato, Peugeot Boxer, Citroen Jumper 2006-, brake lights OE: 1340670080. 1/3" colour CMOS, with LEDs: min 0lux, lens: 2.8mm - 120°, shutter speed 1/60 ... 1 /100000s, S/N ratio ≥48dB, PAL (500x582px), automatic backlight compensation, automatic white balance, 4P connector, IP69K, 10G, operation: -30°C ... +70°C RH95%, storage: -40°C ... +80°C RH95%, FCC - CE/E - ISO9001 - TS16984 - RoHS, cable 400mm

Ford Transit 2015-. 1/3" colour CCD, with LEDs: min 0lux, lens: 2.8 mm - 120°, shutter speed 1/60 ... 1/100000s, S/N ratio ≥48 dB, PAL (500x582px), auto backlight compensation, auto white balance, 4P connector, IP69K, 10G, works: -30°C ... +70°C RH95%, storage: -40°C ... +80°C RH95%, FCC - CE/E - ISO9001 - TS16984 - RoHS, cable 380mm

Information: Ford Transit Connect 2014-2017. 1/3" CMOS, w/o ir-leds, lens: 2.8mm - 170°, 4P connector, IP69K, 10G, operate: -30°C ... +70°C RH95%, storage: -40°C ... +80°C RH95%, FCC - CE/E - ISO9001 - RoHS

Information: Ford Transit Custom 05.16-w. 16.06. 1/3" colour CCD, with LEDs: min 0lux, lens: 2.8 mm - 120°, shutter speed 1/60 ... 1/100000s, S/N ratio ≥48 dB, PAL (500x582px), auto backlight compensation, auto white balance, 4P connector, IP69K, 10G, works: -30°C ... +70°C RH95%, storage: -40°C ... +80°C RH95%, FCC - CE/E - ISO9001 - TS16984 - RoHS, cable 370mm

Ford Transit Custom 2012-2015, brake lights OE: 1816872. 1/3" colour CCD, with LEDs: min 0lux, lens: 2.8mm - 120°, shutter speed 1/60 ... 1/100000s, S/N ratio ≥48dB, PAL (500x582px), audio available, automatic backlight compensation, automatic white balance, 4P connector, IP69K, 10G, operation: -30°C ... +70°C RH95%, storage: -40°C ... +80°C RH95%, FCC - CE/E - ISO9001 - TS16984 - RoHS, cable 400mm

Information: Iveco Daily 2011-2014. 1/3" CMOS, without LEDs, lens: 2.8 mm - Dimensions: 251.4x33mm
Weight: 1.50 kg (net 1.50 kg)
Voltage: 12V
Information: Iveco Daily 2011-2014. 1/3" CMOS, no LEDs, lens: 2.8 mm - 170°, shutter speed 1/60 ... 1/100000s, S/N ratio ≥48 dB, PAL (500x582px), automatic backlight compensation, automatic white balance , 4P connector, IP69K, 10G, works: -30°C ... +70°C RH95%, storage: -40°C ... +80°C RH95%, FCC - CE/E - ISO9001 - TS16984 - RoHS, cable 680mm170°, shutter speed 1/60 ... 1/100000s, S/N ratio ≥48 dB, PAL (500x582px), automatic backlight compensation, automatic white balance, 4P connector, IP69K, 10G, works: -30°C ... +70°C RH95%, storage: -40°C ... +80°C RH95%, FCC - CE/E - ISO9001 - TS16984 - RoHS, cable 680mm
