Parking system with 2 cameras and 177.8 mm monitor, 1 camera, 15 m cable (TT.977MS)

Detailed product description

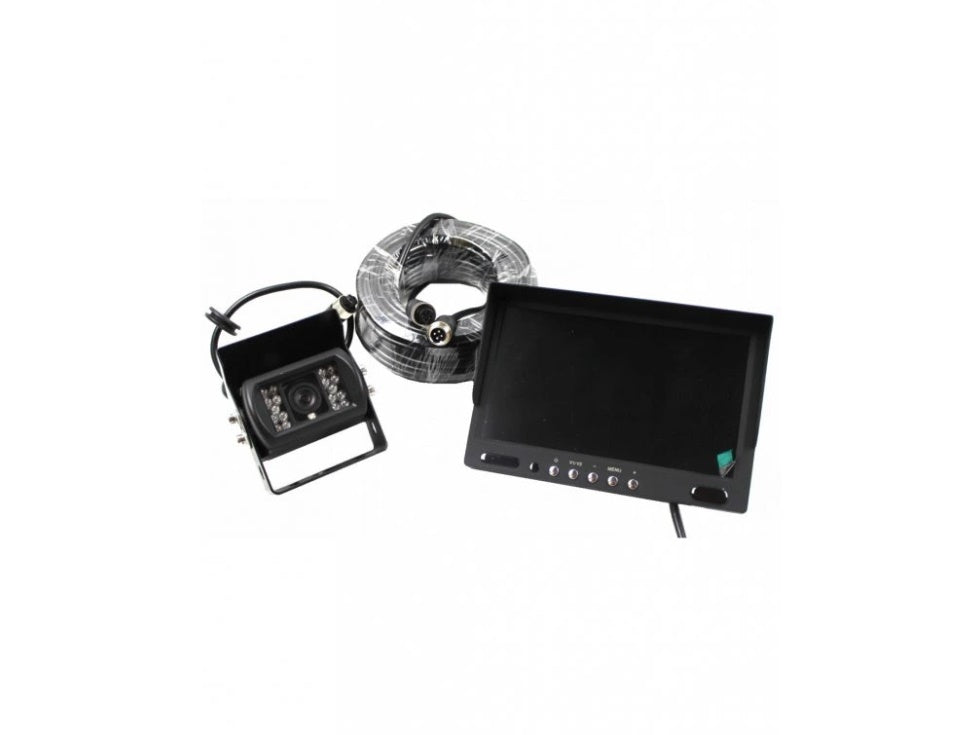

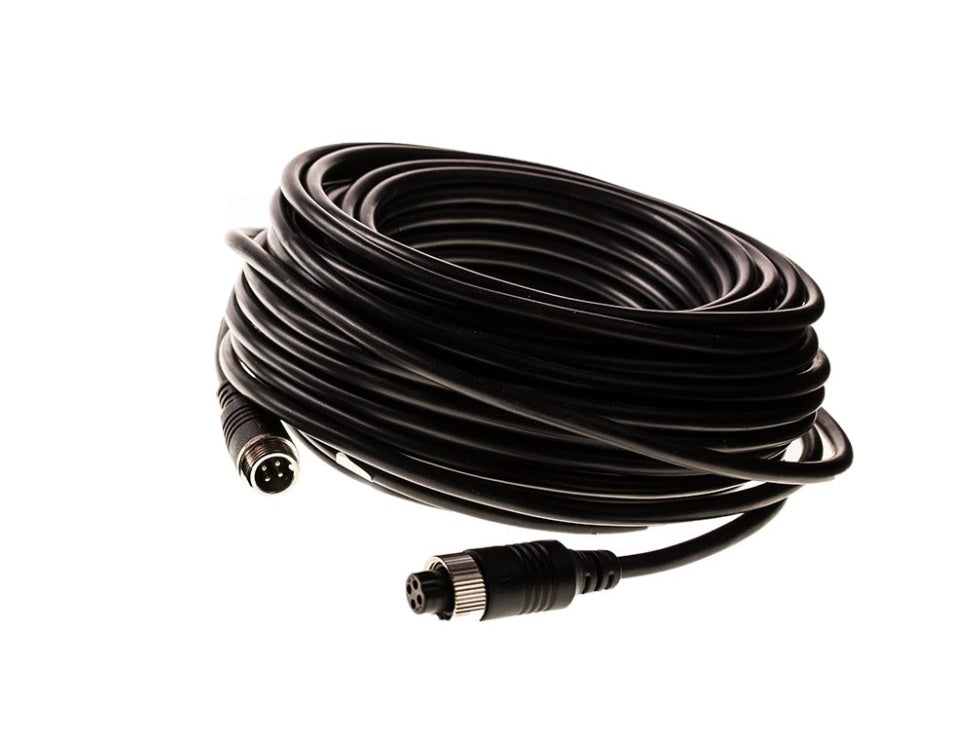

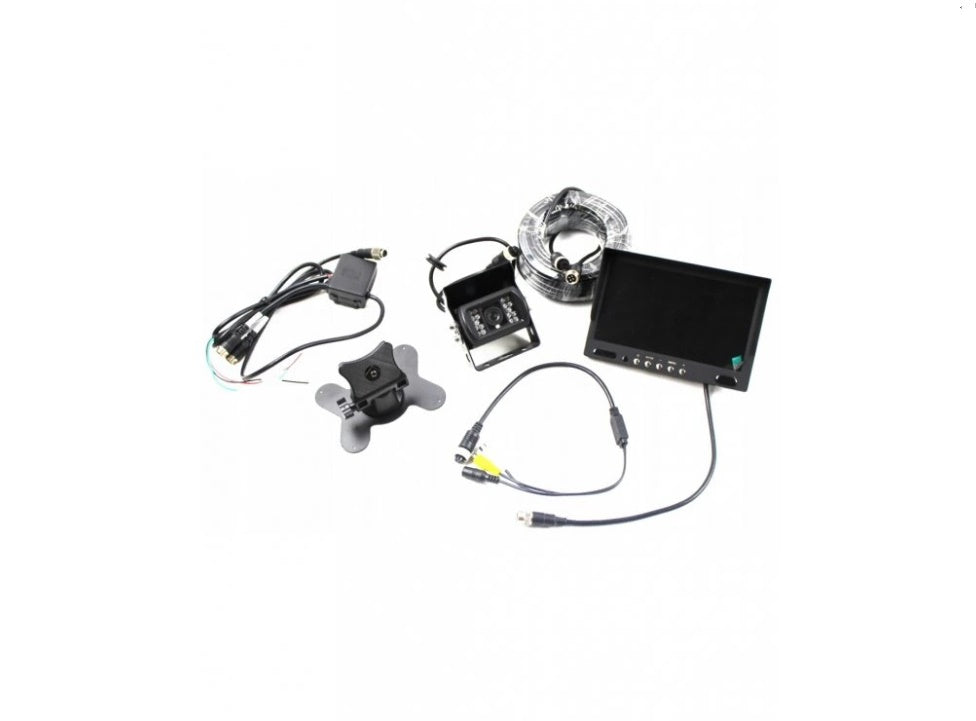

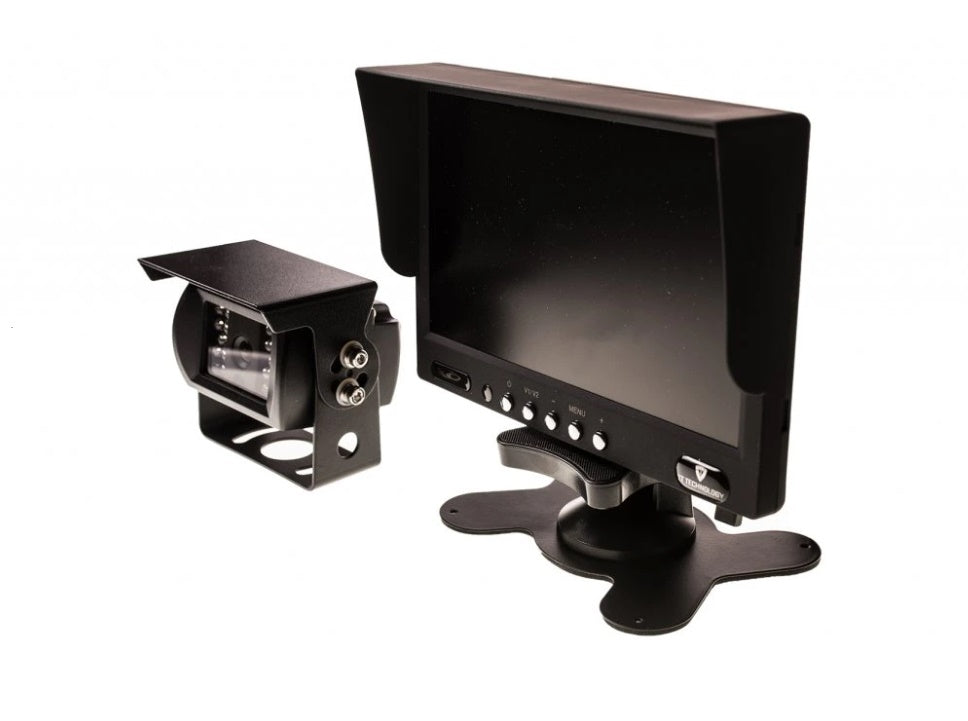

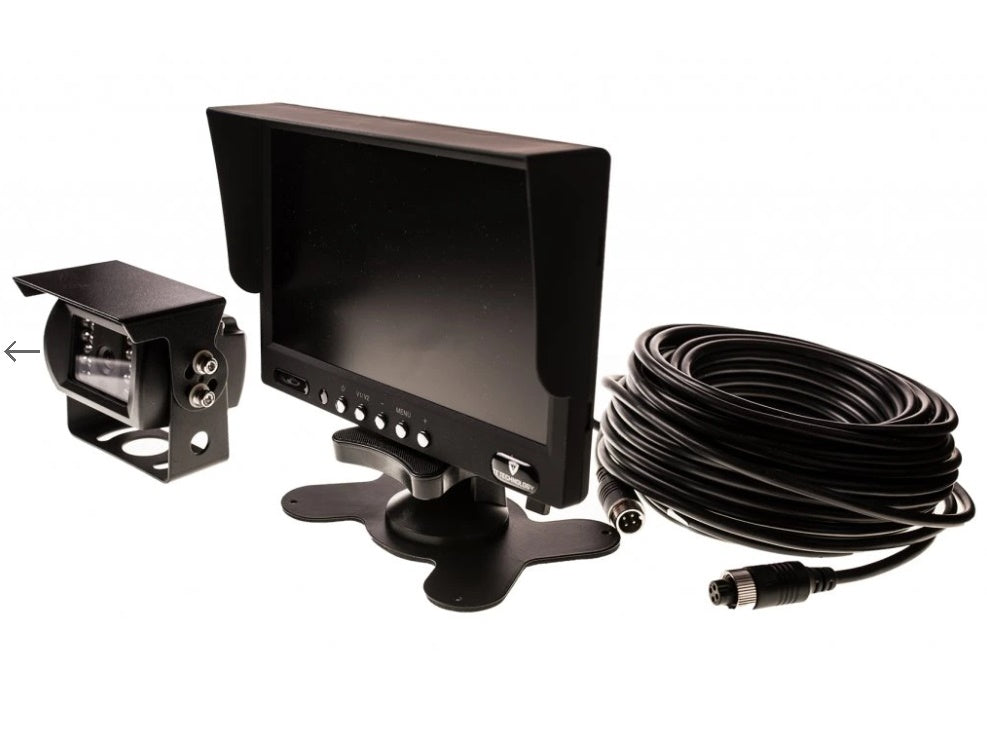

Includes 7" colour monitor with simultaneous dual-camera capability and 800x480 resolution + Parking camera with 120 degree viewing angle and 18 infrared LEDs for night vision + 15 m 4-pin connecting cable + remote control.

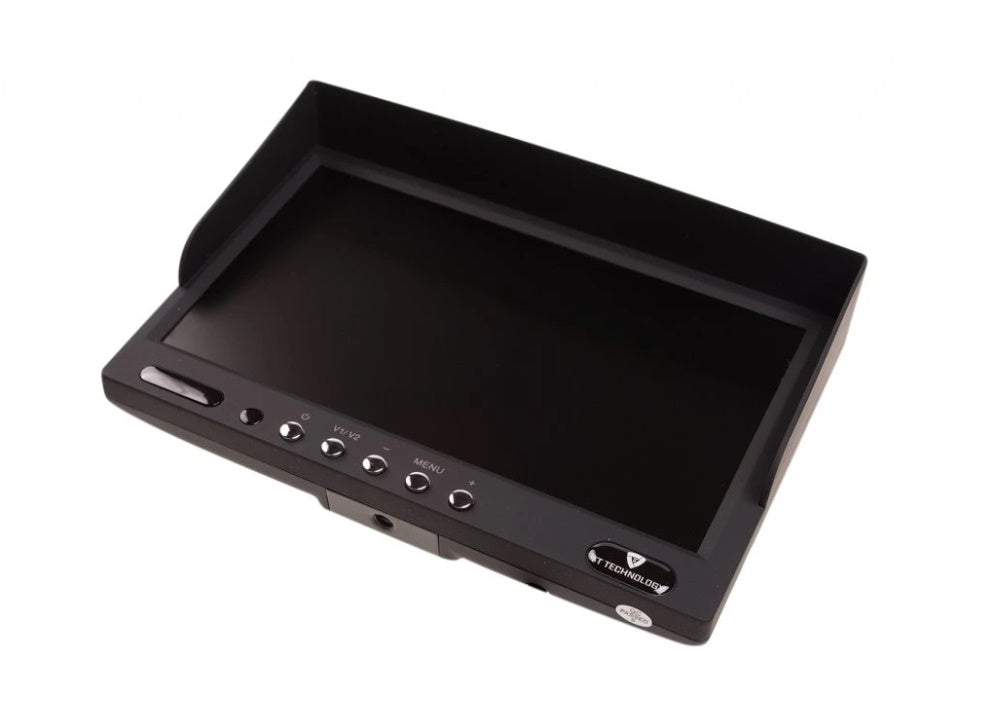

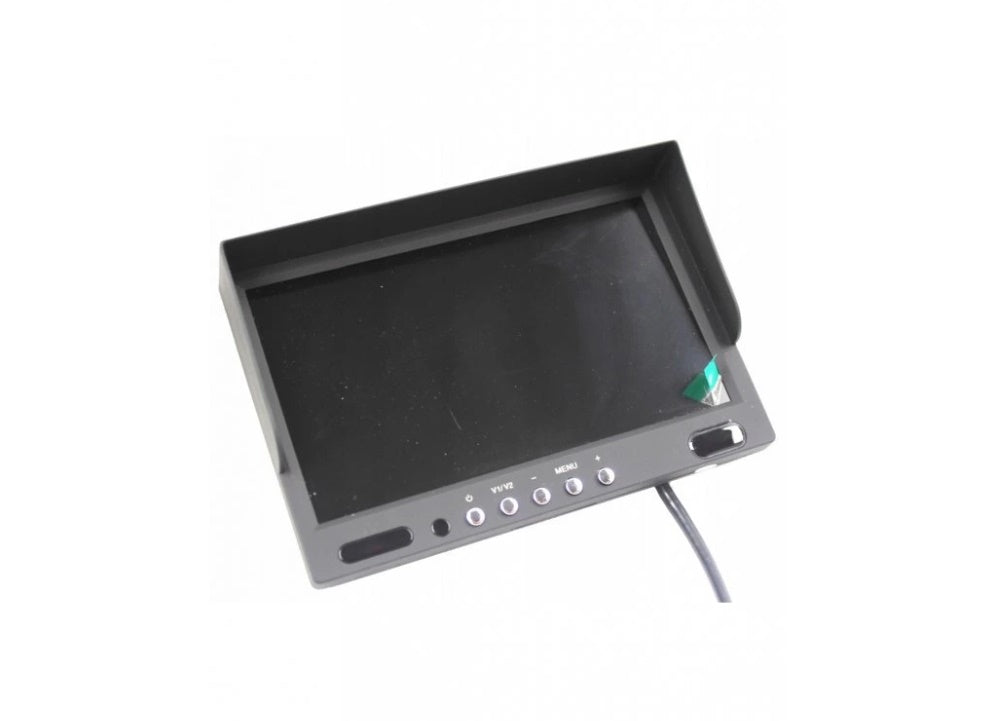

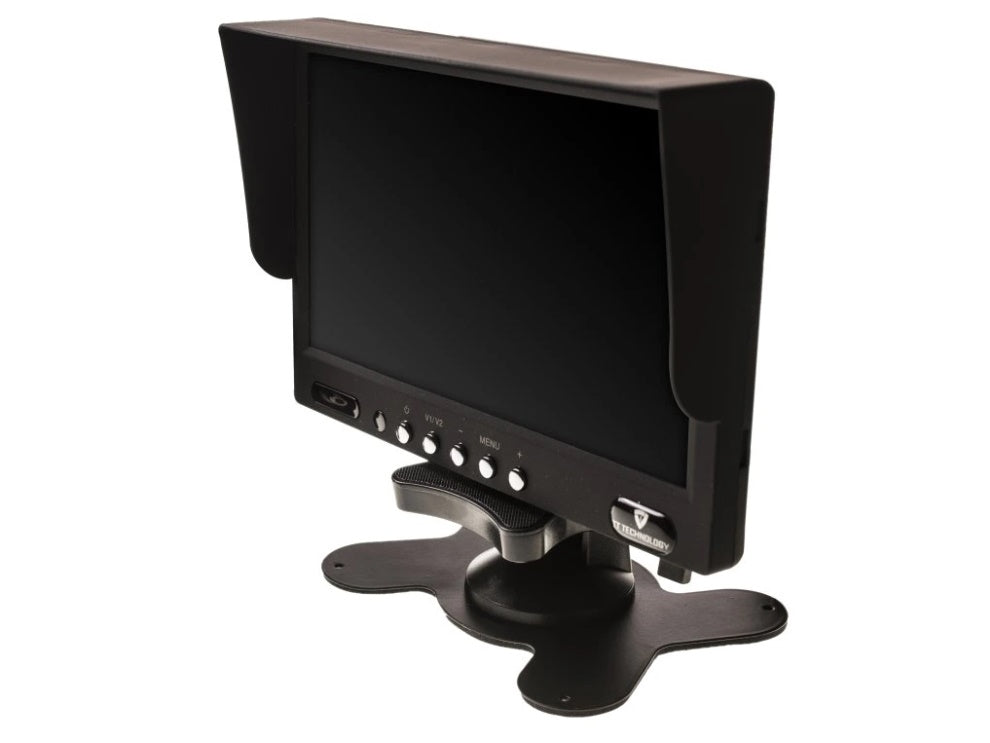

Monitor with possibility to connect two cameras simultaneously. 7" screen with 800x480 resolution.

Technical specifications:

System: PAL/NTSC
Power supply: 12-24 V
Resolution: 800 RGB x 480
Format: 16:9
Viewing angle: 120°
Brightness: 300 cd/m²
Dimensions: 172 x 115 x 22 mm
Remote control

Camera specifications:

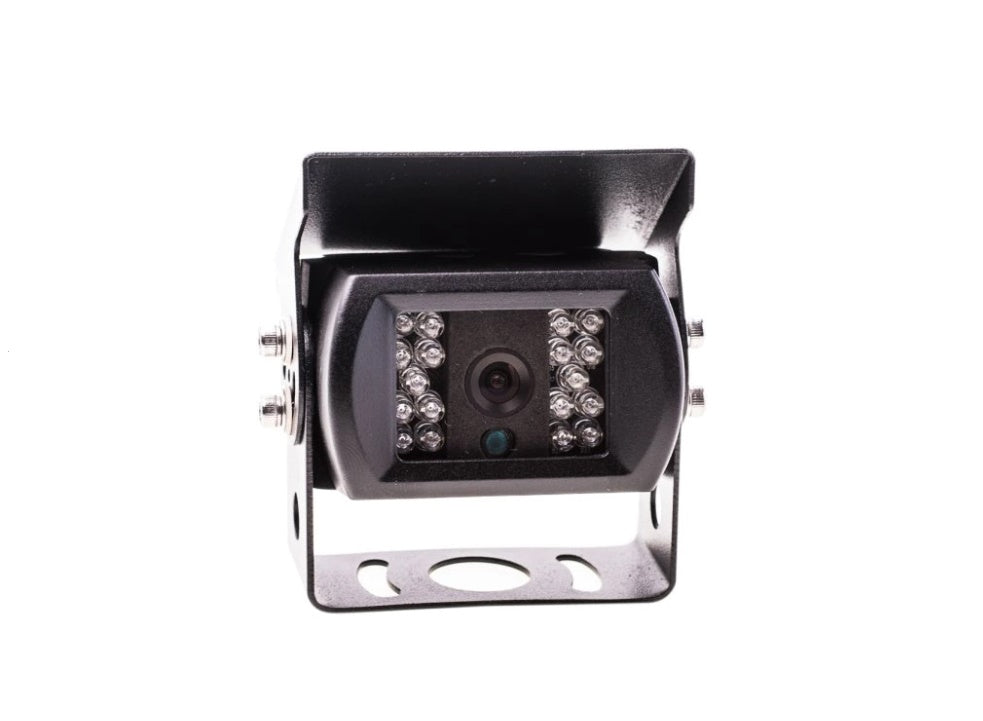

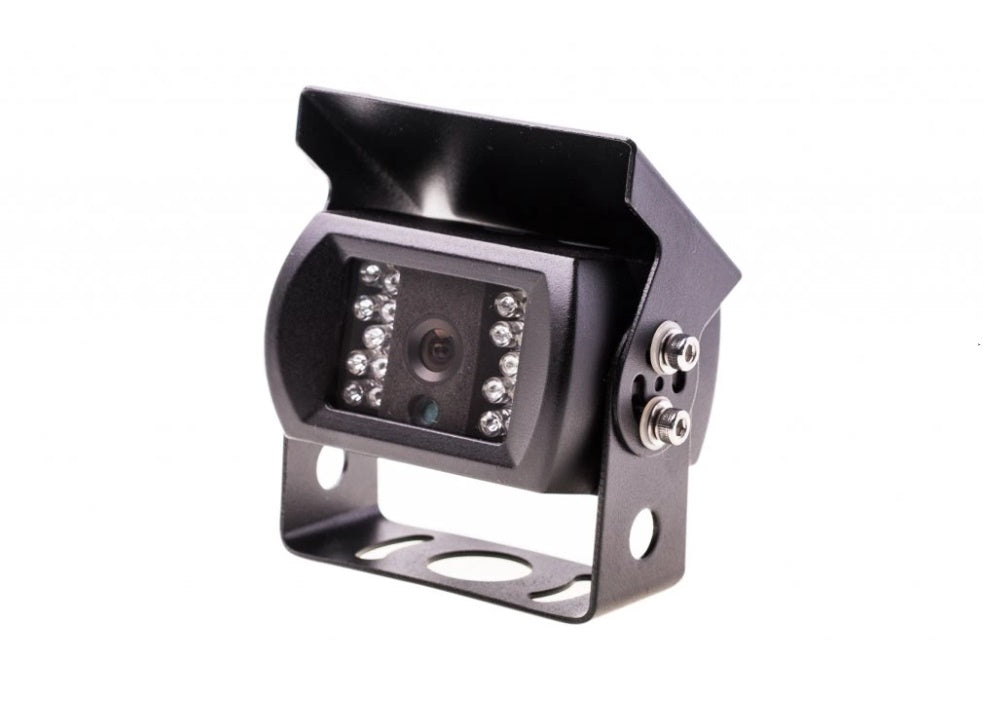

The parking camera with 120° viewing angle and 18 infrared LEDs for night vision is mainly designed for large vehicles (trucks, buses, trailers, agricultural machinery, campers, etc.). Ideal for parking manoeuvres, providing a view in reverse. The camera can be connected to an LCD monitor via an RCA cable or this cable can be replaced by a video transmission device (cable not included). The camera is dust, water and shockproof. The camera canopy can be removed. The camera is not equipped with auxiliary parking lines.

Resolution: 512 x 492
Horizontal lines: 420 TV lines
System: PAL/NTSC
Field of view: 120°
Power supply: 12-24 V
Power consumption: 1,3 W
Operating temperature: -30 to +70 °C
IP class: IP67, outdoor
Dimensions: 80 x 54 x 80 mm

Technical specifications and pictures are provided by the manufacturer and are for information only!

Additional specifications
Category: Rear View Cameras
Weight: 1,6 kg
EAN: 5904730462228
Screen: 7 inch
System: PAL/NTSC
Resolution: 800 RGB x 480
Brightness: 300 cd/m²
Power: 12-24 V
Dimensions: 172 x 115 x 22 mm
Camera Resolution: 512 x 492
Viewing Angle: 120°
