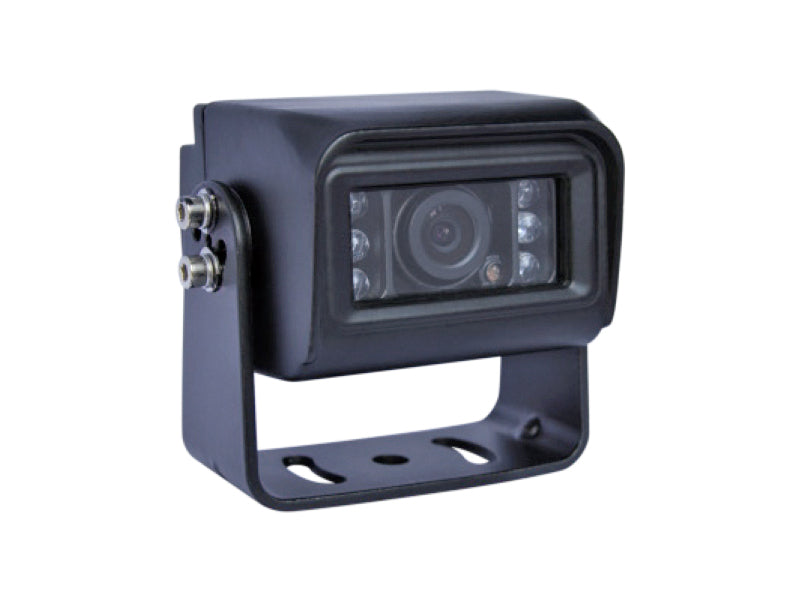

NSD Full HD Rearview Camera, AHD 1080P, 1920x1080, 12V, 1/2.9" CMOS, 2.8mm, 100°, 6 IR LEDs, 61.4x57.5x65.6mm

Description:

Full HD AHD 1080p image quality

The NSD camera provides Full HD 1920x1080 resolution and uses AHD 1080P video signal technology, providing detailed and clear images for vehicle backup and surveillance systems.

1/2.9" color CMOS sensor

The camera is equipped with a 1/2.9" color CMOS image sensor and operates on the PAL system. The combination of the sensor and Full HD resolution ensures high-quality video transmission to a compatible monitor or a vehicle video surveillance system.

100° viewing angle

The 2.8 mm lens provides a 100° field of view, allowing you to see a wide area behind the vehicle. The camera is suitable for use as an auxiliary or rearview camera in vehicles.

Night vision with 6 infrared LEDs

The camera is equipped with 6 infrared LEDs for operation in low-light conditions. The minimum illumination level is 0.01 lx, and automatic day/night mode switching adapts the camera's operation to changing lighting conditions.

Protection against lens fogging

The camera body is filled with nitrogen to reduce the risk of the internal optics fogging up due to changes in temperature and humidity. This helps maintain a clear image under various operating conditions.

Automatic Exposure Control

The electronic shutter's operating range in PAL mode is from 1/50 to 1/100,000 of a second. The camera provides automatic scanning and adapts to changing lighting conditions.

Durable aluminum alloy housing

The camera housing is made of an aluminum alloy, ensuring a durable design for use in vehicle camera systems. The operating temperature range is from -20°C to +70°C, and the maximum allowable relative humidity is 95%.

Compact size

The camera measures 61.4 x 57.5 x 65.6 mm, allowing for compact installation in various types of vehicles. The camera operates on a 12V DC power supply.

2-year warranty

This product comes with a 2-year warranty.

Specifications:
Product Type: Full HD Rearview Camera
Video Signal: AHD 1080P
Video System: PAL
Resolution: 1920x1080
Image sensor: 1/2.9" color CMOS
Lens: 2.8mm
Viewing angle: 100°
Minimum illumination: 0.01 lx
Infrared LEDs: 6
Day/Night mode: automatic
Electronic shutter speed: 1/50–1/100,000 s
Signal-to-noise ratio: <48 dB
Supply voltage: 12 V DC
Housing material: aluminum alloy
Operating temperature: -20°C to +70°C
Maximum relative humidity: 95%

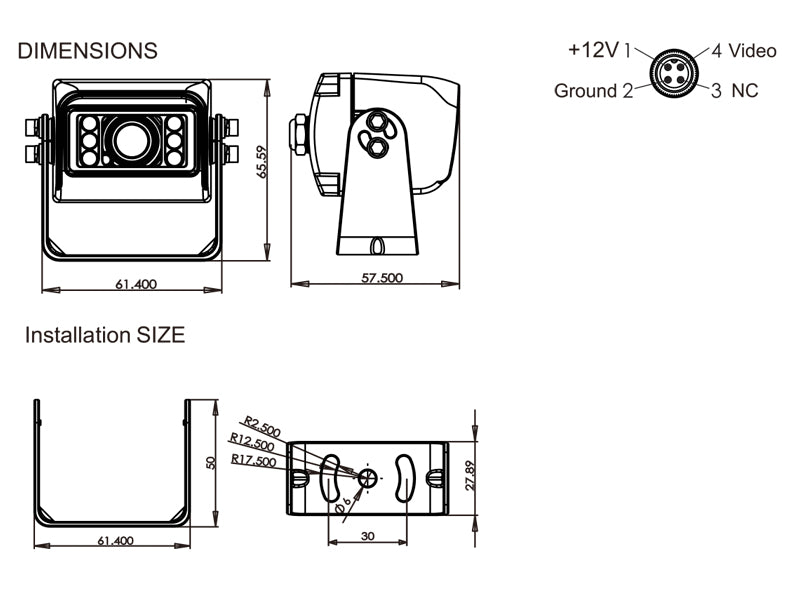

Dimensions: 61.4 x 57.5 x 65.6 mm
Warranty: 2 years
