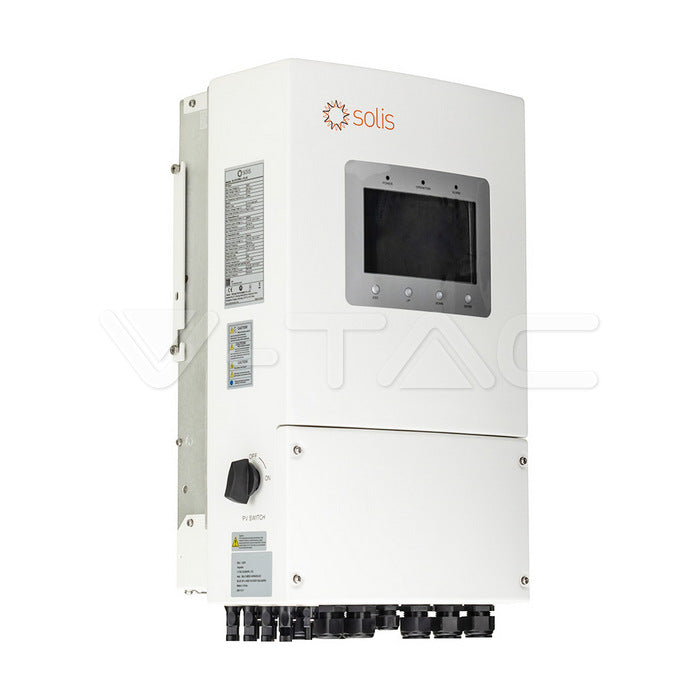

Inverters

Technical specification

General information

Electrical data
Power
Maximum usable solar panel input power: 12.8 kW
AC grid (output): rated power: 8 kW

Current
Maximum solar panel input current: 32 A / 32 A
Maximum short-circuit current at solar panel input: 40 A / 40 A
Maximum charge/discharge current: 190 V
Maximum AC output current (grid side): 36.4 A / 34.8 A
Maximum input current (grid side): 50 A

Voltage
Maximum solar panel input voltage: 500 V
MPPT voltage range: 90-435 V
Switch-on voltage: 90 V
Rated grid voltage: 220 V / 230 V

Frequency
Rated grid frequency: 50 Hz / 60 Hz

Power factor

0.99 (0.8 control - 0.8 delay)

Ruggedness
IP Class: IP66

Operating conditions
Temperature range: -40 to +60℃

Dimensions
Dimensions (L x W x H): 335 × 560 × 253 mm

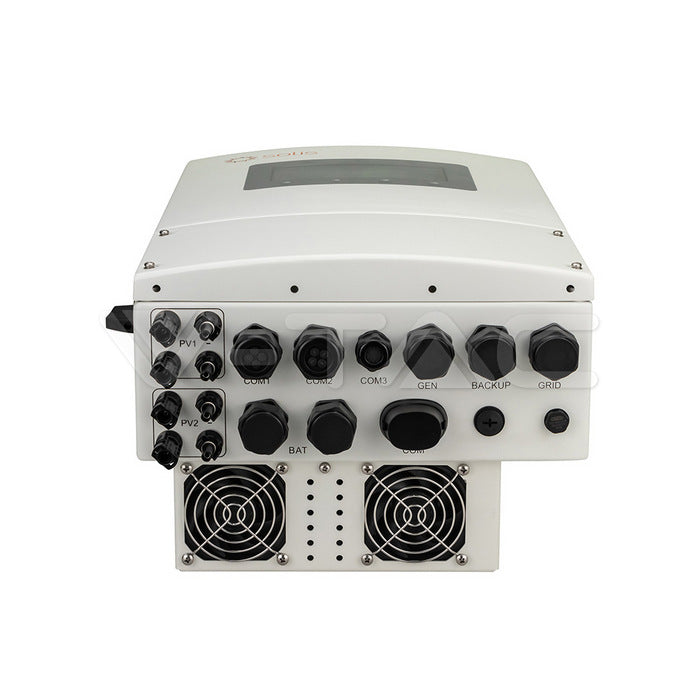

Product details
Order Code: 12291
Product Code: S6-EH1P8K-L-PLUS
Number of Units per Pack: 1

Additional information
Release date: 4 February 2025
Brand: V-TAC
Warranty: 10 years

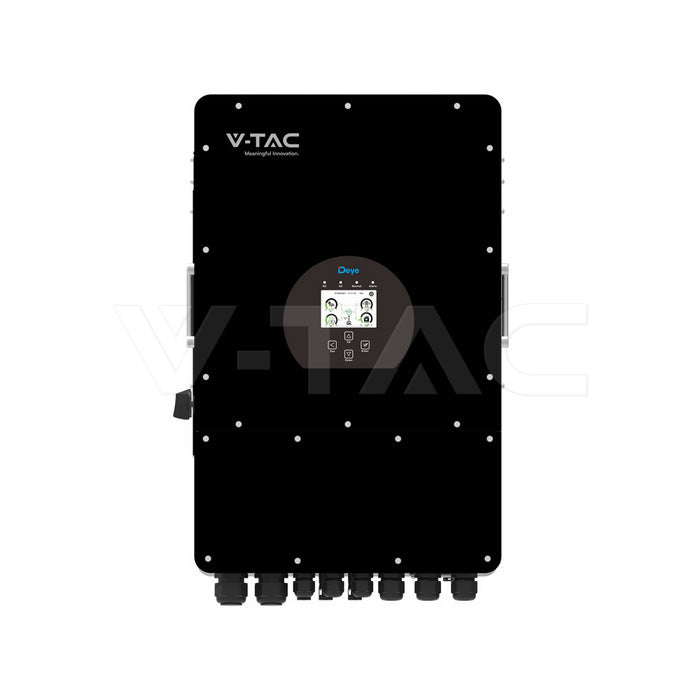

Specification

General Information

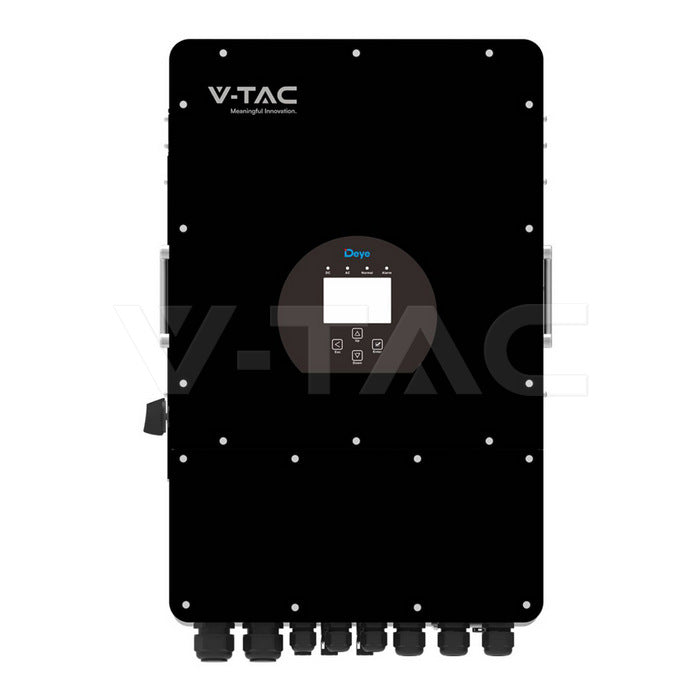

Brand: Deye
Model/Product Code: SUN-12K-SG04LP3-EU
Order Code: 12308
Release Date: 13.05.2025
Warranty: 10 years
Weight: 38 kg
Housing Colour: Black

Electrical data
Maximum PV input power: 24 000 W
Maximum PV input power: 18 000 W
Rated active AC input/output power: 12 000 W
Max. PV input current: 26 A + 13 A
Max. PV short-circuit current: 34 A + 17 A
Rated AC input/output current: 18.2 A / 17.4 A
Max. AC Input/Output Current: 20 A / 19.1 A
Max. 45 A

Voltage data
Max. PV input voltage: 800 V
Switch-on voltage: 160 V
MPPT voltage range: 200-650 V
Rated PV input voltage: 550 V

Frequency
Rated grid frequency/range: 50 Hz (45-55 Hz), 60 Hz (55-65 Hz)
Power factor: 0,8 (conducting) to 0,8 (lagging)
Phase: Three-phase (380 V AC)

Options
Protection class: IP65
Max. 10 inverters for parallel operation (mains or stand-alone)
Supports multiple batteries connected in parallel

Operating conditions
Temperature range: -40 °C to +60 °C (derating occurs at >45 °C)

Dimensions
Size (W × H × D): 422 × 658 × 254 mm

ChatGPT says:

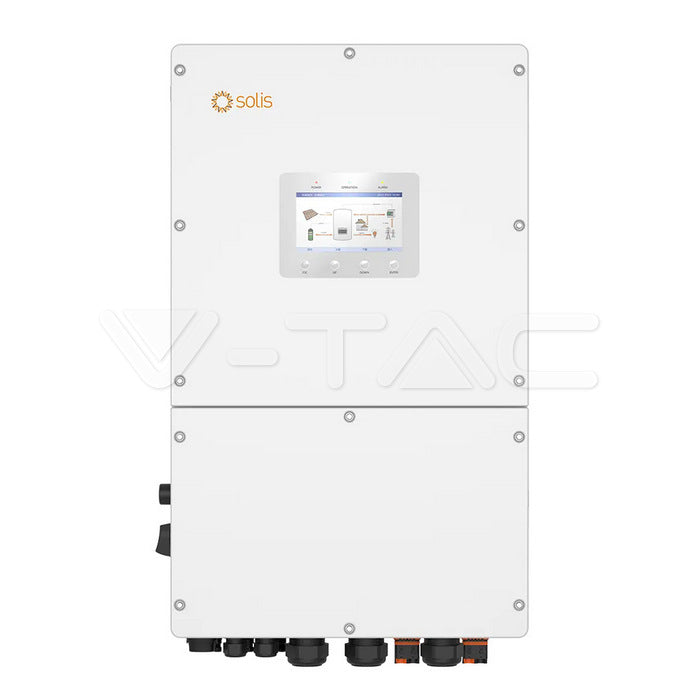

Technical specification

General information

Electrical data
Power
Maximum usable input power of solar panels: 96 kW
AC grid (output): rated power: 50 kW

Current
Maximum solar panel input current: 4 × 40 A
Maximum short-circuit current at solar panel input: 4 × 60 A
Maximum charge/discharge current: 70 A × 2
Maximum AC output current (grid side): 76 A / 72.2 A

Voltage
Maximum solar panel input voltage: 1000 V
MPPT voltage range: 150-850 V
Switch-on voltage: 180 V
Rated grid voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V

Frequency
Rated mains frequency: 50 Hz / 60 Hz

Power factor

0.99 (0.8 control - 0.8 delay)

Ruggedness
IP Class: IP66

Operating conditions
Temperature range: -40 to +60℃

Dimensions
Dimensions (L x W x H): 530 × 880 × 290 mm

Product details
Order Code: 12294
Product Code: S6-EH3P50K-H
Number of Units per Pack: 1

Additional information
Release date: 4 February 2025
Brand: V-TAC
Warranty: 10 years

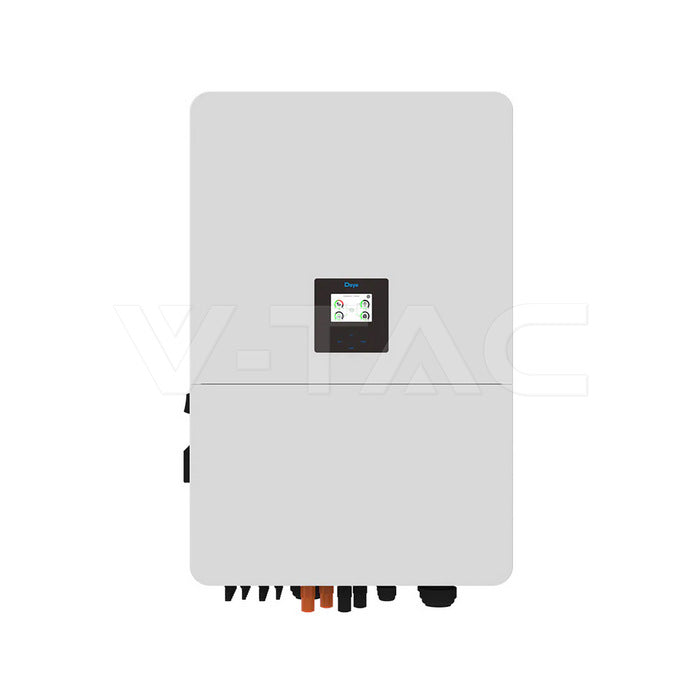

Technical specifications

General information

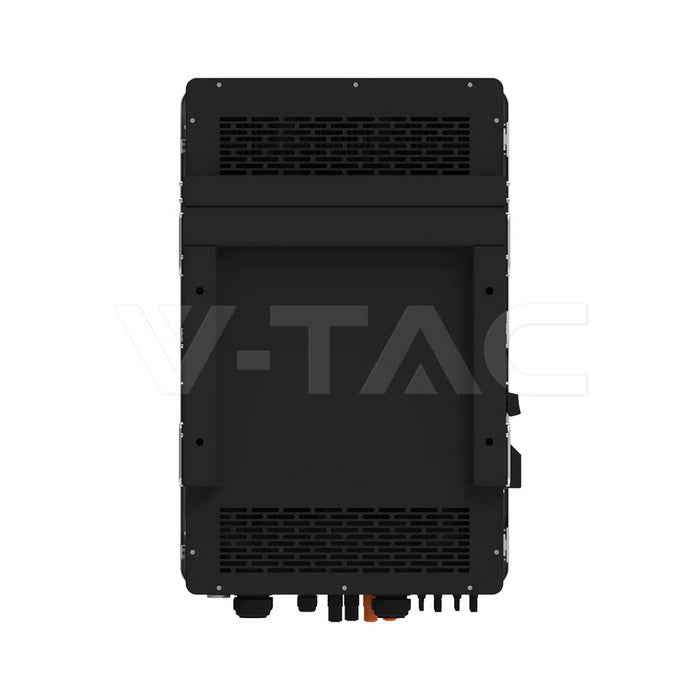

• Modelis: SUN-80K-SG02HP3-EU-EM6

• Brand: V-TAC

• Order Code: 12322

• Release date: 27.05.25

• Warranty: 5 or 10 years

Electrodata

• Maximum solar panel access power: 160 000 W

• Maximum solar panel input power: 128 000 W

• Rated active AC input/output power: 80 000 W

Current

• Maximum operating PV input current: 6 x 36 A (36+36+36+36+36+36 A)

• Maximum input short-circuit current: 6 x 54 A (54+54+54+54+54+54+54 A)

• Rated AC input/output current: 121.3/115.9 A

• Maximum AC input/output current: 133.4/127.6 A

• Maximum continuous AC inrush current: 200 A

Voltage

• Maximum PV input voltage: 1000 V

• Starting voltage: 180 V

• MPPT voltage range: 150-850 V

• Rated PV input voltage: 650 V

Frequency

• 50/60 Hz

Power factor

• 0.8 front to 0.8 rear

Resistance class

• IP65

Working conditions

• Temperature range: -40 to 60 °C (power reduction above 45 °C)

Additional information

• Supports up to 10 units in parallel for both mains connection and stand-alone operation

• Supports multiple batteries in parallel

• Ensures that the inverter functions at an appropriate rate and there's zero reverse feed going into the grid
• Excess power is exported to the utility/electric grid, and when the required load is greater than the generated power, the discrepancy is supplied by the grid
• IP65 rated enclosure ensures protection from moisture and dust
• Natural heat dissipation means no fan is required resulting to low noise operation
• Easily check the inverter status - if the inverter is functioning normally on-grid, a fault is detected, etc. User specifications can be set via the controls
• Tested and IEC certified to meet international standards. Includes a five (5) year warranty from the date of purchase

Registered on the Distribution Network as V-TAC Exports Limited VT-6603110

• Ensures that the inverter functions at an appropriate rate and there's zero reverse feed going into the grid
• Excess power is exported to the utility/electric grid, and when the required load is greater than the generated power, the discrepancy is supplied by the grid
• IP65 rated enclosure ensures protection from moisture and dust
• Natural heat dissipation means no fan is required resulting to low noise operation
• Easily detects grid-related faults
• Tested and IEC certified to meet international standards. Includes a five (5) year warranty from the date of purchase

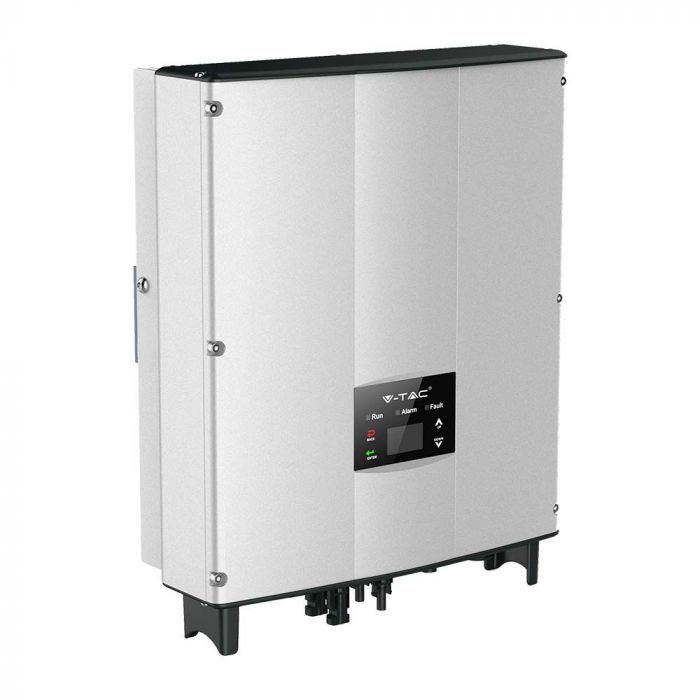

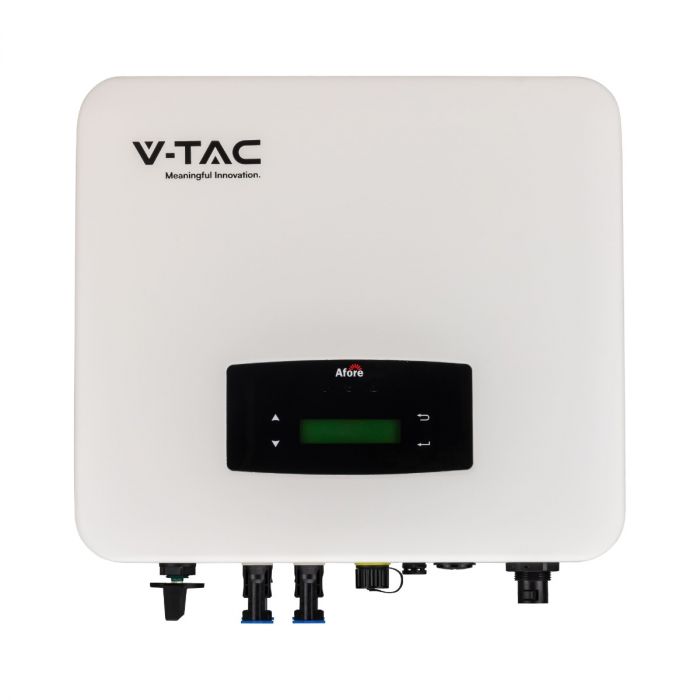

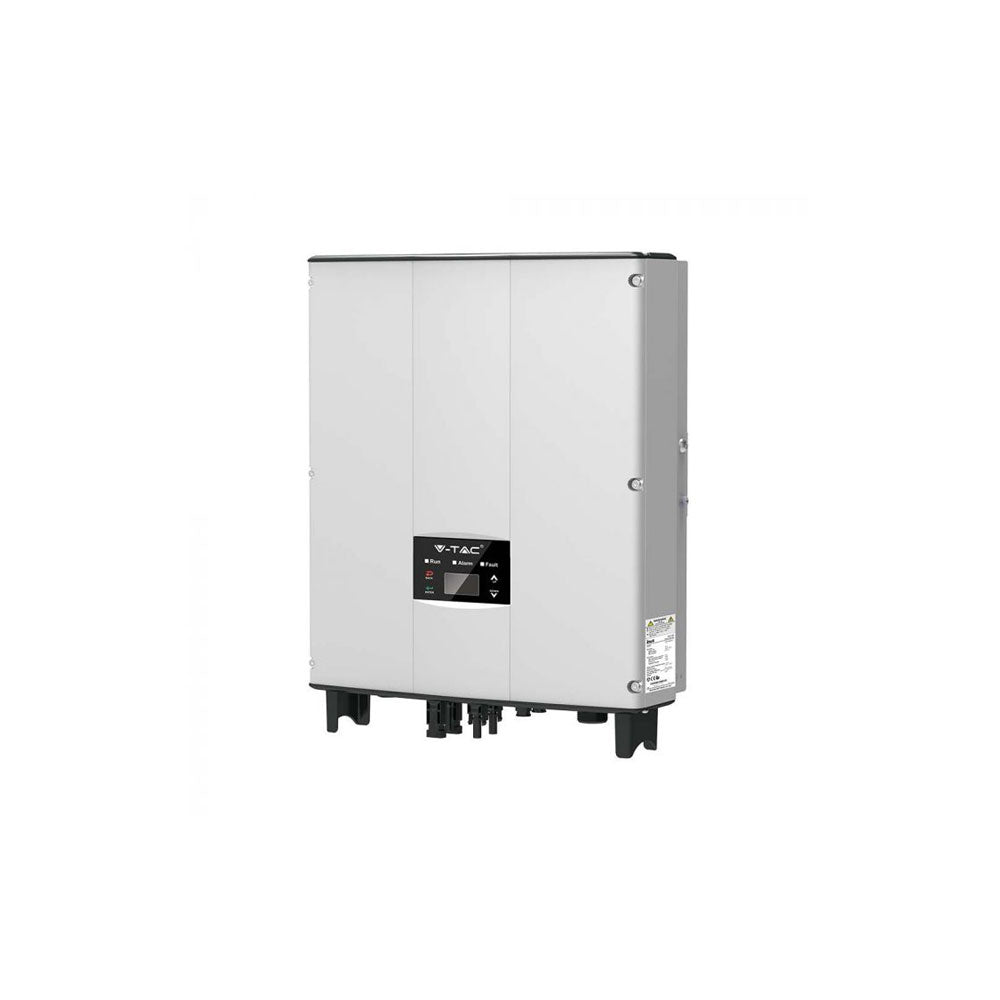

Single-phase grid-connected solar inverter
Zero export function (optional)
External inductor
Natural cooling, low noise
Aluminium housingInput power 3,6kw

Input power 3,6kw
Output current 14A Max
IP rating IP65
Size 360x462x150mm
Warranty 5 years
Operating temperature -25°C to +60°C

• Converts electricity generated from the solar panels from DC to AC and distributes it across a three phase power supply
• Excess power is exported to the utility/electric grid, and when the required load is greater than the generated power, the discrepancy is supplied by the grid
• IP65 rated enclosure ensures protection from moisture and dust
• Supports RS485, WiFi, and ethernet (optional) communication protocols
• Works with modular battery packs for a more flexible application
• Impressive MPPT efficiency (actual over expected output power) of 99.9%

Warranty 10 years

IP rating IP65

Size 408x638x237mm

Unit colour White

Gross weight 30.5kg

Operating temperature -40°C to +60°C

Charging current 37A Max

Discharging current 37A Max

Warranty 10 years

IP rating IP65

Size 408x638x237mm

Unit colour White

Gross weight 30.5kg

Operating temperature -40°C to +60°C

Charging current 37A Max

Discharging current 37A Max

• Allows connecting arrays with different solar azimuth & tilt angles, string lengths, modules
• 160% DC Input Oversizing to accommodate maximum power possible
• Performs data-based analysis on the I-V curve of PV modules
• Protection against electrical surges and spikes. Prevents the spread of overvoltages in the electrical installations and protects the loads
• Easily detects grid-related faults
• With the integrated Arc-Fault Circuit Interrupter (AFCI), the current is interrupted to extinguish an electric arc when it is detected in the PV array

• Allows connecting arrays with different solar azimuth & tilt angles, string lengths, modules
• 160% DC Input Oversizing to accommodate maximum power possible
• Performs data-based analysis on the I-V curve of PV modules
• Protection against electrical surges and spikes. Prevents the spread of overvoltages in the electrical installations and protects the loads
• Easily detects grid-related faults
• With the integrated Arc-Fault Circuit Interrupter (AFCI), the current is interrupted to extinguish an electric arc when it is detected in the PV array

Registered with the Distribution Network as V-TAC Exports Limited VT-6605105.

• Ensures optimal operation: The inverter operates in the appropriate mode without feeding energy back into the grid

  Power distribution: Excess power is fed into the grid, but if the load exceeds the generated power, the grid supplies the difference

  IP65 protection: The housing is protected against moisture and dust

  Natural cooling: Fanless design ensures quiet operation

  Grid fault detection: Automatically identifies power grid-related faults

  Certification and warranty: Tested and certified in accordance with IEC standards; 5-year warranty from the date of purchase

https://www.youtube.com/watch?v=FE1I2U484oY&ab_channel=V-TAC-MeaningfulInnovation

https://www.youtube.com/watch?v=rDASz0_3u-s&ab_channel=V-TAC-MeaningfulInnovation

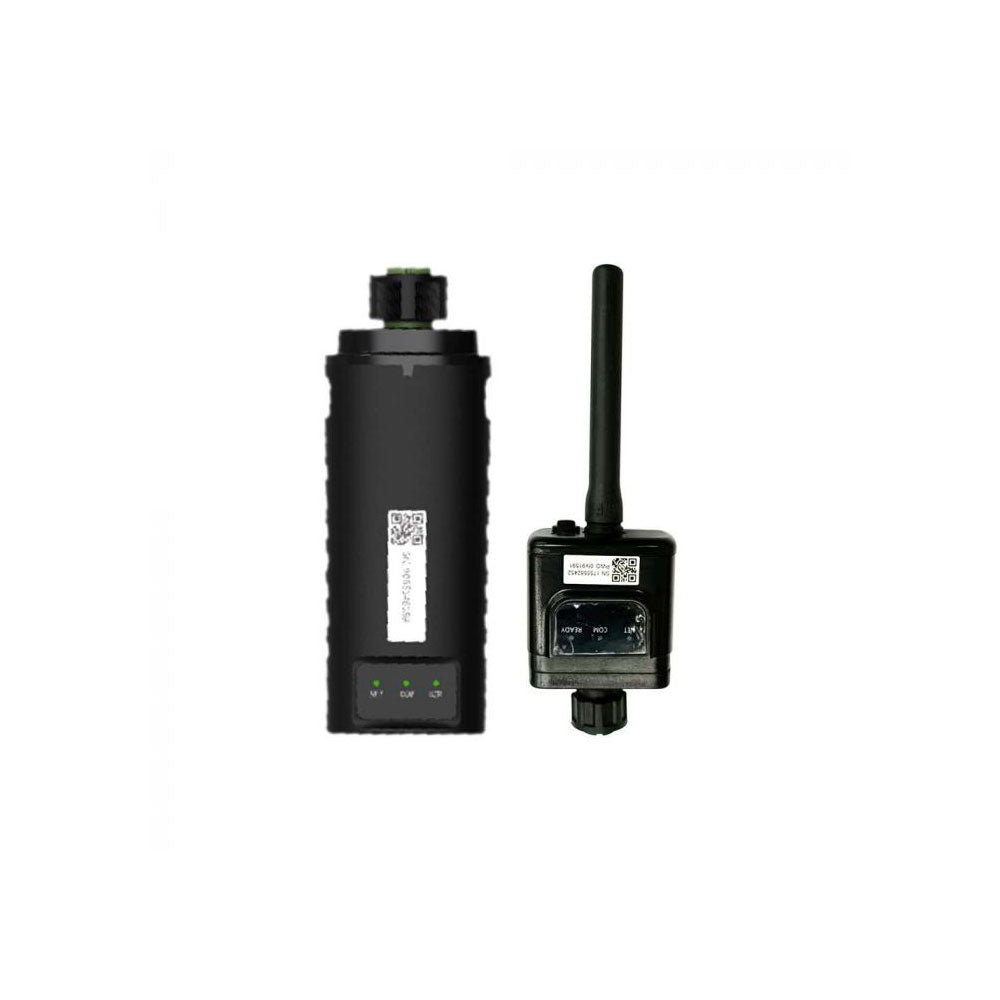

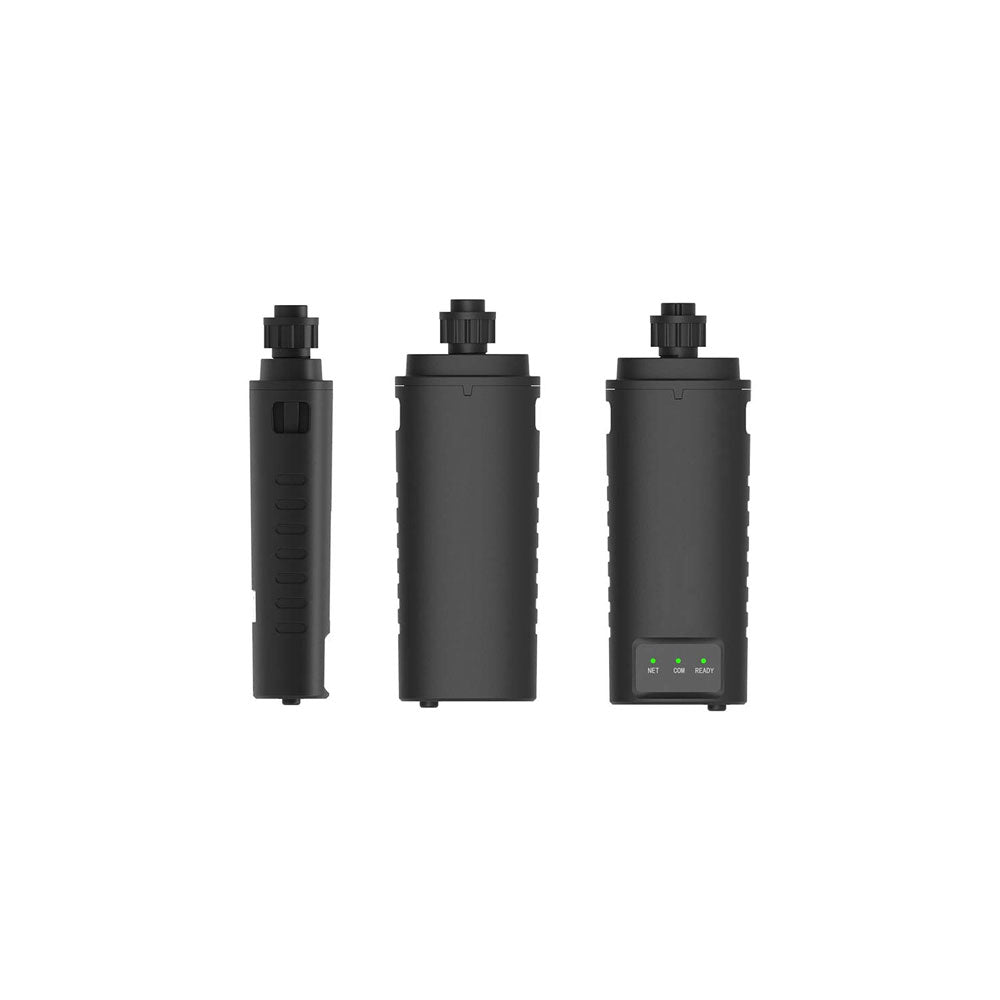

The SOLARMAN stick recorder supports GPRS, WiFi, 4G, Ethernet and other communication methods. In addition, the stick logger supports RS485/RS232/TTL/USB and other serial communications. Thanks to its multi-cover design, it adapts to most inverters. By collecting the inverter's operation status and power generation, the stick logger can monitor the PV system in a long-term and efficient way, which increases the working efficiency and significantly reduces the management cost. With its advanced features such as GNSS, shutdown reminder, Bluetooth, the stick logger provides fast on-site configuration and simple plant O&M.

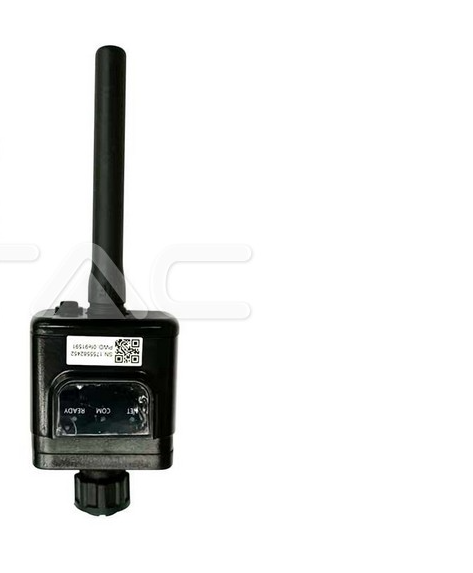

Wi-Fi watchdog for solar inverter
Plug and play No additional power supply required
Independent module Protection of inverter internals
Waterproof design Resistant to bad weather
External indicators that provide collection status at a glance
Damaged equipment easy to replace

• Ensures that the inverter functions at an appropriate rate and there's zero reverse feed going into the grid
• Excess power is exported to the utility/electric grid, and when the required load is greater than the generated power, the discrepancy is supplied by the grid
• IP65 rated enclosure ensures protection from moisture and dust
• Natural heat dissipation means no fan is required resulting to low noise operation
• Easily check the inverter status - if the inverter is functioning normally on-grid, a fault is detected, etc. User specifications can be set via the controls
• Tested and IEC certified to meet international standards. Includes a five (5) year warranty from the date of purchase

Registered with the Distribution Network as V-TAC Exports Limited VT-6605110.

• Easily check the status and settings with the built-in LCD display
• Designed to prevent electric bill surcharge from reverse current flow
• IP65 rated aluminium enclosure ensures protection from moisture and dust
• Safely operate within the extensive input voltage range designed to accommodate three phases whether on/off grid
• Natural heat dissipation means no fan is required resulting to low noise operation
• Ensures that the inverter functions at an appropriate rate and there's zero reverse feed going into the grid

Registered on the Distribution Network as V-TAC Exports Limited VT-6608303

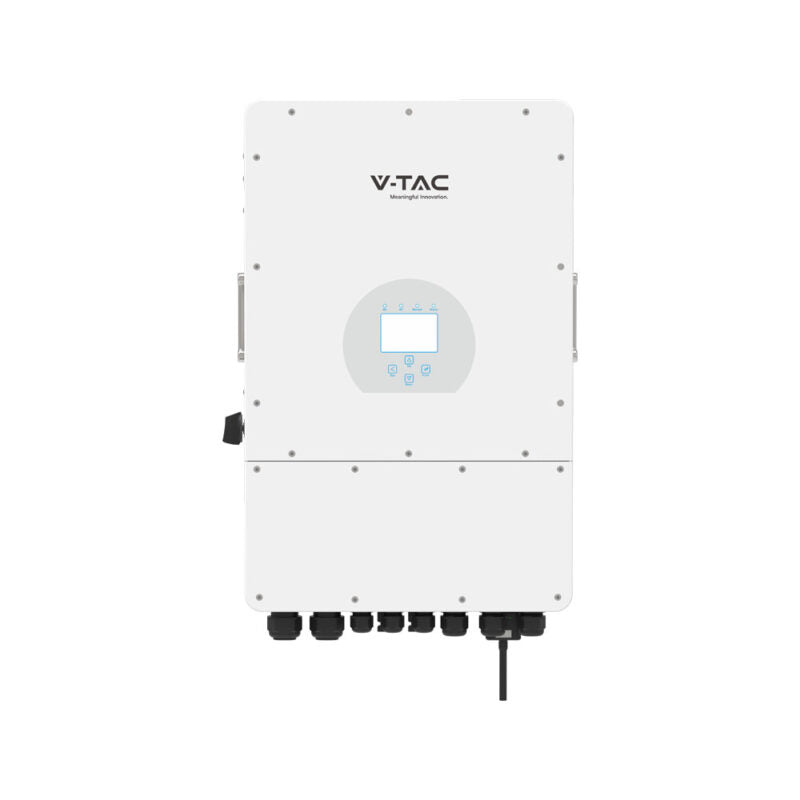

The SUN-5K-SG04LP3-EU hybrid inverter is suitable for residential and light commercial applications, increasing the self-consumption rate of solar energy and increasing energy consumption. During the day, the PV system generates electricity that will initially be provided to the loads. The surplus energy will then charge the battery using SUN-5K-SG04LP3-EU. Finally, the stored energy can be released when the load requires it. The battery can also be recharged by a diesel generator to ensure uninterrupted power supply in the event of a mains failure.

Model SUN-5K-SG04LP3-EU

Output power 5000w

Input power (PV) 6500w

MPPT efficiency 99.90%

Battery voltage range (V) 40-60v

Size 422x702x281

Operating temperature -40~60°C, >45°C derating

IP rating IP65

Warranty 5 years

Specifications
General information
Electrical data
Current
Max. Operating PV input current (A): 36+20 ;
Max. Input short-circuit current (A): 54+30;
Rated AC input/output current (A): 22.8/21.8;
Max. AC Input/Output Current (A): 22.8/21.8
Max. Continuous AC: 70A;
Power
Max. Input Power: 22500W;
Rated AC Input/Output Active Power: 15000W;
Max. AC input/output apparent power (VA) 16500;
Voltage
Rated PV input voltage: 550V;
MPPT range: 160-650V;
Rated input/output voltage/range (V) 220/380V, 230/400V 0.85Un-1.1Un;
Start-up voltage: 160V;
Frequency
Rated input/output grid frequency/range (Hz) 50/45-55, 60/55-65
Power factor 0.8 leading to 0.8 lag
Capabilities
IP rating IP65
Operating conditions `-40 to +60℃, >45 ℃ Reduction
Dimensions
Size 456 × 750 × 268.5 mm (excluding connectors and brackets)
Product data
Order code 12184
Product code SUN-15K-SG05LP3-EU-SM2
Product weight 50.6 kg
Products per case 1
Brand V-TAC
Warranty5 years/10 years

Product Description: 20 kW Three-Phase Low-Voltage Hybrid Solar Inverter

This 15 kW hybrid solar inverter is a high-performance and versatile solution for solar energy systems, ensuring efficient and reliable operation at low voltage. Suitable for a variety of environments and conditions, the inverter offers an IP65 protection rating and is ideal for both residential and commercial applications.

General Information

• Brand: V-TAC
• Product code: SUN-20K-SG05LP3-EU-SM2
• Order Code: 12185
• Warranty: 5 years/10 years (see warranty terms)
• Release date: August 29, 2024

Electrical Specifications

• Current:

  • Max. PV input operating current: 36+20 A
  • Max. short-circuit current: 54+30 A
  • Rated AC input/output current: 30.4/29 A
  • Max. continuous AC current rating: 70 A

• Power:

  • Max. input power: 30,000 W
  • Rated AC input/output active power: 20,000 W
  • Max. AC input/output apparent power: 22,000 VA

• Voltage:

  • Nominal PV input voltage: 550 V
  • MPPT range: 160–650 V
  • Rated input/output voltage/range: 220/380 V, 230/400 V (0.85Un–1.1Un)
  • Start-up voltage: 160 V

• Frequency:

  • Nominal input/output mains frequency/range: 50/45–55 Hz, 60/55–65 Hz

• Power factor:

  • 0.8 leading to 0.8 lagging

Opportunities and Working Conditions

• IP rating: IP65
• Operating temperature: -40 to +60 ℃ (reduced performance above 45 ℃)

Dimensions and Weight

• Dimensions: 456 × 750 × 268.5 mm (excluding connectors and mounting hardware)
• Weight: 50.6 kg
• Items per package: 1

Description:
Powerful true sine wave inverter with integrated battery charger, adaptive charging technology and fast-acting AC power switch - all in one compact unit.

Key features:

• Non-interrupting function: the main output connection takes over the load in < 20 ms in case of power supply problems

• 2 AC outputs: second output active only when AC input is available, ideal for loads that should not drain the battery

• PowerAssist technology: prevents overloading of limited AC power by reducing the charge or temporarily adding power from the battery

• Three-phase option: 3-unit configuration for three-phase output possible

• Parallel operation: up to 6 units (or 6 sets of 3) can be operated in parallel to increase total output

Inverter parameters:

• Input: 9.5-17 V

• Output: 230 VAC ±2% / 50 Hz ±0.1%

• Continuous power (@25 °C): 3000 W

• Maximum power (peak): 6000 W

• Efficiency: up to 93 %

• No-load consumption: 20 W

Charger parameters:

• Suitable for: lead-acid and lithium-ion batteries

• Battery capacity: 400-1200 Ah

• Recommended fuse: 400 A

• Recommended cable:

  • 0-5 m: 2 × 50 mm²

  • 5-10 m: 2 × 70 mm²

• AC input: 187-265 VAC

• Charging current (for house battery): 120 A

• Charging current (starter battery): 4 A

• Temperature sensor: included

• Remote on/off: yes

Additional information:

• Protection class: IP21

• Operating temperature: -40 °C to +65 °C

• Maximum humidity (non-condensing): 95%

• Weight: 18 kg

  Technical Specifications - VICTRON ENERGY MultiPlus 3000VA

  • Dimensions: 362 × 258 × 218 mm

  • Weight: 20,90 kg (net: 18,85 kg)

  • Type: MultiPlus 3000VA

  • Voltage: 230 VAC / 12 V

  • Power: 3.00 kW

  • Housing material: Aluminium

  • IP protection: IP21

  • Certificates/Approvals:

    • ECE R10-4

    • EN-IEC 60335-1 / -2-29

    • IEC 62109-1

    • EN 55014-1 / -2

    • EN-IEC 61000-3-2 / -3-3 / -6-1 / -6-2 / -6-3

  This model combines an inverter and a battery charger with high efficiency, durability and compliance with strict European safety and EMC standards.

General Information

Electrical Specifications
Power
Rated AC input/output active power: 25,000 W
Maximum allowable solar panel input power: 50,000 W
Maximum solar panel input power: 40,000 W

Current
Maximum short-circuit input current: 39 + 39 A
Maximum operating input current from solar panels: 26 + 26 A
Rated AC input/output current: 37.9 / 36.3 A
Maximum AC input/output current: 41.7 / 39.9 A

Phase
, three-phase

Voltage
Nominal DC input voltage from solar panels: 700 V
MPPT operating range: 150–850 V
Maximum solar panel input voltage: 1000 V
Trigger voltage: 180 V

Power factor
: From 0.8 (leading) to 0.8 (lagging)

Operating Capabilities and Conditions
Operating Temperature Range: -40 °C to +60 °C
Derating applies at temperatures above 45 °C

's IP65 protection rating

Dimensions
; Size: 408 × 638 × 237 mm

Product details
Order code: 12644
Product code: SUN-25K-SG01HP3-EU-AM2
Number of units per package: 1
Product weight: 30.5 kg

Additional information
Release date: August 20, 2025
Brand: Deye
Warranty: 10 years

General Information

Electrical Specifications

Current:
Max. PV operating input current: 32 + 32 + 32 A
Max. input short-circuit current: 60 + 60 + 60 A
Rated AC input/output current: 45.5 / 43.5 A
Max. AC input/output current: 50 / 47.9 A

Power:
Max. PV connection power: 20,000 W
Max. PV input power: 16,000 W
Rated AC input/output active power: 10,000 W

Phase:
Single-phase

Voltage:
Max. PV input voltage: 500 V
Start-up voltage: 125 V
PV input voltage range: 125–500 V
MPPT voltage range: 150–425 V
MPPT voltage range at full load: 200–425 V
Nominal PV input voltage: 370 V

Frequency:
Nominal mains input/output frequency/range: 50 Hz (45–55 Hz) / 60 Hz (55–65 Hz)

Power factor:
0.8 (early) – 0.8 (delayed)

Protection class:
IP65

Working conditions:
-40 °C to +60 °C

Dimensions:
420 × 670 × 233 mm

Product Information

Order code: 12680
Product code: SUN-10KSG02LP1-EUAM3
Number of units per package: 1

Additional Information

Release date: 11/20/25
Warranty: 10 years
Brand: Deye
