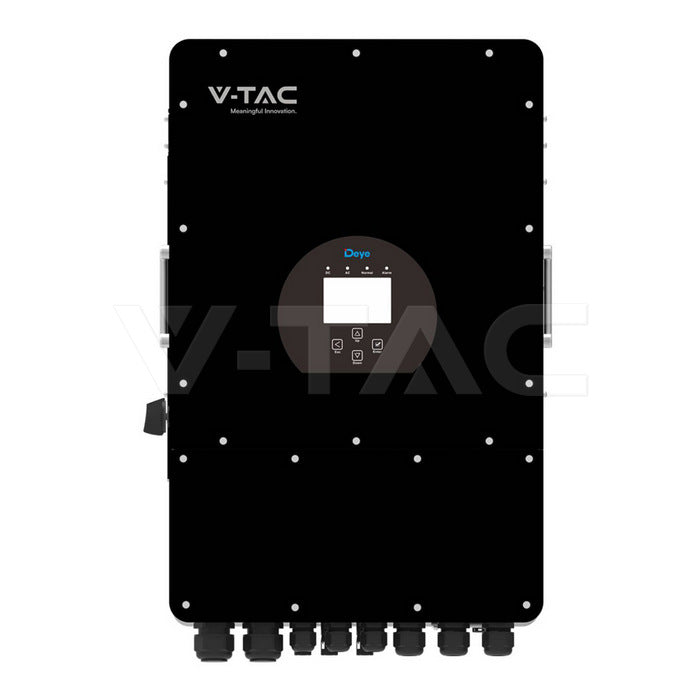

10 kW hybrid solar inverter, three-phase, black housing

Specification

General Information
Brand: Deye
Model/Product Code: SUN-10K-SG04LP3-EU
Order Code: 12307
Release Date: 07.05.2025
Warranty: 10 years
Weight: 48 kg
Case Colour: Black

Electrical data
Maximum DC input power: 13 000 W
Rated AC output and UPS power: 10 000 W
Maximum AC output power: 11 000 W
Rated AC output current: 15.2 A / 14.5 A
Maximum AC current: 22.7 A / 21.7 A
Max. 40 A

Voltage data
Rated PV input voltage: 550 V (range 160-800 V)
Switch-on voltage: 160 V
MPPT voltage range: 200-650 V
Full-load DC voltage range: 350-650 V

Frequency: 50/60 Hz
Power factor: 0.8 (conducting) to 0.8 (lagging)
Phase: Three-phase

Options
Protection class: IP65

Operating conditions
Temperature range: -40 °C to +60 °C (at >45 °C derating applies)

Dimensions
Size (W × H × D): 422 × 699.3 × 279 mm
