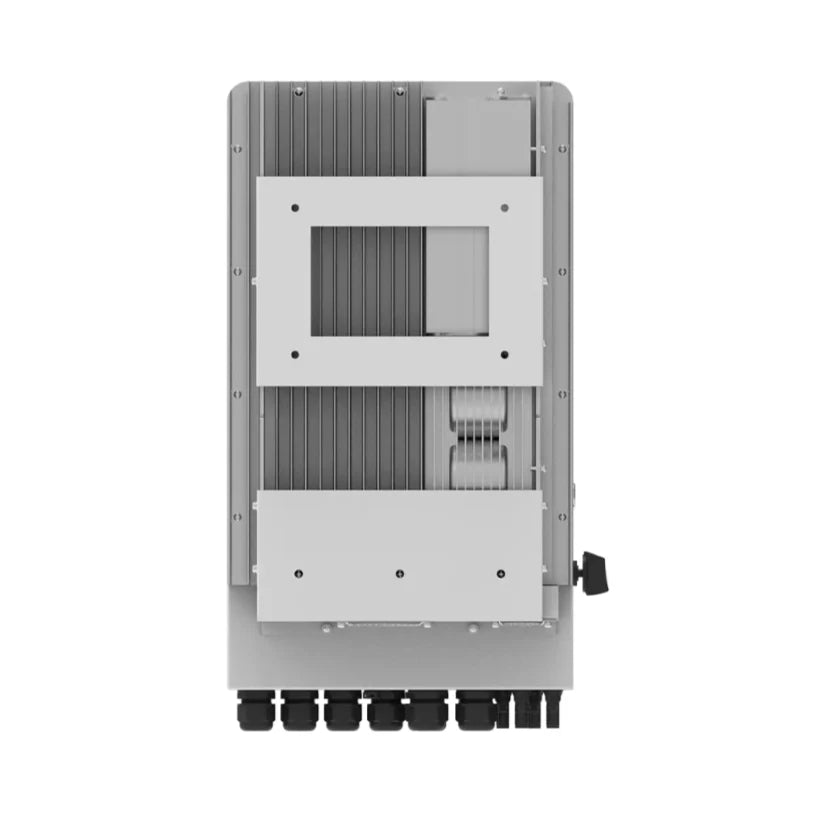

V-TAC 6kW Single-Phase Hybrid Solar Inverter SUN-6K-SG05LP1-EU-AM2-P, 2 MPPT, 220/230V, Wi-Fi, RS485, CAN, IP65, 330x580x232mm, 10-year warranty

Description:

6 kW Single-Phase Hybrid Solar Inverter

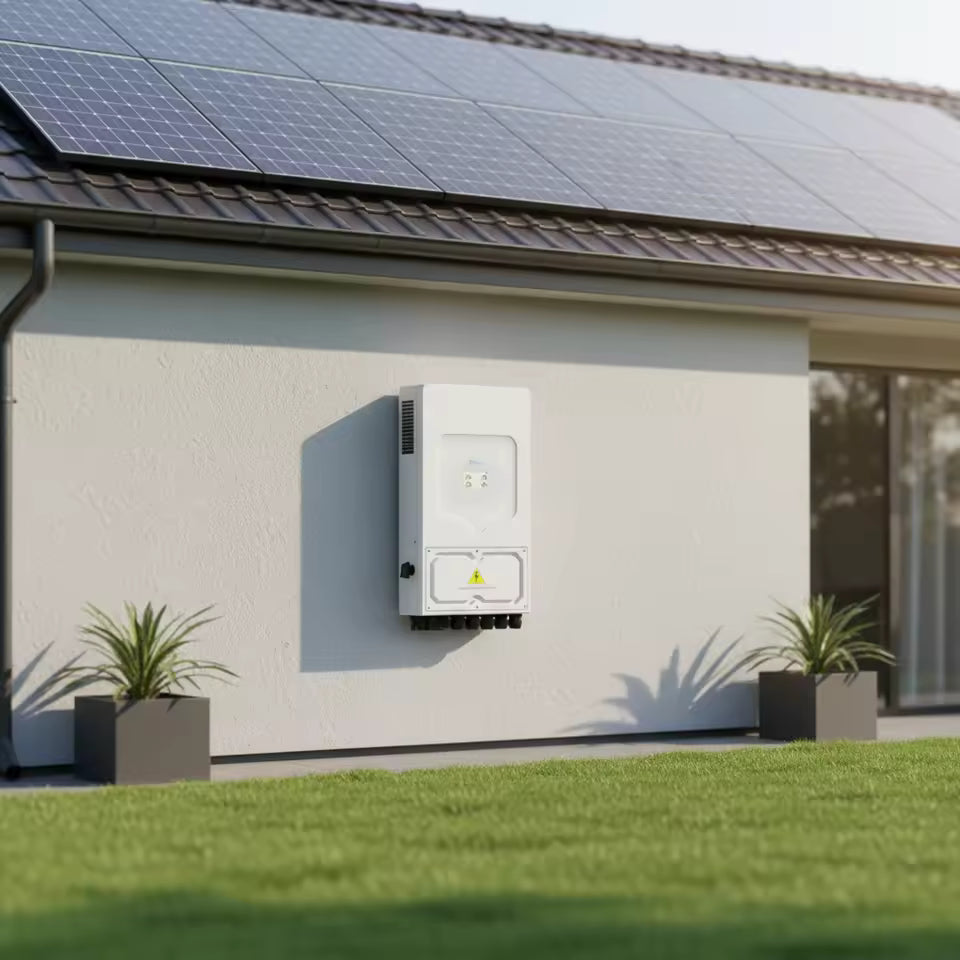

The V-TAC SUN-6K-SG05LP1-EU-AM2-P is a 6 kW single-phase hybrid solar inverter designed to manage the energy flow between photovoltaic panels, batteries, the utility grid, and consumers. The inverter supports both grid-tied operation and off-grid power supply solutions.

High input power of solar panels

The inverter supports up to 12 kW of connected photovoltaic panel capacity and up to 9.6 kW of maximum PV input power. The maximum PV input voltage is 500 V, the startup voltage is 125 V, and the MPPT operating voltage range is 150–425 V.

Two independent MPPT trackers

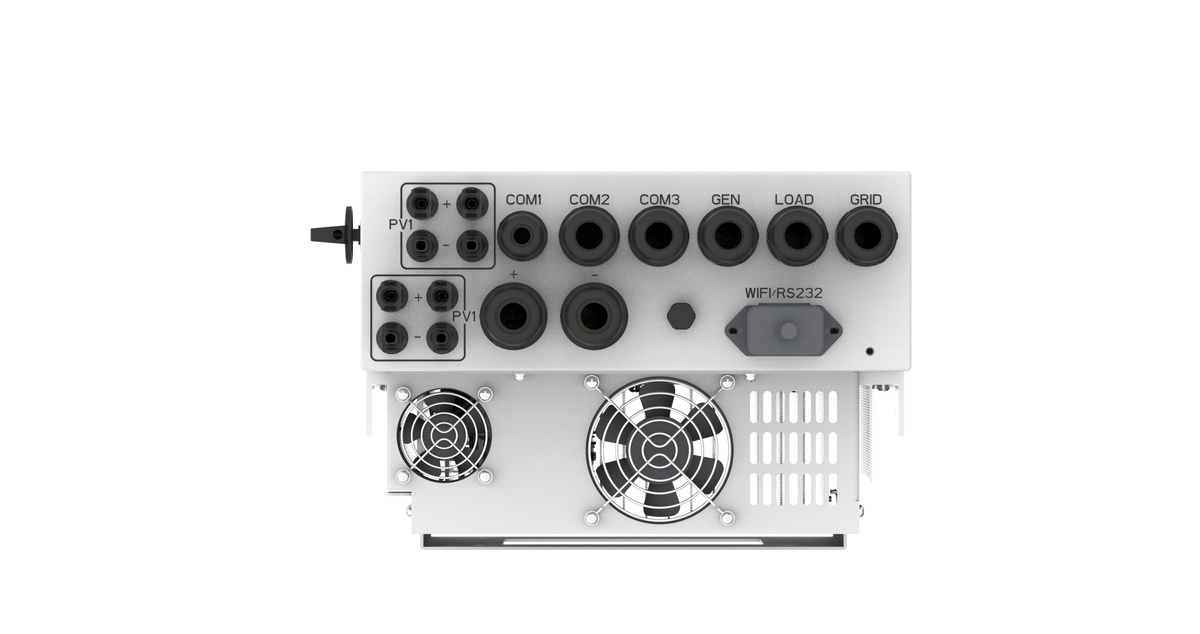

The inverter is equipped with two MPPT trackers, which allow for the efficient management of solar panel strings oriented in different directions or located under varying conditions. The maximum PV input current is 18A + 18A, while the maximum short-circuit current is 27A + 27A.

Low-Voltage Battery Support

The inverter is suitable for lead-acid and lithium-ion batteries with an operating voltage of 40–60 V. The maximum battery charge and discharge current for the 6 kW model is 135 A. When using lithium-ion batteries, the charge control automatically adapts to the battery’s BMS system.

6 kW rated AC power

The rated active power for AC input and output is 6 kW, while the maximum apparent power reaches 6.6 kVA. The rated input and output voltage is 220/230 V, while the rated mains frequency is 50/60 Hz.

Backup Power Supply Function

When operating off the power grid, the inverter can temporarily deliver up to twice its rated power for up to 10 seconds. This allows the load to continue operating even during brief periods of increased load.

High energy conversion efficiency

The inverter's maximum efficiency reaches 97.6%; its European efficiency is 96.5%; and its MPPT efficiency exceeds 99%, ensuring efficient use of solar energy.

Flexible Battery Charging and Discharging Control

The inverter provides six programmable battery charging and discharging time periods. This allows energy storage and usage to be adjusted according to electricity consumption and user needs. Energy storage from a diesel generator is also supported.

Parallel Operation

The system allows for the parallel connection of up to 16 inverters for operation both in grid-tied and off-grid modes. It also supports the parallel connection of multiple batteries.

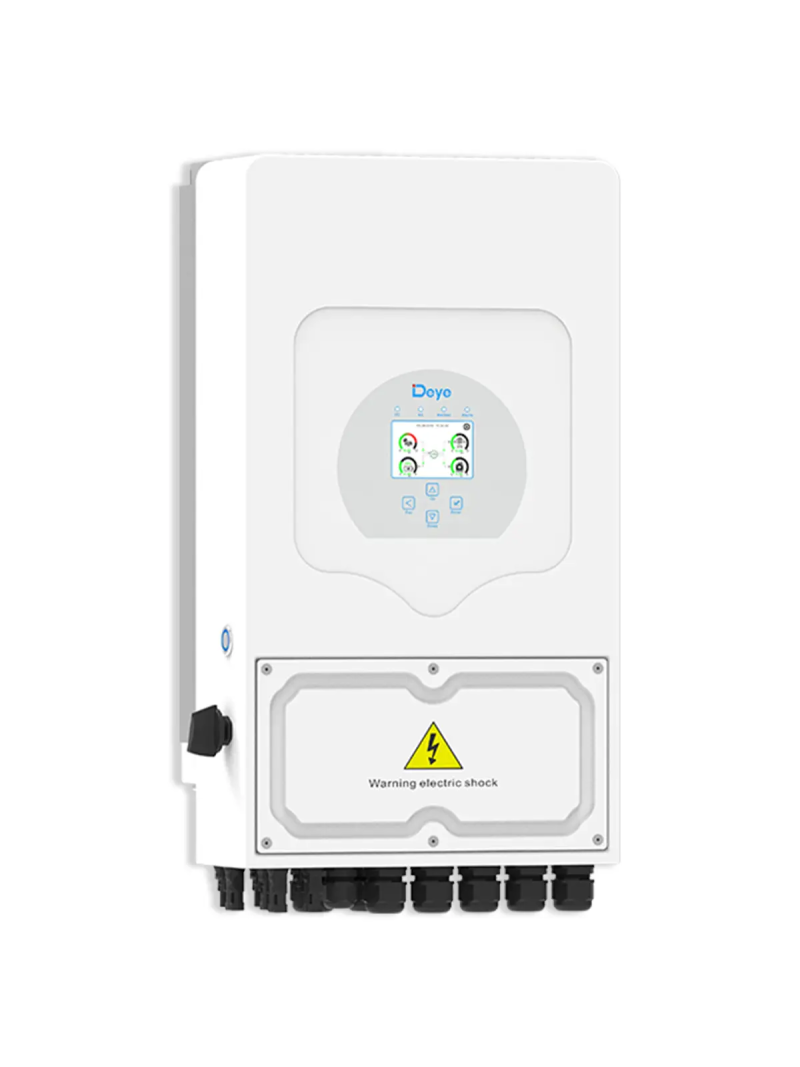

LCD Display and Communication Capabilities

The inverter is equipped with an LCD display for monitoring and configuring system operating parameters. Wi-Fi, RS485, and CAN communication interfaces are available for data transmission and system integration.

IP65 protection

The IP65 protection rating provides protection against dust and water exposure. The inverter’s operating temperature range is from -40°C to +60°C, but power derating is applied at temperatures above +45°C.

Integrated protection features

The inverter features built-in protection against DC polarity reversal, AC output overcurrent and overvoltage, overheating, short circuits, islanding, insulation resistance issues, and leakage current. A DC switch is also built in, while arc fault protection is available depending on the configuration.

10-year warranty

This specific V-TAC model (SKU 12679) comes with a 10-year warranty.

Specifications:
Product Type: Hybrid Solar Inverter
Number of Phases: 1
Rated Power: 6 kW
Maximum Connectable PV Power: 12 kW
Maximum PV Input Power: 9.6 kW
Maximum PV Input Voltage: 500 V
Start-up voltage: 125 V
MPPT voltage range: 150–425 V
Rated PV input voltage: 370 V
Number of MPPT trackers: 2
Number of PV strings per MPPT: 1+1
Maximum PV operating input current: 18 A + 18 A
Maximum PV short-circuit current: 27 A + 27 A
Battery type: lead-acid or lithium-ion
Battery voltage range: 40–60 V
Maximum battery charging current: 135 A
Maximum battery discharge current: 135 A
Number of battery inputs: 1
Rated AC input/output active power: 6 kW
Maximum AC input/output apparent power: 6.6 kVA
Rated AC input/output current: 27.3/26.1 A
Maximum AC input/output current: 30/28.7 A
Maximum continuous AC current rating: 35 A
Rated AC voltage: 220/230 V
Nominal line frequency: 50/60 Hz
Power factor adjustment range: 0.8 capacitive to 0.8 inductive
Total current harmonic distortion: <3%
Maximum efficiency: 97.6%
European efficiency: 96.5%
MPPT efficiency: >99%
Display: LCD
Communication: Wi-Fi, RS485, CAN
Overvoltage protection: Type II DC, Type II AC
Protection rating: IP65
Cooling: intelligent air cooling
Operating temperature: -40°C to +60°C
Permissible relative humidity: 0–100%
Maximum installation altitude: 2000m
Noise level: <45dB
Dimensions: 330x580x232mm
Net weight: 24.9 kg
Warranty: 10 years
Model: SUN-6K-SG05LP1-EU-AM2-P
