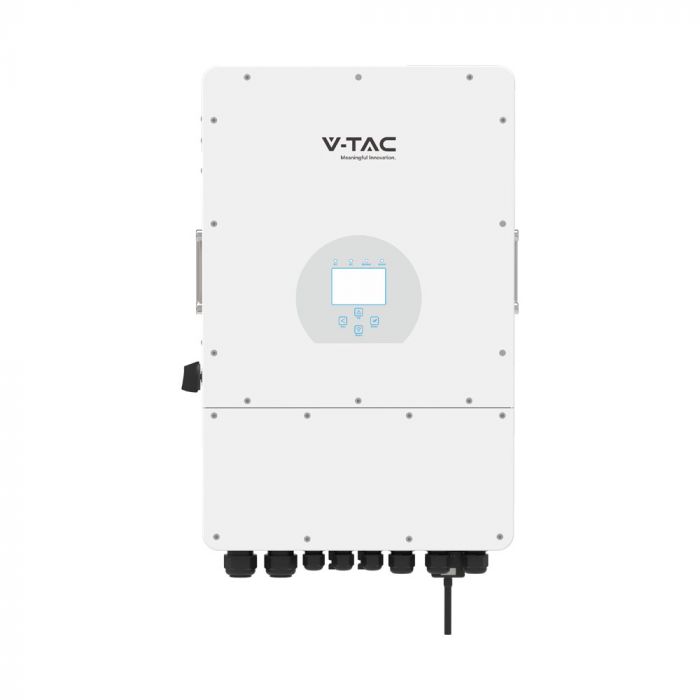

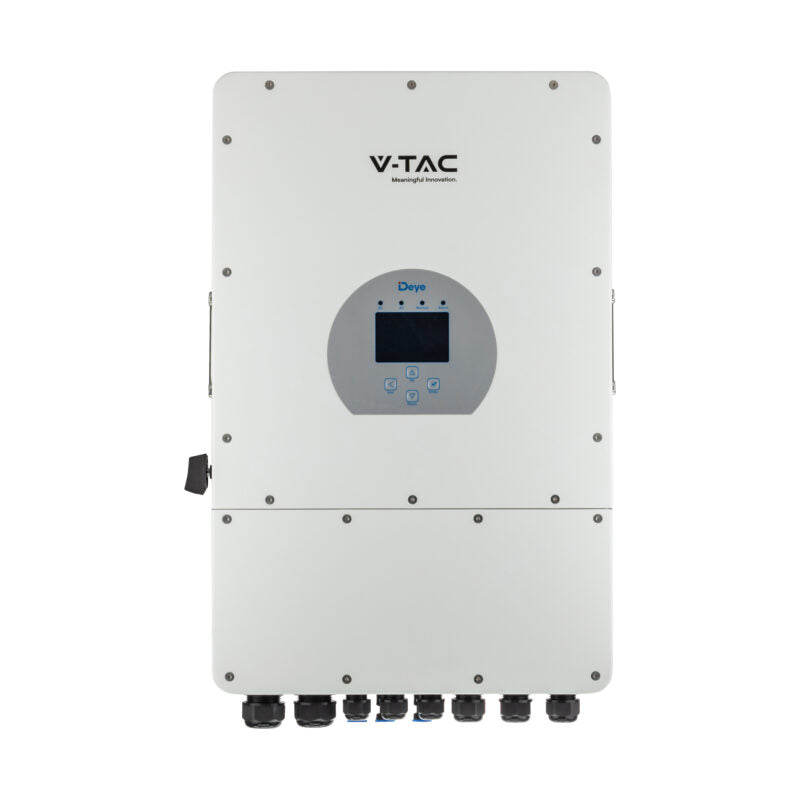

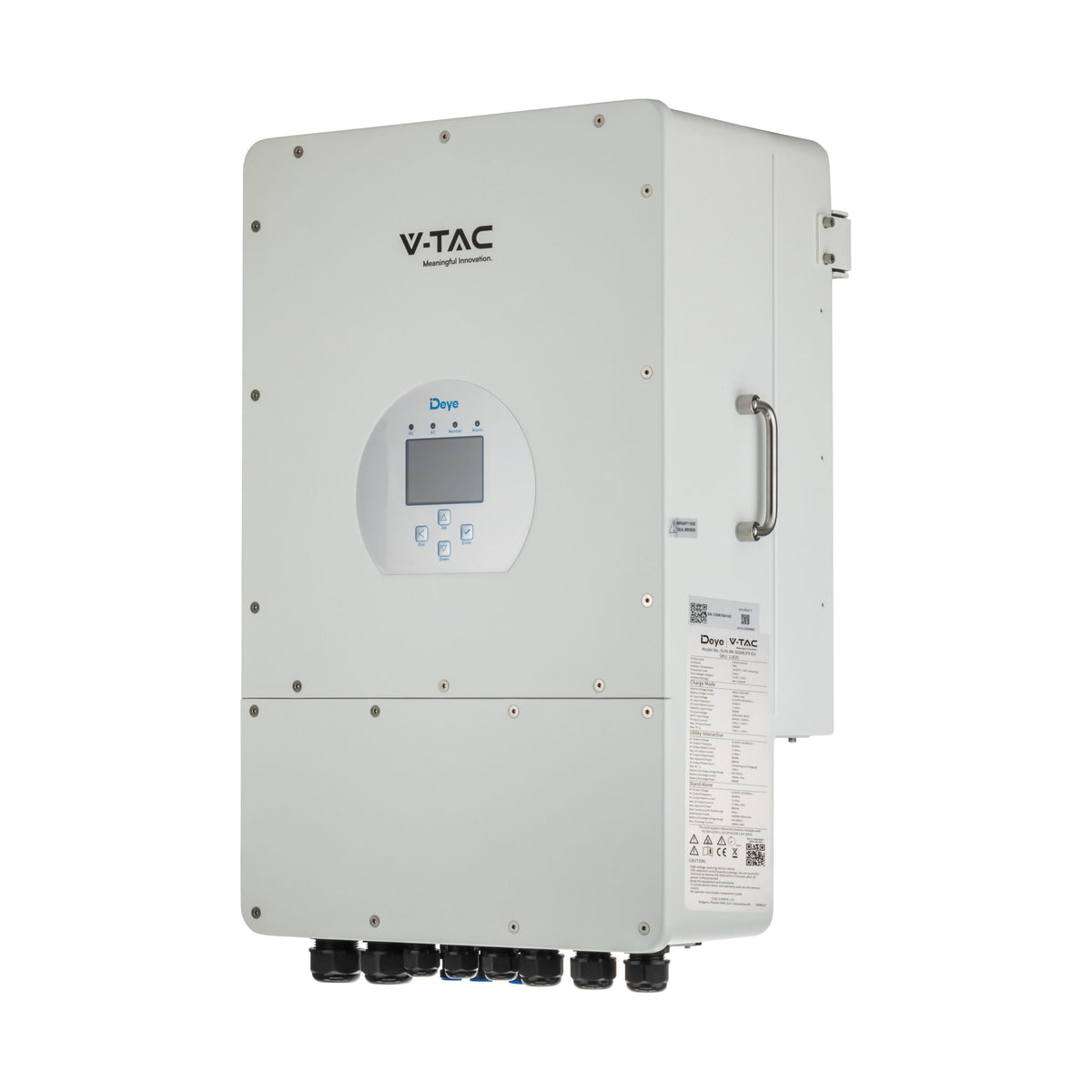

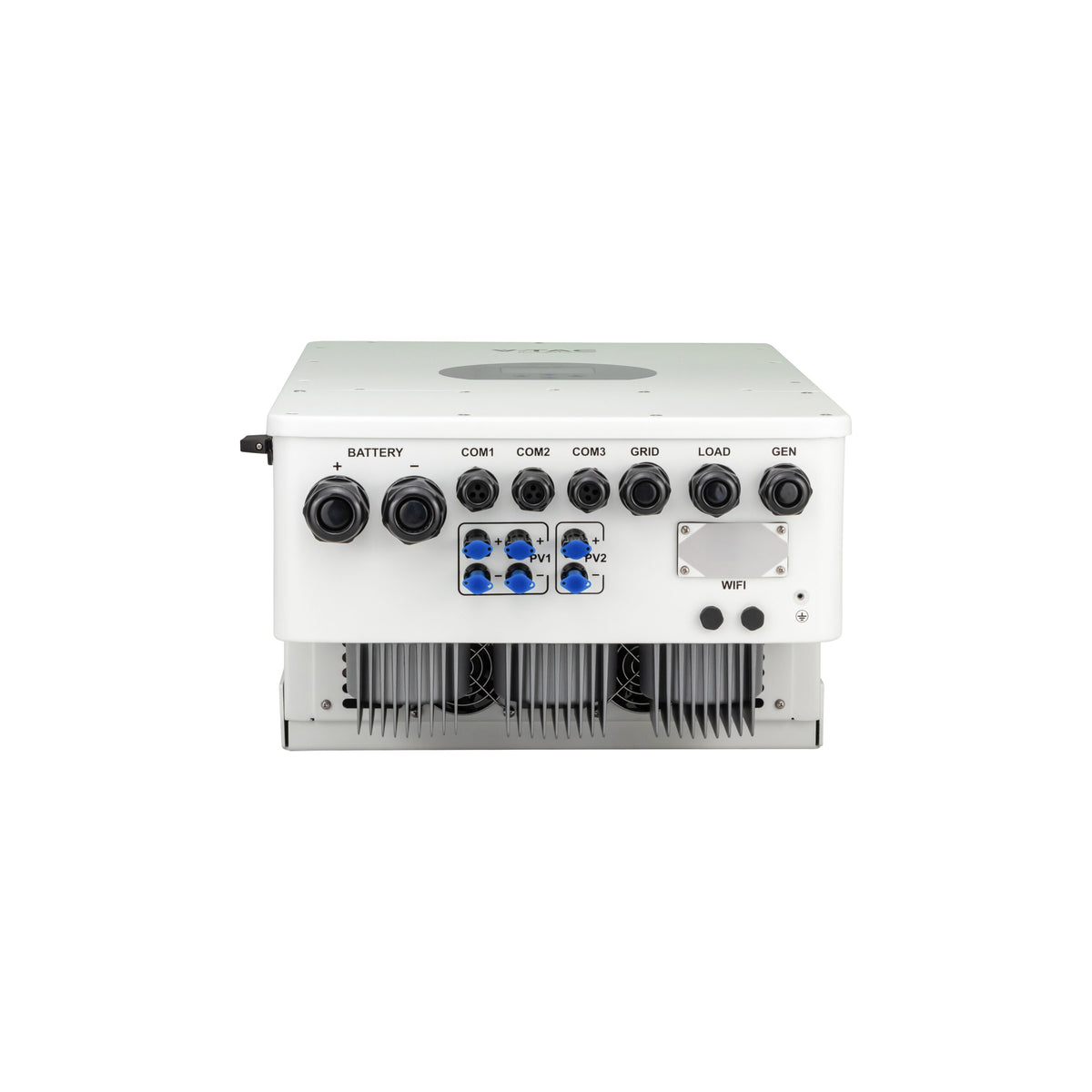

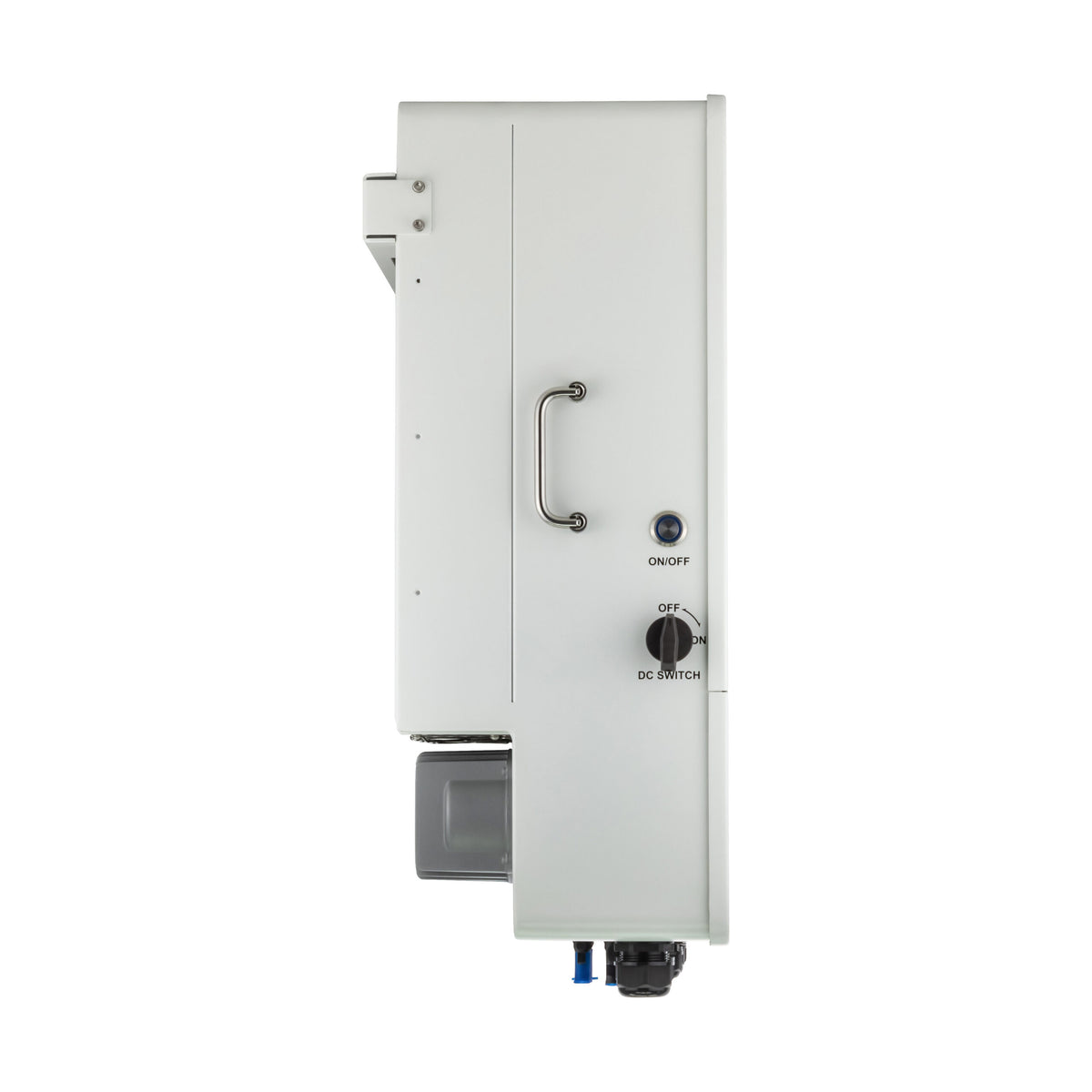

8KW hybrid 3F inverter for solar system, "Sadales Tīkla" code verified (SUN-8K-SG04LP3-EU), 3 phases, 10 years warranty, 380VAC, V-TAC/DEYE, IP65, LCD display, 190A charging
*Offer valid only for purchases made in the online store
Delivery
Warranty
Free Shipping
To pickup points starting at €100; by courier starting at €300
30-Day Return Policy
All items must be free of signs of use
Product Description
| Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU |
| Battery Input Data | |||||
| Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range(V) | 40-60 | ||||
| Max.Charging Current(A) | 120 | 150 | 190 | 210 | 240 |
| Max.Discharging Current(A) | 120 | 150 | 190 | 210 | 240 |
| Charging Strategy for Li-ion Battery | Self-adaptation to BMS | ||||
| Number of battery input | 2 | ||||
| PV String Input Data | |||||
| Max DC Input Power（W） | 6500 | 7800 | 10400 | 13000 | 15600 |
| Max DC Input Voltage（V） | 800 | ||||
| Start-up Voltage（V） | 160 | ||||
| MPPT Voltage Range（V） | 200-650 | ||||
| Rated DC Input Voltage(V) | 550 | ||||
| Max. Operating PV Input Current(A) | 13+13 | 26+13 | |||
| Max. Input Short-Circuit Current (A) | 17+17 | 34+17 | |||
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | 2/2+1 | |||
| AC Input/Output Data | |||||
| Rated AC Input/Output Active Power（W） | 5000 | 6000 | 8000 | 10000 | 12000 |
| Max AC Input/Output Apparent Power （VA） | 5500 | 6600 | 8800 | 11000 | 13200 |
| Peak Power (off-grid)（W） | 2 times of rated power, 10s | ||||
| Rated AC Input/Output Current（A） | 7.6/7.2 | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 |
| Max AC Input/Output Current（A） | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/15.9 | 20/19.1 |
| Max. Three-phase Unbalanced Output Current（A） | 11.4/10.9 | 13.6/13 | 18.2/17.4 | 22.7/21.7 | 27.3/26.1 |
| Max Continuous AC Passthrough (grid to load)（A） | 45 | ||||
| Rated Input/Output Voltage/Range(V) | 220/380V，230/400V 0.85Un-1.1Un | ||||
| Grid Connection Form | 3L+N+PE | ||||
| Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||
| DC Injection Current | <0.5%ln | ||||
| Efficiency | |||||
| Max Efficiency | 97.6% | ||||
| Euro Efficiency | 97.0% | ||||
| MPPT Efficiency | ＞99% | ||||
| Equipment Protection | |||||
| DC Polarity Reverse Connection Protection | YES | ||||
| AC Output Overcurrent Protection | YES | ||||
| AC Output Overvoltage Protection | YES | ||||
| AC Output Short Circuit Protection | YES | ||||
| Thermal Protection | YES | ||||
| DC Terminal Insulation Impedance Monitoring | YES | ||||
| DC Component Monitoring | YES | ||||
| Ground Fault Current Monitoring | YES | ||||
| Power Network Monitoring | YES | ||||
| Island Protection Monitoring | YES | ||||
| Earth Fault Detection | YES | ||||
| DC Input Switch | YES | ||||
| Overvoltage Load Drop Protection | YES | ||||
| Residual Current (RCD) Detection | YES | ||||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||||
| Interface | |||||
| Communication Interface | WIFI, RS485, CAN | ||||
| General Data | |||||
| Operating Temperature Range | -40 to +60℃, >45℃ Derating | ||||
| Permissible Ambient Humidity | 0-100% | ||||
| Permissible Altitude | 2000m | ||||
| Noise | ≤ 55 dB(A) | ||||
| Ingress Protection(IP) Rating | IP 65 | ||||
| Inverter Topology | Non-Isolated | ||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||||
| Cabinet size（W*H*D）[mm] | 422×658×254（Excluding connectors and brackets） |
||||
| Weight[kg] | 38 | ||||
| Warranty |
5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
||||
| Type Of Cooling | Intelligent air cooling | ||||
| Grid Regulation |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
