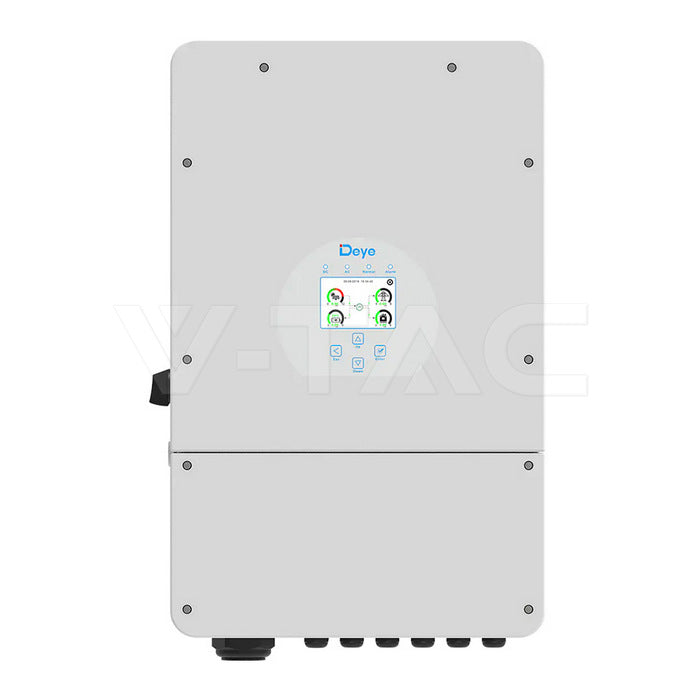

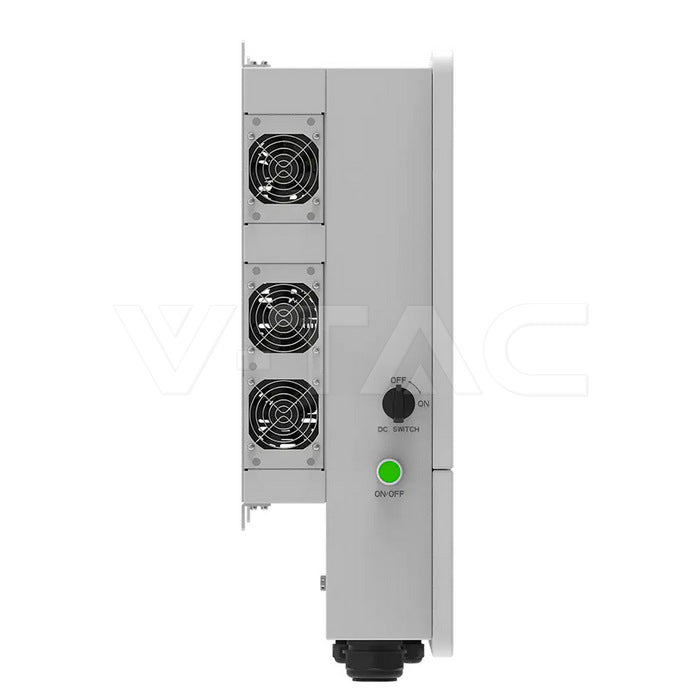

10 kW Hybrid Solar Inverter, Single-Phase 230 V AC, 10-Year Warranty

General Information

Electrical Specifications

Current:
Max. PV operating input current: 32 + 32 + 32 A
Max. input short-circuit current: 60 + 60 + 60 A
Rated AC input/output current: 45.5 / 43.5 A
Max. AC input/output current: 50 / 47.9 A

Power:
Max. PV connection power: 20,000 W
Max. PV input power: 16,000 W
Rated AC input/output active power: 10,000 W

Phase:
Single-phase

Voltage:
Max. PV input voltage: 500 V
Start-up voltage: 125 V
PV input voltage range: 125–500 V
MPPT voltage range: 150–425 V
MPPT voltage range at full load: 200–425 V
Nominal PV input voltage: 370 V

Frequency:
Nominal mains input/output frequency/range: 50 Hz (45–55 Hz) / 60 Hz (55–65 Hz)

Power factor:
0.8 (early) – 0.8 (delayed)

Protection class:
IP65

Working conditions:
-40 °C to +60 °C

Dimensions:
420 × 670 × 233 mm

Product Information

Order code: 12680
Product code: SUN-10KSG02LP1-EUAM3
Number of units per package: 1

Additional Information

Release date: 11/20/25
Warranty: 10 years
Brand: Deye
