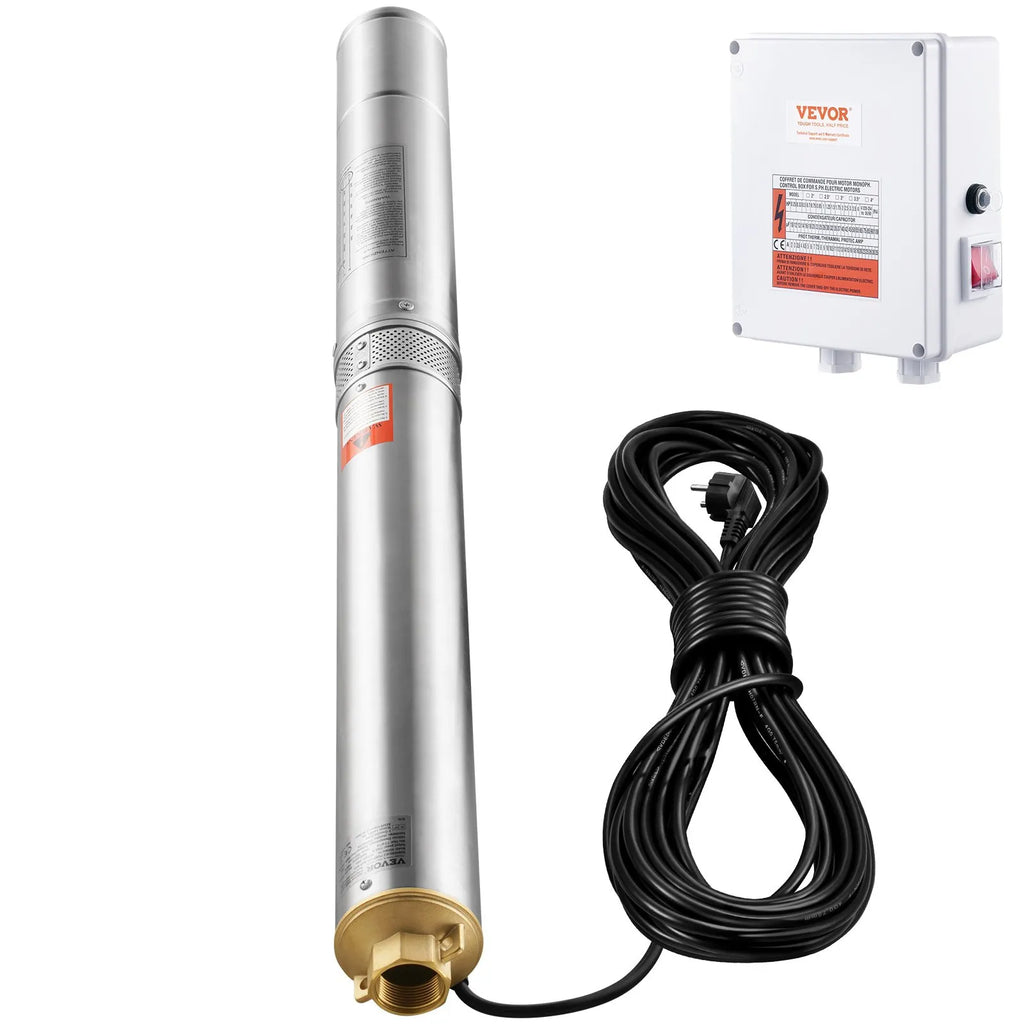

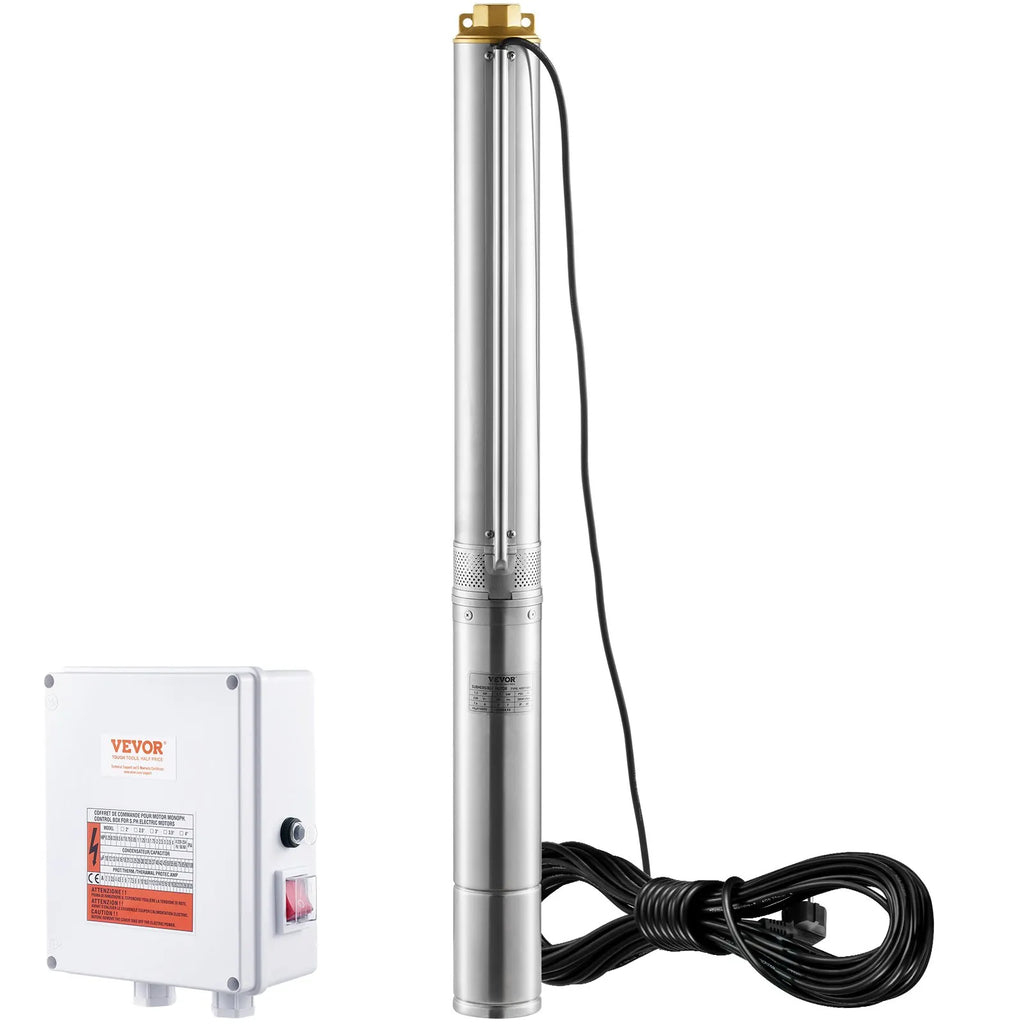

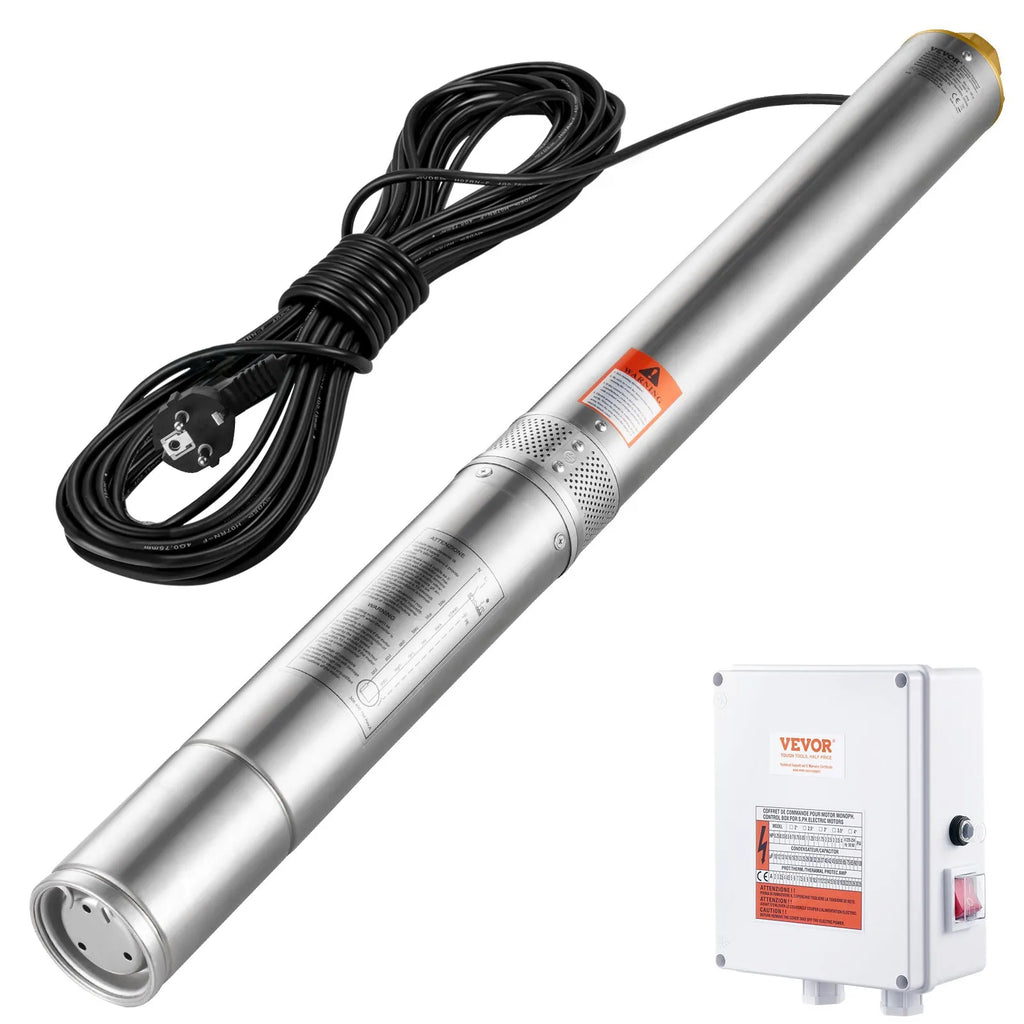

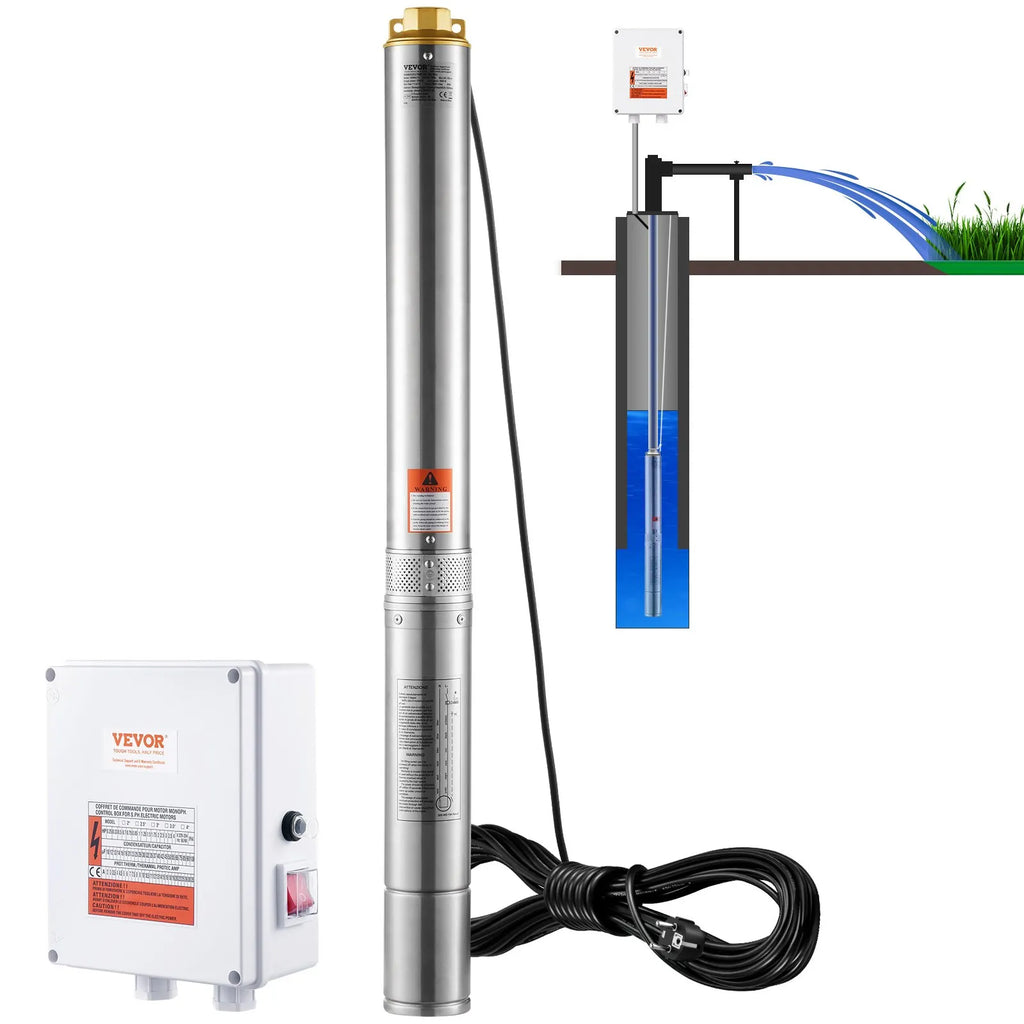

VEVOR deep-well submersible pump, 2200 W, 230 V, flow rate 9.8 m³/h, head 144 m, with a 19.4 m cable and external control unit, stainless steel water pump for industrial irrigation and household use, IP68 waterproof rating

Features and Details

Improved pump flow and head:
Power: 2200 W, 230 V; discharge: G1.5 (the diameter of the well casing must be at least 10 mm larger than the pump’s diameter). This submersible deep-well pump is equipped with 20-stage thermoplastic impellers, providing a maximum flow rate of 9.8 m³/h and a maximum head of 144 m. The set includes an external control unit and a 19.4 m power cable, which makes life without modern plumbing much easier. Pump away your worries with ease and enjoy peace of mind—it’s no challenge at all.

Enhanced stainless steel construction:
The entire deep-well pump is constructed of stainless steel, including the discharge and connection components. There’s no need to worry about rust or corrosion, even during prolonged submersion in water. It is CE-certified and has an IP68 waterproof rating. Don’t waste any time—the perfect choice is right in front of you.

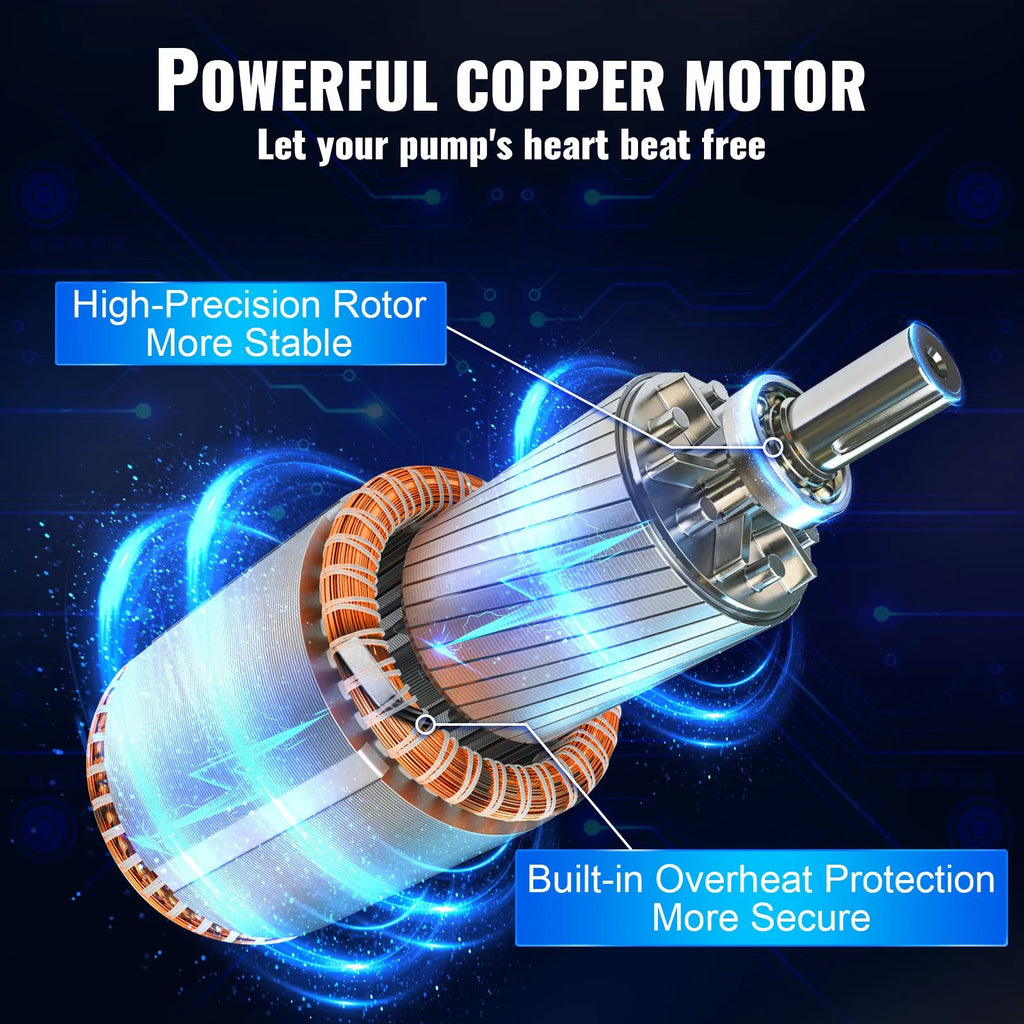

A reliable copper motor:
Are you tired of submersible well pumps breaking down? The powerful copper motor and high-precision rotor ensure long-term, stable operation. The motor is equipped with built-in overload protection that automatically stops operation in the event of a jam or unusual conditions to prevent damage. Warning: Do not operate without water or at low water levels to avoid dry running.

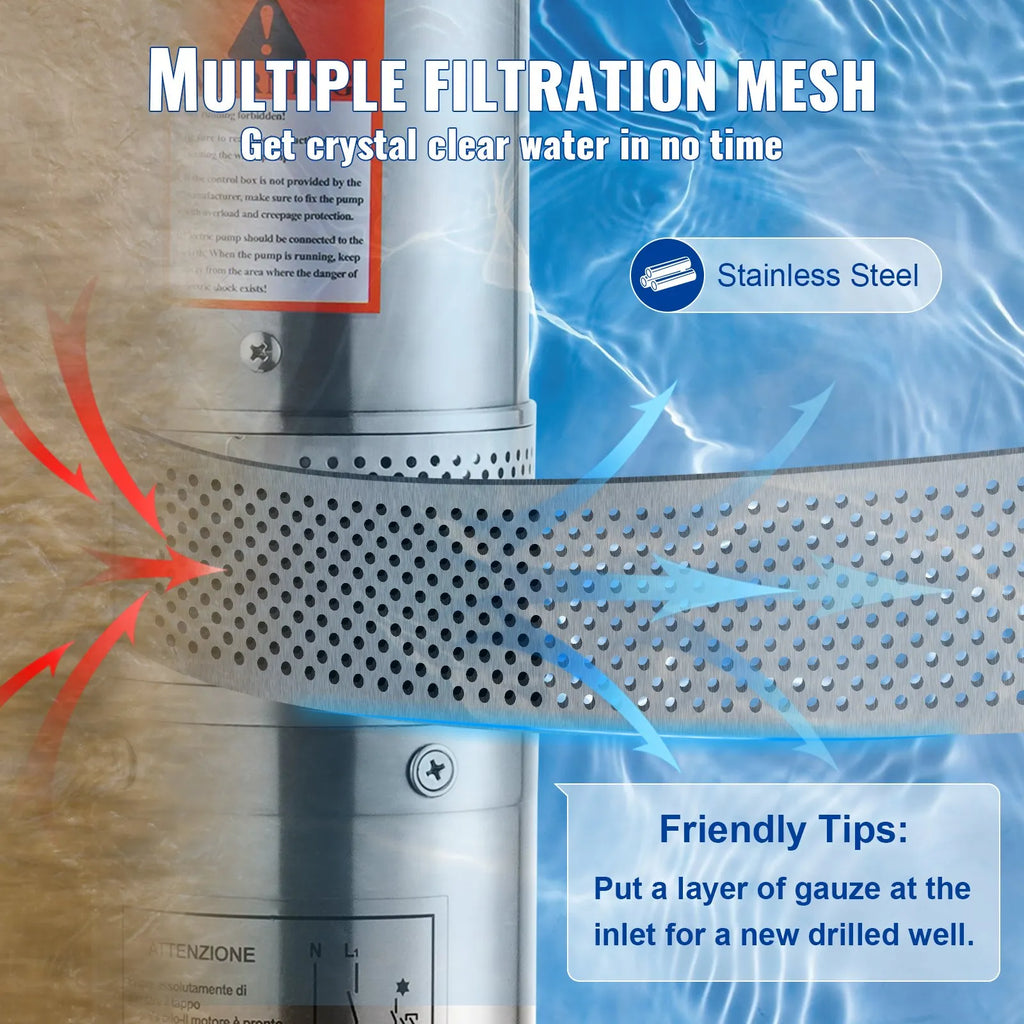

Trouble-free check valve and filter:
The pump has a built-in check valve that prevents backflow (it is recommended to install an additional check valve). The stainless steel filter screen is designed to filter out impurities. For newly drilled wells with high levels of granular sediment, a layer of gauze can be placed in front of the filtration inlet. Keep impurities out of the system without any hassle.

Can be used anywhere:
Whether you need to address water supply issues in industry, agriculture, or the home, this deep-well pump is a reliable choice. It works great as a garden water source and irrigation pump. The pump can be used to extract water from deep wells, reservoirs, canals, rivers, and for other water-lifting applications.

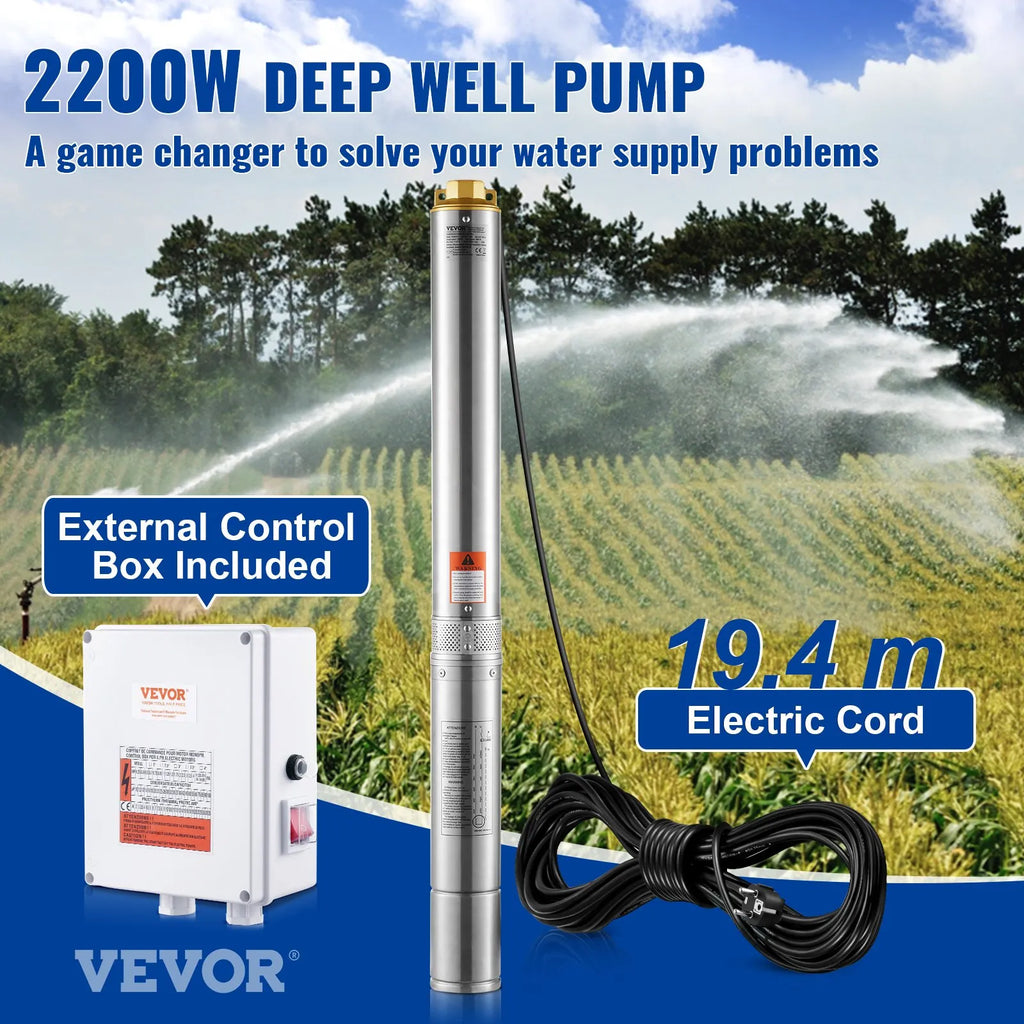

2,200 W submersible deep-well pump

Are you concerned about the water supply for your family or farmland? Rest assured—your well will be back up and running at full capacity in no time. Our deep-well submersible pump provides high flow rates and a steady water supply even at significant depths below the surface. Its top-quality stainless steel construction ensures that this deep-well submersible pump will maintain outstanding performance for many years. Put it to work today and enjoy a fulfilling life with our submersible well pump. Don’t wait—buy it now.

Improved pump flow and head

Enhanced stainless steel construction

A Reliable Copper Motor

Hassle-free check valve and filter

VEVOR is a leading brand specializing in the manufacture of equipment and tools. Together with thousands of motivated employees, VEVOR provides customers with durable equipment and tools at exceptionally low prices. Currently, VEVOR operates in more than 200 countries and has over 10 million users worldwide.

Why Choose VEVOR?
Top-of-the-line, durable quality
Incredibly low prices
Fast and secure delivery
30-day free returns

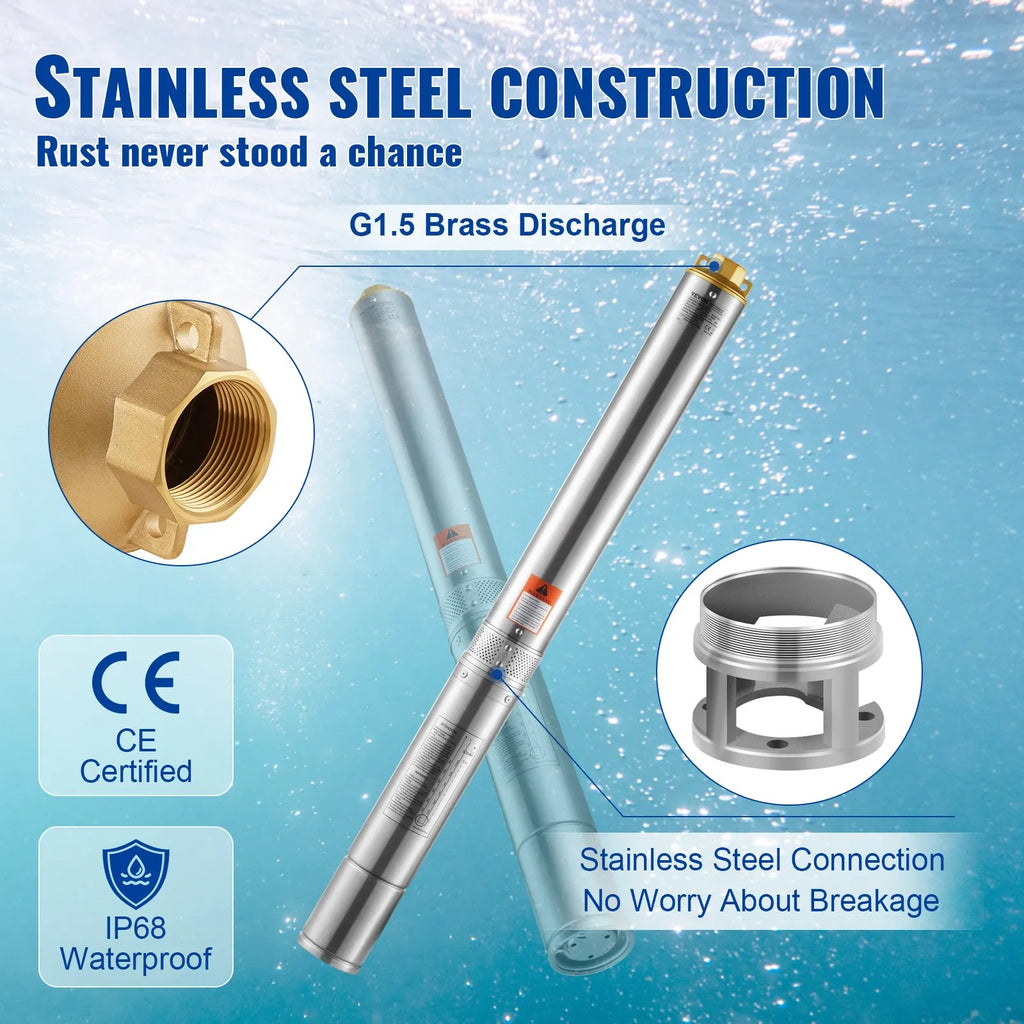

Stainless steel construction
The reinforced stainless steel construction makes this deep-well pump an excellent choice, providing peace of mind, as it prevents corrosion, rust, and mechanical damage.

Quick Installation of the

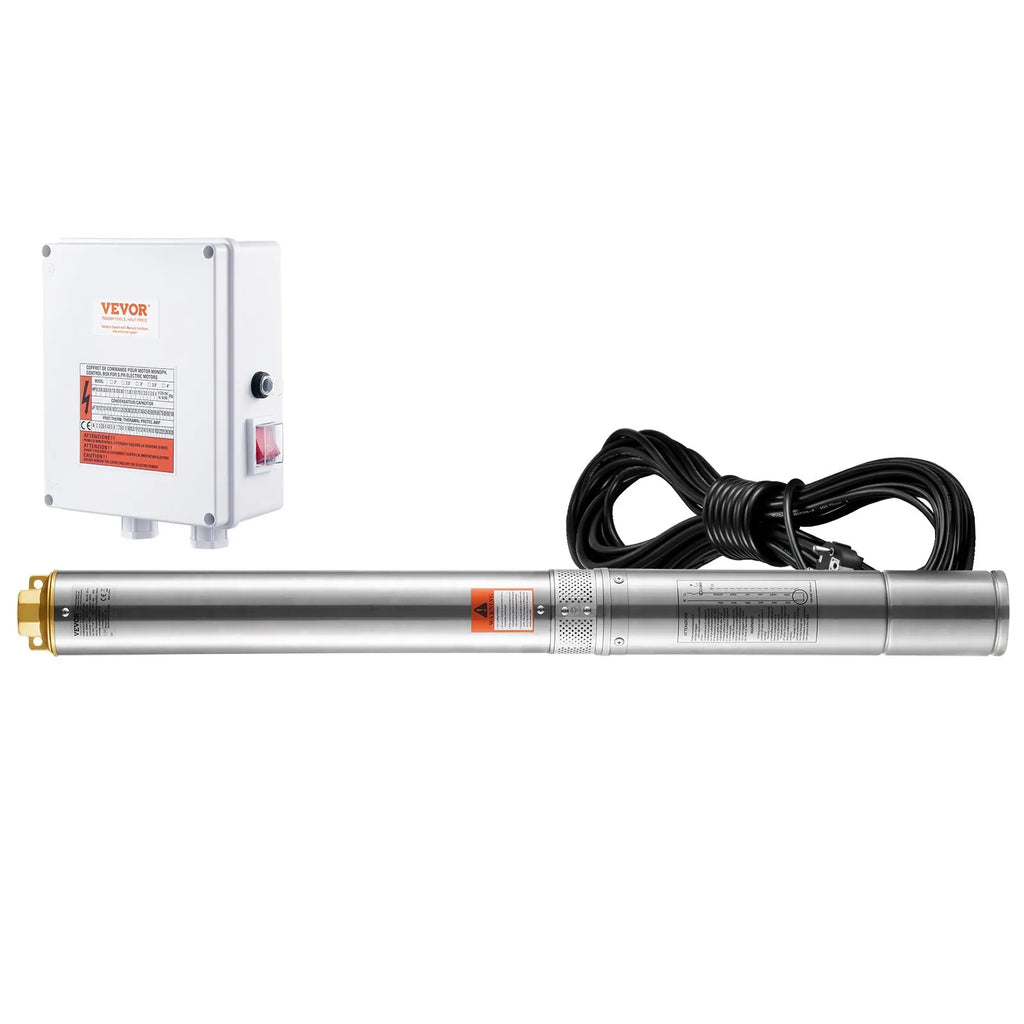

The deep-well submersible water pump can be installed vertically or horizontally. Please fully submerge the pump in water to avoid prolonged dry running.

Designed with the user in mind
Our well pump is designed with reinforced impellers for a longer service life, as well as mounting holes for wire or nylon rope. Double ball bearings and a stainless steel rotor shaft ensure low noise levels and high wear resistance.

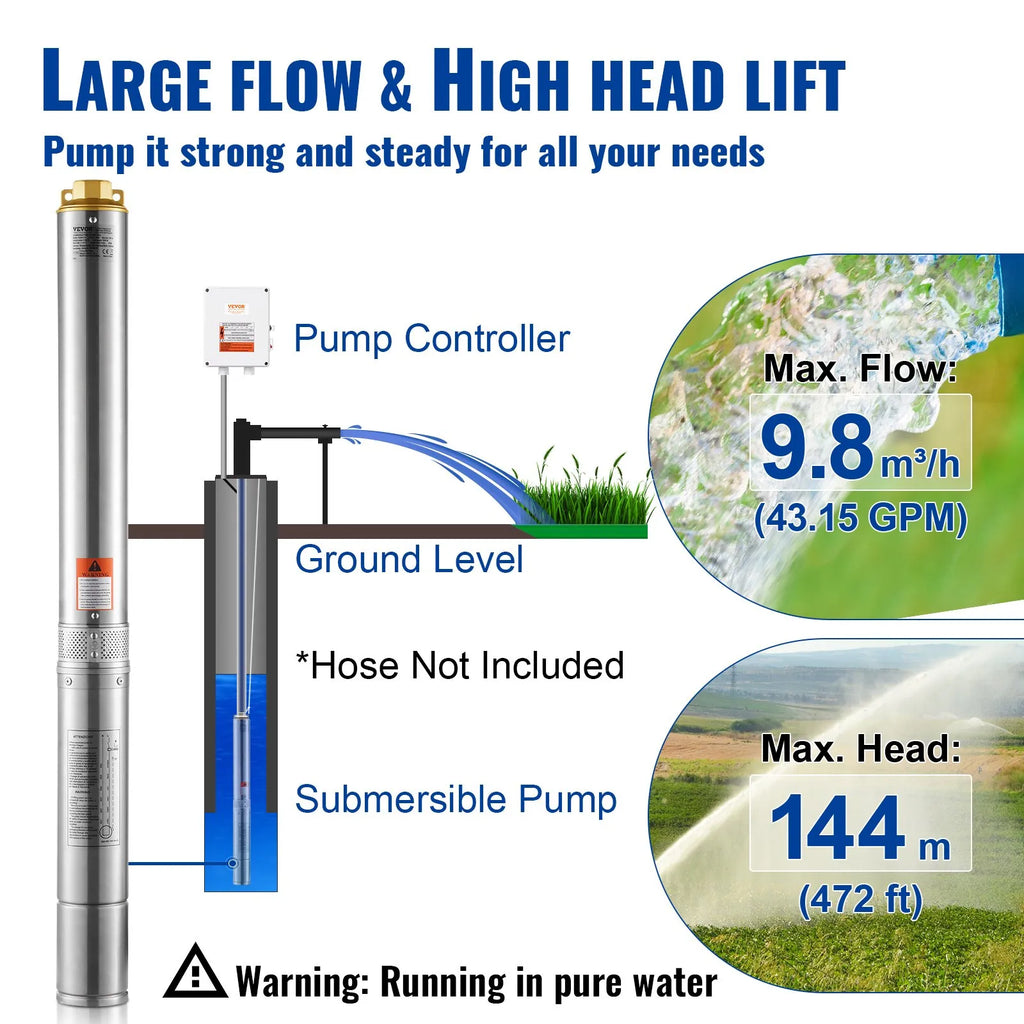

High Flow Rate and High Lift Height
This 2200 W submersible well pump delivers a high flow rate of up to 9.8 m³/h and a lift height of up to 144 m, fully meeting all your water supply needs. A multi-stage filtration screen ensures crystal-clear water.

: A Powerful and Reliable Copper Motor The copper motor provides high power to our submersible well pump. It is equipped with overheating protection, which prevents overheating and reduces energy consumption.

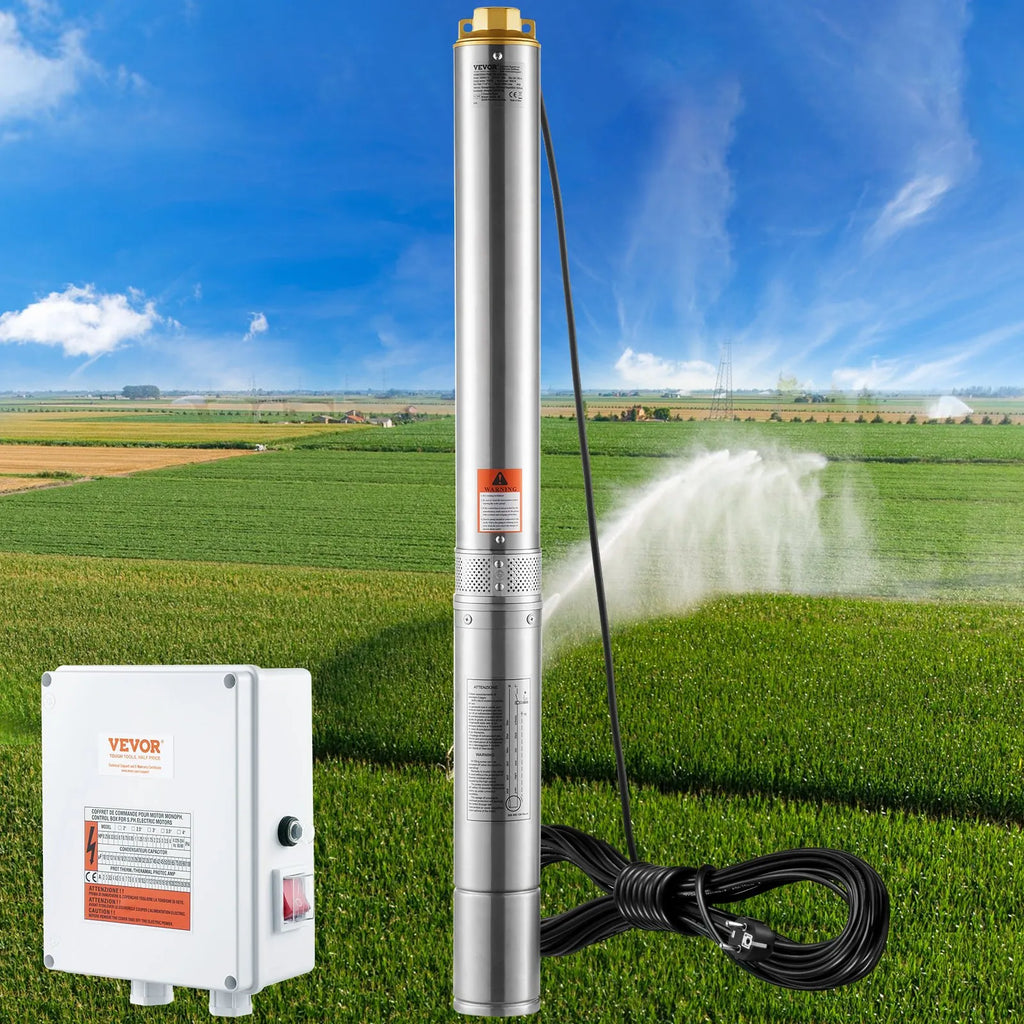

Wide Range of Applications
Our deep-well water pump is ideal for households with a freshwater supply. It is also an excellent solution for irrigating farmland, supplying water in mountainous areas, and pumping water in cities, factories, railway facilities, and mines.

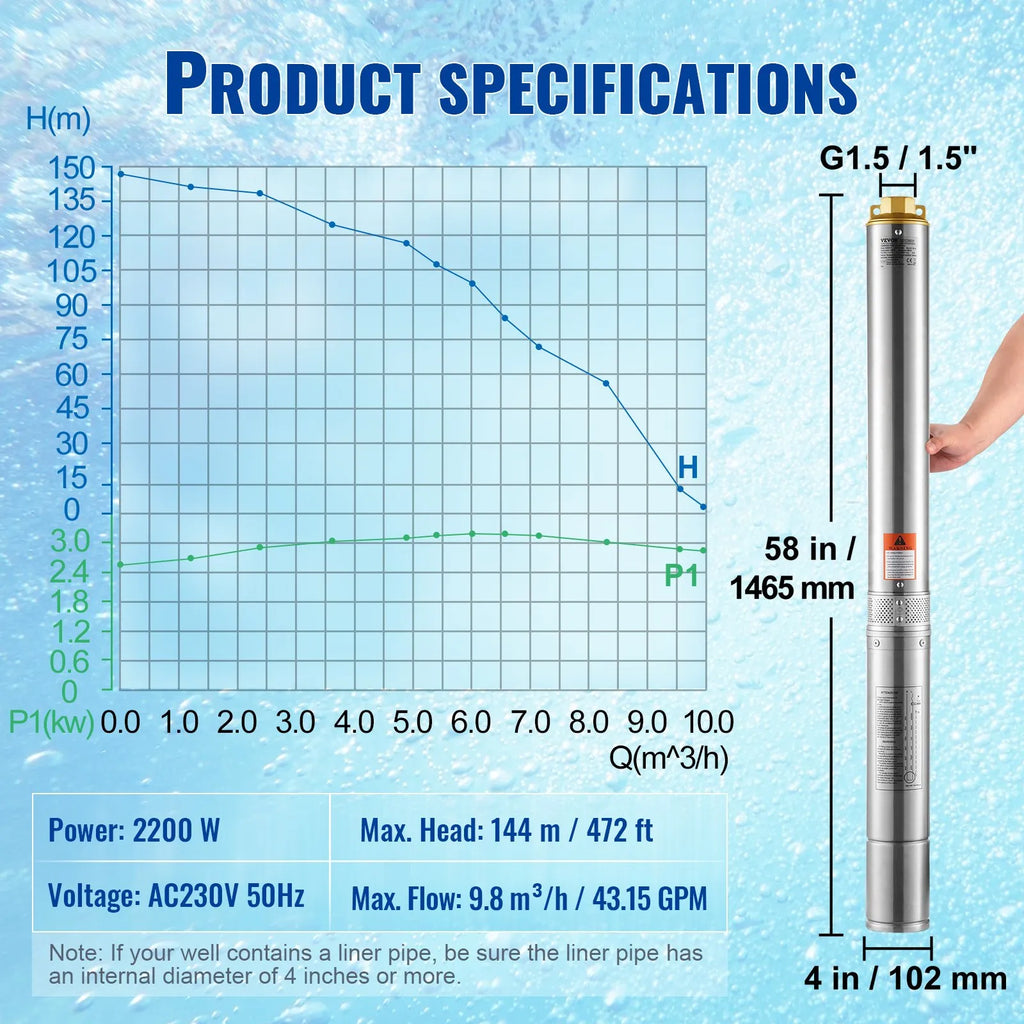

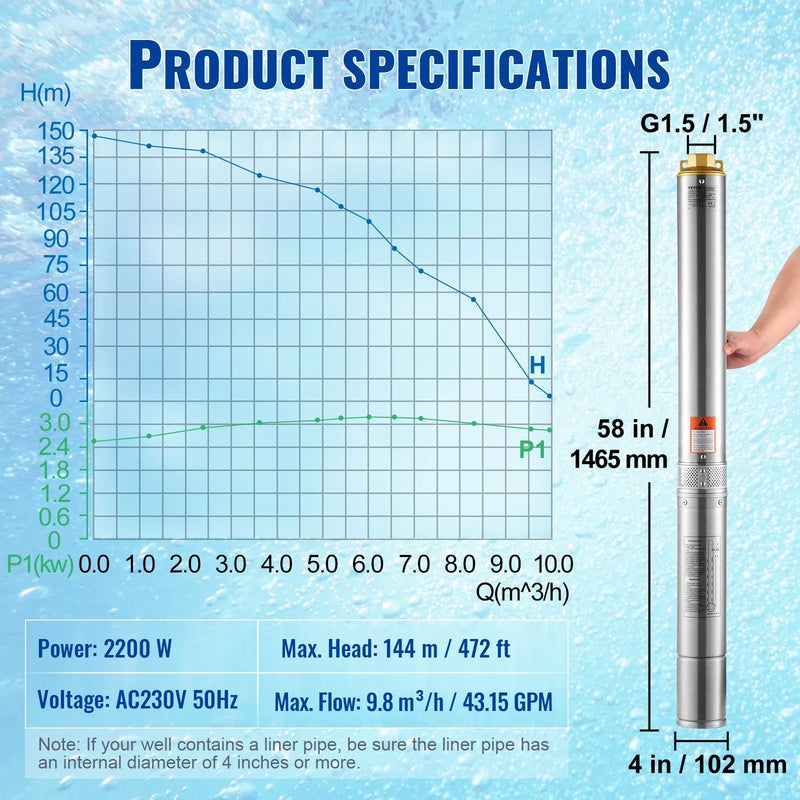

Specifications

Model Number: 4SDM6/20

Material: stainless steel

Power: 2200 W

Voltage: AC 230 V, 50 Hz

Max. flow rate: 9.8 m³/h

Max. lift height: 144 m

Exhaust connection: G1.5

Length of the electrical cable: 19.4 m

Blade wheel stages: 20

Max. speed: 2,850 rpm

Certification: CE

Protection class: IP68

Package Contents

1 × submersible deep-well pump

1 × external control unit

1 × power cord
