Features and Details
Reliable performance:
The 0.75 ZS pool pump motor operates at 3,450 rpm, ensuring efficient water circulation and stable operation of the pool system.
Voltage: AC 115/230 V
Current: 8/4 A
Maximum load current: 10/5 A
Service factor (SF): 1.5
Capacitor: 80 μF/250 V
Flange type: 56J

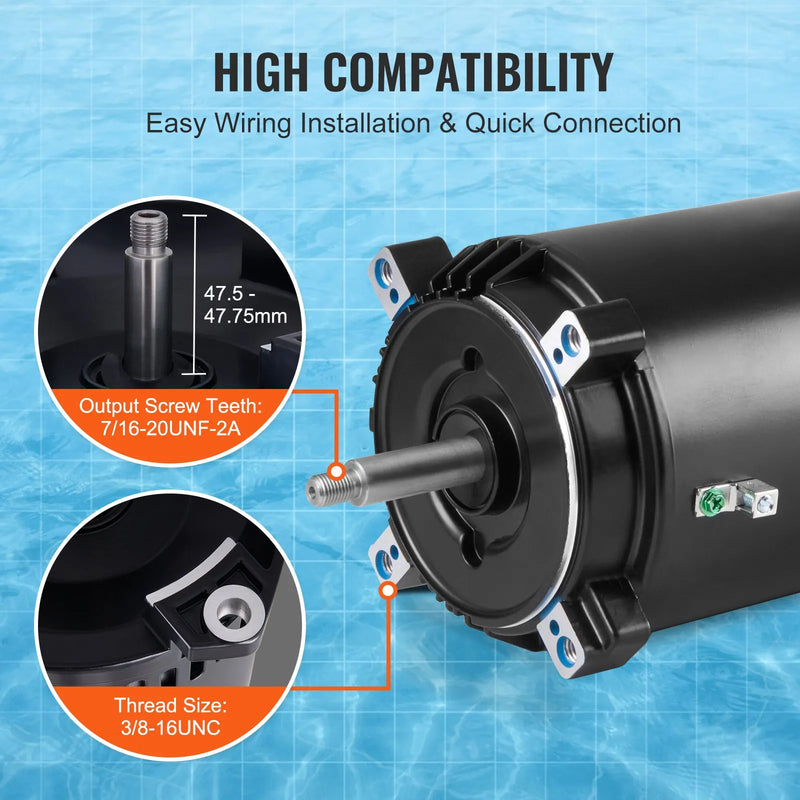

Easy installation:
Thread size: 3/8-16UNC
Output thread: 7/16-20UNF-2A
Shaft extension: 48.3 mm
The kit includes an instruction manual with detailed installation instructions.

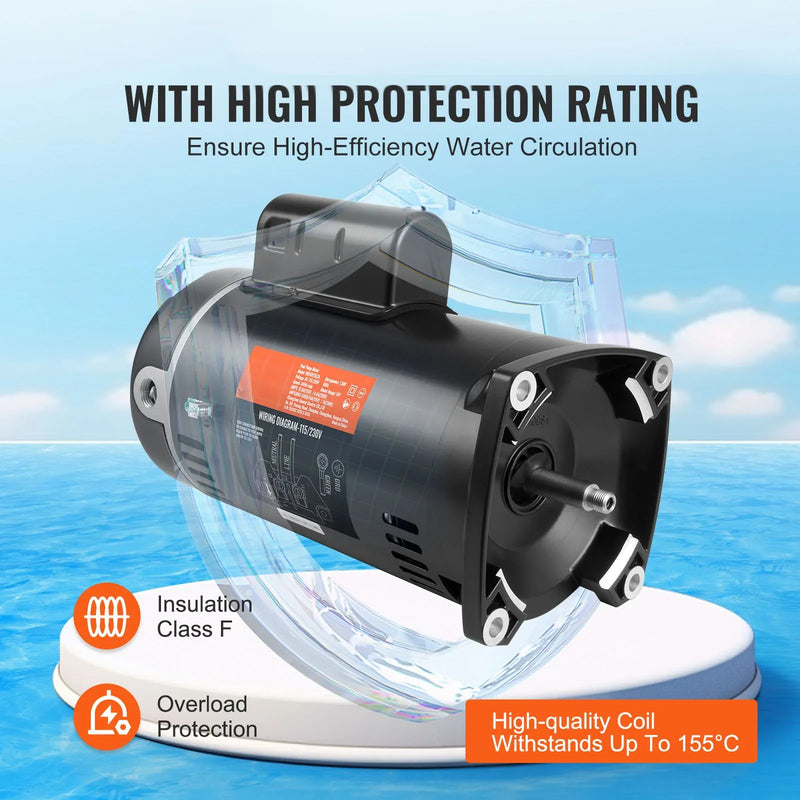

Safety and Durability:
Equipped with a corrosion-resistant steel housing, ball bearings, low starting torque, and overload protection, ensuring safe and long-lasting operation.
High performance and energy efficiency:
It operates at 3,450 rpm, delivering powerful performance with a low noise level of up to 65 dB and reduced energy consumption.

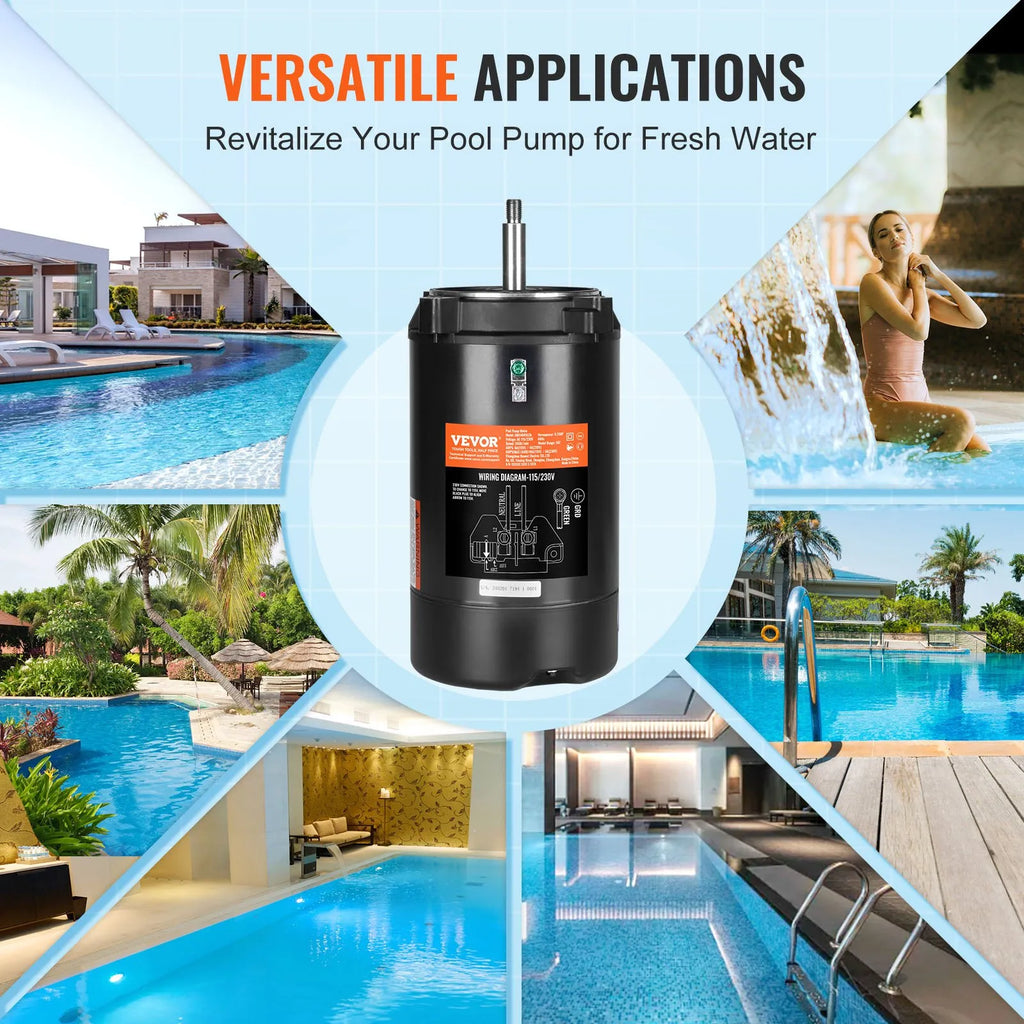

Versatile applications:
Suitable for various types of pools—both private and commercial—ensuring clean and clear water and improving the system's overall performance.
The VEVOR 0.75 ZS pool pump motor ensures reliable and efficient operation.

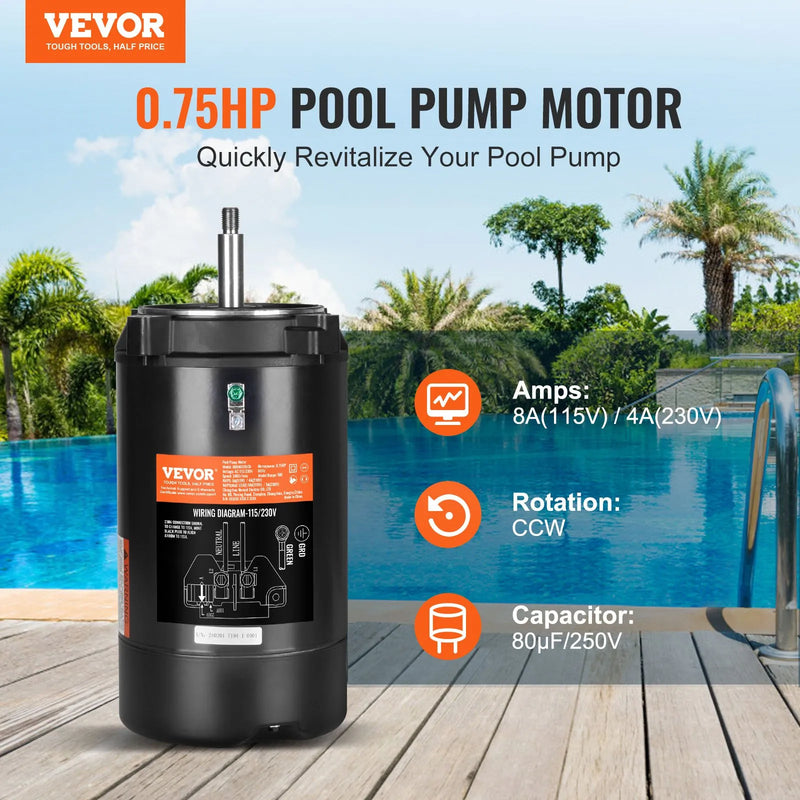

Voltage: AC 115/230 V
Current: 8 A (115 V) / 4 A (230 V)
Speed: 3,450 rpm
Capacitor: 80 μF / 250 V
Flywheel: 56 J
Rotation: counterclockwise (CCW)
The perfect choice for restoring your pool pump and ensuring clean, clear water.

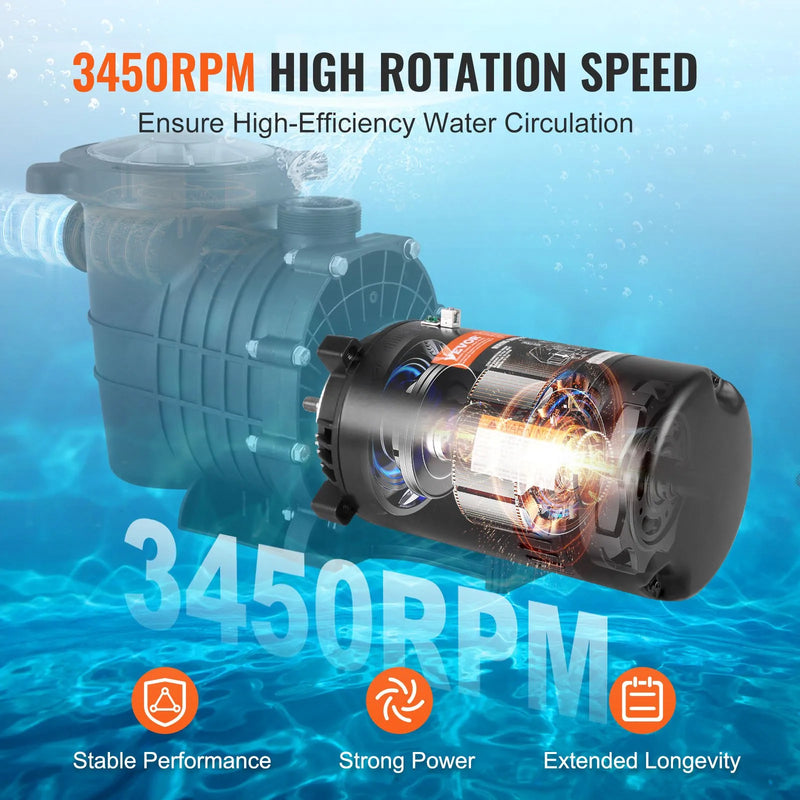

High-performance 3,450 rpm motor
The motor ensures efficient water circulation with reduced energy consumption. This guarantees smooth operation of the pool system and a pleasant swimming experience.
Easy installation
Precisely engineered mounting and shaft parameters allow for quick replacement.
Before installation:
Check that the flange and shaft sizes are compatible.
Make sure that the voltage, current, and power rating match those of the existing motor.

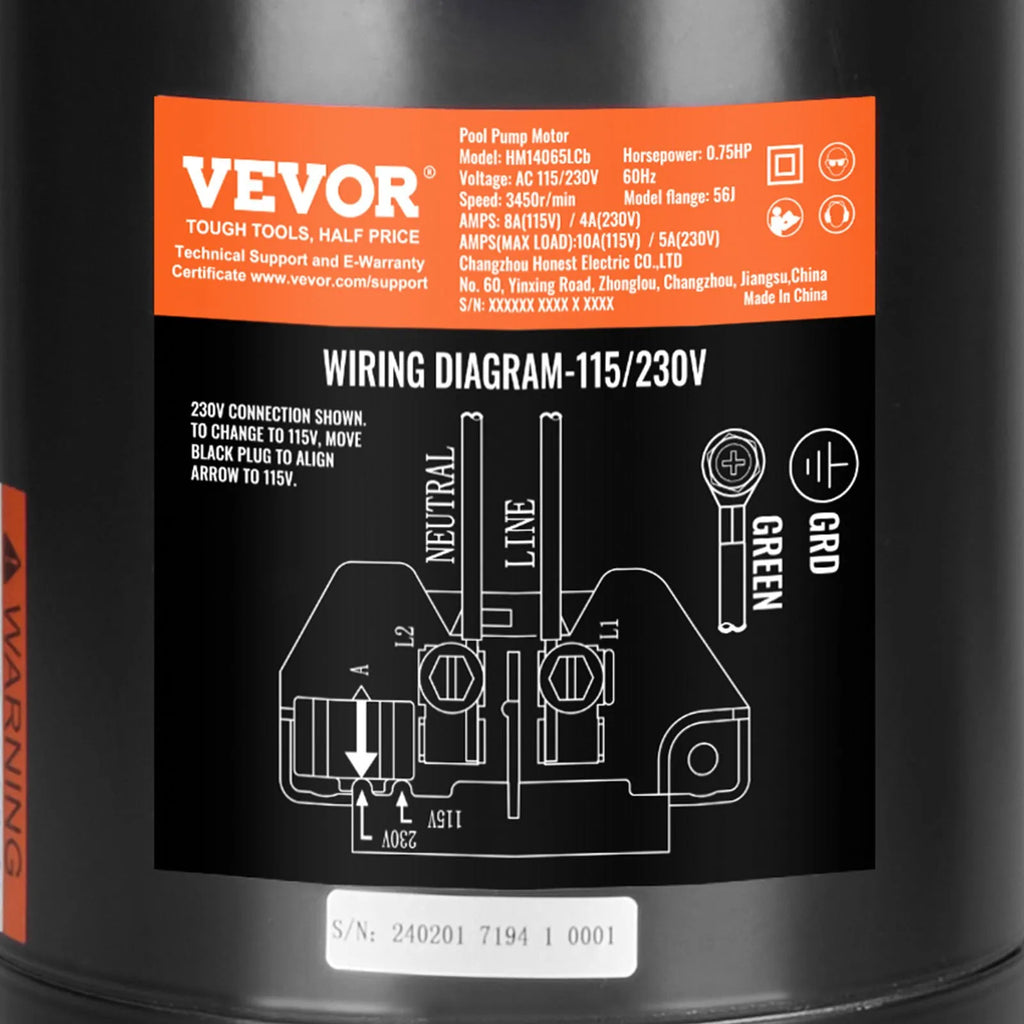

We recommend following the attached wiring diagram.

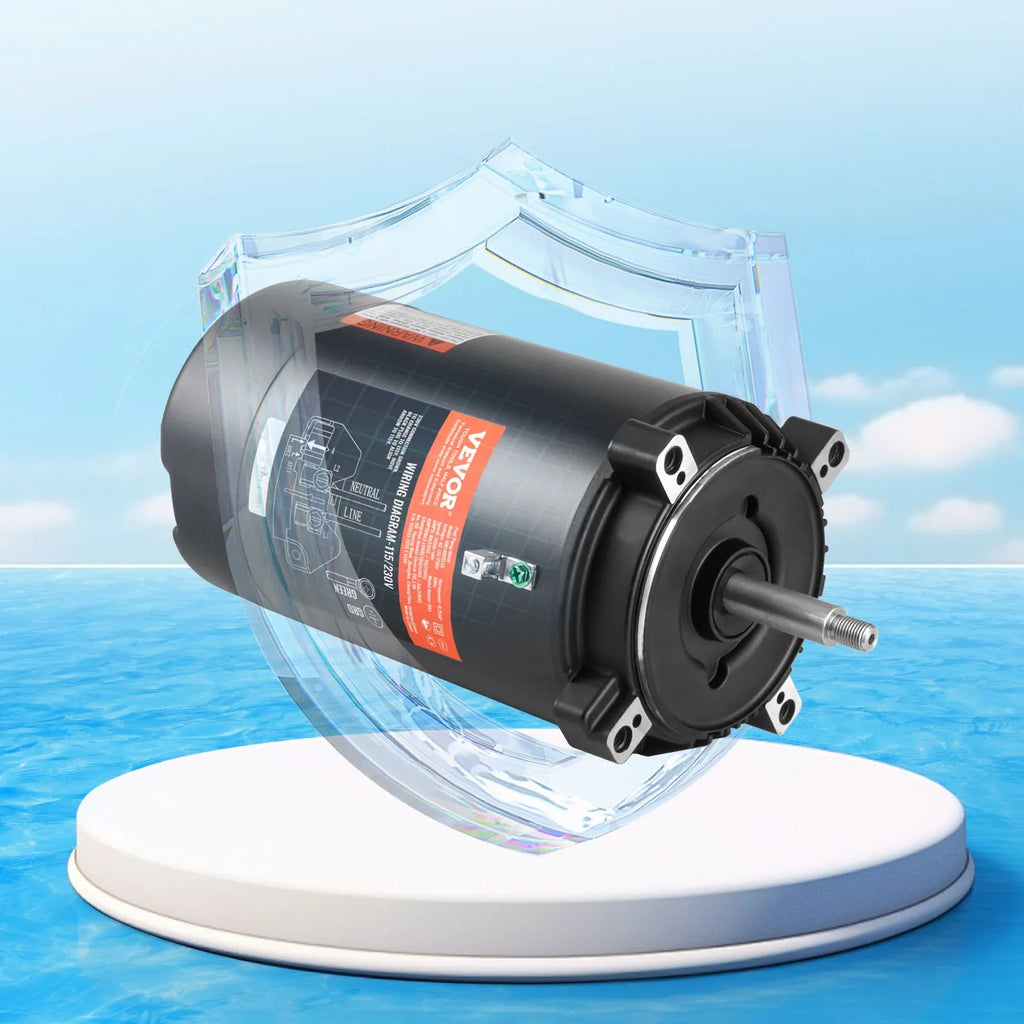

Durable and corrosion-resistant construction
The high-quality steel housing is resistant to rust and wear. The design is intended for long-term use, even under heavy-duty conditions. A service factor of 1.5 ensures reliable operation under higher loads.
Quiet operating mode
A noise level of up to 65 dB ensures a peaceful environment around the pool. Reduced vibration extends the motor's service life.
Dual-voltage capability: 115 V / 230 V
The motor supports both 115 V and 230 V connections, making it suitable for a variety of electrical installations. A flexible choice for both residential and commercial pools.
An economical and reliable choice
It delivers high performance at an affordable price. Its energy-efficient design helps reduce operating costs while maintaining stable and reliable operation.

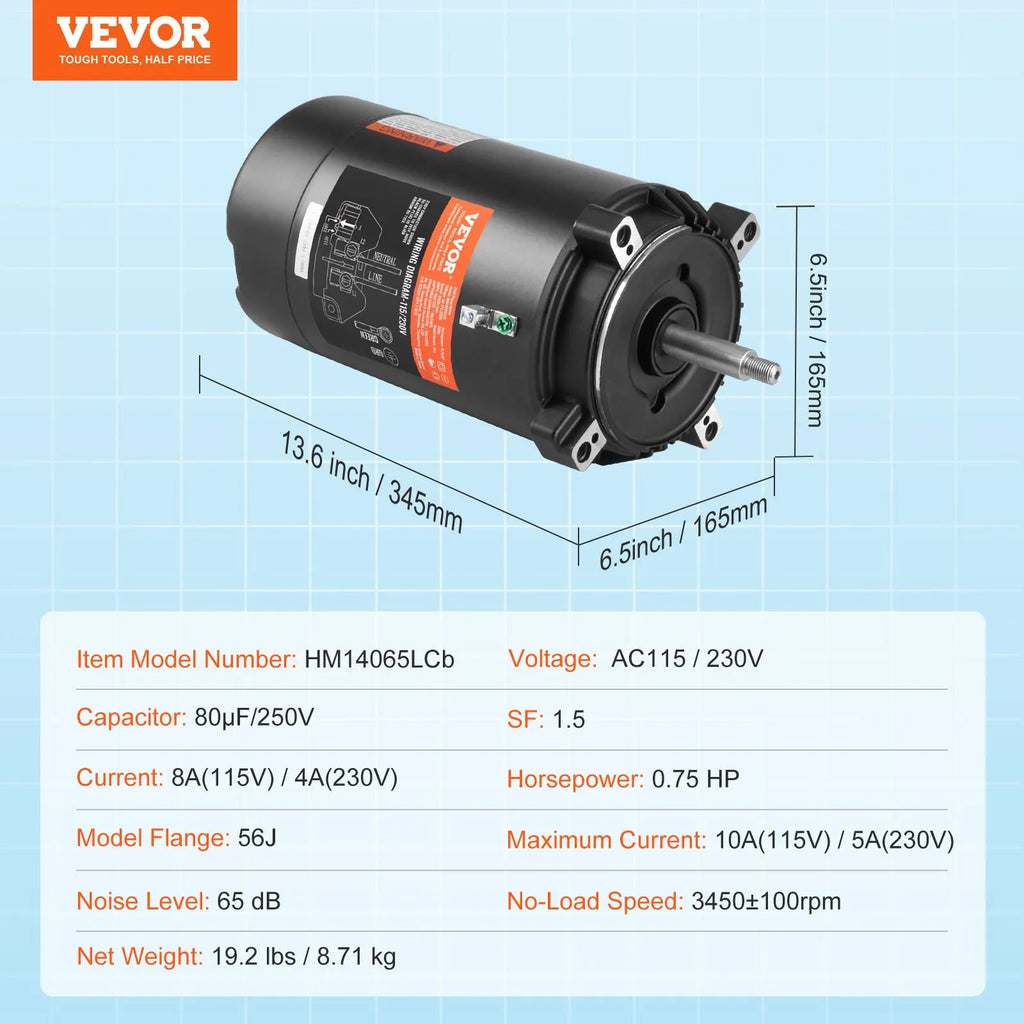

Product Specifications
Model number: HM14065LCb
Voltage: AC 115/230 V
Capacitor: 80 μF / 250 V
Power: 0.75 ZS
Current: 8 A (115 V) / 4 A (230 V)
Maximum load current: 10 A (115 V) / 5 A (230 V)
Flange type: 56J
No-load speed: 3,450 rpm
Noise level: ≤ 65 dB
Dimensions: 345 × 165 × 165 mm
