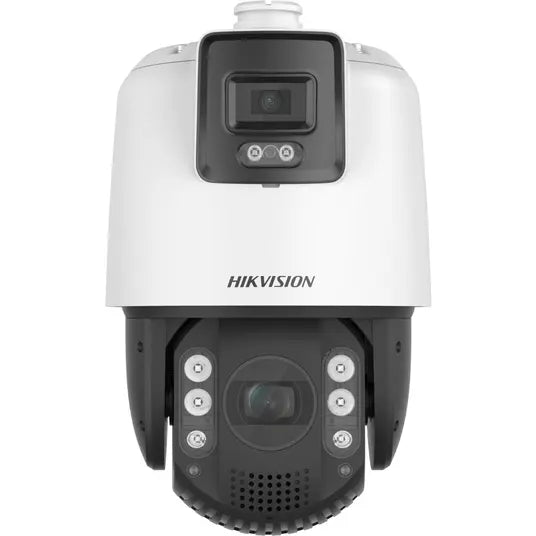

TandemVu 4+4 MP 32× ColorVu and IR AcuSense high-speed network dome camera with 32× optical zoom, up to 200 m IR, active strobe, and audio alarm

Captures a wide area and detailed images simultaneously
High-quality imaging with 4 MP resolution
Excellent low-light performance with DarkFighter technology
Provides wide-area surveillance with 32× optical and 16× digital zoom
Supports WDR, HLC, BLC, 3D DNR, image defogging, regional exposure, and focusing
Extended night vision up to 200 m with IR illumination
Supports 24 VAC and Hi-PoE power supply
Active strobe and audio alarm to deter intruders

Product Specifications

Camera
Image sensor: [Bullet channel]: 1/1.8" progressive-scan CMOS; [PTZ channel]: 1/1.8" progressive-scan CMOS
Maximum resolution: [Bullet channel]: 2560 × 1440; [PTZ channel]: 2560 × 1440
Minimum illumination: [Bullet channel]: 0.0005 lx (F1.0, AGC on), 0 lx with illumination; [PTZ channel]: color: 0.005 lx (F1.5, AGC on), black and white: 0.001 lx (F1.5, AGC on), 0 lx with IR
Shutter speed: 1 s to 1/30,000 s
Day/night mode: ICR
Zoom: [PTZ channel]: 32× optical, 16× digital
Slow shutter: Yes
HLC: Yes
3D DNR: Yes

Lens
Focal length: [Bullet channel]: 4 mm; [PTZ channel]: 5.9–188.8 mm, 32× optical
Field of view: [Bullet channel]: horizontal 88.7°, vertical 44.7°; [PTZ channel]: horizontal 60.2°–2.3°, vertical 35.2°–1.3°
Focus: semi-automatic / manual / automatic
Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.5
Zoom speed: [PTZ channel]: approx. 5.6 s

Lighting
Supplementary lighting type: [Bullet channel]: white light; [PTZ channel]: IR
Supplementary lighting range: [Bullet channel]: up to 30 m; [PTZ channel]: up to 200 m
Smart lighting: Yes

PTZ
Horizontal movement: 360°
Vertical movement: -15° to 90° (automatic rotation)
Horizontal movement speed: 0.1°–160°/s; preset: 240°/s
Vertical movement speed: 0.1°–120°/s; preset: 200°/s
Proportional movement: Yes
Presets: 300
Preset freeze: Yes
Patrol: 8 routes, up to 32 presets each
Pattern scanning: 4 modes
Park mode: presets / pattern scan / patrol / auto scan / tilt scan / random scan / frame scan / panorama scan
3D positioning: Yes
PTZ status display: Yes
Scheduled tasks: presets / pattern scan / patrol / auto scan / tilt scanning / random scanning / frame scanning / panorama scanning / restart / adjustment / auxiliary output
Power-off memory: Yes

Video
Main stream: up to 2560 × 1440 @ 25/30 frames/s
Secondary stream: up to 704 × 576 @ 25/30 frames/s
Third stream: up to 1920 × 1080 @ 25/30 frames/s
Video compression: H.265 / H.264 / MJPEG
Bitrate: 32 kbps–16,384 kbps
SVC: Yes
ROI: up to 8 zones per stream

Audio
Audio compression: G.711, G.722.1, G.726, MP2L2, PCM
Bitrate: 32–192 Kbps
Sampling frequency: 8–48 kHz
Noise filtering: Yes

Network
Protocols: IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, RTSP, TCP/IP, UDP, etc.
Simultaneous live streaming: up to 20 users
API: ONVIF (S, G), ISAPI, SDK
Users: up to 32
Security: HTTPS, 802.1X, IP filtering
Storage: NAS (NFS, SMB/CIFS), ANR
Clients: iVMS-4200, Hik-Connect
Browsers: IE 10+, Chrome 57+, Firefox 52+, Safari 12+

WDR: 120 dB
SNR: >52 dB
Image settings: saturation, brightness, contrast, sharpness
Defogging: Yes
Stabilization: EIS
Privacy masks: up to 8 (Bullet) / 24 (PTZ)
Regional focus and exposure: Yes

Interfaces
Ethernet: RJ45, 10/100 Mbps
Storage: Micro SD up to 256 GB
Audio: 1 input / 1 output
Alarms: 2 inputs / 1 output
Reset: Yes

Events
Motion detection, video tampering, alarm entry/exit
Smart events: line crossing, intrusion, zone entry/exit
Tracking: automatic / manual

General
Power supply: 24 VAC, Hi-PoE
Dimensions: Ø 220 × 382.1 mm
Weight: approx. 6 kg
Material: ADC12
Operating temperature: -30 °C to 65 °C
Protection: IP66, IK10, lightning protection 6000 V
Power consumption: max. 42 W
