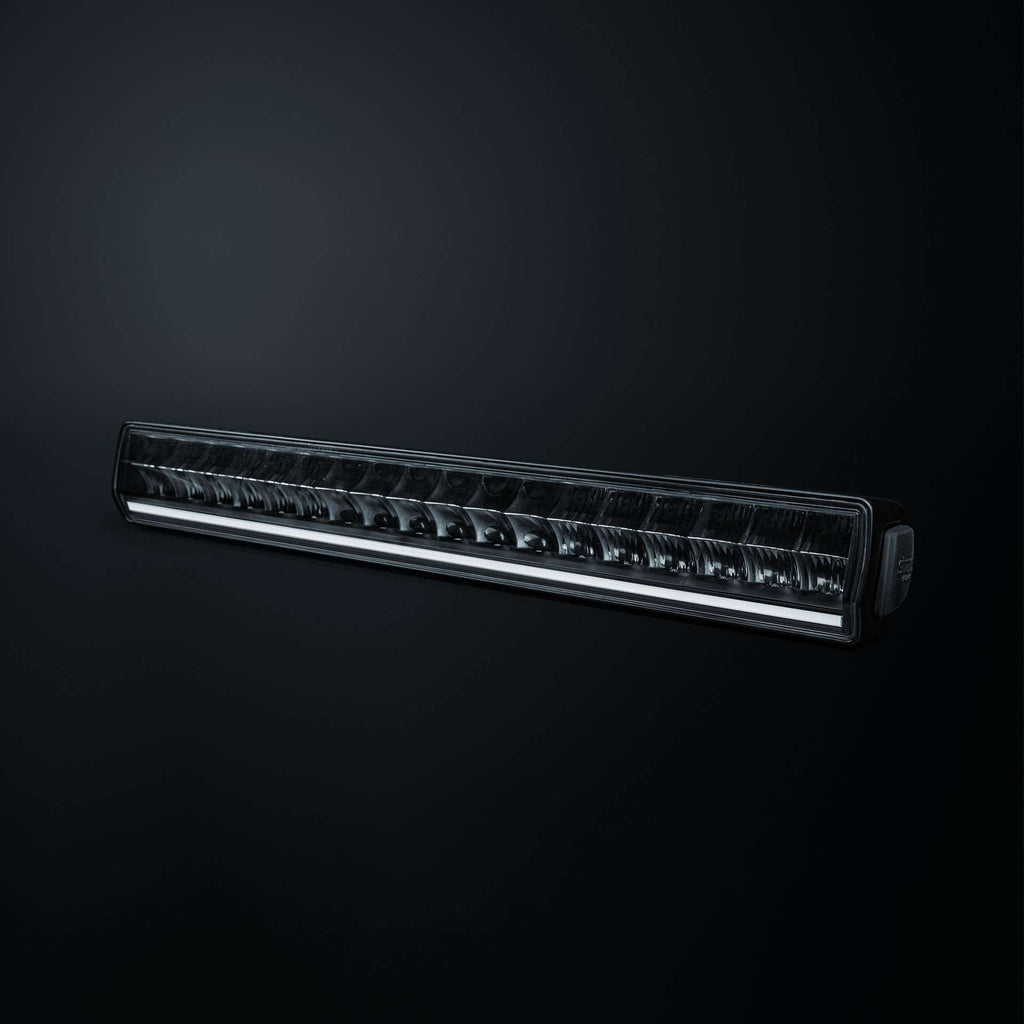

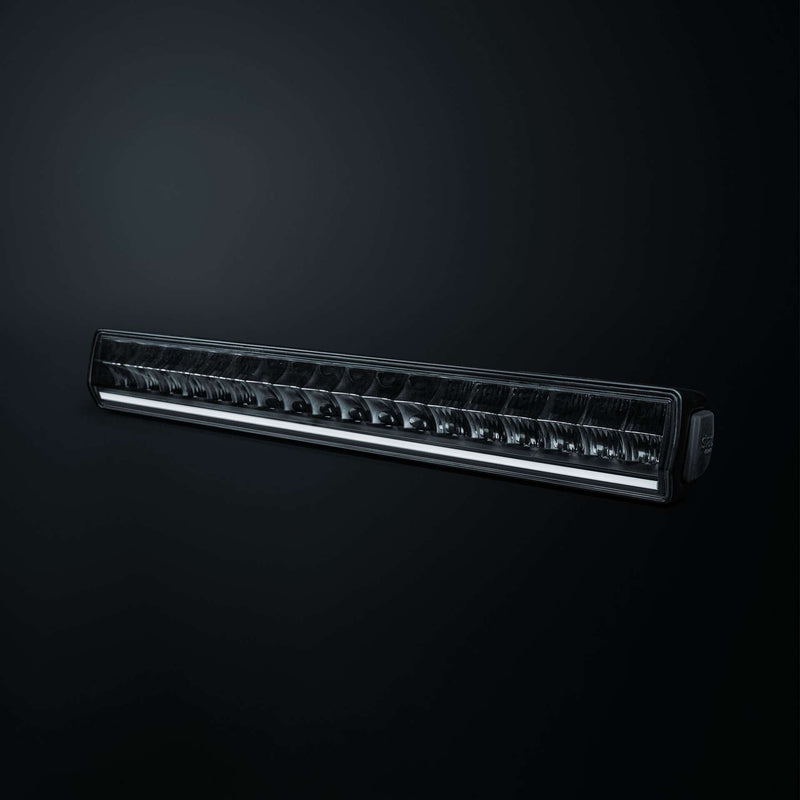

Name: STRANDS Skylord – LED position light strip white/amber with relay and wiring, 10–32 V, 25–102 cm
Brand: STRANDS
SKU: S-902000
Price: 397.32 EUR
Availability: InStock

High performance and long-range illumination

With an actual light output of more than 7,700 lm and a range of up to 500 m in Xperience mode, the 10" Skylord sets a new standard for LED light bars.

E-approved mode

E mode is E-approved in accordance with R148/R149 under reference number 20.

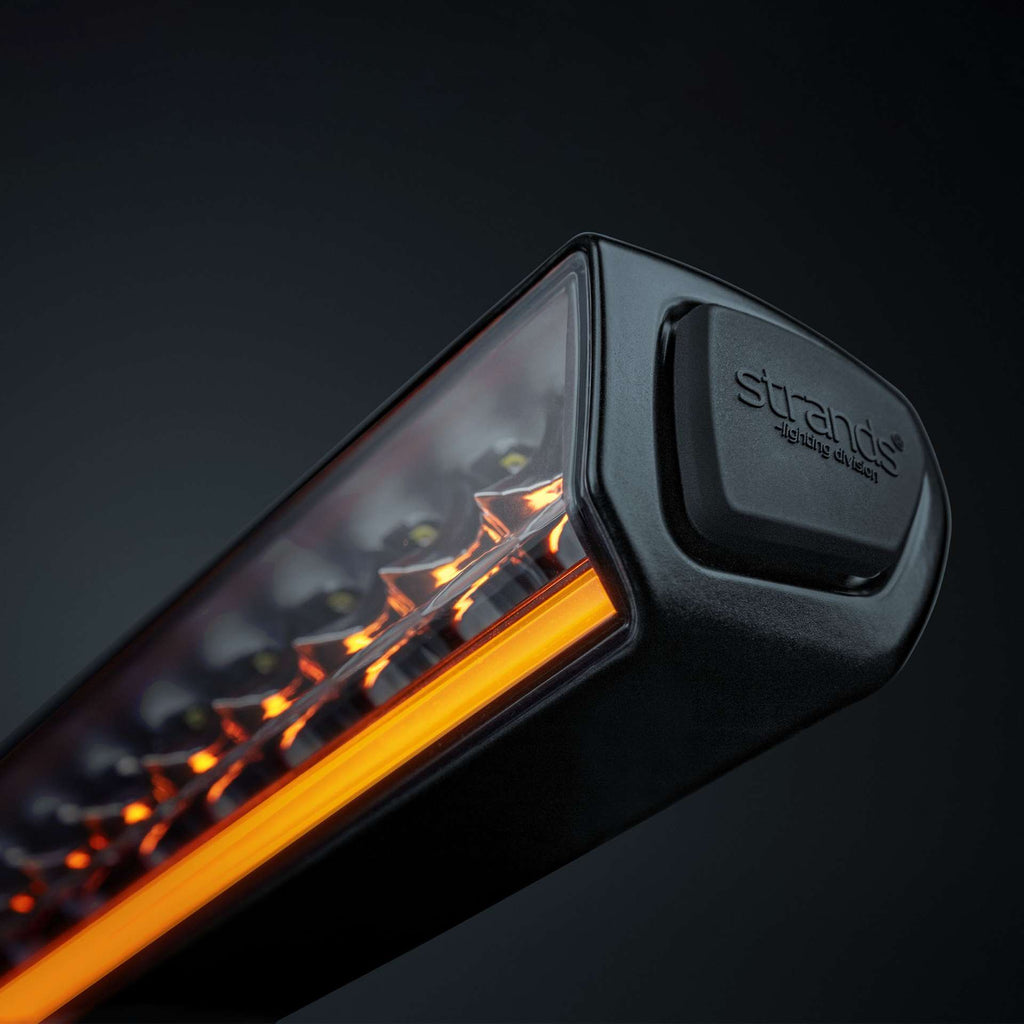

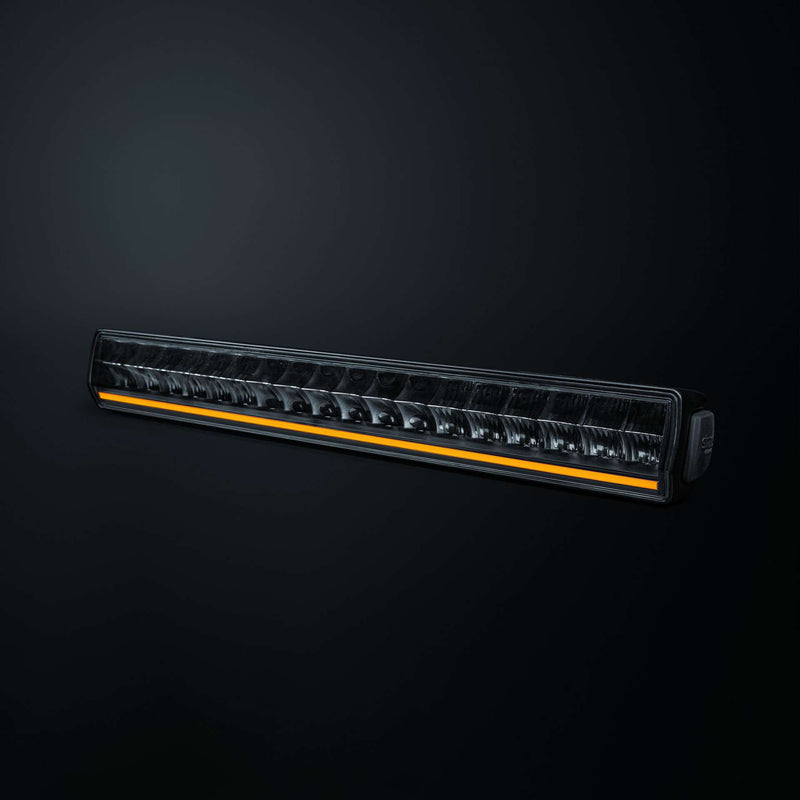

Two-color position lights

Equipped with white and amber parking lights, as well as a new, improved light pattern. This ensures maximum visibility at a distance, close to the vehicle, and on the sides.

Durable construction

The housing is made from a single piece, ensuring high durability. The LED light strip meets the IP69K protection rating.

Warranty and Equipment

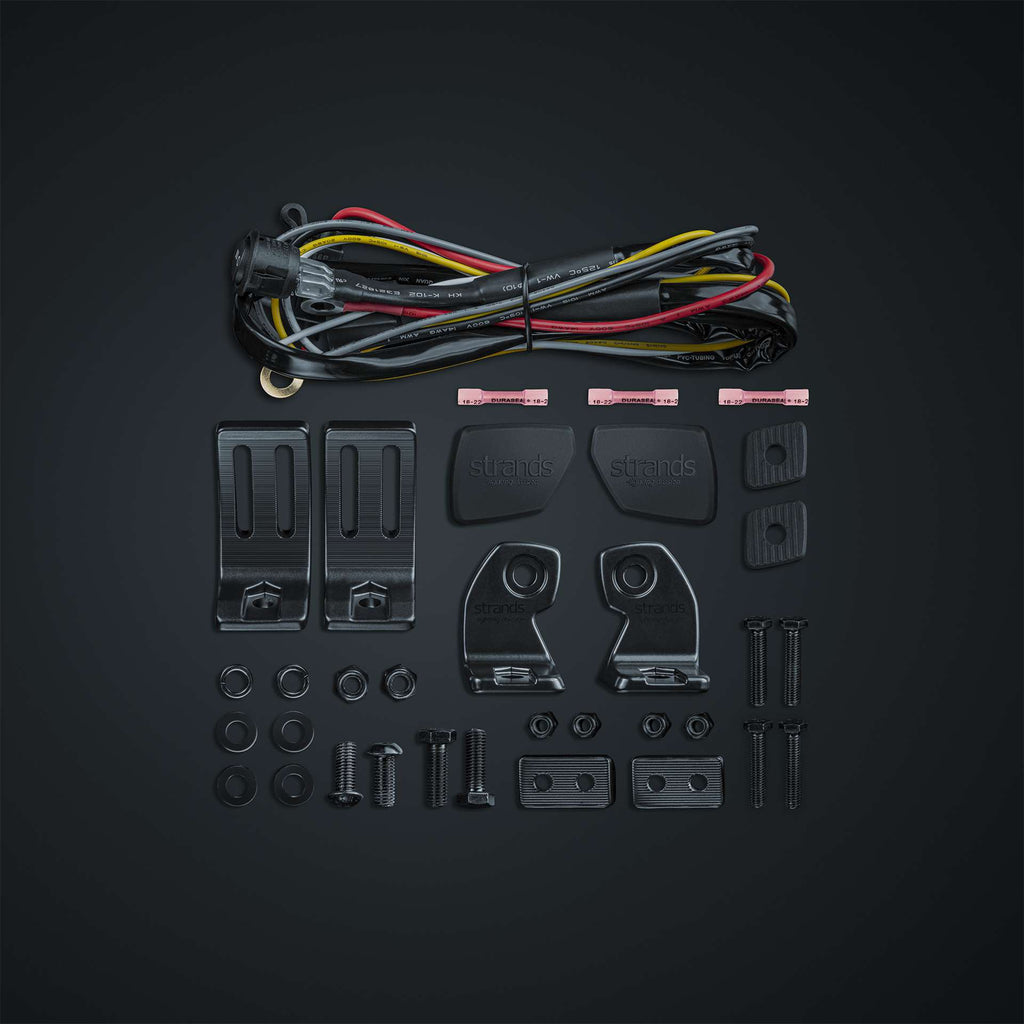

Comes with a 5-year warranty. Includes a built-in relay and a 2.5-meter cable. The kit includes all necessary installation accessories: side and suspension mounts, washers, screws, rubber pads, rubber covers with the Strands logo, as well as an XBB wiring kit with Dura Seal connectors and a position light switch.

Installation

A CAN bus interface, such as the XBB, may be required for a complete installation.

Specifications

Unit: piece

Voltage (DC): 10–32 V

Rated power: 90 W

Power consumption: 76 W

Features: amber parking light, white parking light, Xperience mode, E-approved mode, "hello" function

Power consumption by function:
White position light: 6 W
Amber position light: 6 W
Xperience mode: 76 W
E mode: 37 W

Theoretical luminous flux: 10,800 lm

Actual luminous flux: 7,700 lm

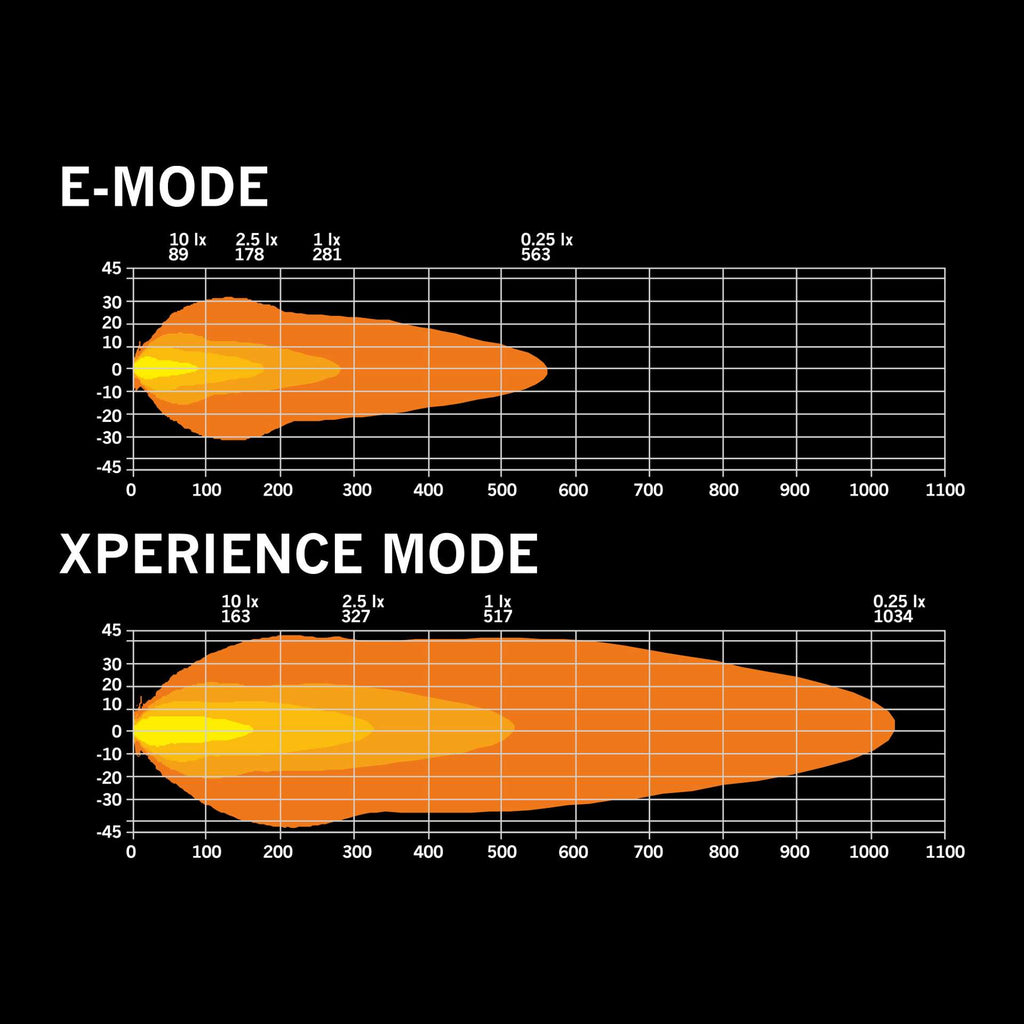

Illumination distance (1 lux): 517 m

Color temperature: 5700 K

Light Beam: Expanded Beam

Beam angle: 13.6°

Connection: cable

Cable length: 2,500 mm

Housing color: black

Lens color: clear

LED color: white/amber

Fastener material: aluminum alloy

Housing material: aluminum

Lens material: polycarbonate

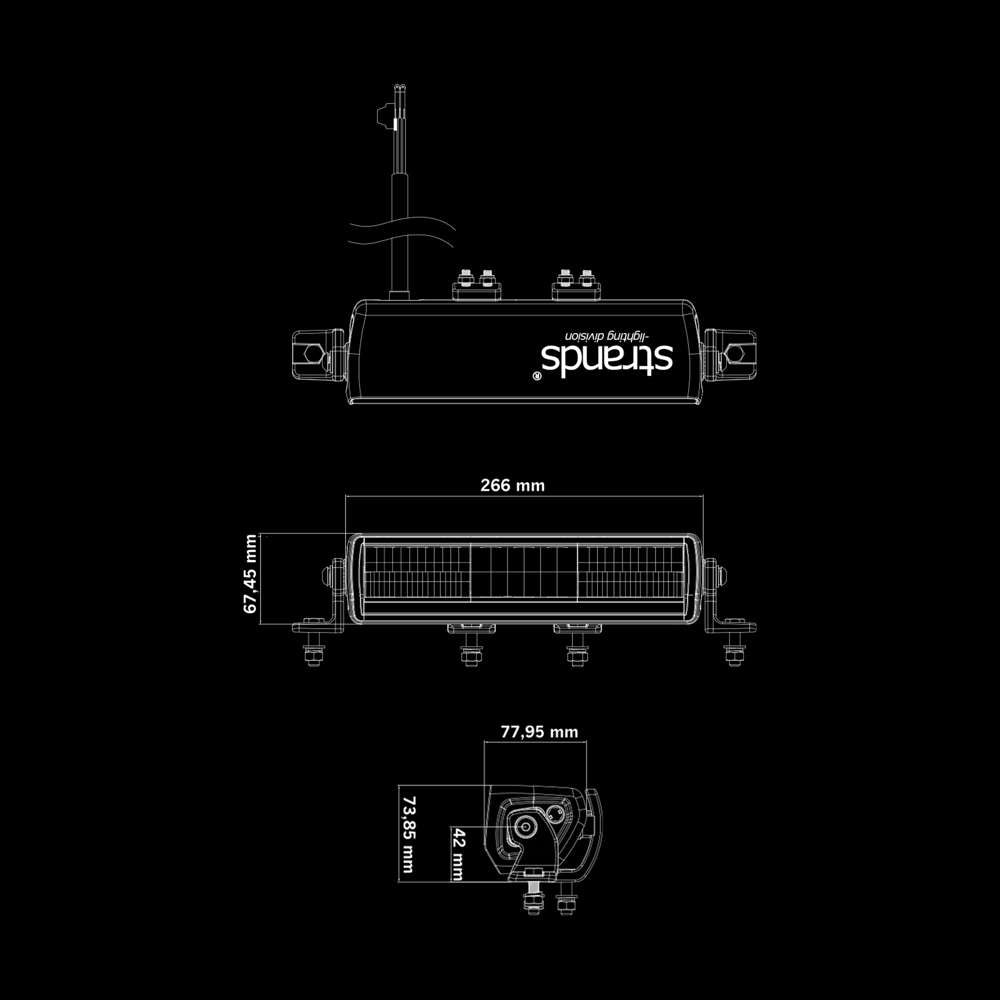

Length: 266 mm

Depth: 78 mm

Height: 67.5 mm

Height including mounting bracket: 73.9 mm

Net weight: 1.9 kg

Protection class: IP68/IP69K

Operating temperature: -35 to +60 °C

E approval: yes

ECE Certification: R10.06, R148, R149

Reference number: 20

Size: 10"
