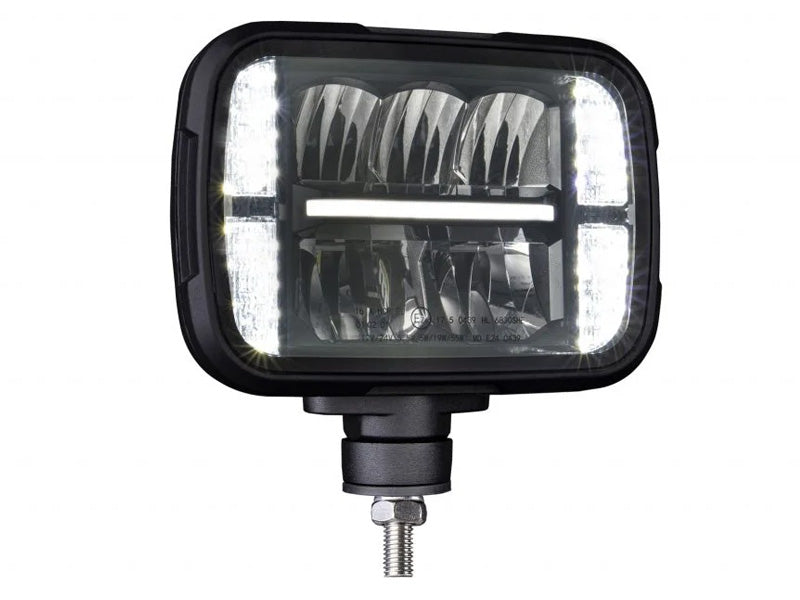

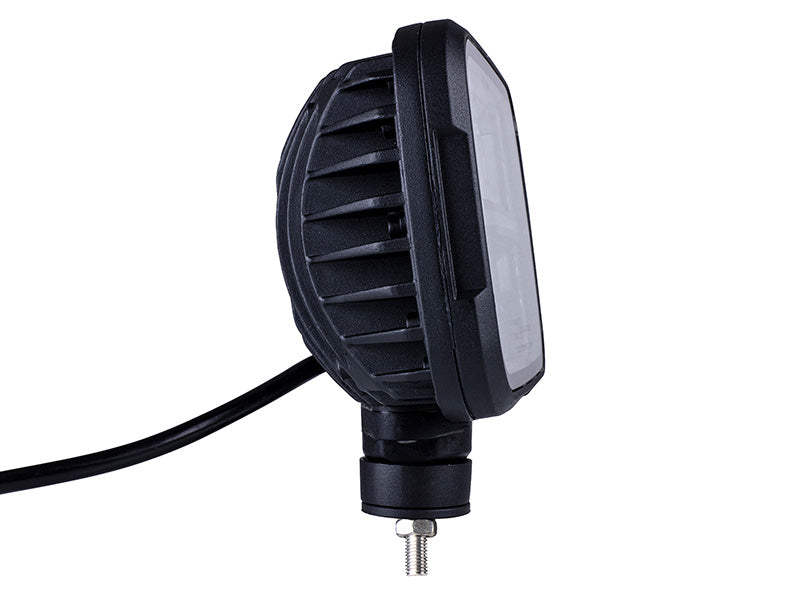

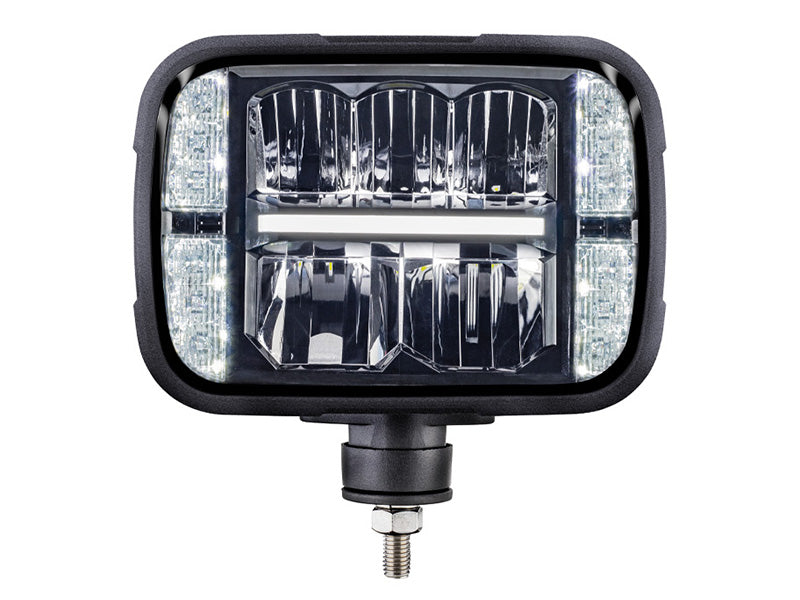

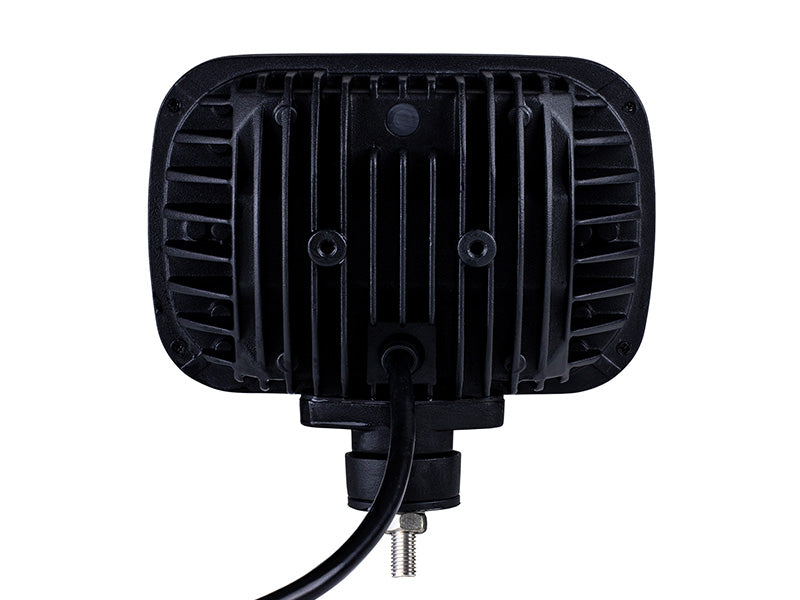

Description
Lamp type LED
PCS LEDs 5
Voltage (V DC) 9-32V DC
Consumption (w) 12V 4.5W, Indicator: 5W, High beam: 57W, Low beam: 17W, Heated lens: 36W
Consumption (w) 24V 5W, Indicator: 6W, High beam: 55.5W, Low beam: 18.5W, Heated lens: 31W
Functions High beam, low beam, marker light, indicator, heated lens
Theoretical lumen 3000 (high beam), 2400 (low beam)
Actual lumens 1380 (high beam) 1008 (low beam)

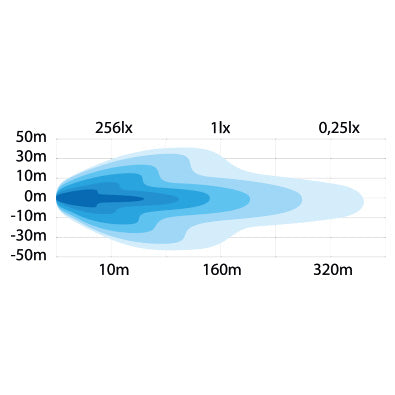

1 LUX @ m 80 (low beam) 160 (high beam)
Kelvin 6000
IP class 67/69
Color body Black
Color lens Clear
Color LEDs White
Combined main beam, combined dipped beam
Position light Yes
Connection DT-6
Cable length (mm) 500
Material bracket Stainless steel
Material body/chassis Aluminum
Material lens Glass
Length (mm) 200.4
Depth (mm) 85.5
Height (mm) 142.4
Height including bracket (mm) 177.8
Operating temperature -30°C - +65°C
ADR approved No
E-approved Yes
According to regulation ECE R6, R7, R112
Reference number 17.5
EMC ECE R1

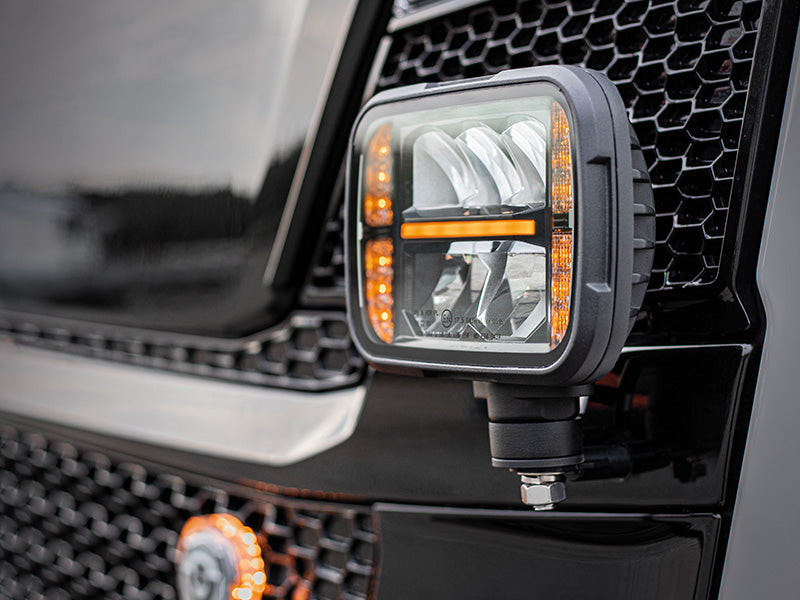

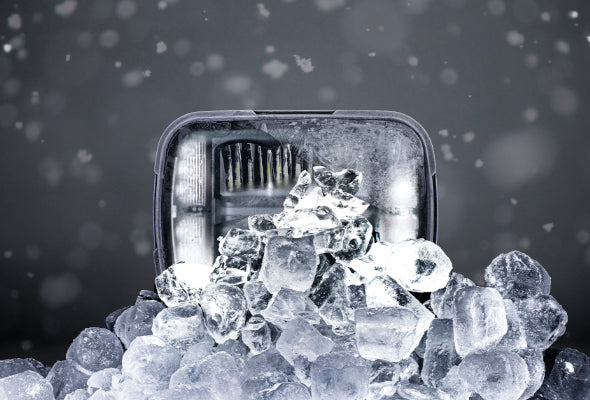

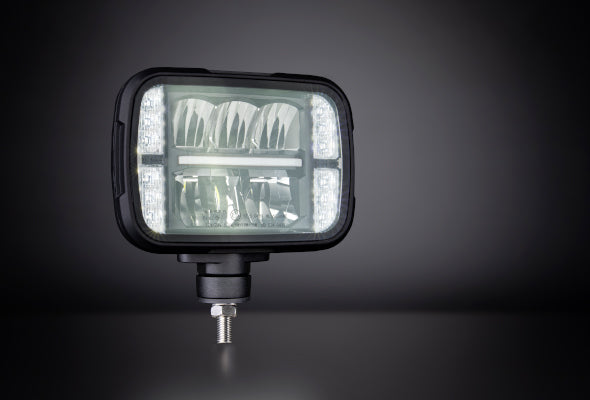

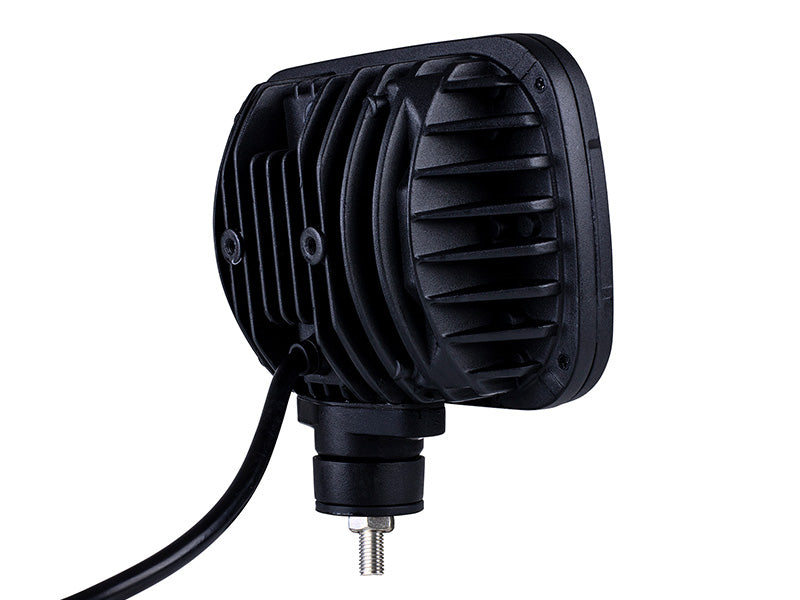

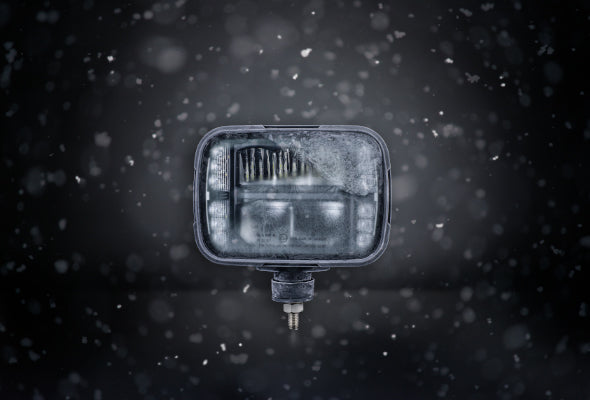

Description: Alaska LED is the start signal for the next generation of lights. Alaska creates maximum visibility and stylish design. The plow lamp has a heating lens with automatic thermostat control, which turns on at five degrees and prevents the formation of a layer of ice and snow. Without the need to handle the lamp manually. The plow lamp has the functions of high beam, low beam, position light and indicators. Features are E-approved with reference number 17.5. Can be installed on either the right or left side and the bracket can be mounted on the back or bottom. Alaska is suitable for most agricultural and construction vehicles. Especially for snow plows where the plow blade does not cover the standard headlights.
