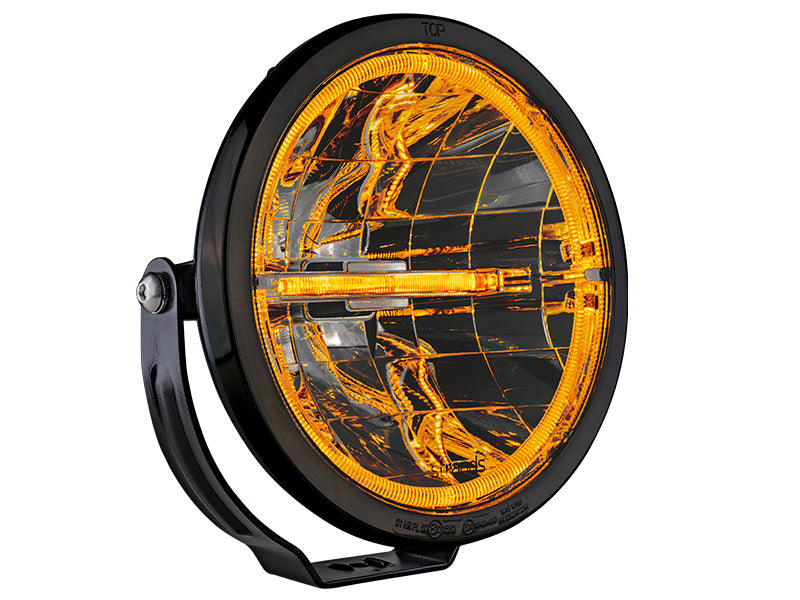

Description
Lamp type LED
PCS LEDs 8
Voltage (V DC) 10-32V DC
Consumption (w) 12V High beam: 67W position light: 2.5W
Consumption (w) 24V High beam: 67W position light: 2.5W
Theoretical lumen 5535
Actual Lumen 1948

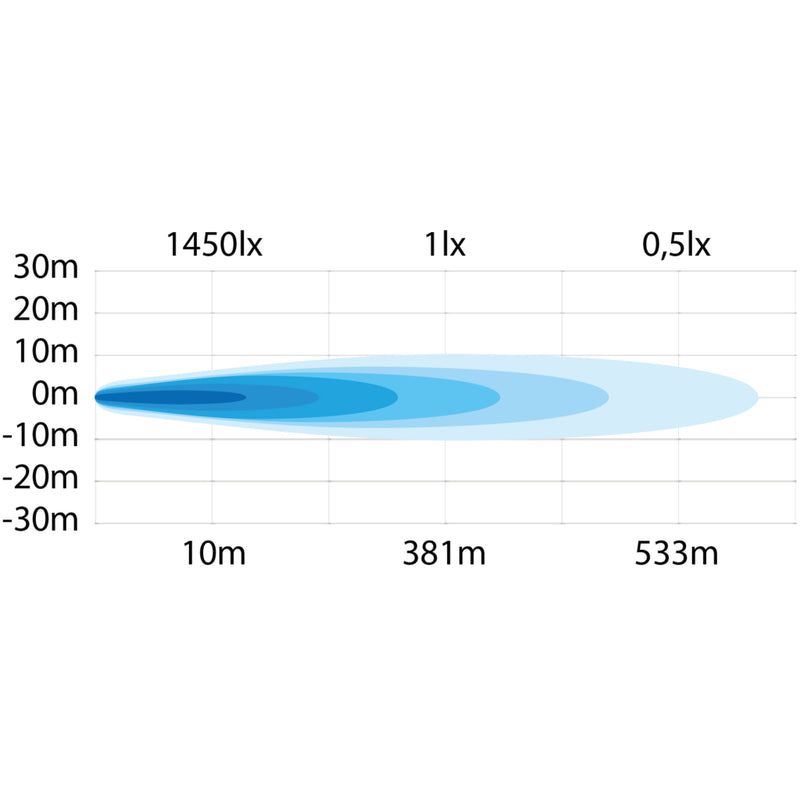

1 LUX @ m 381
Kelvin 6000
IP class 66/68
Color body Black
Color lens Clear
Color LEDs White and amber

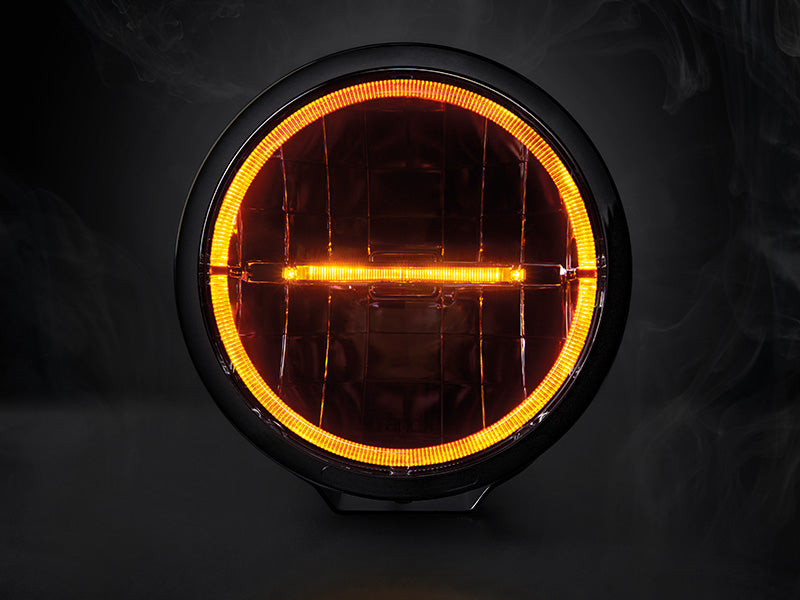

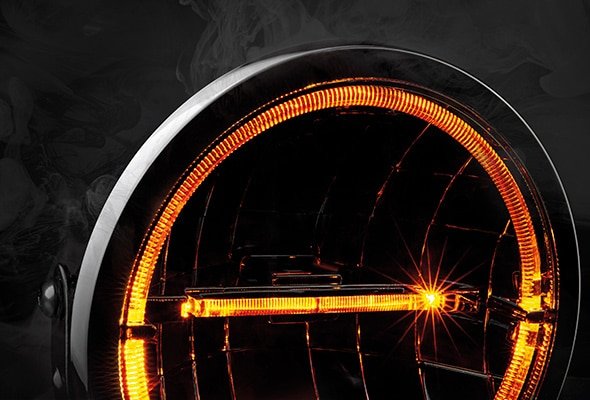

Position light Yes, white and amber

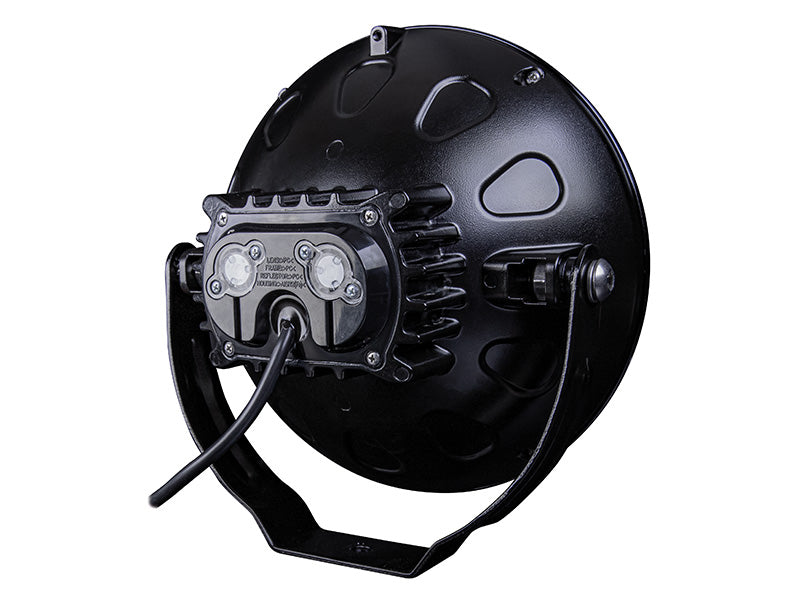

Connection Cable
Cable length (mm) 3000
Material bracket Stainless steel
Material body/chassis Aluminum
Material lens Polycarbonate
Depth (mm) 132
Height including bracket (mm) 245
Diameter (mm) 230.5
Operating temperature -40°C - +40°C
ADR approved No
E-approved No
EMC ECE R10
