Description
Lamp type LED
PCS LEDs High beam: 8pcs (4pcs 10W+4pcs 20W) marker lights: 4pcs 0.5W warning light: 2pcs 3W
Voltage (V DC) 9-36V DC
Theoretical power (w) 12V 120
Theoretical power (w) 24V 120
Consumption (w) 12V 112
Consumption (w) 24V 98
Functions Main beam, marker light, warning light
Theoretical lumen 12,000
Actual lumen 10500

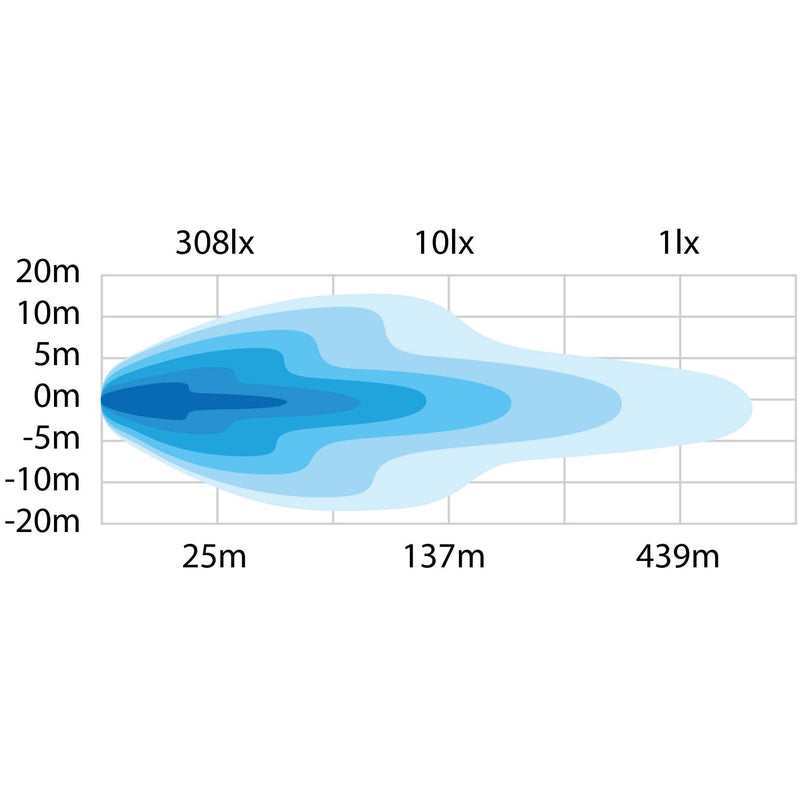

1 LUX @ m 439
Kelvin 6000
IP class 68/69
Body color Black
Lens color Clear
LED lights White/Amber
Position light Yes
Connection Cable
Cable length (mm) 2500
Bracket material Stainless steel
Body/chassis material Aluminum
Lens material Polycarbonate
Length (mm) 247
Depth (mm) 70.7
Height (mm) 141
Height including bracket (mm) 170.5
Operating temperature -40 - +60°C
ADR approved No
E-approved Yes
According to the regulation
ECE R112, R7, R65
Reference number 45
EMC ECE R10

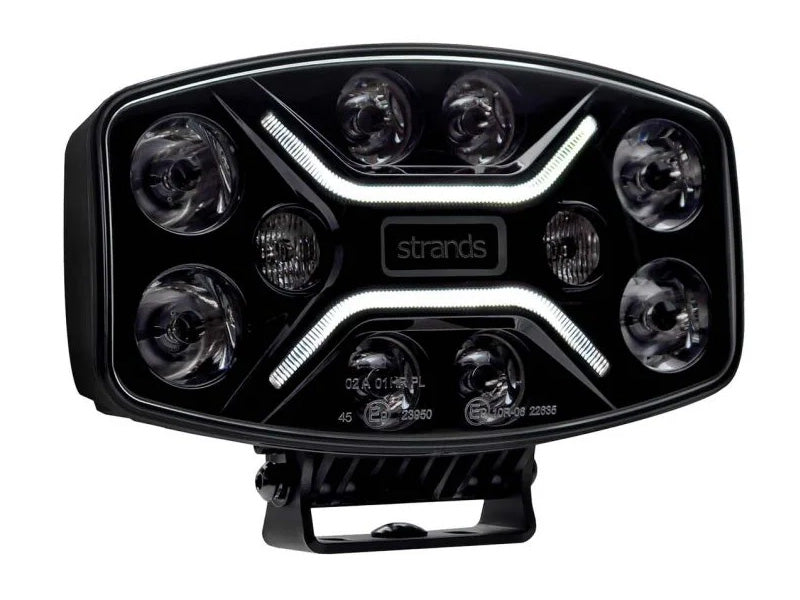

ONE LAMP – THREE FUNCTIONS

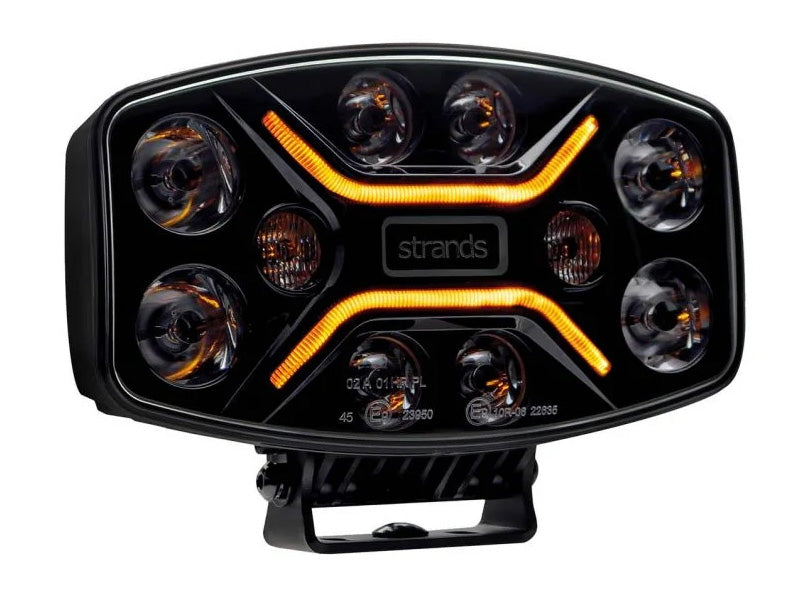

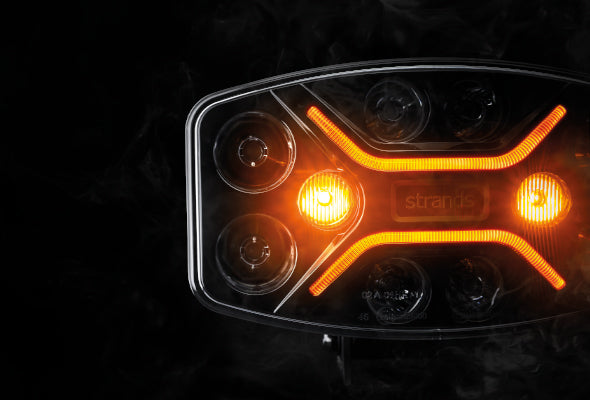

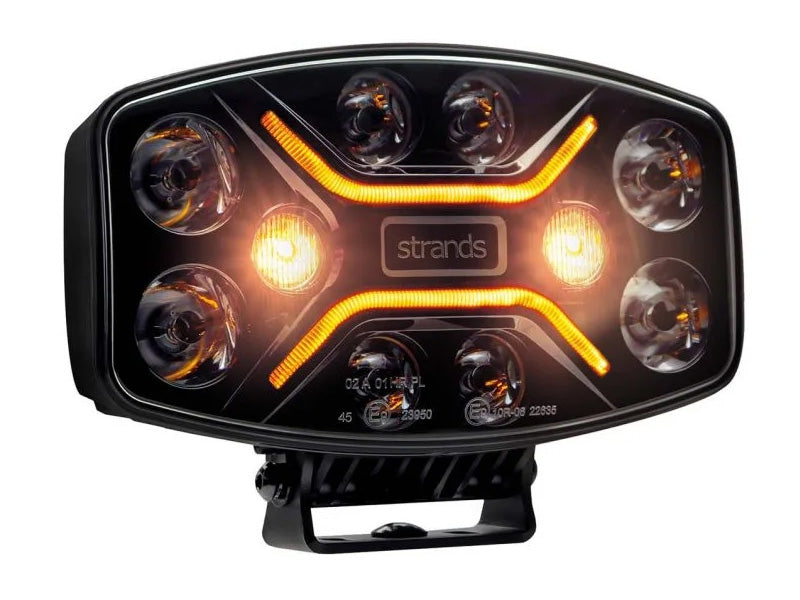

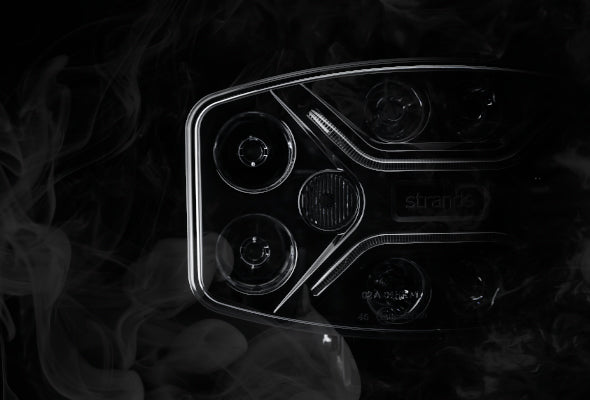

Dark Knight Insane allows you to get all the lighting you need in one lamp: running lights with warning light and two-level position light, choose between amber or white.
HIGH PERFORMANCE
Dark Knight Insane is designed to be visible from all angles on the road. A ray pattern that requires a perfect balance of length and width. The technology improves overall efficiency, collects and directs light in perfect balance, exactly where it is needed. Dark Knight Insane is perfect for both day and night. Meet the fearless eyes of the knight from the light of the unique position. Watch and enjoy the soft start effect where the light intensity slowly increases before it finally reaches its full power.
DARK KNIGHT DESIGN
Dark details and slim design make it easy to install.
