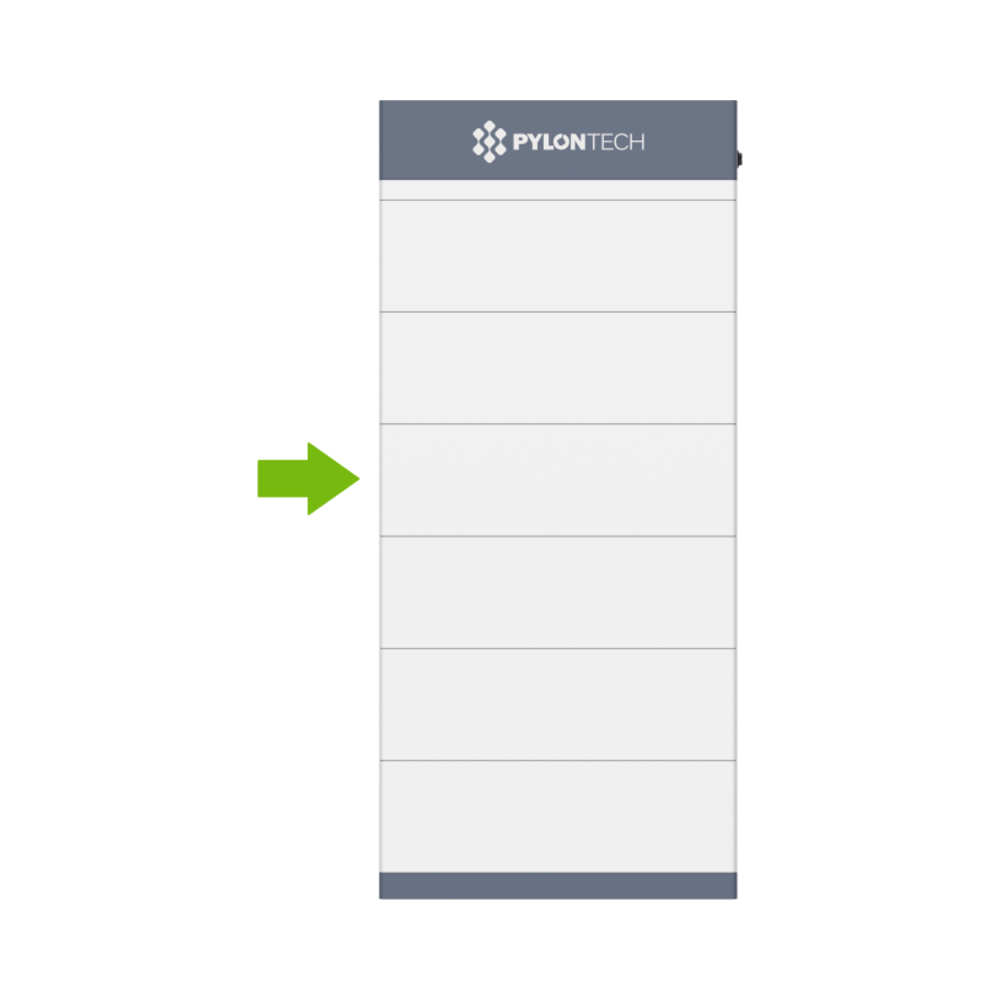

Pylontech Force H3 5.12 kWh high-voltage LiFePO4 battery module FH10050

Pylontech Force H3 5.12 kWh high-voltage LiFePO4 battery module FH10050. Pylontech Force H3 is a high-voltage stackable LiFePO4 system for homes: 5.12 kWh FH10050 modules stack 2–7 per tower (10.24–35.84 kWh) on the FC1000 BMS/base. Compatible with Solis, Deye, GoodWe, Sungrow and other high-voltage hybrid inverters (see the Pylontech compatibility list). A system needs 1× BMS unit FC1000 + 2–7 modules.

Specifications

• Capacity: 5.12 kWh
• System voltage 204.8–716.8 V, 95 % depth of discharge
• Normal charge/discharge current 50 A, >8000 cycles, 15+ year service life
• Up to 6 towers in parallel
• Communication Modbus RTU / CAN, IP65, operation −10…+55 °C
• Certificates: IEC 62040-1, IEC 62619, IEC 63056, UL1973, UL9540A, UN38.3, VDE-AR-E 2510-50
• Article: FH10050
• Warranty: 10 years (manufacturer warranty – see manufacturer terms)

In stock in Riga – delivery in 1–3 working days. Installation by a certified electrician. Compatible inverters – hybrid inverters (HV); solar panels – here.
