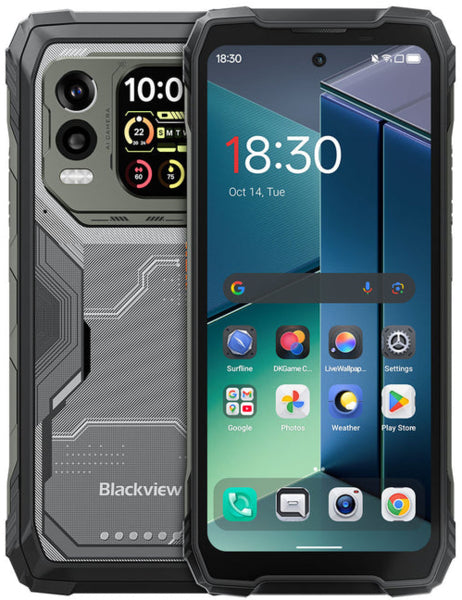

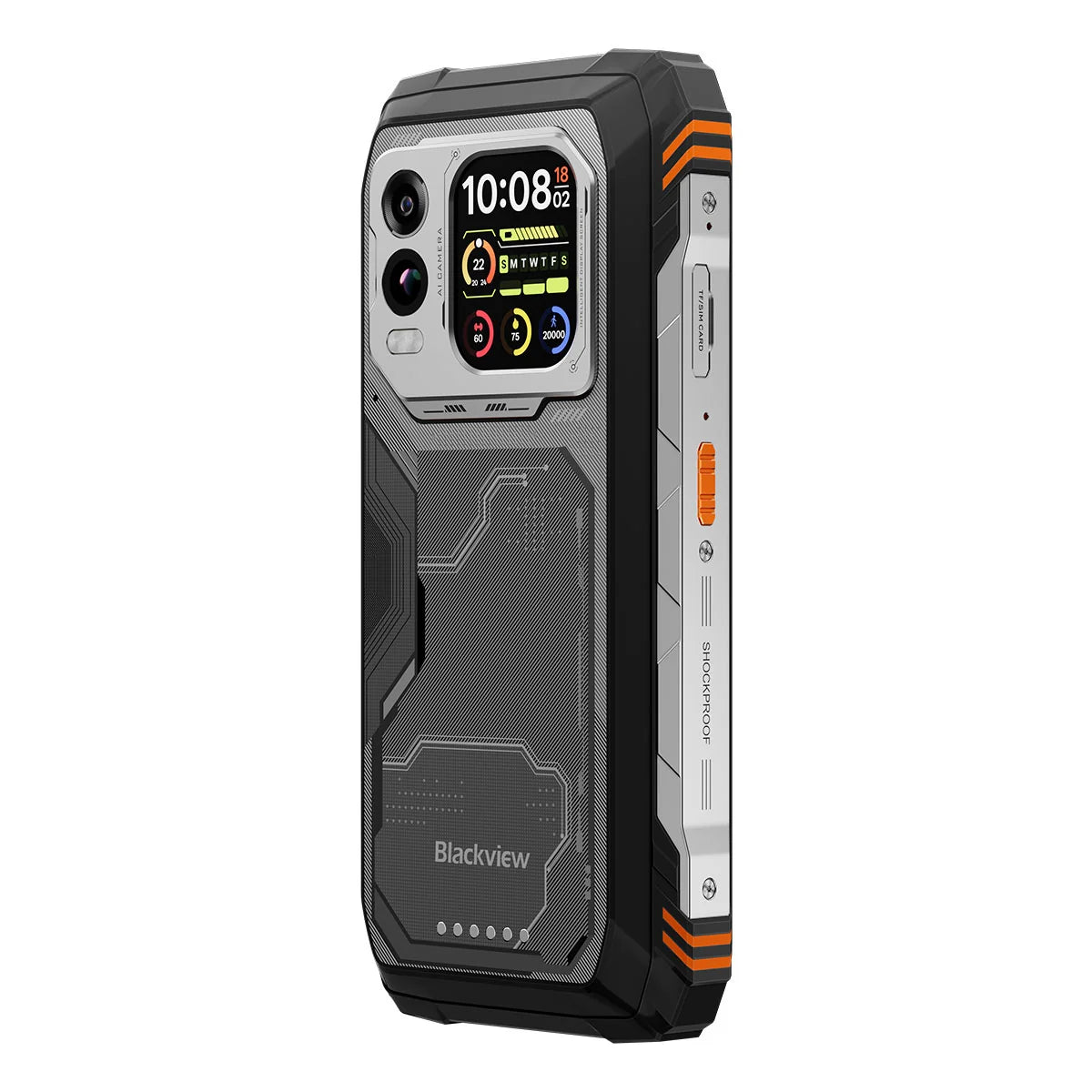

Blackview XPLORE 1 Pro 5G rugged smartphone with FLIR thermal camera, 17.2 cm 120 Hz IPS display, 12 GB RAM, 256 GB storage, 20,000 mAh battery, IP68/IP69K rating, black

Description:

Professional FLIR Thermal Imaging

The Blackview XPLORE 1 Pro is an ultra-rugged 5G smartphone with a built-in FLIR Lepton 3.5 thermal camera that allows you to visualize temperature differences and identify overheating, heat leaks, electrical equipment issues, pipe damage, and other temperature-related phenomena. The thermal measurement range is from –10 to 400 °C, thermal sensitivity is less than 50 mK, and the field of view reaches 57°.

FLIR VividIR and MSX Image Processing

FLIR VividIR technology enhances the detail in thermal images and reduces visual noise, while FLIR MSX Fusion combines thermal and visible light image information to highlight object contours and details. Several thermal imaging color modes, image blending modes, and temperature measurement tools for points, lines, and selected areas are available.

Documentation of Thermal Measurements

The thermal camera supports photo, video, and time-lapse recording. Temperature alerts, dynamic isotherm mode, and the ability to generate thermal measurement reports are available. FLIR SDK Mobile support also provides additional capabilities for professional and specialized software.

Extremely durable construction

The IP68 and IP69K protection ratings, combined with the MIL-STD-810H durability standard, make this smartphone suitable for use in demanding conditions, in construction, manufacturing, forestry, maintenance, and outdoor work. The manufacturer specifies protection against dust and water, submersion to a depth of 2 m for up to 30 minutes, and resistance to drops from a height of approximately 1.5 m.

17.2 cm 120 Hz FHD+ IPS display

The main 17.2 cm IPS display offers a 1080 × 2460-pixel FHD+ resolution, a 120 Hz refresh rate, a 240 Hz touch sampling rate, and a brightness of up to 700 cd/m². The screen is protected by Corning Gorilla Glass 5.

Additional 5.1 cm rear display

The back of the smartphone features a 5.1 cm multifunctional display with a resolution of 240 × 296 pixels and Panda Glass protective glass. You can use it to check the time, notifications, and weather; control your music; answer or reject calls; use the compass; track your step count; and use the rear camera for selfies.

MediaTek Dimensity 7050 5G processor

The 6-nm MediaTek Dimensity 7050 octa-core processor operates at a frequency of up to 2.4 GHz. It combines two Cortex-A78 cores with a frequency of up to 2.4 GHz and six Cortex-A55 cores with a frequency of up to 2.0 GHz. The ARM Mali-G68 MC4 graphics processor provides graphics processing for games, videos, and other more demanding applications.

12 GB of RAM with virtual expansion

This specific 256 GB version has 12 GB of physical LPDDR5 RAM. Virtually, this can be expanded by up to 24 GB, making up to 36 GB of RAM available to the system.

256 GB of fast internal storage

The built-in 256 GB storage provides space for apps, work documents, thermal images, photos, and 4K videos. Storage can be expanded with a TF/microSD card up to 2 TB.

An Effective Cooling System

The heat dissipation area of the integrated cooling system is approximately 5,480 mm². The design incorporates copper foil, graphite sheets, and thermally conductive silicone to more effectively dissipate heat generated by the processor during sustained loads.

64 MP main camera

The 64 MP main camera features an f/1.79 aperture and PDAF autofocus. It is designed for detailed photography both during the day and in low-light conditions. The smartphone supports 4K video recording at 30 frames per second.

50 MP Samsung front-facing camera

The 50 MP Samsung ISOCELL JN1 front-facing camera with an f/1.8 aperture is ideal for high-resolution selfies, video calls, and creating video content.

20,000 mAh ultra-high-capacity battery

The 20,000 mAh battery is designed for extended use away from a power outlet. Blackview's lab data indicates up to 23 hours of video playback, 20 hours of gaming, 38 hours of web browsing, 58 hours of music playback, 84 hours of talk time, and up to 1,008 hours of standby time. Actual battery life depends on usage conditions.

55 W fast charging and reverse charging

The smartphone supports 55 W wired fast charging and 5 W reverse charging, so its large battery can also be used to charge other devices when needed. It also supports a 45 W charging dock, which is sold separately.

170 lm dual-LED flashlight

The housing features a powerful, integrated dual-LED flashlight with a maximum light output of 170 lm and a range of up to approximately 18 m. The manufacturer specifies a runtime of up to 45 hours, as well as an SOS flashing mode for emergency situations.

5G and Dual SIM

The smartphone supports 2G, 3G, 4G, and 5G mobile networks, Dual 5G VoLTE, and the use of two Nano-SIM cards. The hybrid card slot allows you to use two SIM cards or one SIM card along with a TF/microSD memory card.

Wi-Fi 6 and Bluetooth 5.2

Wireless connectivity includes Wi-Fi 6 with 2.4 GHz and 5 GHz frequency bands, as well as Bluetooth 5.2 for wireless headphones, speakers, and other devices.

Precise dual-frequency navigation

The GPS, GLONASS, BeiDou, Galileo, and QZSS navigation systems support the L1 and L5 frequency bands. The manufacturer specifies a positioning accuracy of up to approximately 5 m under suitable conditions.

NFC and Infrared Remote Control Functionality

NFC enables the use of compatible contactless services, while the built-in infrared transmitter allows you to use your phone as a remote control for compatible home appliances.

Fingerprint and facial recognition

A fingerprint sensor and facial recognition feature are available for quick device unlocking.

Glove Mode and Underwater Camera

Glove Mode 2.0 increases the touchscreen's sensitivity to make the device easier to use while wearing gloves. A special underwater camera mode is also available.

Programmable Side Button

You can assign various functions to the customizable side button, such as turning on the flashlight, starting audio recording, taking a screenshot, opening the underwater camera, the PTT function, or SOS mode.

Android 15 and DokeOS 5.0

The smartphone runs on Android 15 and the Blackview DokeOS 5.0 user interface. The manufacturer highlights improved system management, power optimization, a private data space, app blocking, and a kids' mode.

Doke AI 2.0 Artificial Intelligence Features

Doke AI 2.0 integrates voice control and various artificial intelligence tools, including information search, document analysis, Q&A features, text and image generation, image processing, and other creative tools.

Smart-K Speaker

The smartphone features a built-in 1134 Smart-K BOX speaker, designed to deliver loud and clear sound for calls, multimedia, and outdoor use.

Specifications
EAN: 6931548323921
Product Type: Rugged 5G smartphone with thermal camera
Color: Black
Operating System: Android 15
User Interface: DokeOS 5.0
Main display diagonal: 17.2 cm
Main display type: IPS
Main display resolution: 1080 × 2460 pixels
Main display refresh rate: 120 Hz
Touch sampling rate: 240 Hz
Display brightness: Up to 700 cd/m²
Pixel density: 396 ppi
Screen-to-body ratio: 86%
Main display protective glass: Corning Gorilla Glass 5
Secondary display diagonal: 5.1 cm
Secondary display resolution: 240 × 296 pixels
Secondary display protective glass: Panda Glass
Processor: MediaTek Dimensity 7050
Processor technology: 6 nm
Number of processor cores: 8
Maximum processor frequency: 2.4 GHz
Processor configuration: 2 × Cortex-A78 2.4 GHz + 6 × Cortex-A55 2.0 GHz
Graphics processor: ARM Mali-G68 MC4
RAM: 12 GB
RAM type: LPDDR5
Virtual RAM expansion: Up to 24 GB
Total RAM with virtual expansion: Up to 36 GB
Internal storage: 256 GB
Memory card support: Yes
Maximum memory card capacity: 2 TB
Cooling system area: 5480 mm²
Main camera: 64 MP
Main camera aperture: f/1.79
Autofocus: PDAF
Front camera: 50 MP Samsung ISOCELL JN1
Front camera aperture: f/1.8
Maximum video resolution: 4K
4K video frame rate: 30 fps
Thermal camera: FLIR Lepton 3.5
Thermal camera temperature range: –10 to 400 °C
Thermal sensitivity: <50 mK
Thermal camera field of view: 57°
FLIR VividIR: Yes
FLIR MSX Fusion: Yes
FLIR SDK Mobile: Yes
Mobile network: 2G/3G/4G/5G
Dual 5G VoLTE: Yes
SIM: Dual SIM
SIM card type: Nano-SIM
Card configuration: 2 × Nano-SIM or 1 × Nano-SIM + TF/microSD
3G WCDMA bands: B1/B2/B4/B5/B6/B8/B19
4G TDD bands: B34/B38/B39/B40/B41
4G FDD bands: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28A/B28B/B30/B66
5G bands: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
Wi-Fi standard: Wi-Fi 6
Wi-Fi frequencies: 2.4 GHz and 5 GHz
Bluetooth: 5.2
NFC: Yes
USB connection: USB-C
Navigation: GPS, GLONASS, BeiDou, Galileo, QZSS
Navigation frequencies: L1 and L5
Fingerprint sensor: Yes
Face unlock: Yes
Gyroscope: Yes
Compass: Yes
Accelerometer: Yes
Proximity sensor: Yes
Light sensor: Yes
Infrared remote control function: Yes
Programmable side button: Yes
Glove mode: Yes
Underwater camera mode: Yes
Flashlight: Dual LED
Maximum light output of the flashlight: 170 lm
Maximum operating range of the flashlight: 18 m
Flashlight runtime: Up to 45 hours
Flashlight SOS mode: Yes
Battery capacity: 20,000 mAh
Wired fast charging: 55 W
Charging dock support: Up to 45 W
Reverse charging: 5 W
Video playback time: Up to 23 hours
Gaming time: Up to 20 hours
Web browsing time: Up to 38 hours
Music playback time: Up to 58 hours
Talk time: Up to 84 hours
Standby time: Up to 1,008 hours
Protection rating: IP68, IP69K
Durability standard: MIL-STD-810H
Water resistance: Up to 2 m deep for up to 30 minutes
Drop resistance: Up to 1.5 m
Dimensions: 184 × 83 × 29.5 mm
Net weight: 640 g
Package contents: Smartphone, USB-C cable, SIM card ejector tool, user manual
