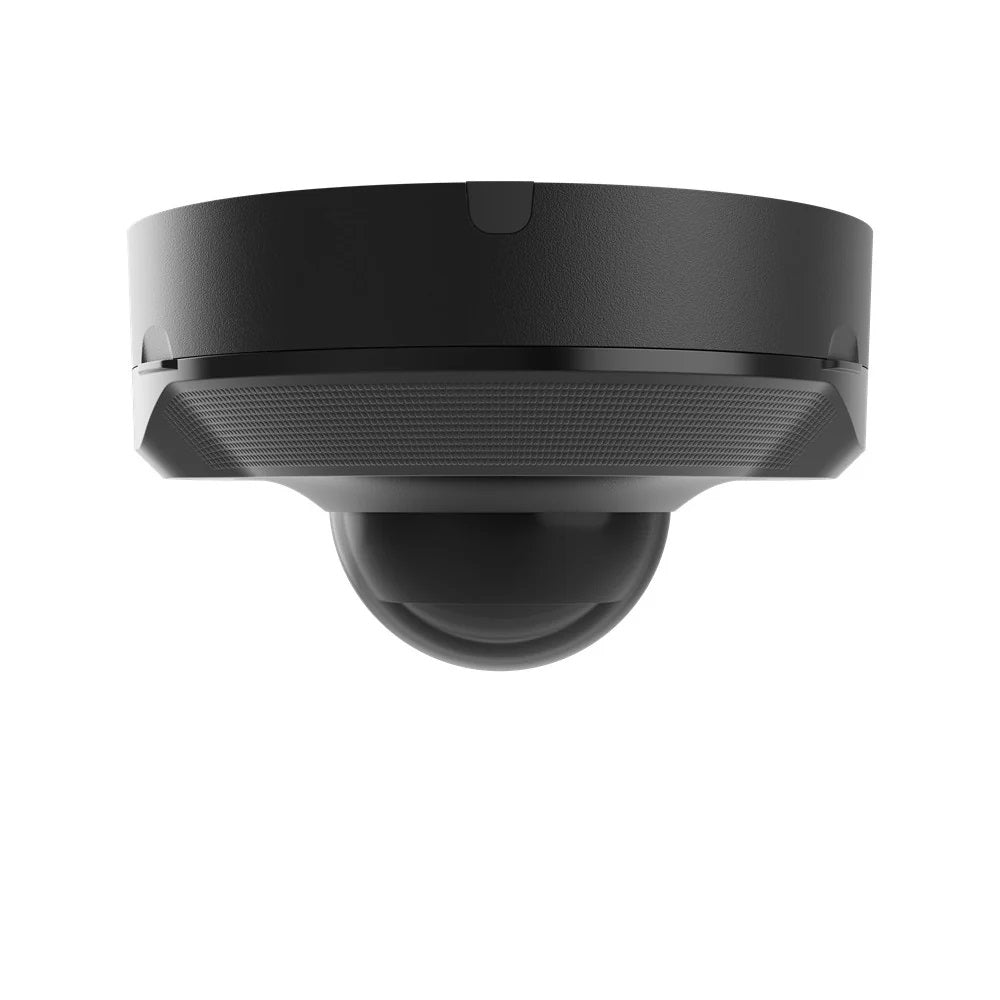

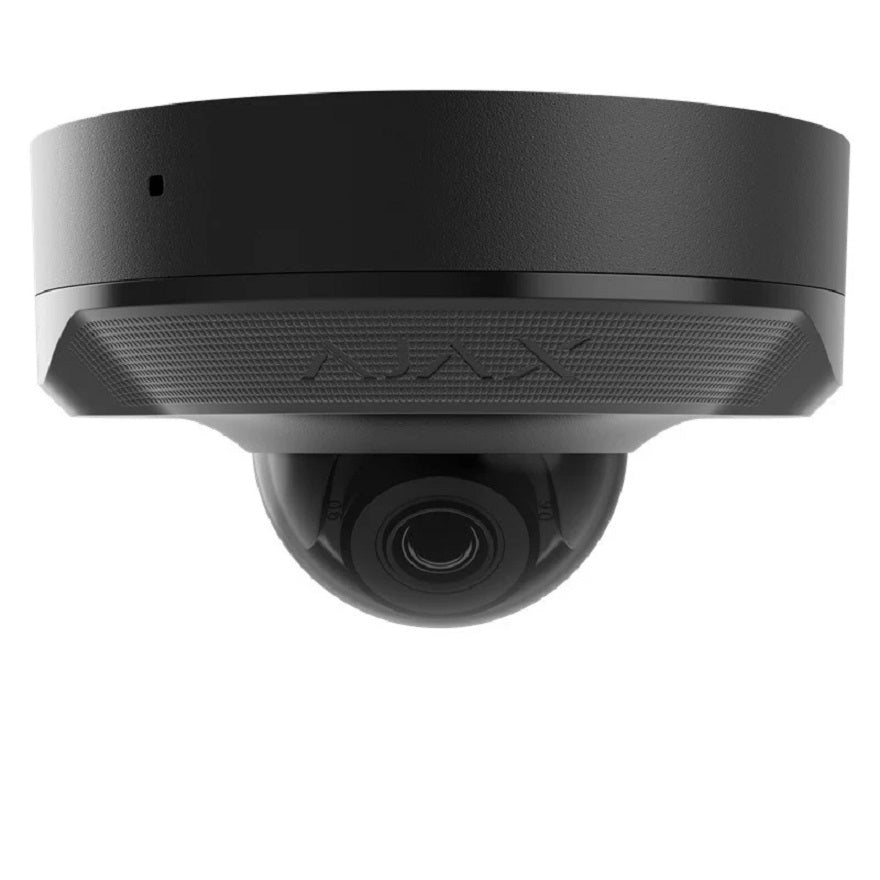

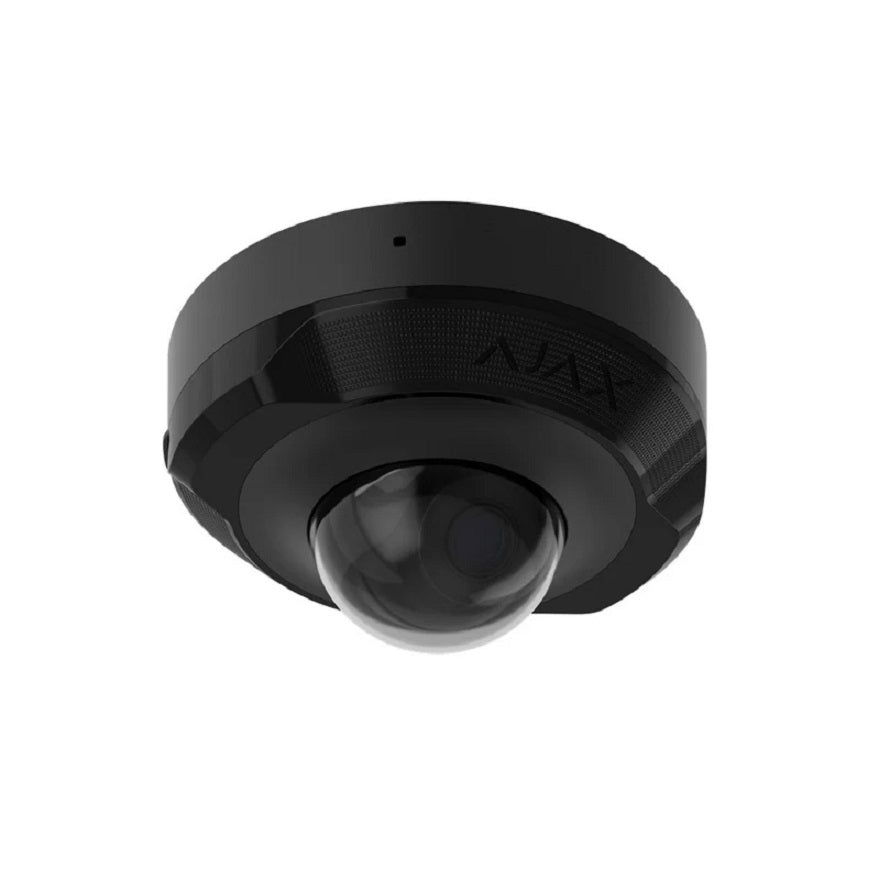

DomeCam Mini (8 Mp/2.8 mm)

Wired IP surveillance camera with AI support, 110° viewing angle, infrared illumination (IR), HDR/True WDR, microphone and PoE/12V power supply. Suitable for both indoor and outdoor installations.

Models

• 8 Mp/2.8 mm

• Resolution up to 3840 × 2160 px

• Frame rate up to 20 FPS

• Viewing angle 100°-110°

Video stream

• Video protocol: JetSparrow (encrypted P2P protocol developed by Ajax Systems)

• Memory:

  • NVR: HDD up to 16 TB (SATA, 3.5"), not included

  • microSD: up to 256 GB, V30 or faster, not included

• Video codecs: H.265, H.264

• Dynamic Range: HDR, WDR

Communication channel

• Ethernet: up to 100 Mbps

Key features

• Motion detection (software level)

• AI object detection: people, animals, vehicles

• Intelligent IR illumination up to 15 m, automatic brightness adjustment

• Visual verification of Ajax alarms (scenario configuration)

• ONVIF support: Profile S, Profile T (partial)

• Microphone with sound recording

• Audio codecs: G711-ULAW, G711-ALAW, G726, G722

Power

• Power supply: 12 V⎓ ± 20%, 1 A

• Power consumption up to 15 W

• Ethernet port: PoE Standard 802.3at/af

Protection against sabotage

• mTLS - encrypted connection

• Authentication via Cloud

• Secure Boot - protection against firmware tampering

• Digital signature verification for OTA updates

• User and operator access rights distribution

Corpus

• Dimensions: 113 × 60 mm

• Weight: 360 g

• Operating temperature: -30 °C ... +60 °C

• Humidity: up to 90%

• Protection class: IP65

• Colour: black

Set

• DomeCam Mini (8 Mp/2.8 mm)

• Mounting template

• Mounting accessories kit

• Quick Installation Guide
