GoodWe

GoodWe ESA 5.1 kWh high-voltage LFP battery module GW5.1-BATD-G20 with heating, IP66. GoodWe ESA series high-voltage LFP battery module for the GoodWe ESA all-in-one system (ESA 5–30 kW hybrid inverter + modules in one stack). Built-in heating allows charging from −18 °C – the system works through the Baltic winter without a heated room. Up to 12 modules per system (~100 kWh); 5.1 and 8.3 kWh modules can be mixed.

Specifications

• Capacity: 5.12 kWh
• Operating voltage 700–950 V (3-phase) / 350–550 V (1-phase)
• Charge/discharge 1C (5.0 kW resp. 8.0 kW continuous)
• IP66, noise ≤29 dB, CAN communication
• Dimensions 800 × 326 × 270 mm; floor stack or wall mounting
• Certificates: IEC 62619, IEC 60730, EN 62477, IEC 63056, IEC 62040, CE, UN38.3
• Article: BAB5000-06-00P
• Warranty: 10 years (manufacturer warranty – see manufacturer terms)

In stock in Riga – delivery in 1–3 working days. Installation by a certified electrician. Compatible inverters – hybrid inverters (HV); solar panels – here.

GoodWe ESA 8.3 kWh high-voltage LFP battery module GW8.3-BATD-G20 with heating, IP66. GoodWe ESA series high-voltage LFP battery module for the GoodWe ESA all-in-one system (ESA 5–30 kW hybrid inverter + modules in one stack). Built-in heating allows charging from −18 °C – the system works through the Baltic winter without a heated room. Up to 12 modules per system (~100 kWh); 5.1 and 8.3 kWh modules can be mixed.

Specifications

• Capacity: 8.32 kWh
• Operating voltage 700–950 V (3-phase) / 350–550 V (1-phase)
• Charge/discharge 1C (5.0 kW resp. 8.0 kW continuous)
• IP66, noise ≤29 dB, CAN communication
• Dimensions 800 × 326 × 270 mm; floor stack or wall mounting
• Certificates: IEC 62619, IEC 60730, EN 62477, IEC 63056, IEC 62040, CE, UN38.3
• Article: BAE8000-06-00P
• Warranty: 10 years (manufacturer warranty – see manufacturer terms)

In stock in Riga – delivery in 1–3 working days. Installation by a certified electrician. Compatible inverters – hybrid inverters (HV); solar panels – here.

GoodWe ESA Battery Expansion Kit ACS0064-00-00P. GoodWe ESA battery expansion kit – required to add further battery modules to an ESA system above the base configuration.

Article: ACS0064-00-00P. In stock in Riga – delivery in 1–3 working days. See also 48 V batteries and HV battery modules.

GoodWe ESA GW10K-ETA-G20 – 10 kW three-phase hybrid inverter. GoodWe ESA series three-phase high-voltage hybrid inverter – the base of a modular all-in-one storage system: GoodWe HV LFP battery modules stack on the same base (up to 12 modules, up to 108 kWh). PV oversizing up to 200 %, whole-home backup with switchover under 4 ms and an internal bypass that usually avoids upgrading the main fuse.

Specifications

• Rated AC power: 10 kW, three-phase (3/N/PE 400 V)
• MPPT trackers: 3–4, MPPT range 120–950 V, max. 1000 V, DC oversizing up to 200 %
• Battery: GoodWe ESA HV LFP modules, 750 V nominal (700–950 V), up to 12 modules / 108 kWh, charging up to 1C
• Backup: switchover <4 ms, 10 s overload, internal bypass 63 A (80 A on 25/30 kW), on-grid and off-grid parallel operation
• Max. efficiency 98.0–98.2 %, battery→AC 98.0 %
• Protection: AFCI, string monitoring, insulation and residual-current monitoring, DC switch, Type II DC+AC SPD
• IP66, −35…+60 °C, smart fan cooling
• Communication: Wi-Fi + LAN + Bluetooth, RS485, Modbus RTU/TCP, 4G optional
• Dimensions 800 × 340 × 270 mm · 34 kg (38 kg on 25/30 kW)
• Manufacturer code: ESA GW10K-ETA-G20 · article NBG0010-01-00P
• Warranty: 5 years (manufacturer warranty; may be extendable on registration – see manufacturer terms)

In stock in Riga – delivery in 1–3 working days. Installation by a certified electrician; for larger volumes or project pricing contact us. Compatible batteries – HV battery modules, solar panels – here, ready kits – solar kits.

GoodWe ESA GW12K-ETA-G20 – 12 kW three-phase hybrid inverter. GoodWe ESA series three-phase high-voltage hybrid inverter – the base of a modular all-in-one storage system: GoodWe HV LFP battery modules stack on the same base (up to 12 modules, up to 108 kWh). PV oversizing up to 200 %, whole-home backup with switchover under 4 ms and an internal bypass that usually avoids upgrading the main fuse.

Specifications

• Rated AC power: 12 kW, three-phase (3/N/PE 400 V)
• MPPT trackers: 3–4, MPPT range 120–950 V, max. 1000 V, DC oversizing up to 200 %
• Battery: GoodWe ESA HV LFP modules, 750 V nominal (700–950 V), up to 12 modules / 108 kWh, charging up to 1C
• Backup: switchover <4 ms, 10 s overload, internal bypass 63 A (80 A on 25/30 kW), on-grid and off-grid parallel operation
• Max. efficiency 98.0–98.2 %, battery→AC 98.0 %
• Protection: AFCI, string monitoring, insulation and residual-current monitoring, DC switch, Type II DC+AC SPD
• IP66, −35…+60 °C, smart fan cooling
• Communication: Wi-Fi + LAN + Bluetooth, RS485, Modbus RTU/TCP, 4G optional
• Dimensions 800 × 340 × 270 mm · 34 kg (38 kg on 25/30 kW)
• Manufacturer code: ESA GW12K-ETA-G20 · article NBG0012-04-00P
• Warranty: 5 years (manufacturer warranty; may be extendable on registration – see manufacturer terms)

In stock in Riga – delivery in 1–3 working days. Installation by a certified electrician; for larger volumes or project pricing contact us. Compatible batteries – HV battery modules, solar panels – here, ready kits – solar kits.

GoodWe ESA GW15K-ETA-G20 – 15 kW three-phase hybrid inverter. GoodWe ESA series three-phase high-voltage hybrid inverter – the base of a modular all-in-one storage system: GoodWe HV LFP battery modules stack on the same base (up to 12 modules, up to 108 kWh). PV oversizing up to 200 %, whole-home backup with switchover under 4 ms and an internal bypass that usually avoids upgrading the main fuse.

Specifications

• Rated AC power: 15 kW, three-phase (3/N/PE 400 V)
• MPPT trackers: 3–4, MPPT range 120–950 V, max. 1000 V, DC oversizing up to 200 %
• Battery: GoodWe ESA HV LFP modules, 750 V nominal (700–950 V), up to 12 modules / 108 kWh, charging up to 1C
• Backup: switchover <4 ms, 10 s overload, internal bypass 63 A (80 A on 25/30 kW), on-grid and off-grid parallel operation
• Max. efficiency 98.0–98.2 %, battery→AC 98.0 %
• Protection: AFCI, string monitoring, insulation and residual-current monitoring, DC switch, Type II DC+AC SPD
• IP66, −35…+60 °C, smart fan cooling
• Communication: Wi-Fi + LAN + Bluetooth, RS485, Modbus RTU/TCP, 4G optional
• Dimensions 800 × 340 × 270 mm · 34 kg (38 kg on 25/30 kW)
• Manufacturer code: ESA GW15K-ETA-G20 · article NBG0015-04-00P
• Warranty: 5 years (manufacturer warranty; may be extendable on registration – see manufacturer terms)

In stock in Riga – delivery in 1–3 working days. Installation by a certified electrician; for larger volumes or project pricing contact us. Compatible batteries – HV battery modules, solar panels – here, ready kits – solar kits.

GoodWe ESA GW20K-ETA-G20 – 20 kW three-phase hybrid inverter. GoodWe ESA series three-phase high-voltage hybrid inverter – the base of a modular all-in-one storage system: GoodWe HV LFP battery modules stack on the same base (up to 12 modules, up to 108 kWh). PV oversizing up to 200 %, whole-home backup with switchover under 4 ms and an internal bypass that usually avoids upgrading the main fuse.

Specifications

• Rated AC power: 20 kW, three-phase (3/N/PE 400 V)
• MPPT trackers: 3–4, MPPT range 120–950 V, max. 1000 V, DC oversizing up to 200 %
• Battery: GoodWe ESA HV LFP modules, 750 V nominal (700–950 V), up to 12 modules / 108 kWh, charging up to 1C
• Backup: switchover <4 ms, 10 s overload, internal bypass 63 A (80 A on 25/30 kW), on-grid and off-grid parallel operation
• Max. efficiency 98.0–98.2 %, battery→AC 98.0 %
• Protection: AFCI, string monitoring, insulation and residual-current monitoring, DC switch, Type II DC+AC SPD
• IP66, −35…+60 °C, smart fan cooling
• Communication: Wi-Fi + LAN + Bluetooth, RS485, Modbus RTU/TCP, 4G optional
• Dimensions 800 × 340 × 270 mm · 34 kg (38 kg on 25/30 kW)
• Manufacturer code: ESA GW20K-ETA-G20 · article NBG0020-06-00P
• Warranty: 5 years (manufacturer warranty; may be extendable on registration – see manufacturer terms)

In stock in Riga – delivery in 1–3 working days. Installation by a certified electrician; for larger volumes or project pricing contact us. Compatible batteries – HV battery modules, solar panels – here, ready kits – solar kits.

GoodWe ESA GW25K-ETA-G20 – 25 kW three-phase hybrid inverter. GoodWe ESA series three-phase high-voltage hybrid inverter – the base of a modular all-in-one storage system: GoodWe HV LFP battery modules stack on the same base (up to 12 modules, up to 108 kWh). PV oversizing up to 200 %, whole-home backup with switchover under 4 ms and an internal bypass that usually avoids upgrading the main fuse.

Specifications

• Rated AC power: 25 kW, three-phase (3/N/PE 400 V)
• MPPT trackers: 3–4, MPPT range 120–950 V, max. 1000 V, DC oversizing up to 200 %
• Battery: GoodWe ESA HV LFP modules, 750 V nominal (700–950 V), up to 12 modules / 108 kWh, charging up to 1C
• Backup: switchover <4 ms, 10 s overload, internal bypass 63 A (80 A on 25/30 kW), on-grid and off-grid parallel operation
• Max. efficiency 98.0–98.2 %, battery→AC 98.0 %
• Protection: AFCI, string monitoring, insulation and residual-current monitoring, DC switch, Type II DC+AC SPD
• IP66, −35…+60 °C, smart fan cooling
• Communication: Wi-Fi + LAN + Bluetooth, RS485, Modbus RTU/TCP, 4G optional
• Dimensions 800 × 340 × 270 mm · 34 kg (38 kg on 25/30 kW)
• Manufacturer code: ESA GW25K-ETA-G20 · article NBG0025-03-00P
• Warranty: 5 years (manufacturer warranty; may be extendable on registration – see manufacturer terms)

In stock in Riga – delivery in 1–3 working days. Installation by a certified electrician; for larger volumes or project pricing contact us. Compatible batteries – HV battery modules, solar panels – here, ready kits – solar kits.

GoodWe ESA GW29.99K-ETA-G20 – 29.99 kW three-phase hybrid inverter. GoodWe ESA series three-phase high-voltage hybrid inverter – the base of a modular all-in-one storage system: GoodWe HV LFP battery modules stack on the same base (up to 12 modules, up to 108 kWh). PV oversizing up to 200 %, whole-home backup with switchover under 4 ms and an internal bypass that usually avoids upgrading the main fuse.

Specifications

• Rated AC power: 29.99 kW, three-phase (3/N/PE 400 V)
• MPPT trackers: 3–4, MPPT range 120–950 V, max. 1000 V, DC oversizing up to 200 %
• Battery: GoodWe ESA HV LFP modules, 750 V nominal (700–950 V), up to 12 modules / 108 kWh, charging up to 1C
• Backup: switchover <4 ms, 10 s overload, internal bypass 63 A (80 A on 25/30 kW), on-grid and off-grid parallel operation
• Max. efficiency 98.0–98.2 %, battery→AC 98.0 %
• Protection: AFCI, string monitoring, insulation and residual-current monitoring, DC switch, Type II DC+AC SPD
• IP66, −35…+60 °C, smart fan cooling
• Communication: Wi-Fi + LAN + Bluetooth, RS485, Modbus RTU/TCP, 4G optional
• Dimensions 800 × 340 × 270 mm · 34 kg (38 kg on 25/30 kW)
• Manufacturer code: ESA GW29.99K-ETA-G20 · article NBG29K9-03-00P
• Warranty: 5 years (manufacturer warranty; may be extendable on registration – see manufacturer terms)

In stock in Riga – delivery in 1–3 working days. Installation by a certified electrician; for larger volumes or project pricing contact us. Compatible batteries – HV battery modules, solar panels – here, ready kits – solar kits.

GoodWe ESA wall-mounted bracket ACS0040-00-00P. GoodWe ESA wall-mounted bracket – for fixing the ESA hybrid inverter and battery stack to the wall.

Article: ACS0040-00-00P. In stock in Riga – delivery in 1–3 working days. See also 48 V batteries and HV battery modules.

GoodWe EzManager3000 energy management module LEM0000-01-00P. GoodWe EzManager3000 – energy management and communication module for GoodWe systems (parallel operation of several inverters, meter and EMS functions).

Article: LEM0000-01-00P. In stock in Riga – delivery in 1–3 working days. See also 48 V batteries and HV battery modules.

GoodWe GW10K-ET-20 – 10 kW three-phase hybrid inverter. GoodWe ET G2 series three-phase high-voltage hybrid inverter for larger homes with growing consumption (heat pump, EV). Compatible with GoodWe Lynx Home F/D HV batteries, up to 4 units in parallel, UPS-grade backup with switchover under 10 ms and AI-driven AFCI 3.0 arc-fault protection.

Specifications

• Rated AC power: 10 kW, three-phase (3/N/PE 400 V)
• MPPT trackers: 2–3, PV oversizing up to 160 %
• Battery: GoodWe Lynx Home F / D high-voltage
• Backup: UPS-grade, switchover <10 ms; up to 4 units in parallel
• Max. efficiency up to 98.2 %
• Protection: AFCI 3.0, integrated DC switch, Type II AC and DC SPD
• IP66 – indoor and outdoor installation
• Manufacturer code: GW10K-ET-20 · article EUB0010-02-01P
• Warranty: 5 years (manufacturer warranty; may be extendable on registration – see manufacturer terms)

In stock in Riga – delivery in 1–3 working days. Installation by a certified electrician; for larger volumes or project pricing contact us. Compatible batteries – HV battery modules, solar panels – here, ready kits – solar kits.

GoodWe GW12K-ET-20 – 12 kW three-phase hybrid inverter. GoodWe ET G2 series three-phase high-voltage hybrid inverter for larger homes with growing consumption (heat pump, EV). Compatible with GoodWe Lynx Home F/D HV batteries, up to 4 units in parallel, UPS-grade backup with switchover under 10 ms and AI-driven AFCI 3.0 arc-fault protection.

Specifications

• Rated AC power: 12 kW, three-phase (3/N/PE 400 V)
• MPPT trackers: 2–3, PV oversizing up to 160 %
• Battery: GoodWe Lynx Home F / D high-voltage
• Backup: UPS-grade, switchover <10 ms; up to 4 units in parallel
• Max. efficiency up to 98.2 %
• Protection: AFCI 3.0, integrated DC switch, Type II AC and DC SPD
• IP66 – indoor and outdoor installation
• Manufacturer code: GW12K-ET-20 · article EUB0012-02-01P
• Warranty: 5 years (manufacturer warranty; may be extendable on registration – see manufacturer terms)

In stock in Riga – delivery in 1–3 working days. Installation by a certified electrician; for larger volumes or project pricing contact us. Compatible batteries – HV battery modules, solar panels – here, ready kits – solar kits.

GoodWe GW150K-GT-G10 – 150 kW three-phase grid-tied inverter. GoodWe GT series three-phase grid-tied (string) inverter for large commercial and industrial PV plants. 10 MPPT (20 strings), 99.0 % maximum efficiency, output up to 165 kVA, AI-driven AFCI 3.0, PID recovery and smart DC breaker. Wi-Fi/LAN Kit-20 communication module included.

Specifications

• Rated AC power: 150 kW, three-phase (3/N/PE 400 V)
• MPPT trackers: 10 (20 strings), 42 A per MPPT (21 A per string), MPPT 180–1000 V, max. 1100 V
• Max. efficiency 99.0 % (EU 98.5 %), output up to 165 kVA (110 %)
• Protection: AFCI 3.0, PID recovery, smart DC breaker (DC+AC disconnection), string monitoring, insulation and residual-current monitoring, anti-islanding, Type II DC/AC SPD
• IP66, C5 anti-corrosion class, self-cleaning fan cooling, −30…+60 °C, ≤99 kg
• Wi-Fi/LAN Kit-20 included; smart meter ordered separately
• Manufacturer code: GW150K-GT-G10 · article NBH150K-01-00P
• Warranty: 5 years (manufacturer warranty; may be extendable on registration – see manufacturer terms)

In stock in Riga – delivery in 1–3 working days. Installation by a certified electrician; for larger volumes or project pricing contact us. Solar panels – here, hybrid solutions with a battery – hybrid inverters.

GoodWe GW15K-ET-20 – 15 kW three-phase hybrid inverter. GoodWe ET G2 series three-phase high-voltage hybrid inverter for larger homes with growing consumption (heat pump, EV). Compatible with GoodWe Lynx Home F/D HV batteries, up to 4 units in parallel, UPS-grade backup with switchover under 10 ms and AI-driven AFCI 3.0 arc-fault protection.

Specifications

• Rated AC power: 15 kW, three-phase (3/N/PE 400 V)
• MPPT trackers: 2–3, PV oversizing up to 160 %
• Battery: GoodWe Lynx Home F / D high-voltage
• Backup: UPS-grade, switchover <10 ms; up to 4 units in parallel
• Max. efficiency up to 98.2 %
• Protection: AFCI 3.0, integrated DC switch, Type II AC and DC SPD
• IP66 – indoor and outdoor installation
• Manufacturer code: GW15K-ET-20 · article EUB0015-03-01P
• Warranty: 5 years (manufacturer warranty; may be extendable on registration – see manufacturer terms)

In stock in Riga – delivery in 1–3 working days. Installation by a certified electrician; for larger volumes or project pricing contact us. Compatible batteries – HV battery modules, solar panels – here, ready kits – solar kits.

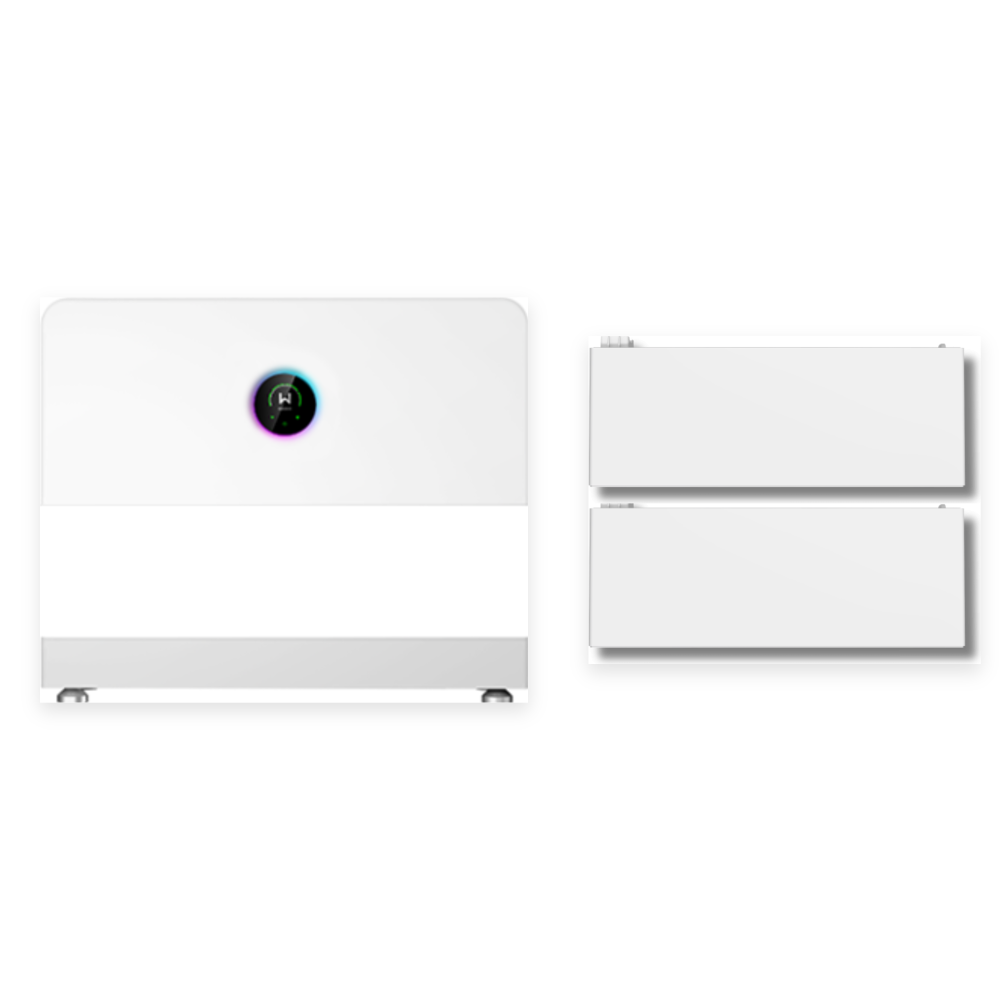

Compatible hybrid kit without panels – all-in-one system: GoodWe ESA inverter and ESA battery modules in one stack, with heating (charging from −18 °C). Ready for backup power and for connecting existing or new solar panels. All components in stock in Riga – delivery in 1–3 working days.

Kit contents

• 1× GoodWe ESA GW10K-ETA-G20 10 kW three-phase HV hybrid inverter (article NBG0010-01-00P)
• 2× GoodWe ESA 5.1 kWh HV battery module GW5.1-BATD-G20 (article BAB5000-06-00P)

Battery capacity: 10.24 kWh · Inverter: 10 kW, three-phase 400 V · The kit price is lower than the components bought separately (separately €4949.67).

The kit can be extended with solar panels – see solar panels. Installation by a certified electrician; contact us about your project.

Compatible hybrid kit without panels – all-in-one system: GoodWe ESA inverter and ESA battery modules in one stack, with heating (charging from −18 °C). Ready for backup power and for connecting existing or new solar panels. All components in stock in Riga – delivery in 1–3 working days.

Kit contents

• 1× GoodWe ESA GW12K-ETA-G20 12 kW three-phase HV hybrid inverter (article NBG0012-04-00P)
• 2× GoodWe ESA 8.3 kWh HV battery module GW8.3-BATD-G20 (article BAE8000-06-00P)

Battery capacity: 16.64 kWh · Inverter: 12 kW, three-phase 400 V · The kit price is lower than the components bought separately (separately €6285.08).

The kit can be extended with solar panels – see solar panels. Installation by a certified electrician; contact us about your project.

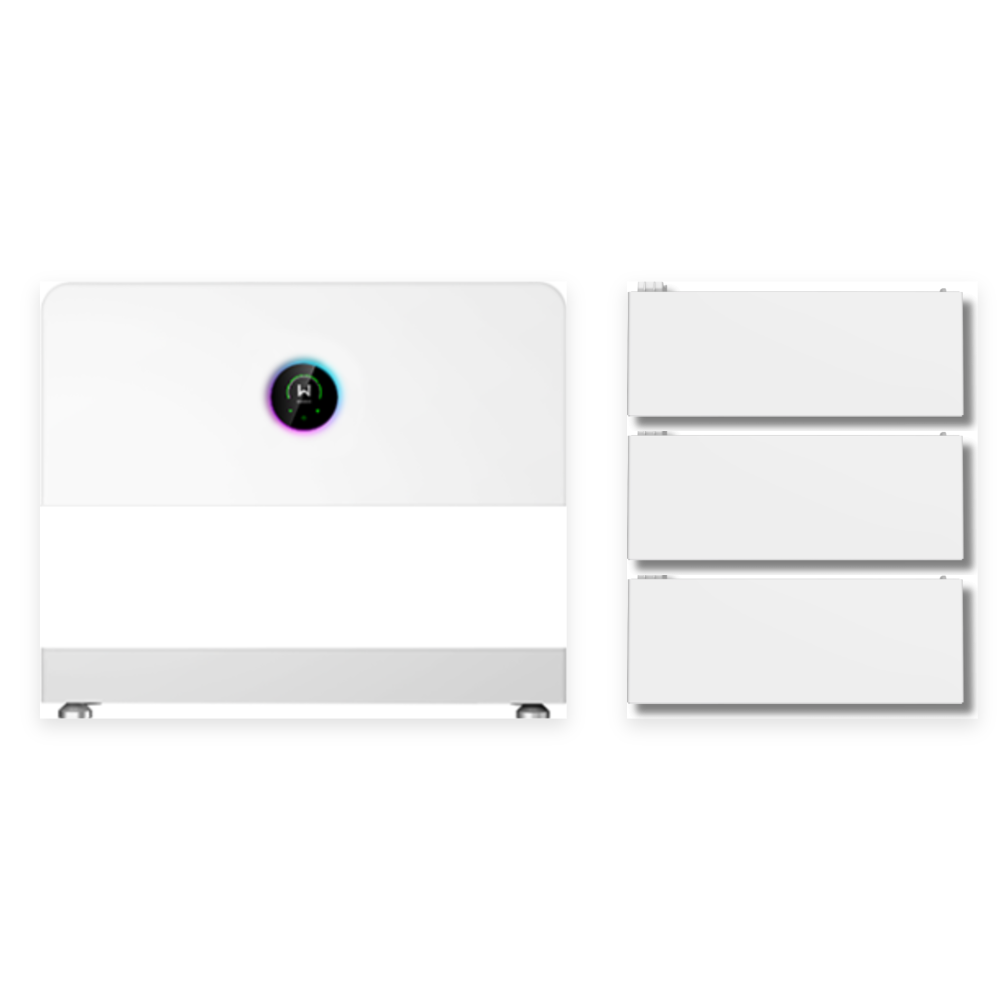

Compatible hybrid kit without panels – all-in-one system: GoodWe ESA inverter and ESA battery modules in one stack, with heating (charging from −18 °C). Ready for backup power and for connecting existing or new solar panels. All components in stock in Riga – delivery in 1–3 working days.

Kit contents

• 1× GoodWe ESA GW15K-ETA-G20 15 kW three-phase HV hybrid inverter (article NBG0015-04-00P)
• 3× GoodWe ESA 8.3 kWh HV battery module GW8.3-BATD-G20 (article BAE8000-06-00P)

Battery capacity: 24.96 kWh · Inverter: 15 kW, three-phase 400 V · The kit price is lower than the components bought separately (separately €8740.42).

The kit can be extended with solar panels – see solar panels. Installation by a certified electrician; contact us about your project.

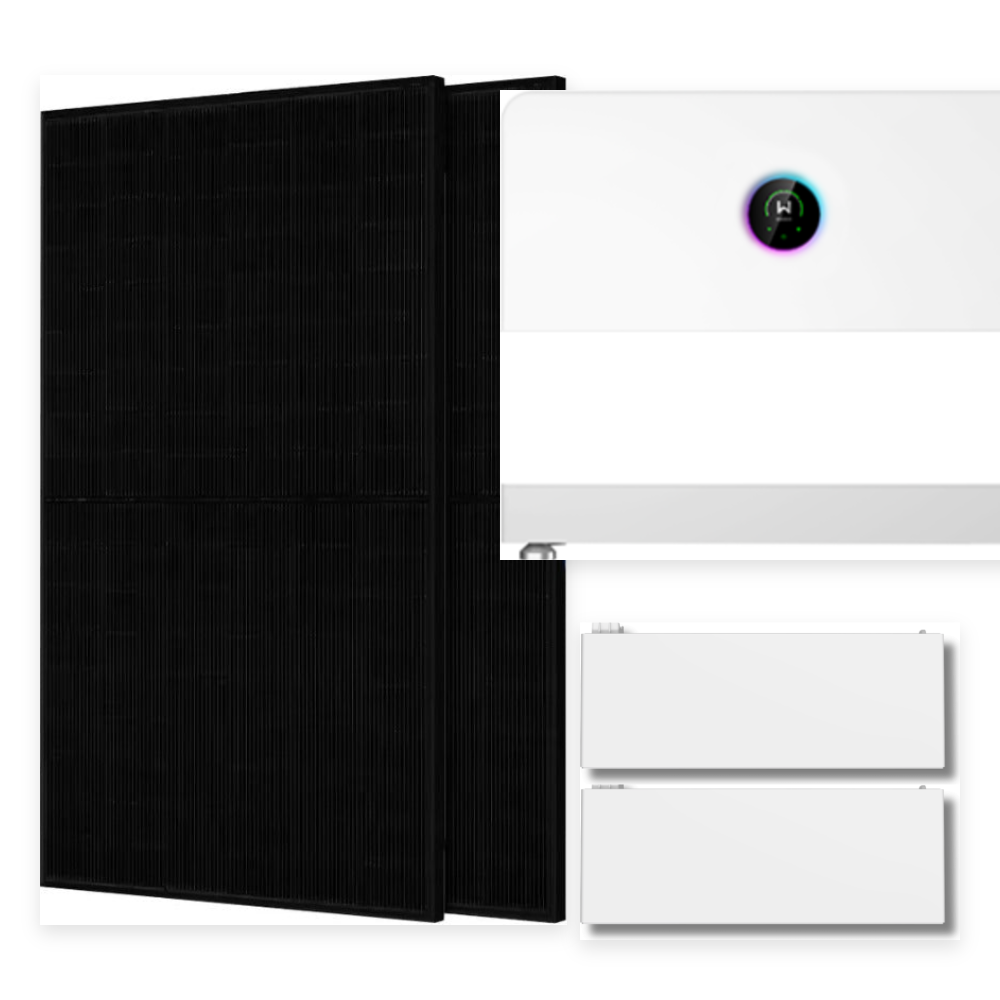

Complete compatible hybrid solar kit for a home – panels, inverter and battery in one kit; all-in-one system: GoodWe ESA inverter and ESA battery modules in one stack, with heating (charging from −18 °C). All components in stock in Riga – delivery in 1–3 working days. Panels, inverter and battery meet the equipment requirements of the state support programme (Altum / VIF–EKII).

Kit contents

• 1× GoodWe ESA GW10K-ETA-G20 10 kW three-phase HV hybrid inverter (article NBG0010-01-00P)
• 2× GoodWe ESA 5.1 kWh HV battery module GW5.1-BATD-G20 (article BAB5000-06-00P)
• 22× JA Solar 455 W full-black bifacial N-type TOPCon solar panel JAM54D41-455/LB

Panel power: 10.01 kWp · Battery: 10.24 kWh · Inverter: 10 kW, three-phase 400 V.

Mounting materials (rails, clamps, cables) are not included – see PV mounting accessories. Installation by a certified electrician; contact us for sizing and project pricing.

Complete compatible hybrid solar kit for a home – panels, inverter and battery in one kit; all-in-one system: GoodWe ESA inverter and ESA battery modules in one stack, with heating (charging from −18 °C). All components in stock in Riga – delivery in 1–3 working days. Panels, inverter and battery meet the equipment requirements of the state support programme (Altum / VIF–EKII).

Kit contents

• 1× GoodWe ESA GW12K-ETA-G20 12 kW three-phase HV hybrid inverter (article NBG0012-04-00P)
• 2× GoodWe ESA 8.3 kWh HV battery module GW8.3-BATD-G20 (article BAE8000-06-00P)
• 26× JA Solar 455 W full-black bifacial N-type TOPCon solar panel JAM54D41-455/LB

Panel power: 11.83 kWp · Battery: 16.64 kWh · Inverter: 12 kW, three-phase 400 V.

Mounting materials (rails, clamps, cables) are not included – see PV mounting accessories. Installation by a certified electrician; contact us for sizing and project pricing.

Complete compatible hybrid solar kit for a home – panels, inverter and battery in one kit; all-in-one system: GoodWe ESA inverter and ESA battery modules in one stack, with heating (charging from −18 °C). All components in stock in Riga – delivery in 1–3 working days. Panels, inverter and battery meet the equipment requirements of the state support programme (Altum / VIF–EKII).

Kit contents

• 1× GoodWe ESA GW15K-ETA-G20 15 kW three-phase HV hybrid inverter (article NBG0015-04-00P)
• 3× GoodWe ESA 8.3 kWh HV battery module GW8.3-BATD-G20 (article BAE8000-06-00P)
• 33× JA Solar 455 W full-black bifacial N-type TOPCon solar panel JAM54D41-455/LB

Panel power: 15.02 kWp · Battery: 24.96 kWh · Inverter: 15 kW, three-phase 400 V.

Mounting materials (rails, clamps, cables) are not included – see PV mounting accessories. Installation by a certified electrician; contact us for sizing and project pricing.
