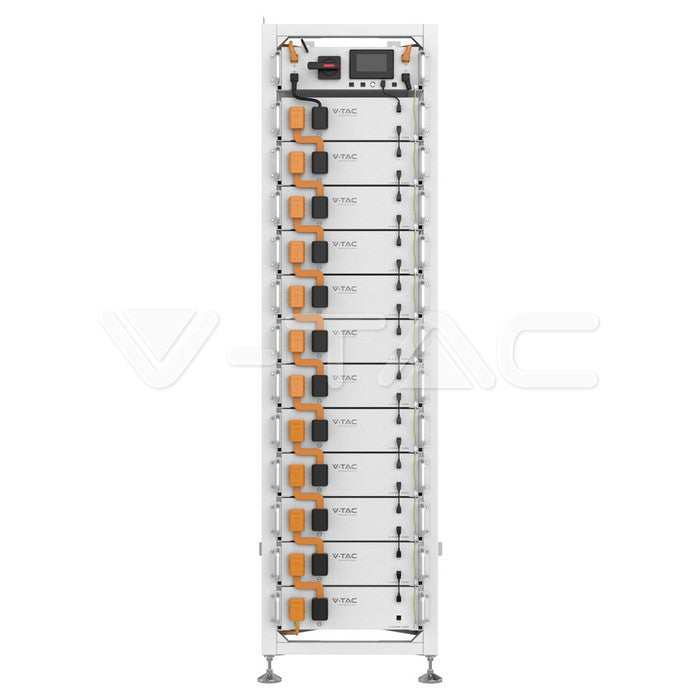

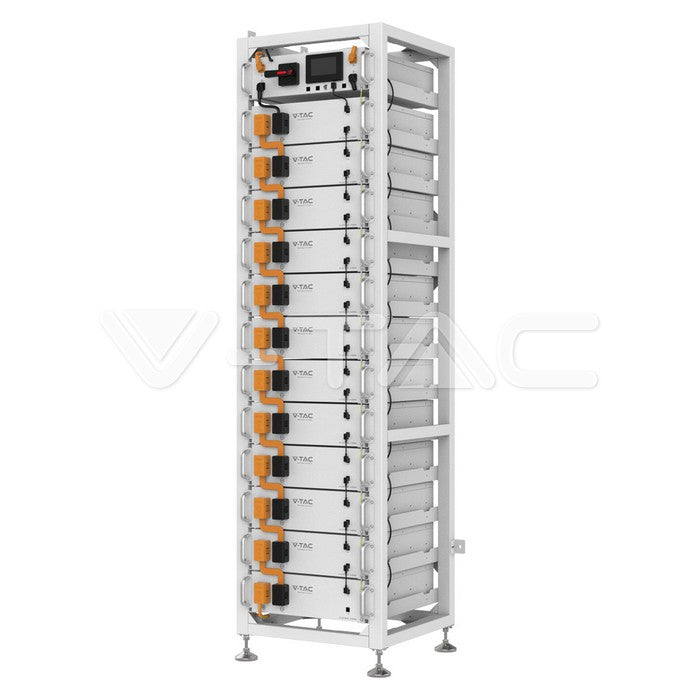

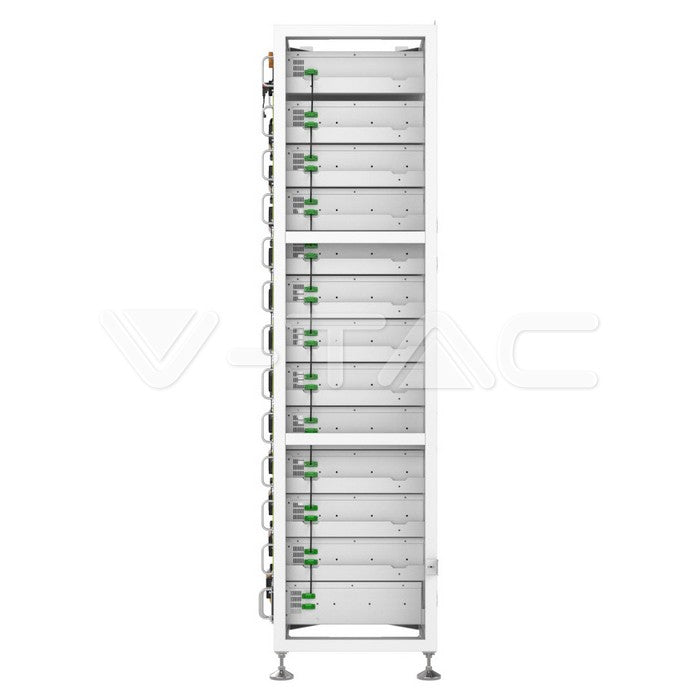

OLITER 60 kWh High-Voltage Battery Pack, IP20 Protection

The photovoltaic kit includes:

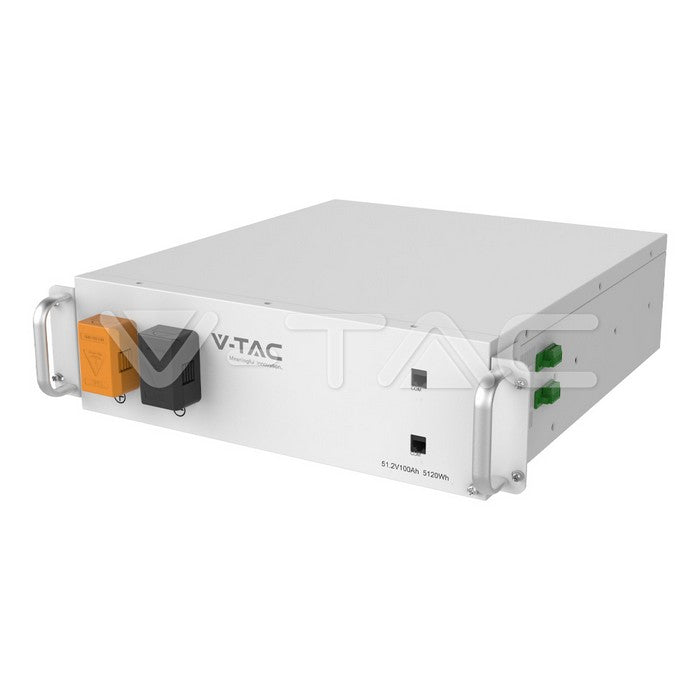

12 units – 5.12 kWh high-voltage lithium battery, SKU 12239

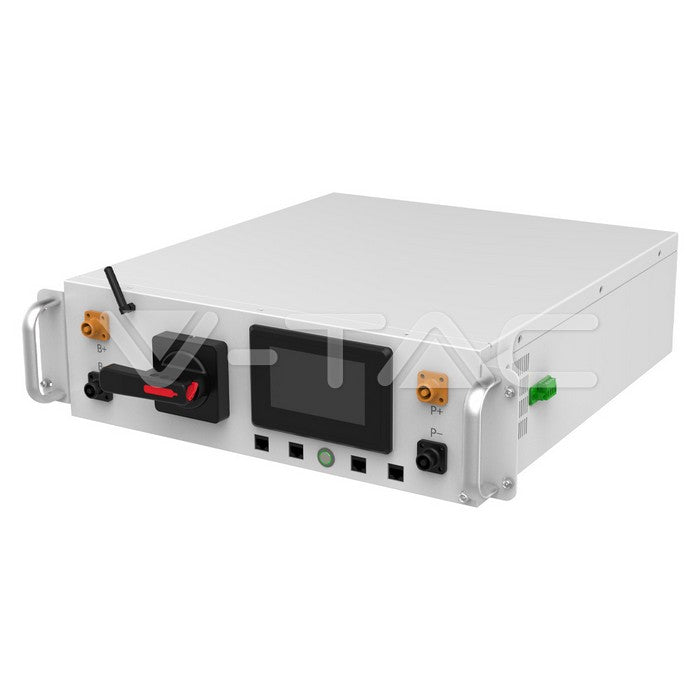

1 unit – high-voltage battery pack control box, SKU 12238

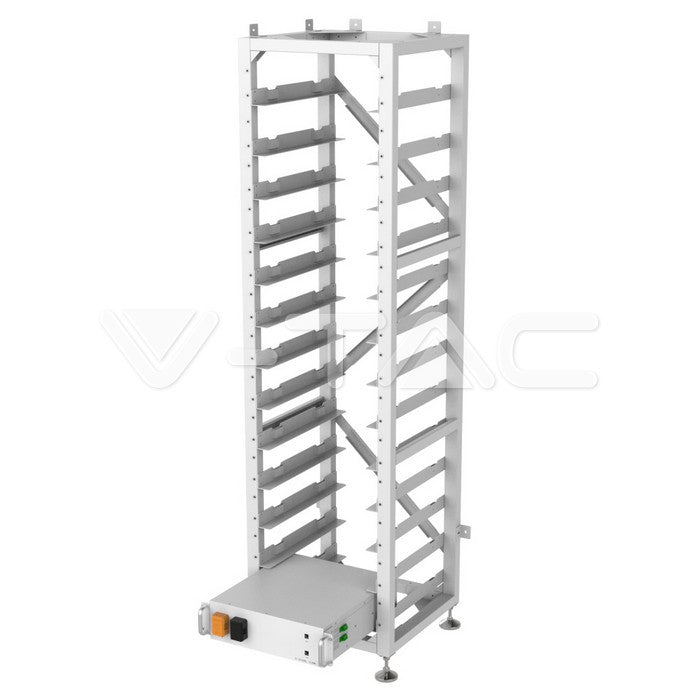

1 unit – rack for 12 batteries and 1 BMS, SKU 12218
1 pc. – positive power cable, 5 m, 4 AWG, SKU 12219

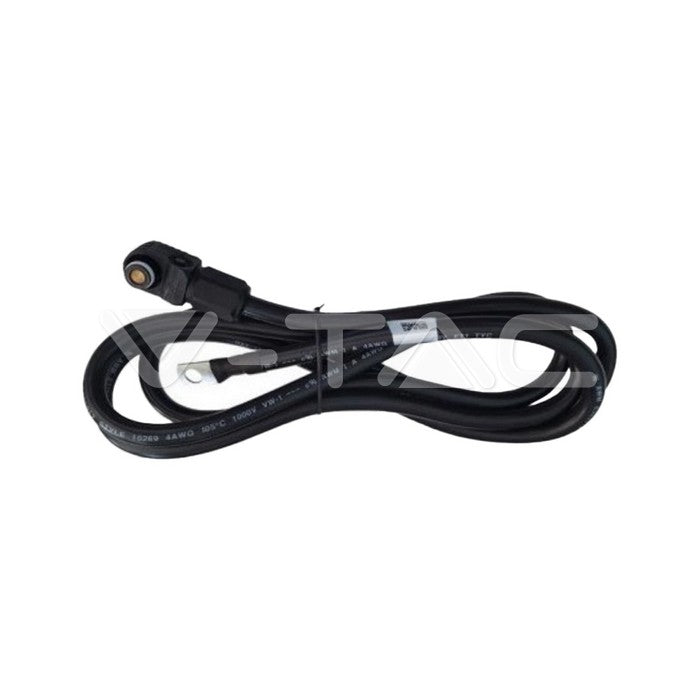

1 pc. – negative power cable, 5 m, 4 AWG, SKU 12220

Product Specifications

General Information

Electrical Specifications
Capacity: 61.44 kWh (5.12 kWh × 12)
Current: charging/discharging current – 50 A
Rated voltage: 614.4 V
Operating voltage range: 556.8–681.6 V

Case information
Installation: on a shelf

Specifications and Features
Battery Capacity: 100 Ah LFP (LiFePO₄)
Charge/discharge cycles: at 25 ± 2 °C, 0.5C/0.5C, EOL 70% ≥ 6,000 cycles
Charging temperature range: 0 to +45 °C
Discharge temperature range: –10 to +55 °C
Storage temperature range: 0 to +35 °C
Protection class: IP20

Dimensions
580 × 584.5 × 2162 mm

Product details
Order code: 12266
Product code: OHR60K-100
Weight: 632.5 kg
Volume: 2.5944 m³

Additional information
Release date: October 22, 2024
Brand: V-TAC
Warranty: 10 years
