KAMAR TL 5-FUN LED Rear Combination Light, Left, 82 LEDs, 12/24V, 7 functions, triangular reflector, IP67, 260x150x70mm, 25 cm cable, ECE approval, 2-year warranty

Description:

Multifunctional Left LED Taillight

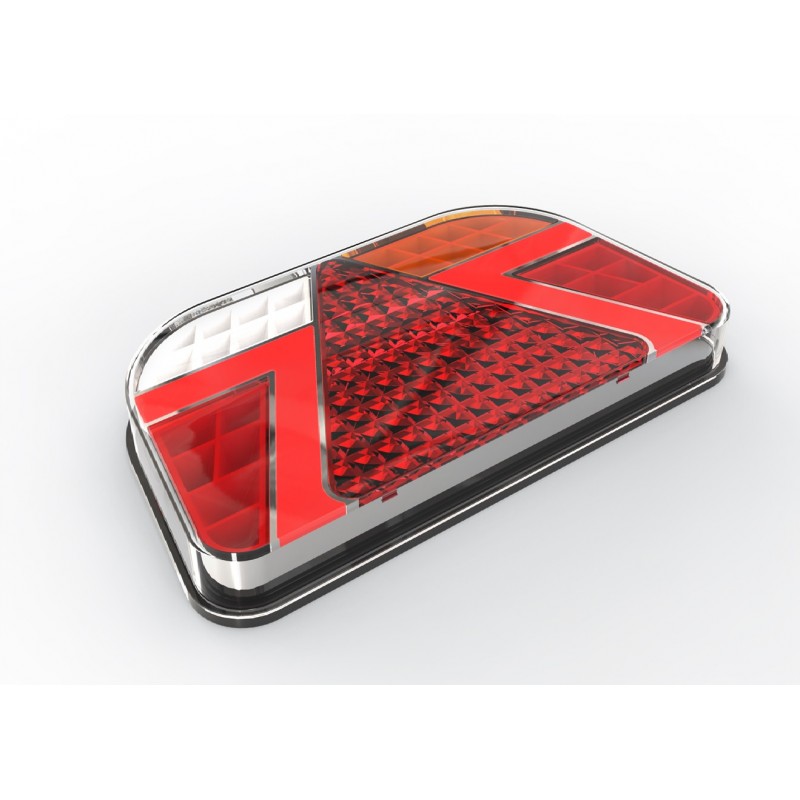

The KAMAR TL 5-FUN L1876 is a left-side LED rear combination lamp for vehicles and trailers with a 12V or 24V electrical system. This specific version combines several rear lighting and signaling functions and features 82 integrated LEDs.

7 integrated lighting and signaling functions

The taillight provides rear position lighting, a brake signal, turn signals, a rear fog light, a reverse light, and license plate illumination. A triangular reflector is also integrated into the design. Thus, a single lamp combines virtually all of the main rear lighting functions of a trailer or vehicle.

82 LEDs

The light uses 82 LEDs. LED technology ensures rapid activation of light signals, good visibility, and low power consumption compared to traditional incandescent taillights.

For 12V and 24V electrical systems

The universal 12/24V operating voltage allows the light to be used in various vehicle electrical systems, including trailers, semi-trailers, trucks, agricultural machinery, and other suitable 12V or 24V installations.

Integrated triangular reflector

This specific left-hand version of the L1876 is equipped with a triangular reflector. This feature helps improve the visibility of the vehicle or trailer even when the headlight’s electric lighting is not turned on.

License Plate Lighting

In addition to the main functions of a taillight, the L1876 also provides license plate illumination, so a separate, additional license plate light is not required on the left-side taillight, provided the installation design allows for it.

IP67 protection rating

The light has an IP67 protection rating, which ensures complete protection against dust and a high level of protection against water ingress. This is essential for exterior vehicle lighting, which is constantly exposed to rain, moisture, mud, and road debris.

ECE Type Approvals

The lamp is certified in accordance with the requirements of ECE R3, R4, R6, R7, R10, R23, and R38, which apply to reflectors, license plate lamps, turn signals, parking and brake lights, electromagnetic compatibility, and reverse and rear fog lights.

25-centimeter connection cable

The light is equipped with a 250 mm (25 cm) connection cable designed to be connected to the vehicle's or trailer's electrical system.

260x150x70mm structure

The light's dimensions are 260x150x70 mm. The design combines several lighting functions into a single housing, making it suitable for use in or as a replacement for rear lighting systems on trailers and vehicles.

Installation at a professional service center

The manufacturer specifies that the headlight must be installed at a specialized workshop or by a professional service provider. Electrical connections must be thoroughly sealed against water and moisture ingress, and installation must be performed in accordance with UNECE requirements.

2-year warranty

The manufacturer's website specifies a 2-year warranty for this specific KAMAR TL 5-FUN L1876 left-side taillight.

Specifications:
Product Type: LED Rear Combination Light
Installation Side: Left
Operating Voltage: 12/24V
Light Source: LED
Number of LEDs: 82
Parking Light: Yes
Brake Light: Yes
Turn signal: Yes
Reverse light: Yes
Rear fog light: Yes
License plate light: Yes
Reflector: triangular
Power consumption: 1.5W/2.1W/3W/3.5W/4.2W/5W
Protection rating: IP67
Type approval: ECE R3, R4, R6, R7, R10, R23, R38
Connection: cable
Cable length: 25 cm
Dimensions: 260 x 150 x 70 mm
Weight: 0.62 kg
EAN code: 5901741300310
Warranty: 2 years
