KAMAR LED Work Light Panel LB0121, 45 W, 3,300 lm, 12/24 V, 60 LEDs, 500 × 30 mm, IP67

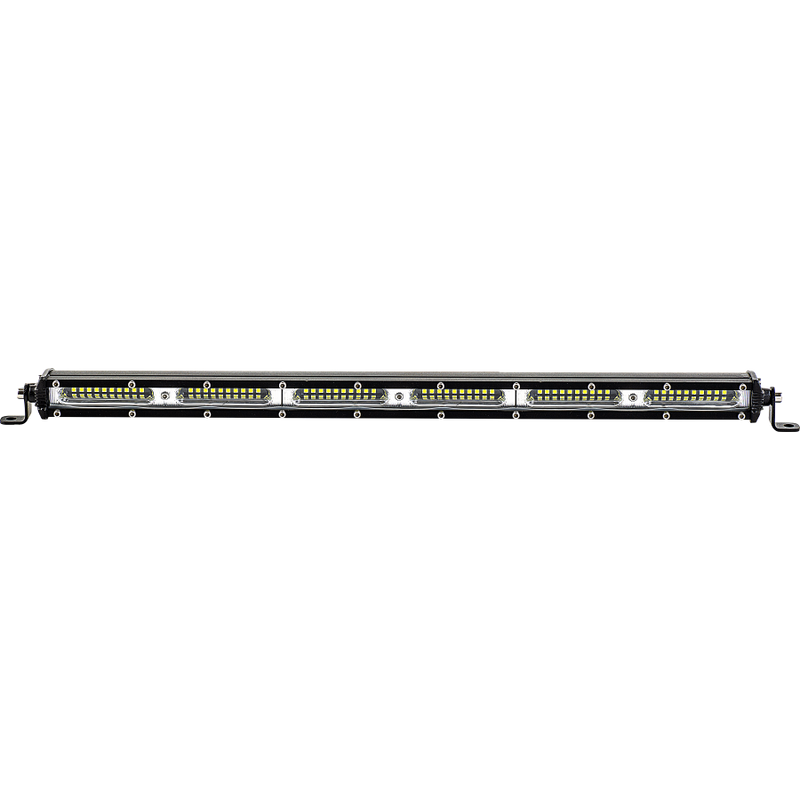

LB0121 LED Work Light Panel

LB0121 is a work light panel with a wide beam. The light is equipped with 60 LEDs, provides a luminous flux of 3,300 lm, and operates at 45 W.

The lamp is designed for vehicles with a 12 V or 24 V electrical system. It features an aluminum housing, a polycarbonate lens, reverse polarity protection, and an IP67 protection rating. The product is certified in accordance with ECE R10 requirements.

The lamp is secured with screws. The items are packed in a cardboard box in quantities of 40. The cardboard box measures 55 × 41 × 31.5 cm and weighs a total of 22 kg.

User Warnings

Do not look directly into the light—it can cause damage to your eyesight or even lead to blindness.

Installation may only be performed at a specialized workshop or by a professional service provider.

Use only in well-ventilated areas.

Use only for its intended purpose.

Do not touch the lamp while it is in use or immediately after turning it off, as it may be hot.

Unauthorized disassembly of the lamp or tampering with the electronic system will void the warranty.

Install and store out of the reach of children.

Installation Instructions

Use the lamp only for its intended purpose.

Installation may only be performed at a specialized workshop or by a professional service provider.

The connection between the lamp and the vehicle's electrical system must be insulated with a heat-shrink tube or electrical tape. This prevents water and moisture from reaching the lamp's copper wires and damaging the electronic components.

The plug must be securely fastened.

Do not cut the ends of the soldered wires.

Lamps must be installed only in accordance with UNECE regulations.

Specifications

Model: LB0121
Type: LED work light panel
Beam pattern: Wide beam
Number of LEDs: 60
Luminous flux: 3300 lm
Power: 45 W
Operating voltage: 12/24 V

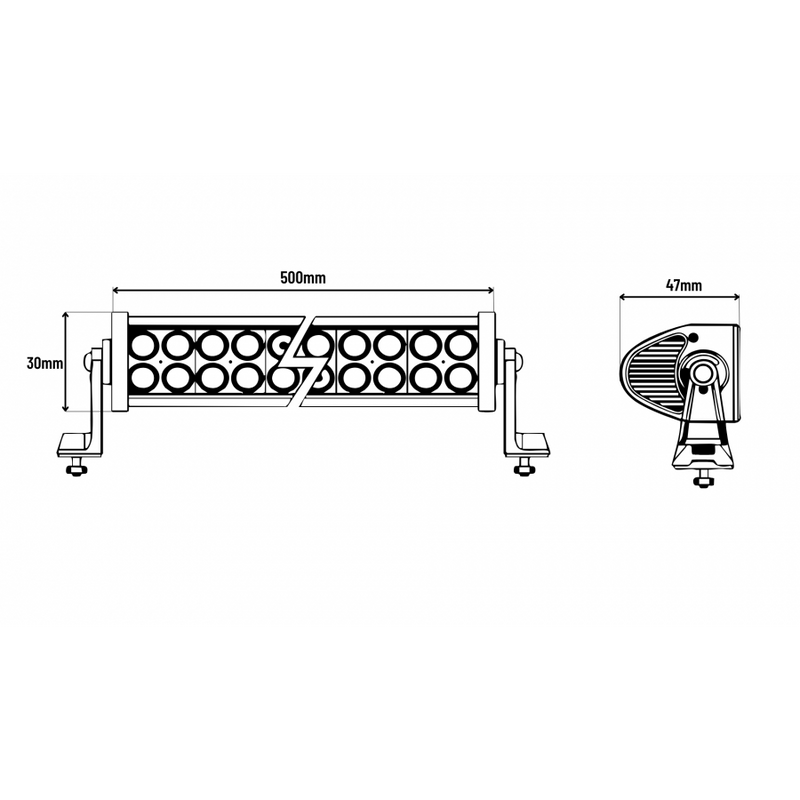

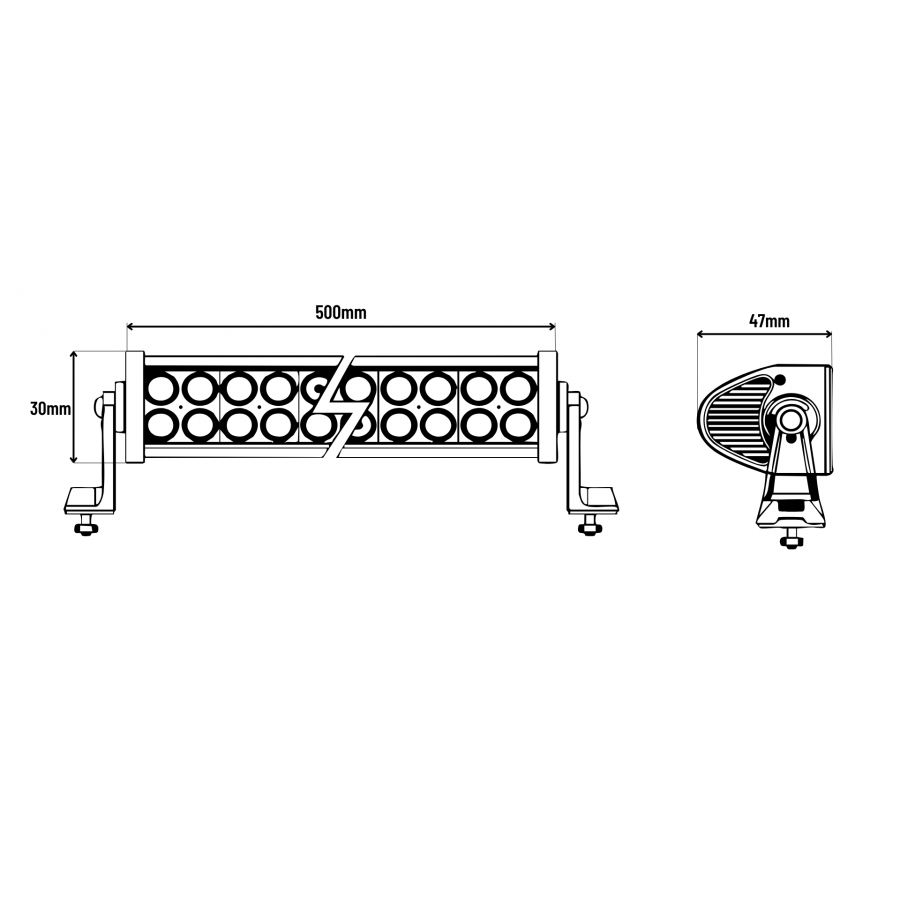

Dimensions: 500 × 30 mm
Cable length: 300 mm
Housing material: Aluminum
Lens material: Polycarbonate
Protection class: IP67
Certification: ECE R10
Operating temperature: From −40 °C to +60 °C
Reverse polarity protection: Yes

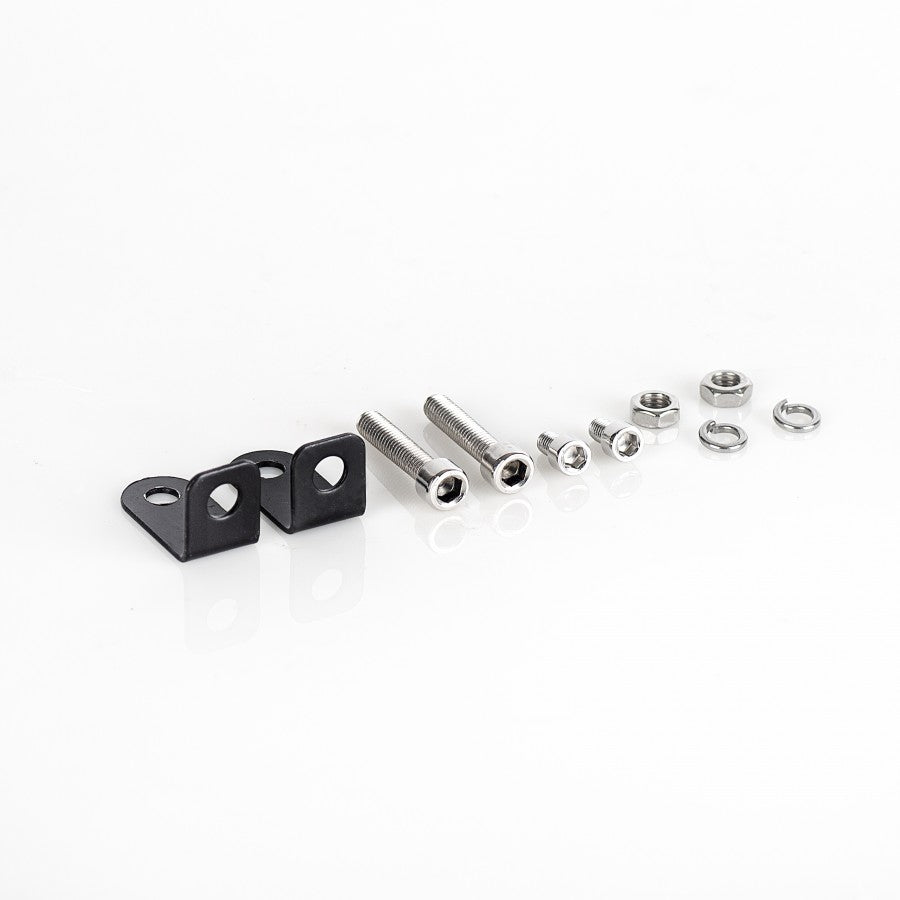

Mounting type: With screws
Net weight: 0.51 kg
Quantity per shipping package: 40 pcs.
Shipping package dimensions: 55 × 41 × 31.5 cm
Shipping package weight: 22 kg
EAN: 5905358304099
