Description

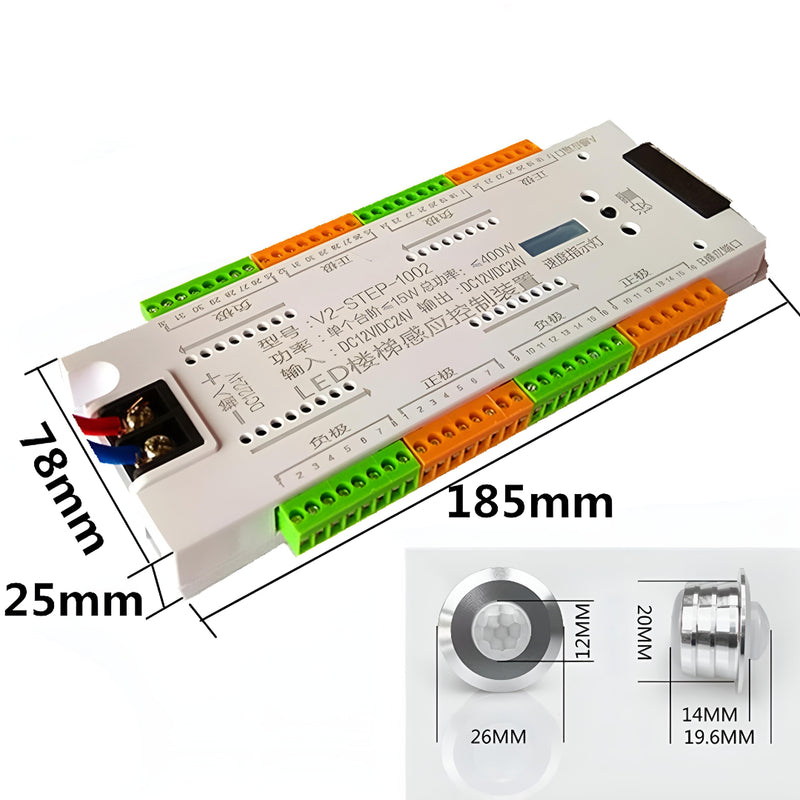

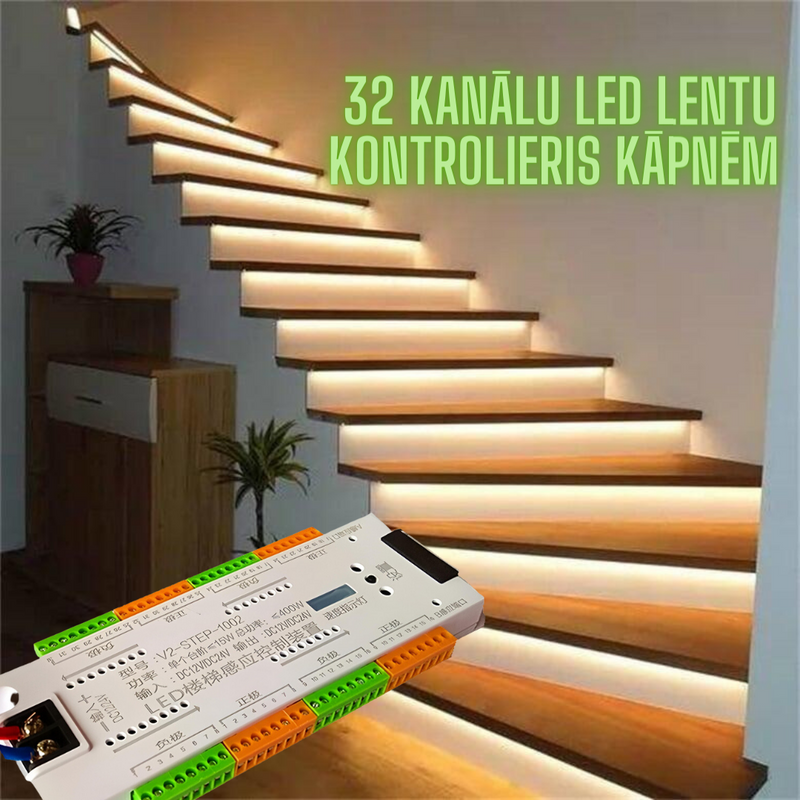

32-channel LED strip controller with motion sensors , intended for indoor use.
Specifications:
- Voltage: DC 12V/DC 24V
- Maximum power: 400W
- Number of channels: 32 (configurable from 1 to 32 steps)
- Sensors: 2 PIR sensors (Passive infrared sensors)
Features:
-
Speed control: Controllable glow duration (60 seconds, 45 seconds, 30 seconds, 15 seconds).
-
How to set the lighting of the steps: The first step can be set by pressing and holding the switch for 5-6 seconds, the second with a shorter switch press, the rest in the same way as the second step.
-
Saving the settings: After completing the setting, press the key repeatedly for 5-6 seconds to save the settings.
Important:
- Install PIR sensors (A/B) at the beginning and end of the stairs to respond to human movement.
- The controller operates on low voltage (12V-24V) and requires a transformer. Do not connect directly to 220V to avoid damage.
- The product is not waterproof, use only indoors.
- Make sure the polarity of the power supply is correct: connect the red wire (V+) to the positive electrode, the blue (or black) wire (V-) to the negative electrode.

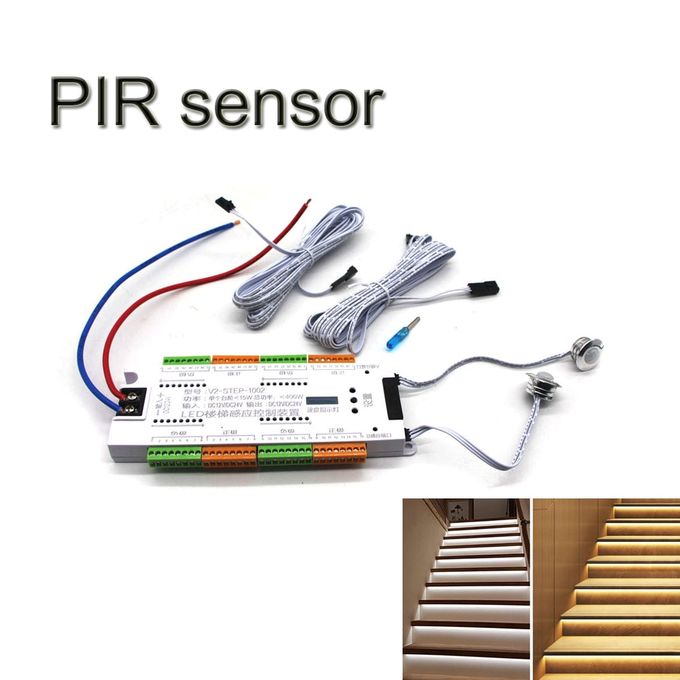

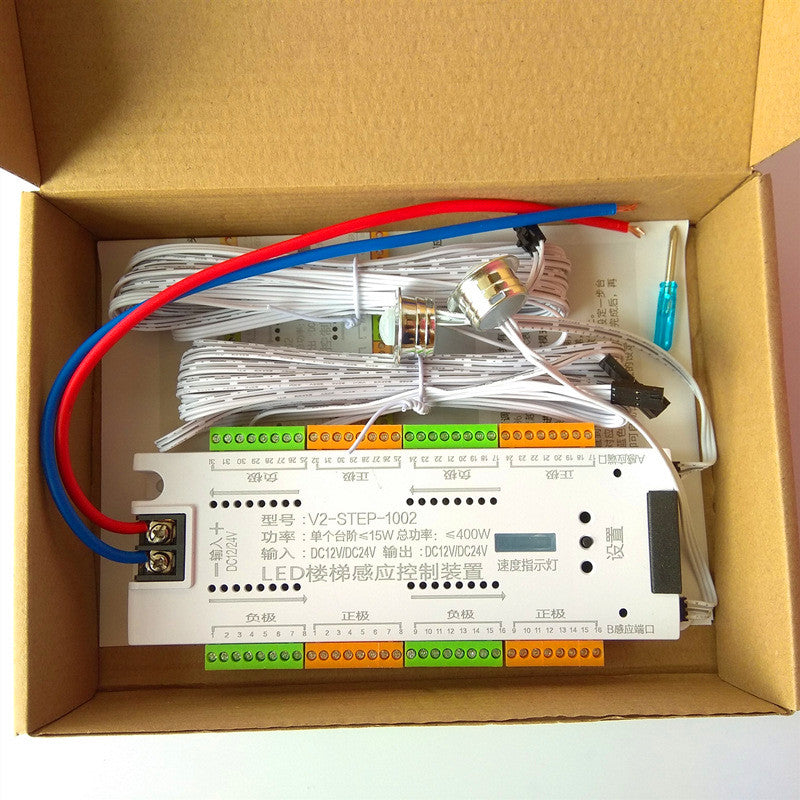

The set includes: 1 pc. controller and 2 (A/B) PIR sensors.
