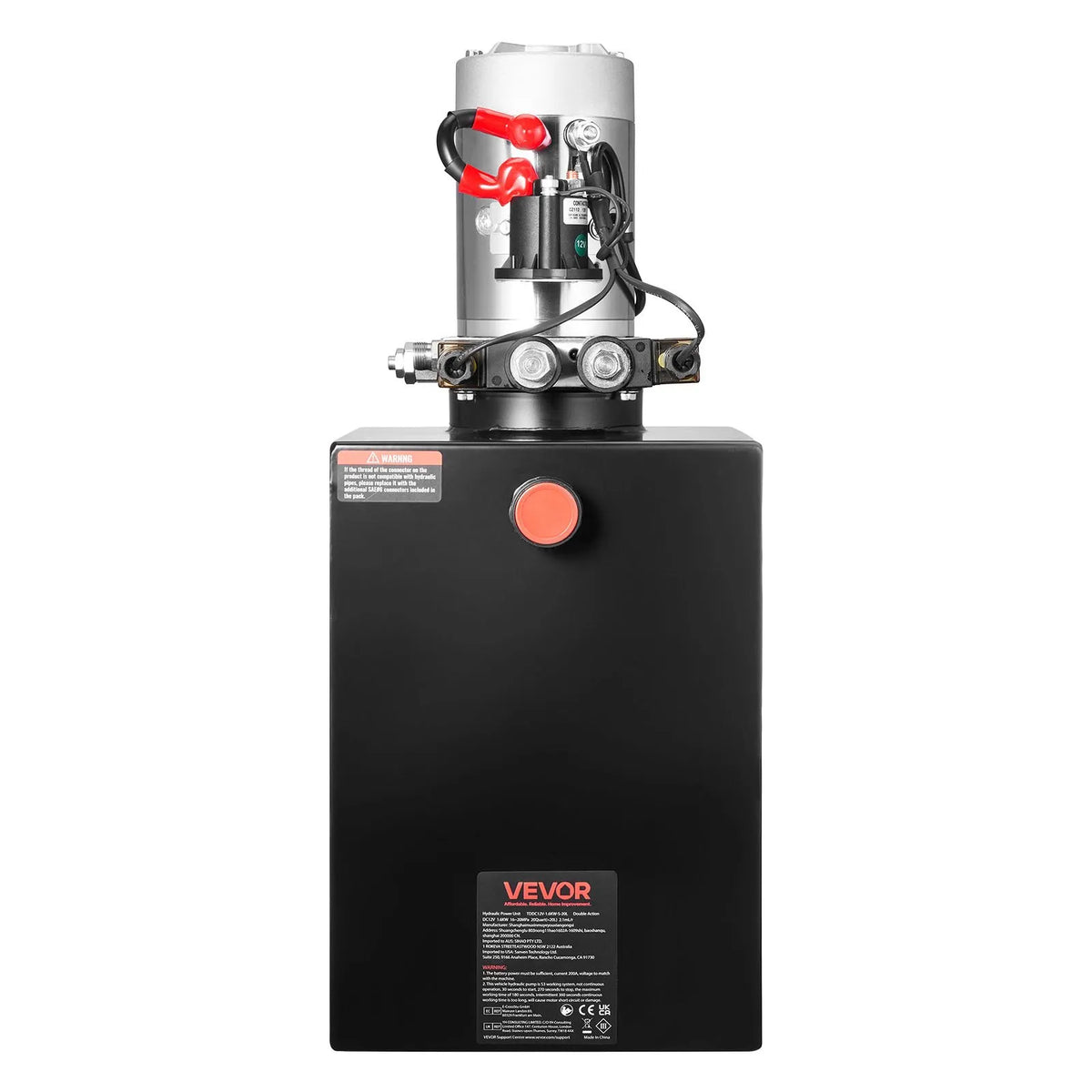

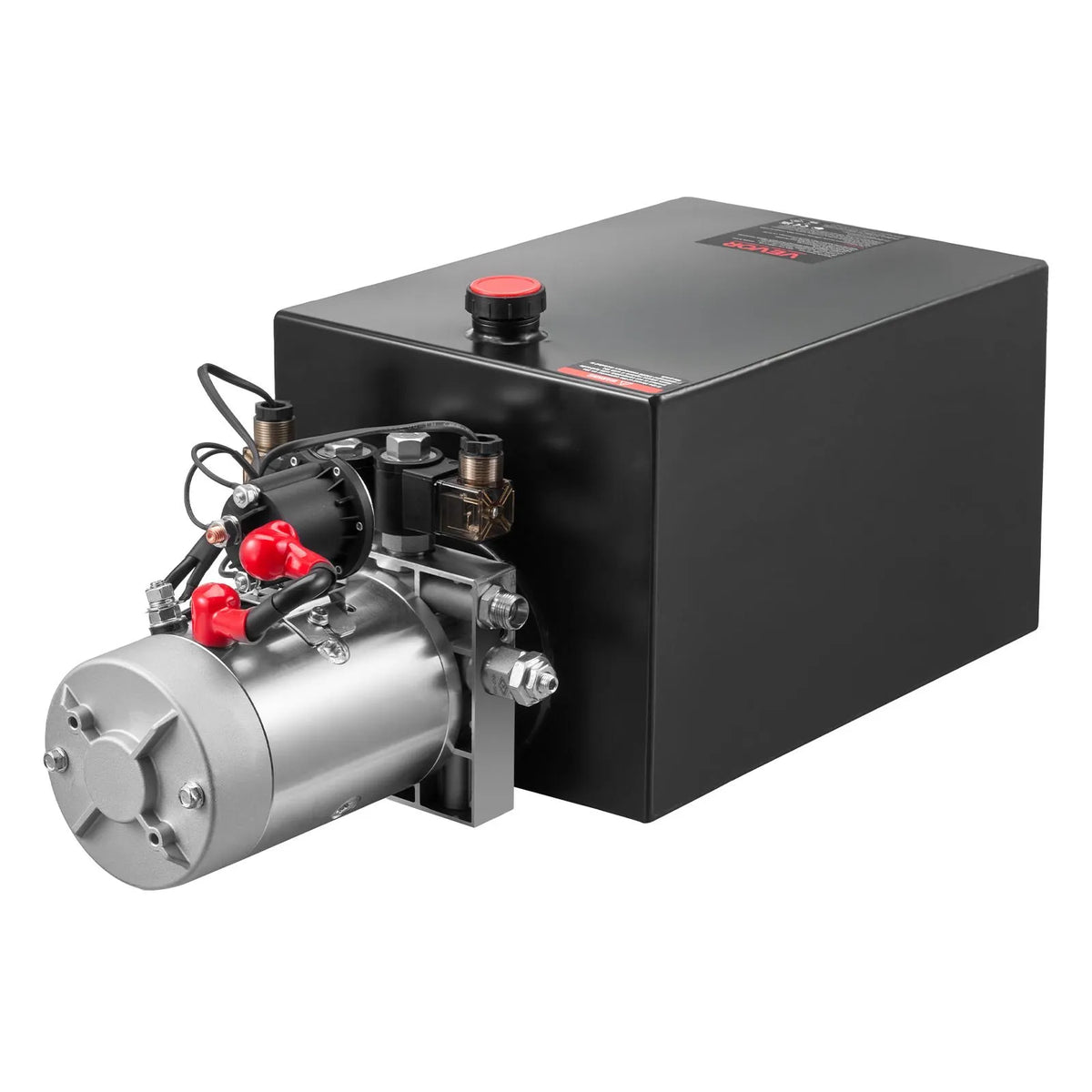

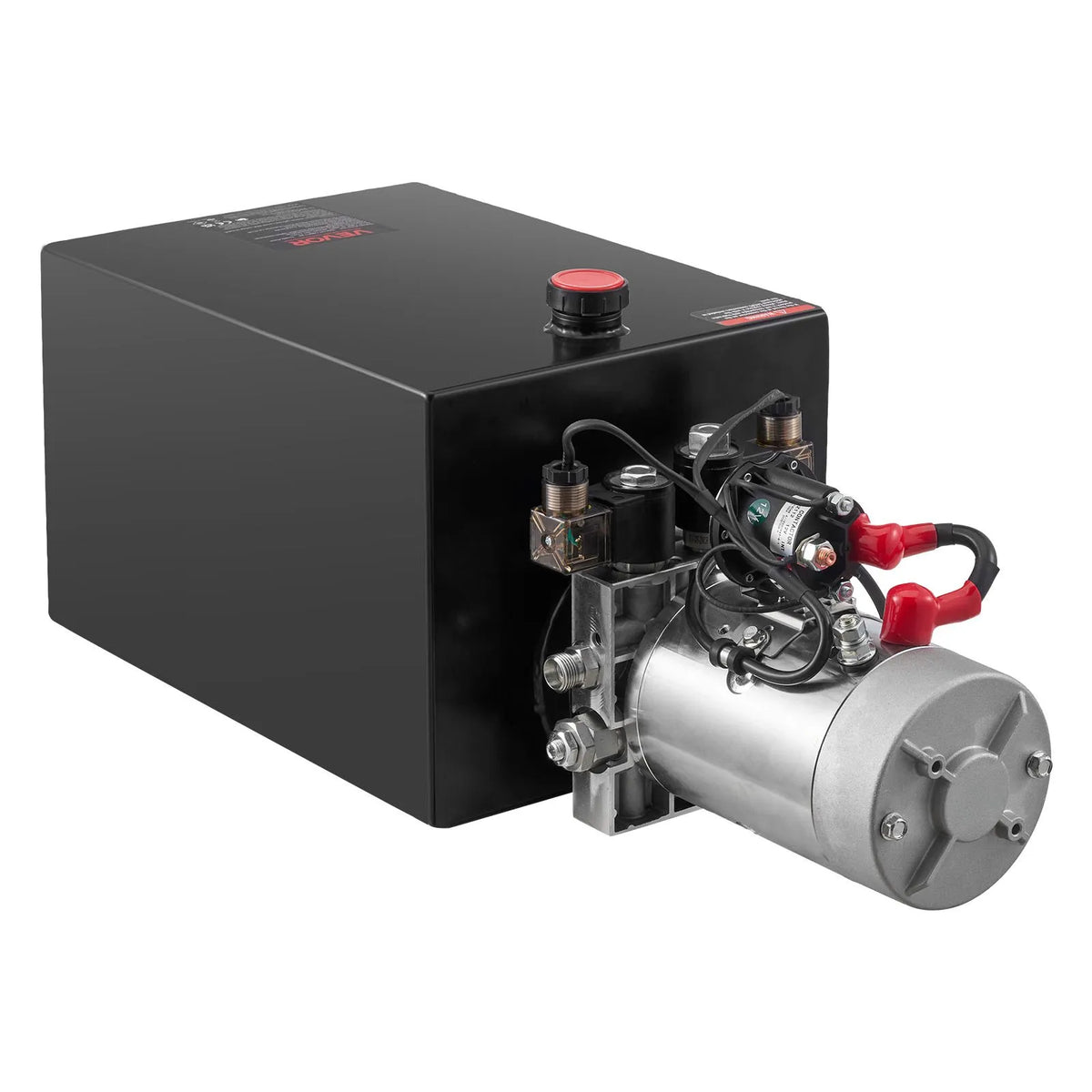

VEVOR 20-liter hydraulic power unit, bidirectional self-dumping trailer pump, maximum safety pressure 22 MPa, flow rate 3.4 L/min, 12 V DC hydraulic pump with metal reservoir for lifting vehicles

Features and Details

Power you can feel:

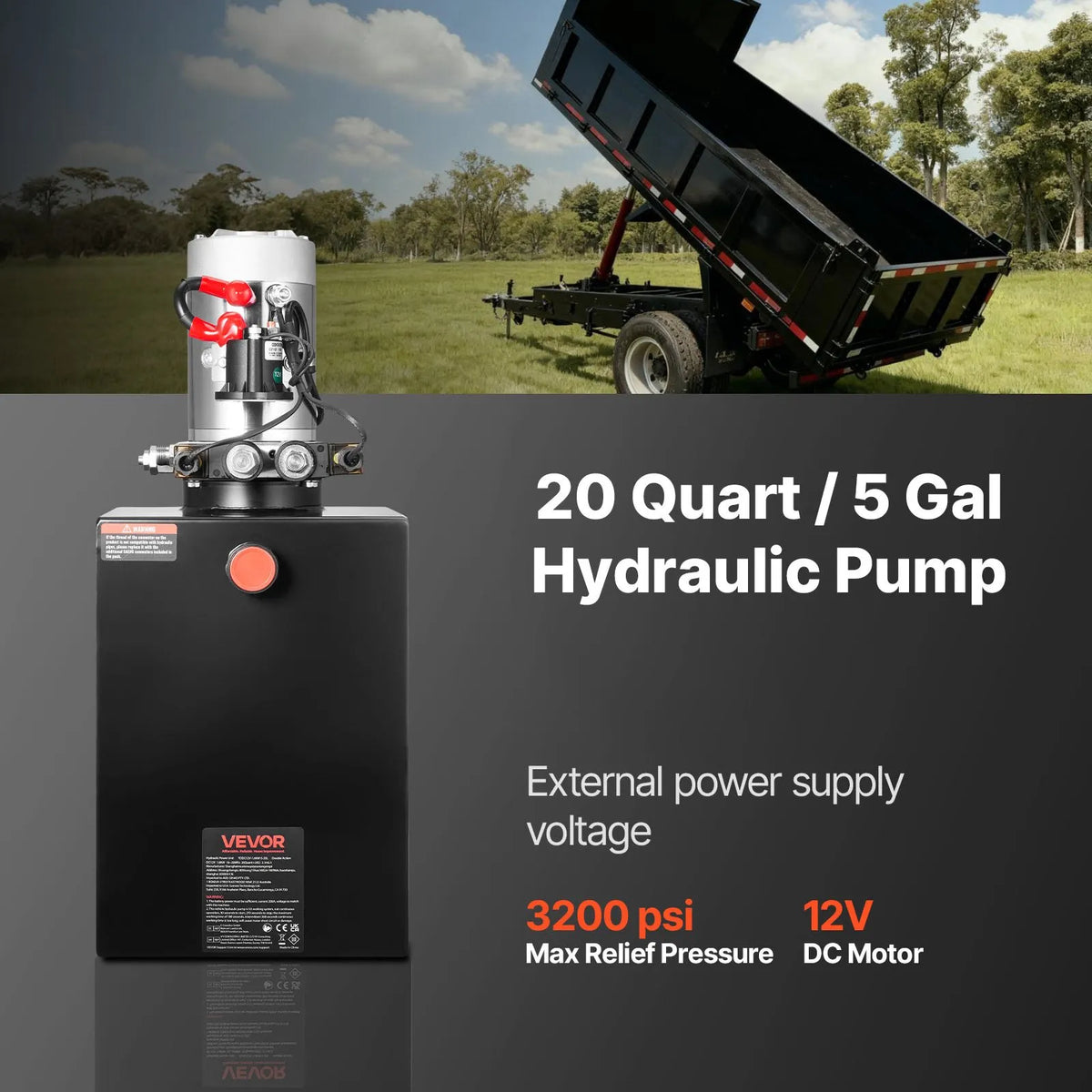

This 12-volt DC, 1.6-kW hydraulic power unit provides a flow rate of 3.4 L/min with a 20-liter tank, an operating pressure of 16–20 MPa, and a maximum pressure of up to 22 MPa, allowing heavy-duty lifting equipment to operate smoothly, powerfully, and safely.

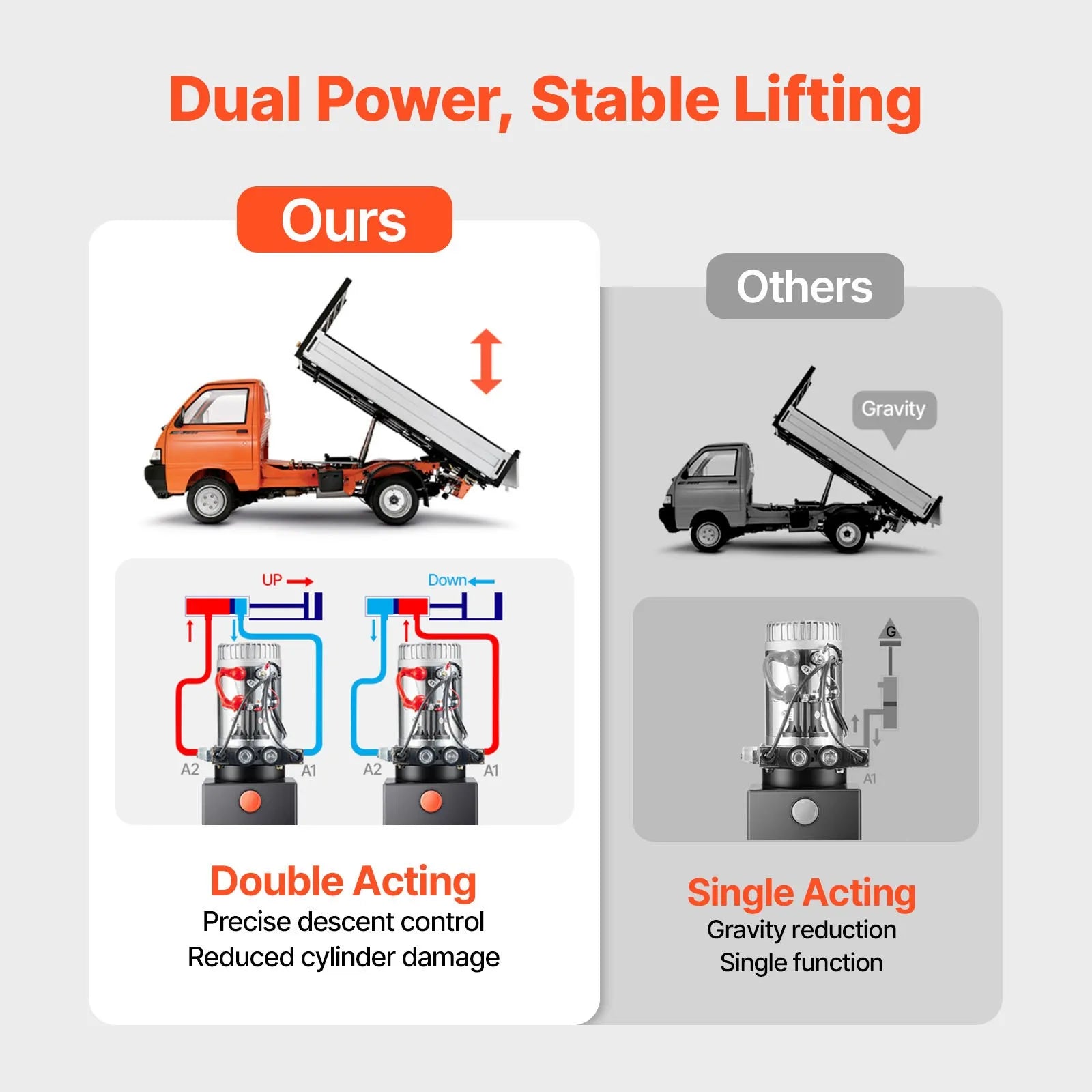

Bidirectional accuracy:
The hydraulic pump ensures precise control of both lifting and lowering, while consuming less hydraulic oil. The built-in safety valve automatically releases excess pressure, reducing the risk of damage and increasing system safety.

Easy installation:

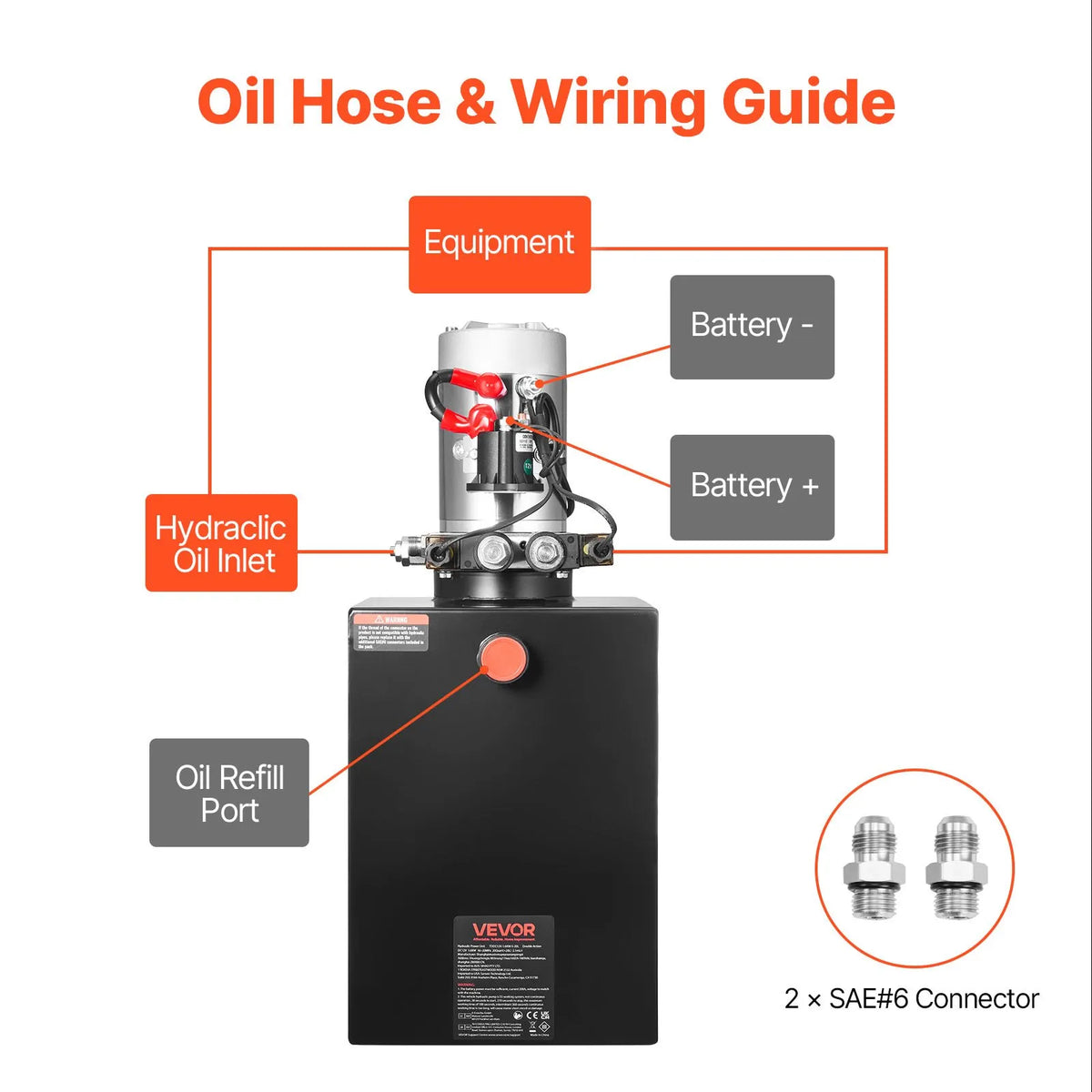

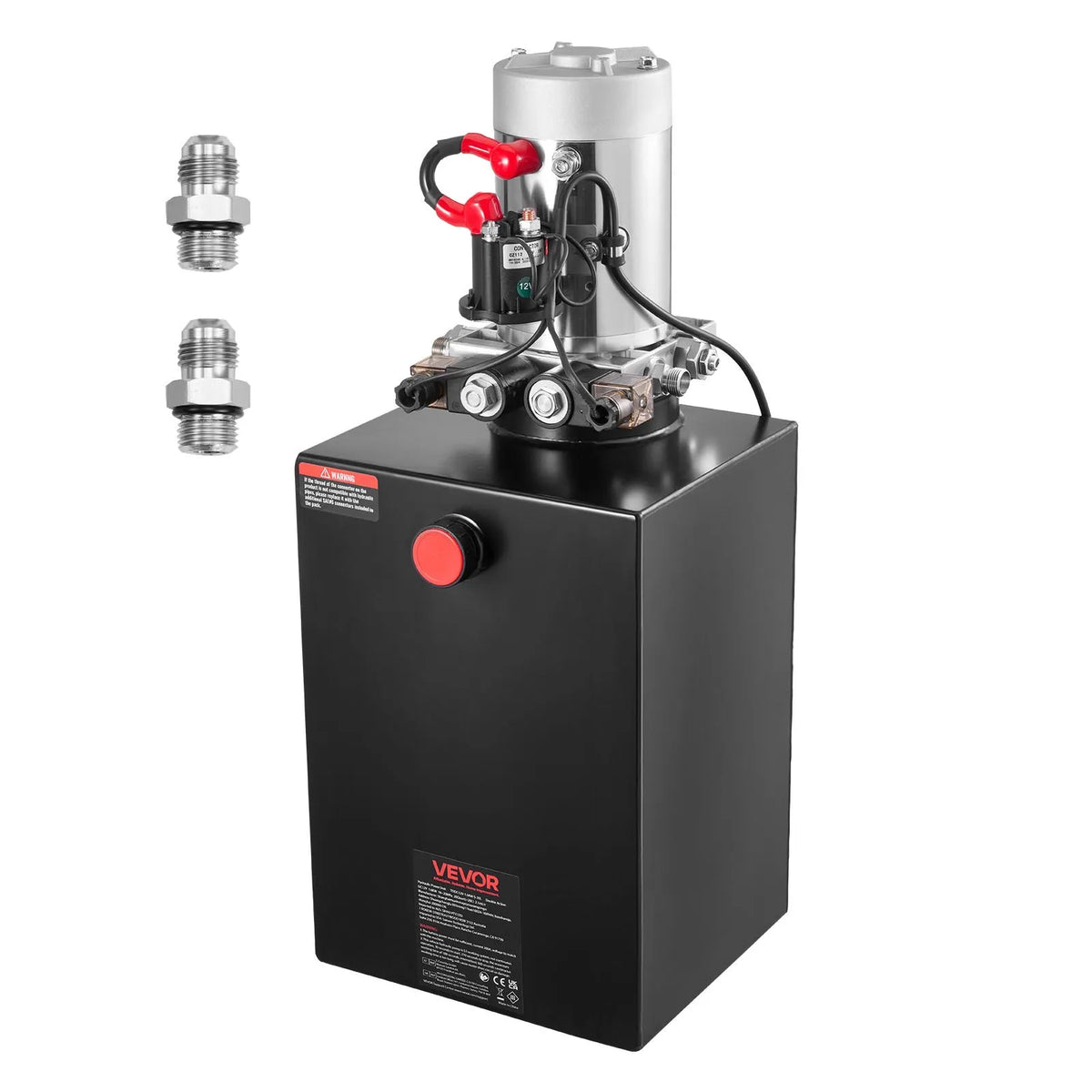

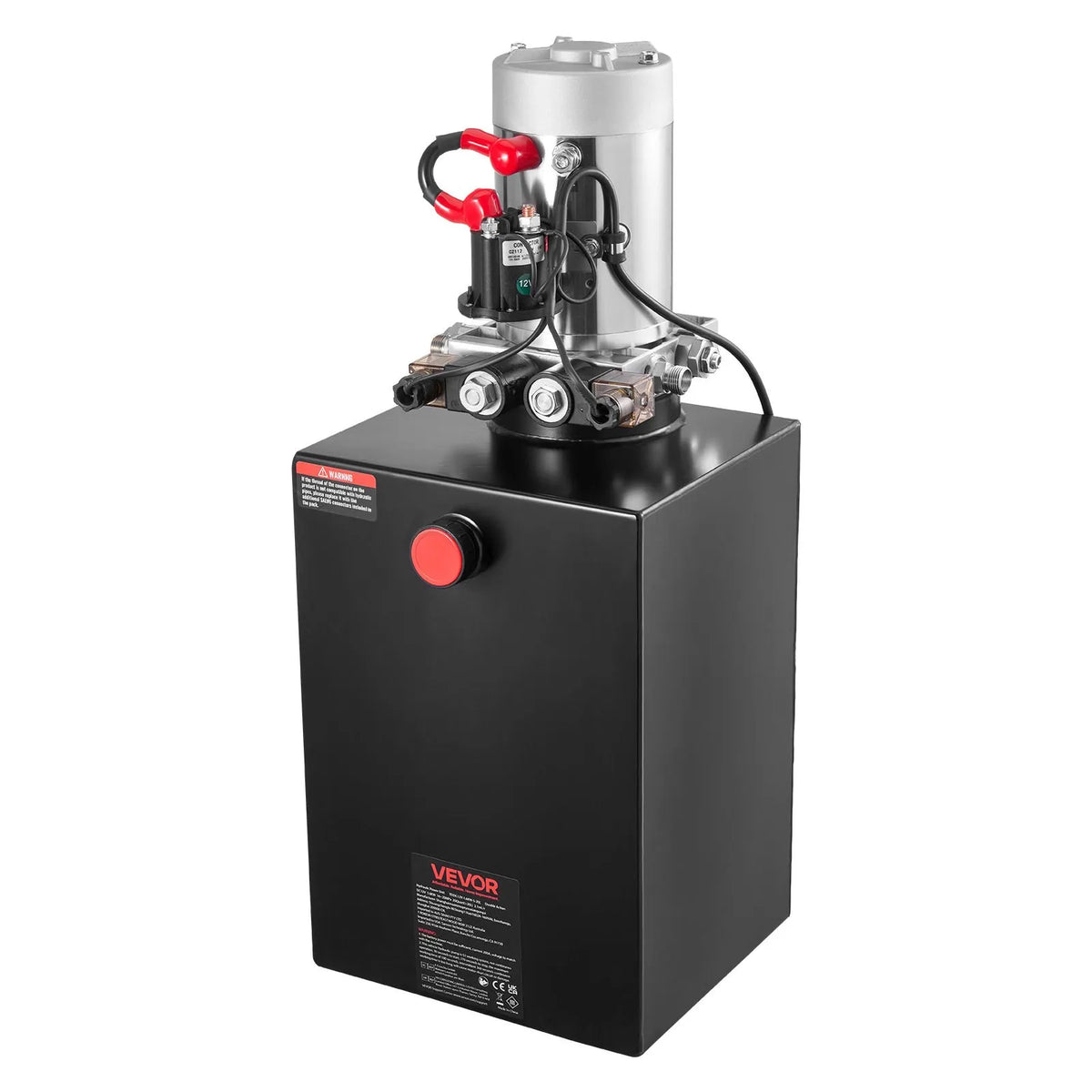

The self-dumping trailer pump is delivered pre-assembled. All you need to do is fill it with hydraulic oil and connect the power lines and hoses. SAE #6 fittings ensure quick and easy connection to standard hydraulic lines.

Reinforced and reliable construction:
The hydraulic pump of the self-unloading trailer is hermetically sealed to prevent leaks, while the rust-resistant steel tank withstands daily loads and impacts, ensuring long-term reliability.

Designed for various tasks:

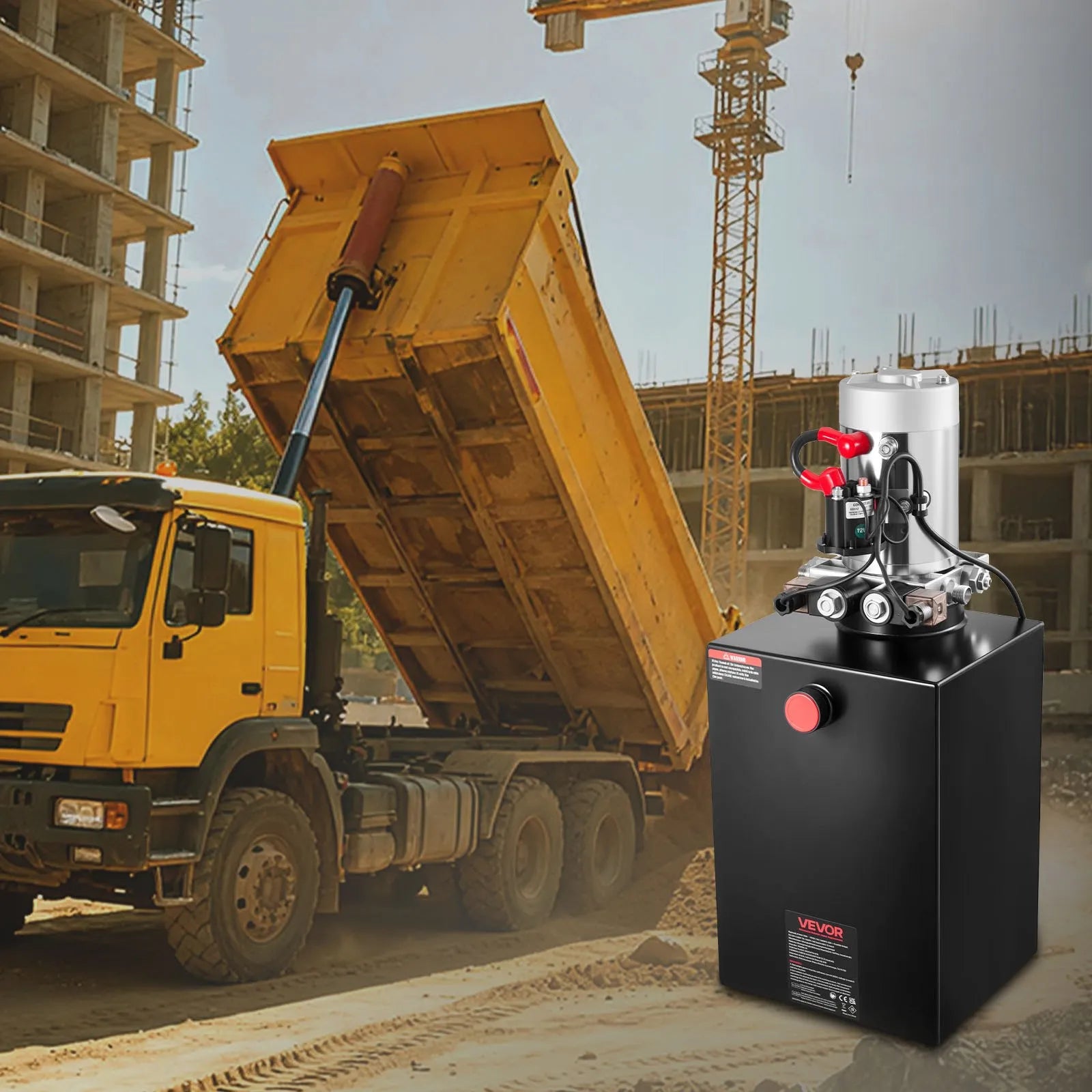

This electric-hydraulic power unit is suitable for dump trailers, lifts, scissor lifts, lifting tables, small presses, and bucket conveyors, providing versatile power in workshops and on job sites.

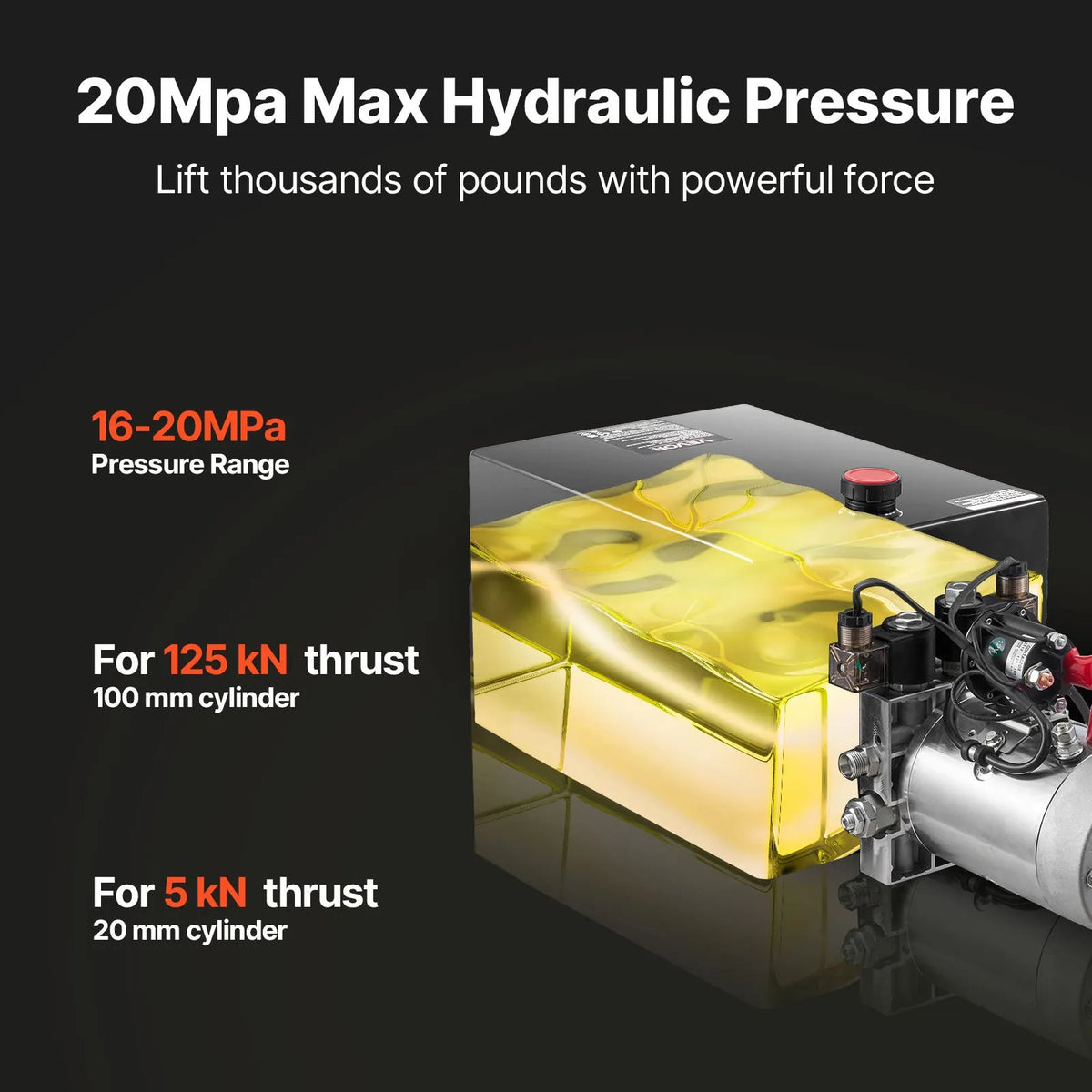

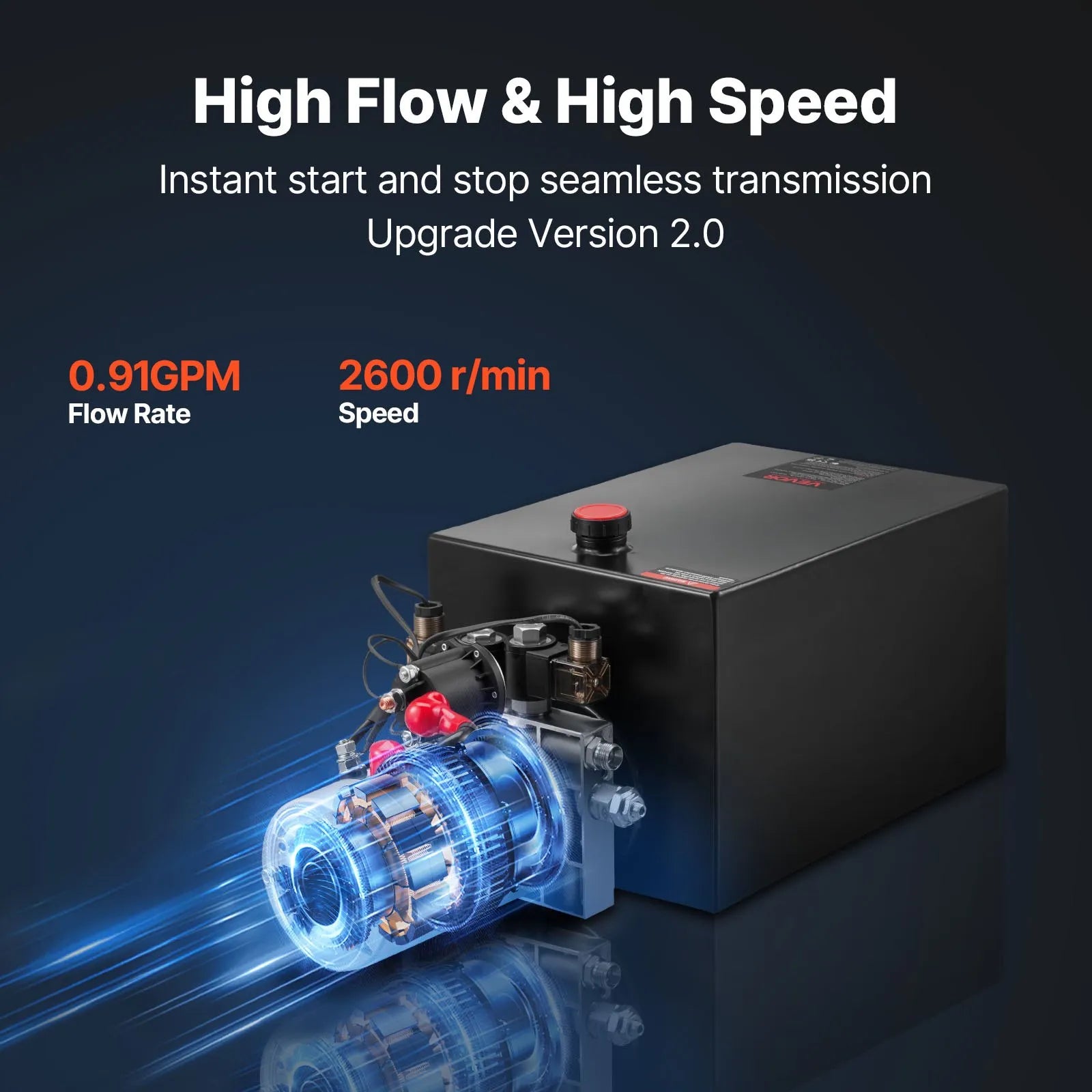

This hydraulic power unit uses a 1.6 kW motor running at 2,600 rpm, providing an operating pressure of 16–20 MPa and a maximum pressure of up to 22 MPa. It provides reliable, high-performance cylinder drive with consistent power for demanding lifting applications.

The large tank of the self-unloading trailer pump, combined with a powerful pump, ensures quick startup and smooth lifting and lowering cycles. This reduces downtime, shortens wait times, and ensures uninterrupted daily operations with consistent hydraulic power.

It features a reliable hydraulic pump with a built-in safety valve and throttle valve, making operation safer, while the fuel tank is resistant to damage and oil leaks.

Please note that continuous, long-term operation is not recommended. In S3 operating mode, the hydraulic pump motor operates cyclically: 30 s on, 270 s off, with a maximum continuous operating time of 180 s. For longer operation, use the intermittent mode, which allows for a continuous operating time of up to 360 seconds.

This hydraulic pump for dump trailers helps professional mechanics and auto repair shops get the job done quickly. It is suitable for dump trailers, forklifts, scissor lifts, lifting tables, material-handling equipment, and other compatible lifting platforms, ensuring versatile use in the workshop.

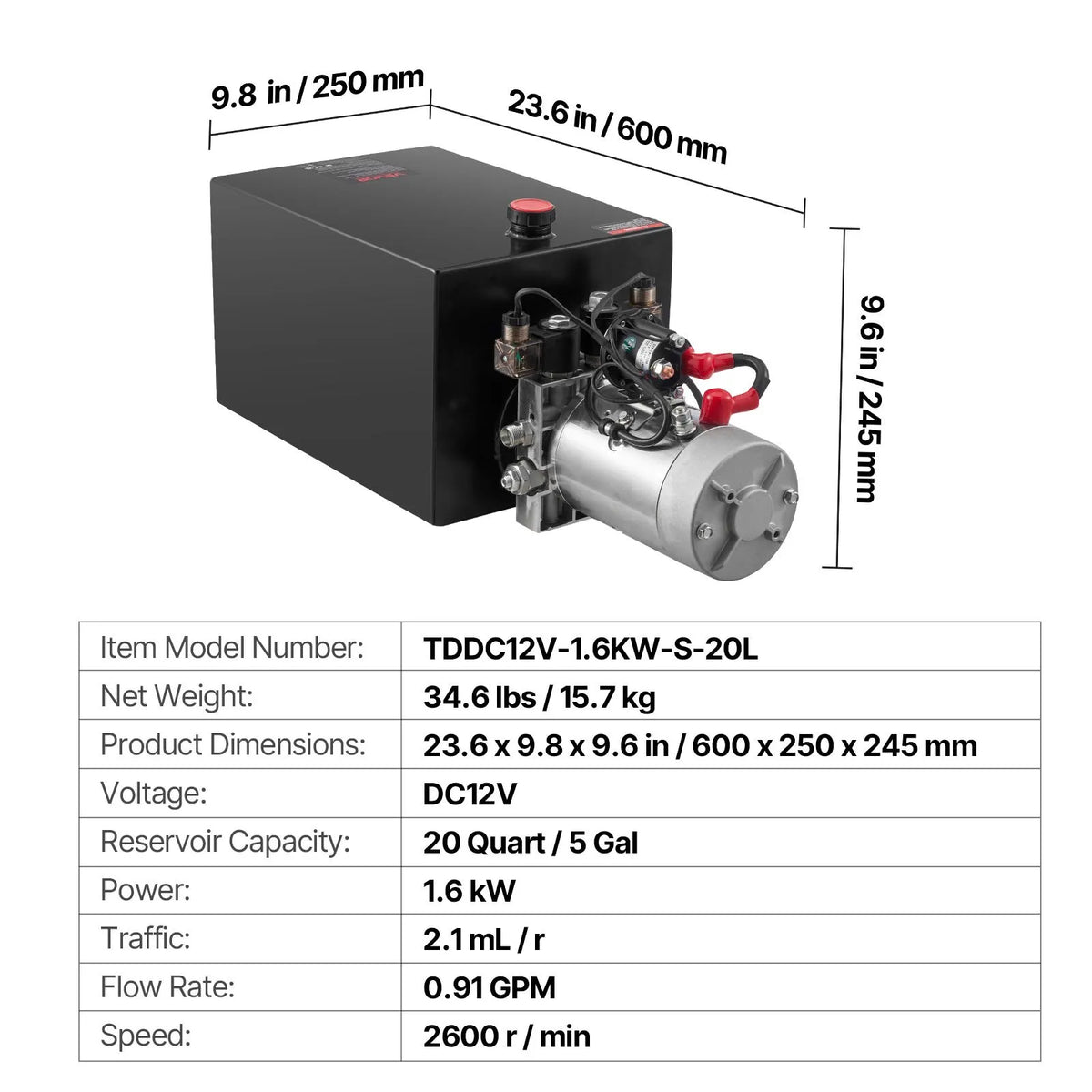

Product Specifications
Model Number: TDDC12V-1.6KW-S-20L
Voltage: DC 12 V
Function: Dual-acting
Tank capacity: 20 qt / 19 l
Power: 1.6 kW
Flow rate: 3.4 l/min
Speed: 2,600 rpm
Displacement: 2.1 ml/rpm
Net weight: 15.7 kg (including all accessories)
Product dimensions: 600 × 250 × 245 mm
