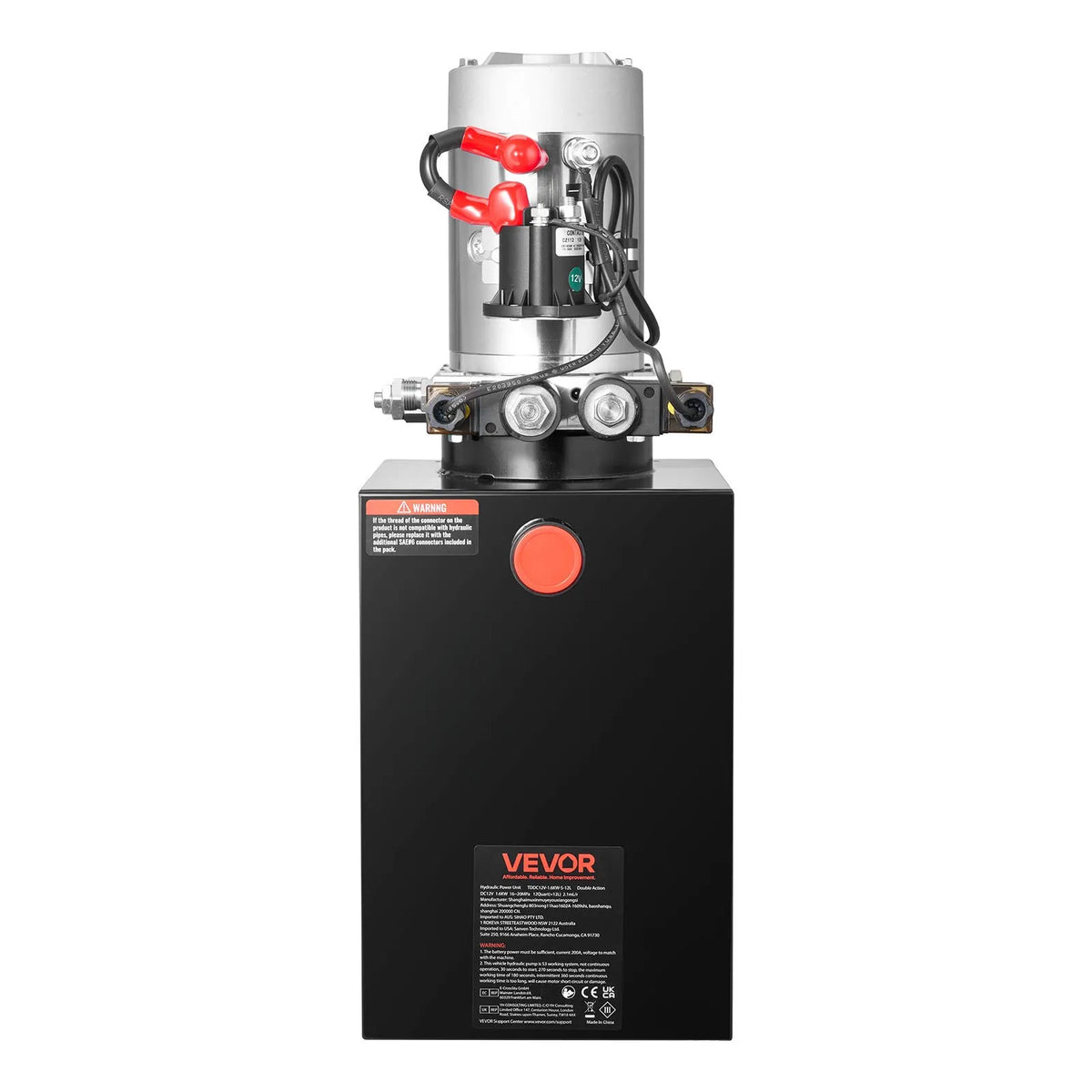

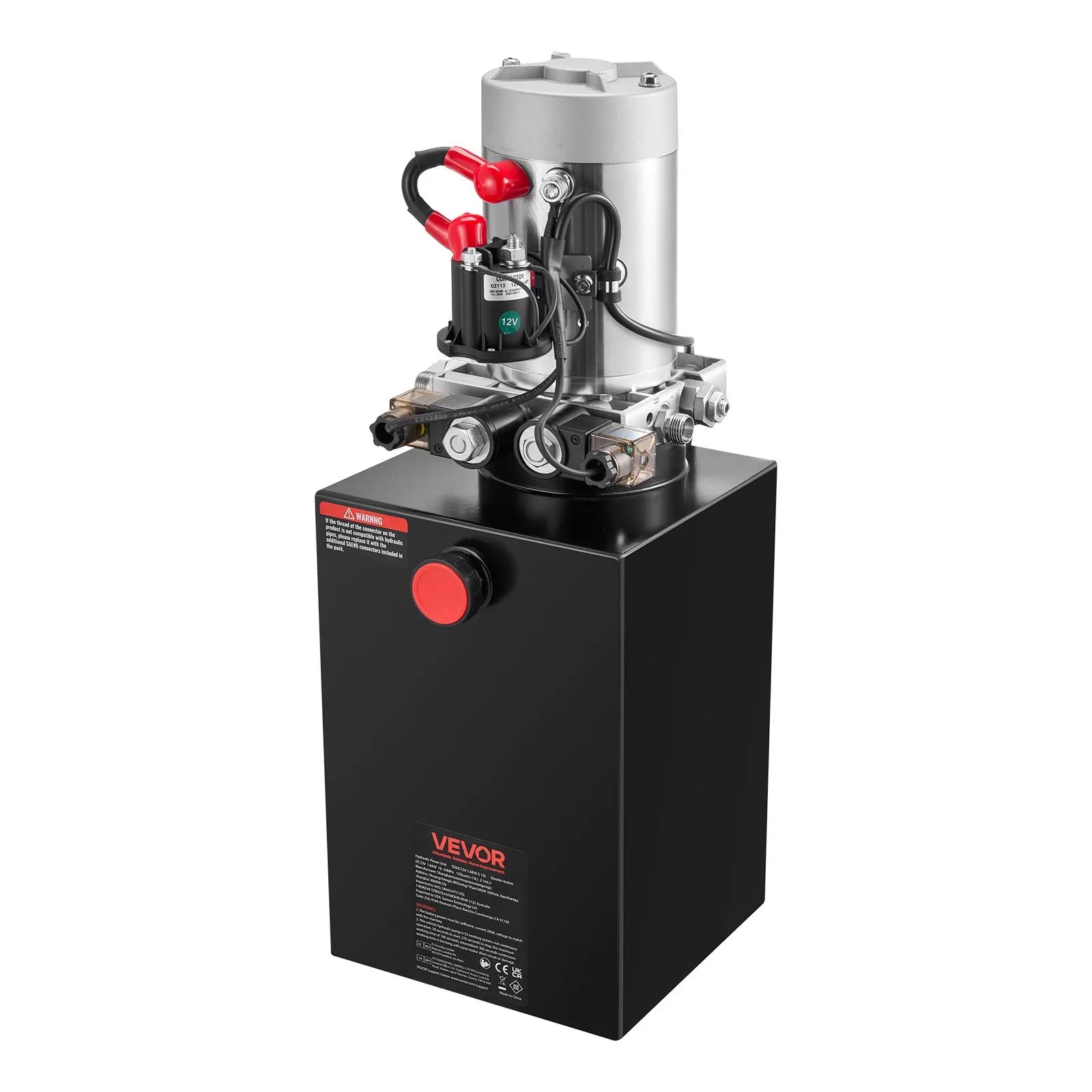

VEVOR 12-liter hydraulic power unit, double-acting 12-volt hydraulic pump for self-unloading trailers, maximum pressure 22 MPa, flow rate 3.4 L/min, hydraulic pump with a metal oil tank for lifting vehicles

Features and Details

Perceived power: This 12 V DC, 1.6 kW hydraulic power unit provides a flow rate of 3.4 l/min with an 11.35-liter tank, a working pressure of 16–20 MPa and a maximum pressure of up to 22 MPa, enabling heavy-duty lifting equipment to operate smoothly and safely.

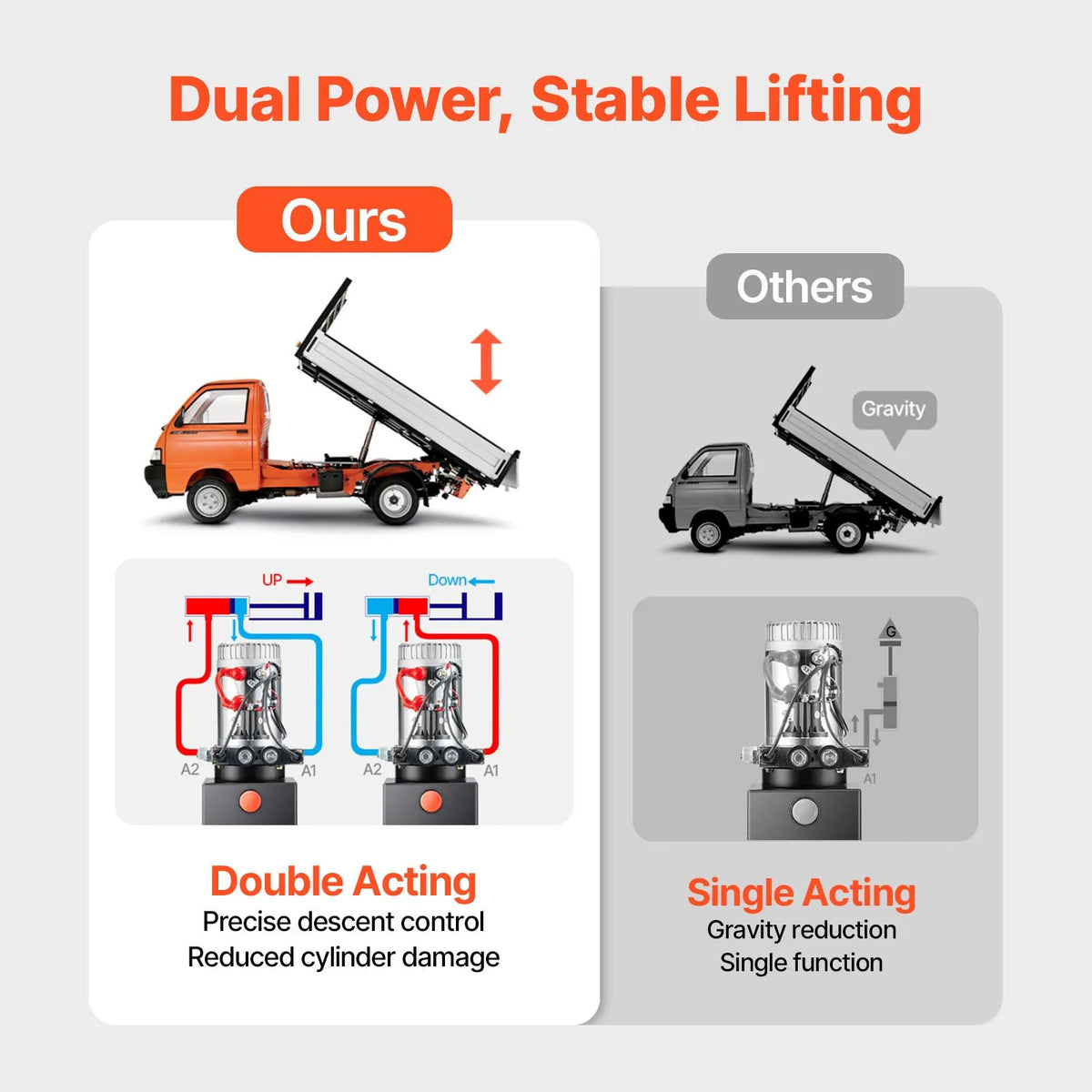

Double-action accuracy: The hydraulic pump ensures precise lifting and lowering while consuming less hydraulic oil. The built-in safety valve automatically reduces excess pressure, minimizing the risk of damage and enhancing safety.

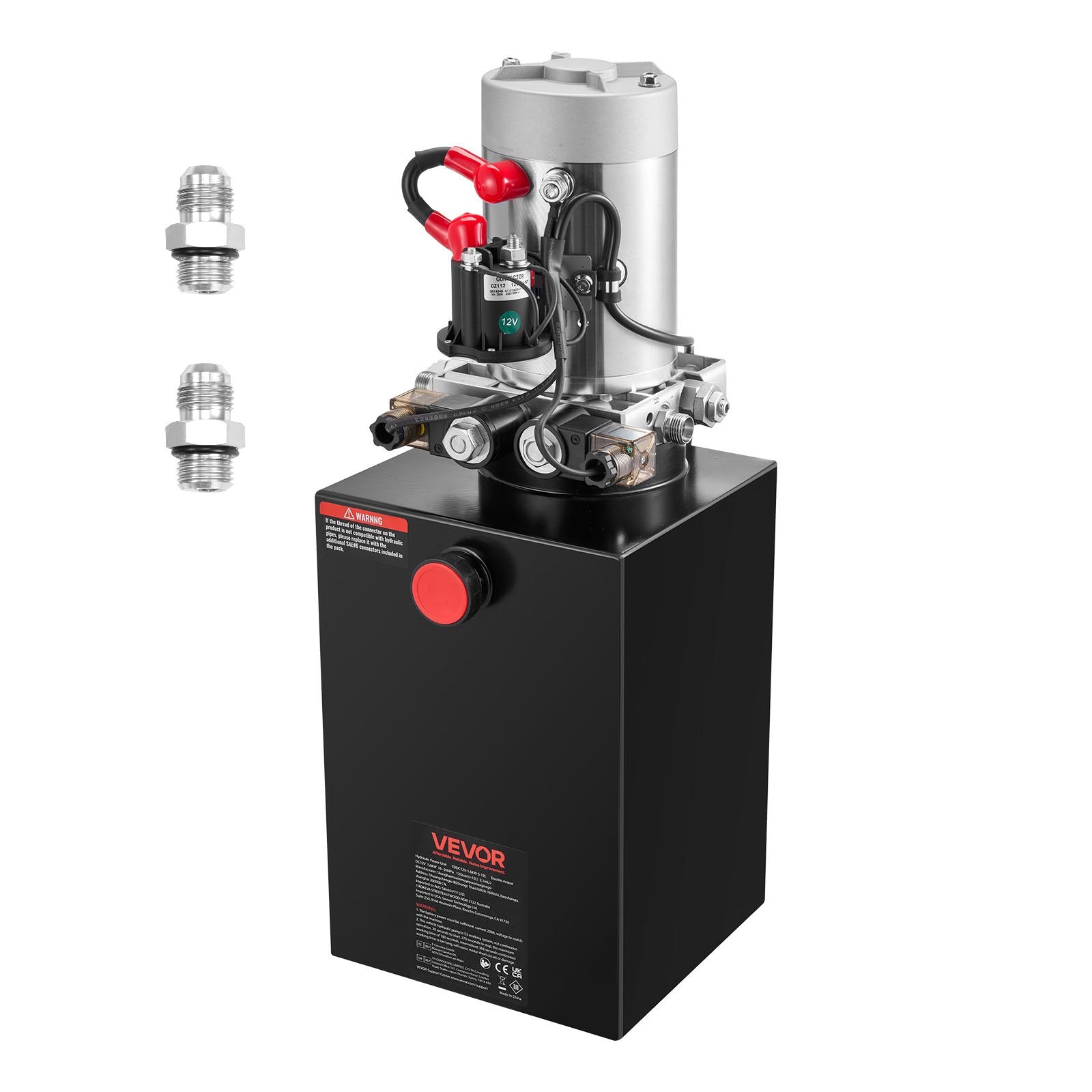

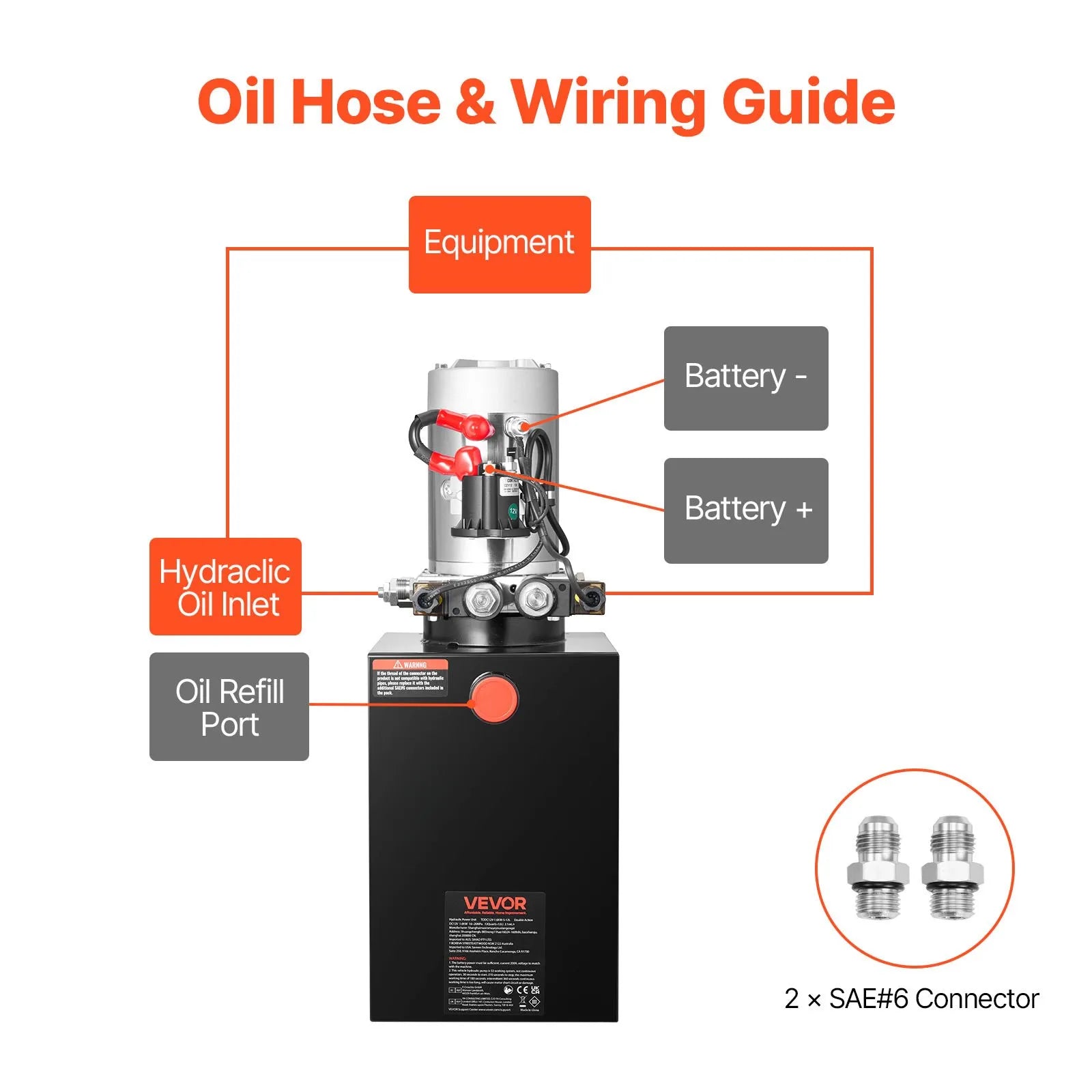

Easy installation: The self-unloading trailer pump is delivered fully assembled. All that remains is to fill it with hydraulic oil and connect the power lines and hoses. SAE #6 fittings ensure quick connection to standard hydraulic lines.

Reinforced and reliable construction: The hydraulic pump is hermetically sealed to prevent leaks, while the corrosion-resistant steel tank withstands daily use, ensuring long-lasting and reliable operation.

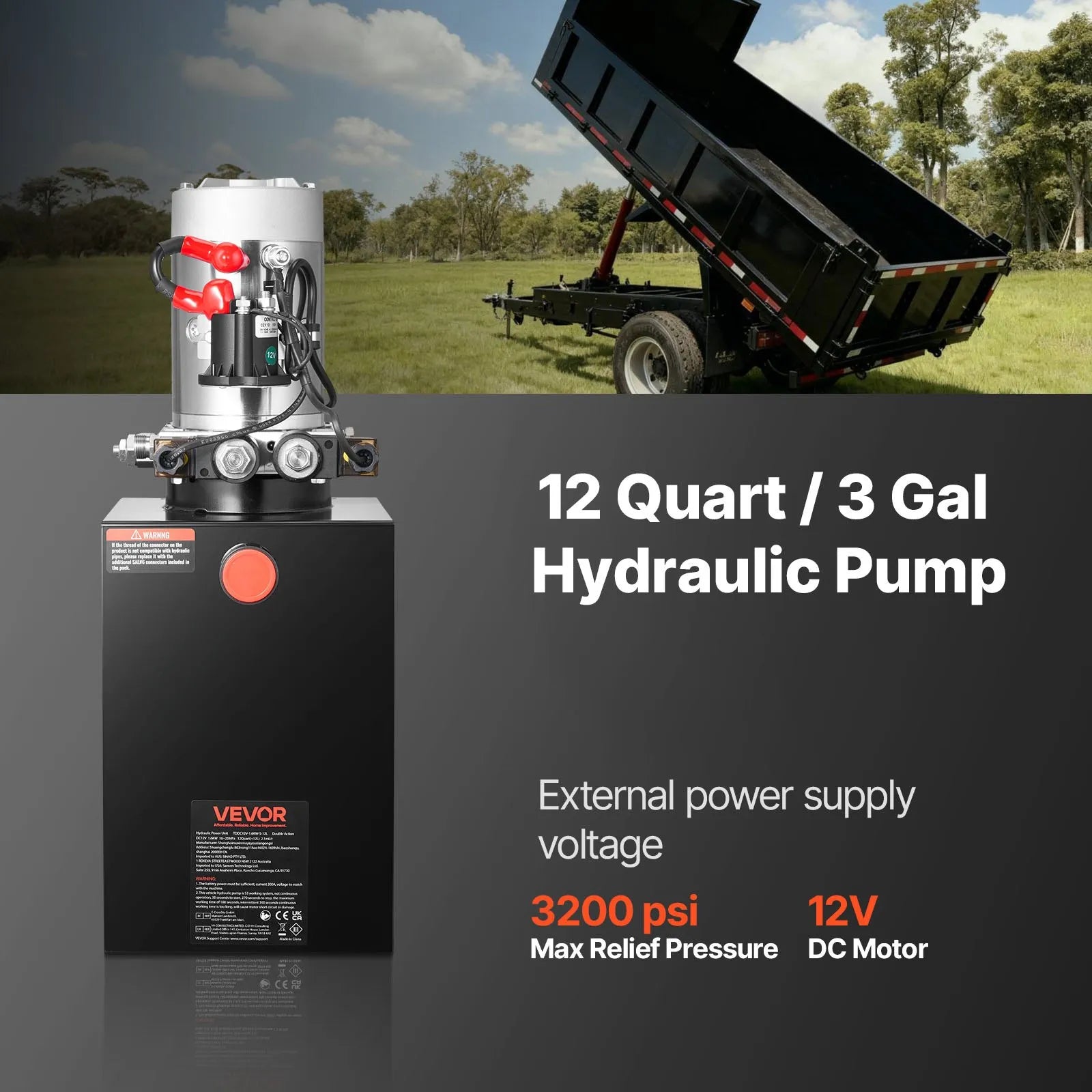

Wide range of applications: This electric hydraulic pump is suitable for dump trailers, lift platforms, scissor lifts, lifting tables, small presses, and bucket conveyors, providing versatile power in workshops and on job sites.

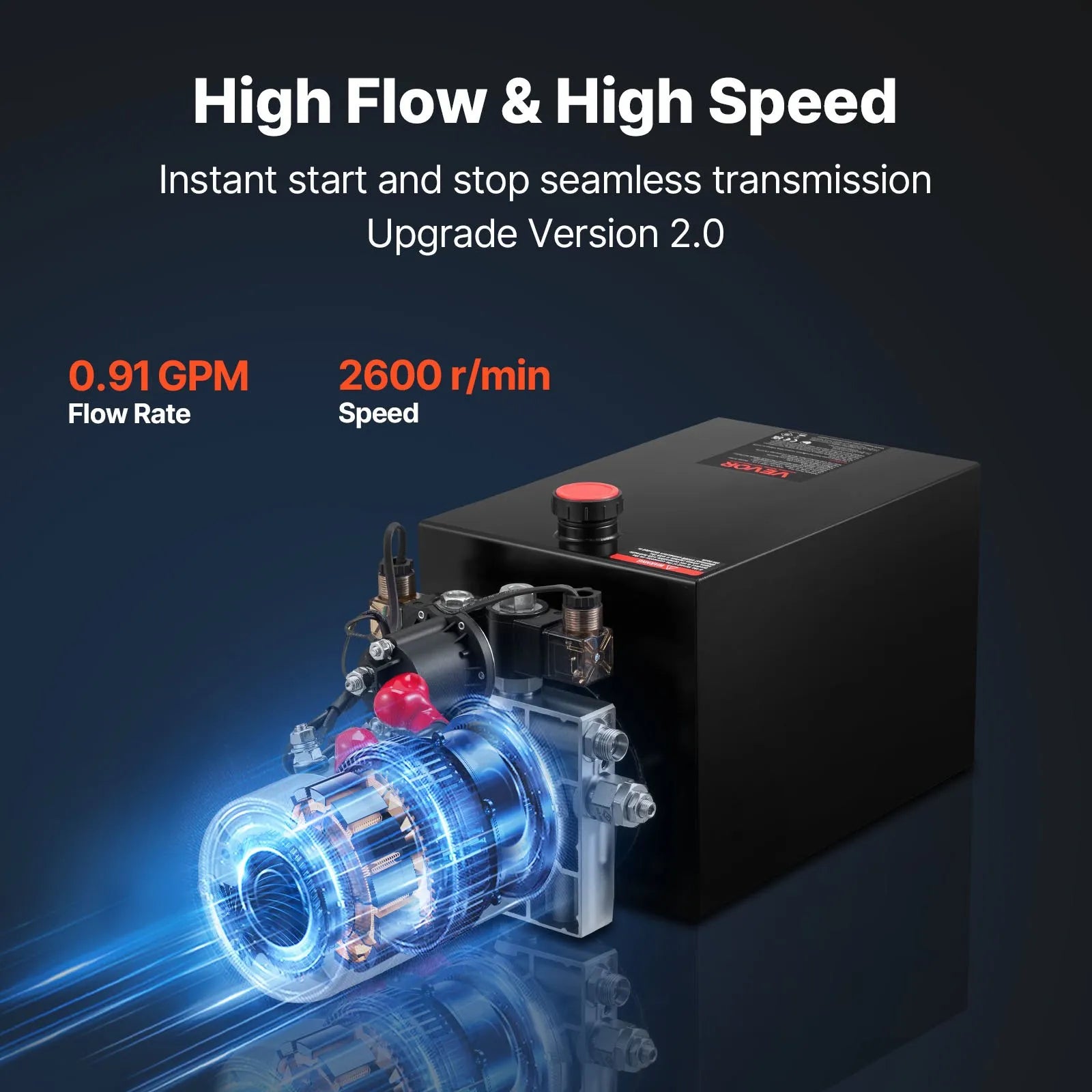

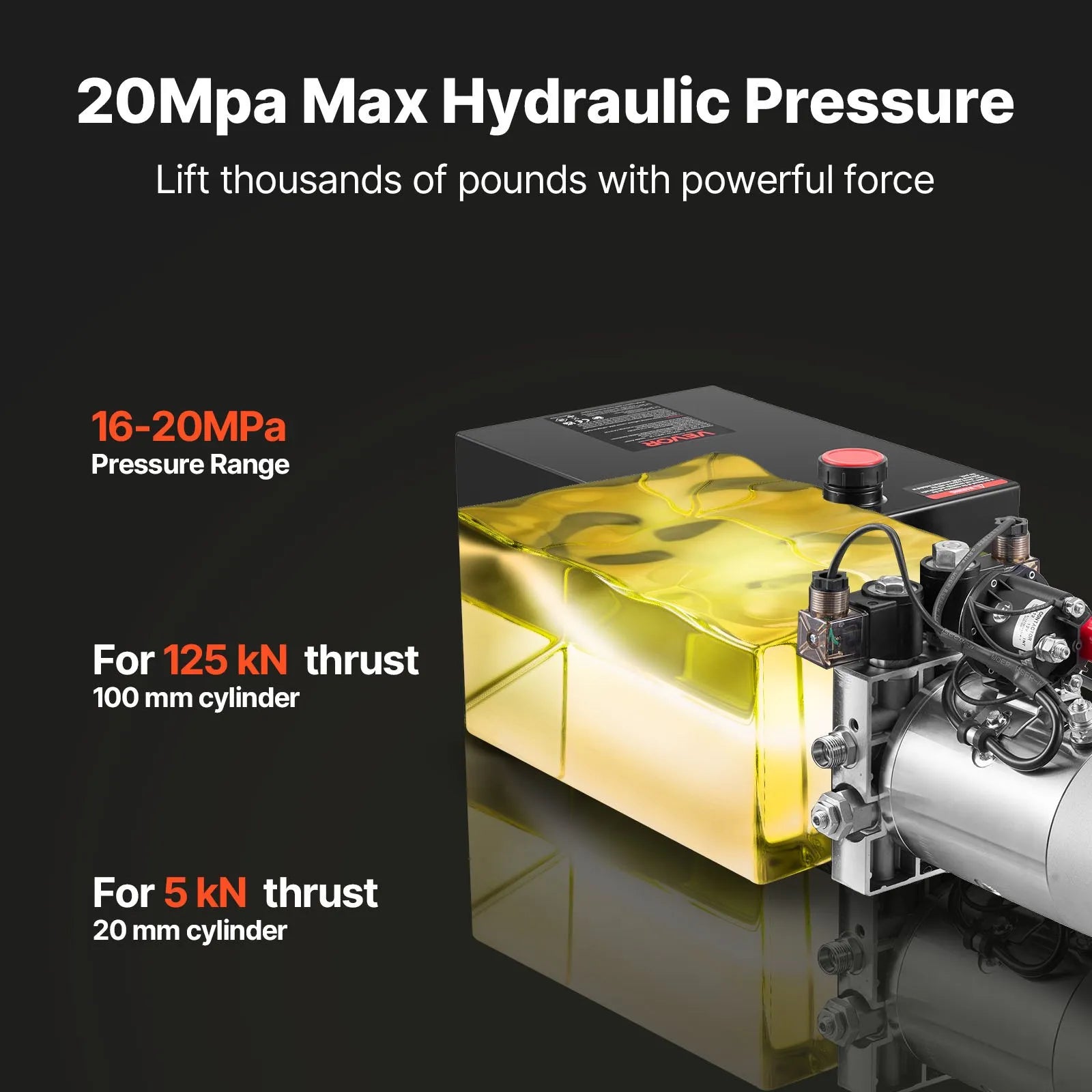

This hydraulic power unit uses a 1.6 kW motor running at 2,600 rpm, providing an operating pressure of 16–20 MPa and a maximum pressure of up to 22 MPa. It delivers powerful cylinder drive with high lifting capacity and stable power delivery for demanding applications.

The self-dumping trailer's large pump tank, combined with a powerful pump, ensures quick startup and smooth lifting/lowering cycles. This reduces downtime, shortens wait times, and ensures stable hydraulic power for daily operations.

It features a reliable hydraulic pump with a built-in safety valve and throttle valve, which increases operational safety. The fuel (oil) tank is damage-resistant and reduces the risk of oil leaks.

Please note that continuous, prolonged operation is not recommended. When operating in S3 mode, the hydraulic pump motor operates cyclically: 30 s of operation, 270 s of pause, with a maximum continuous operating time of 180 s. For longer periods of operation, an intermittent operating mode with a continuous operation interval of 360 seconds is permitted.

This hydraulic pump for dump trailers helps professional mechanics and auto repair shops get the job done quickly. It is suitable for dump trailers, forklifts, scissor lifts, lifting tables, material-handling equipment, and other compatible lifting platforms for versatile workshop use.

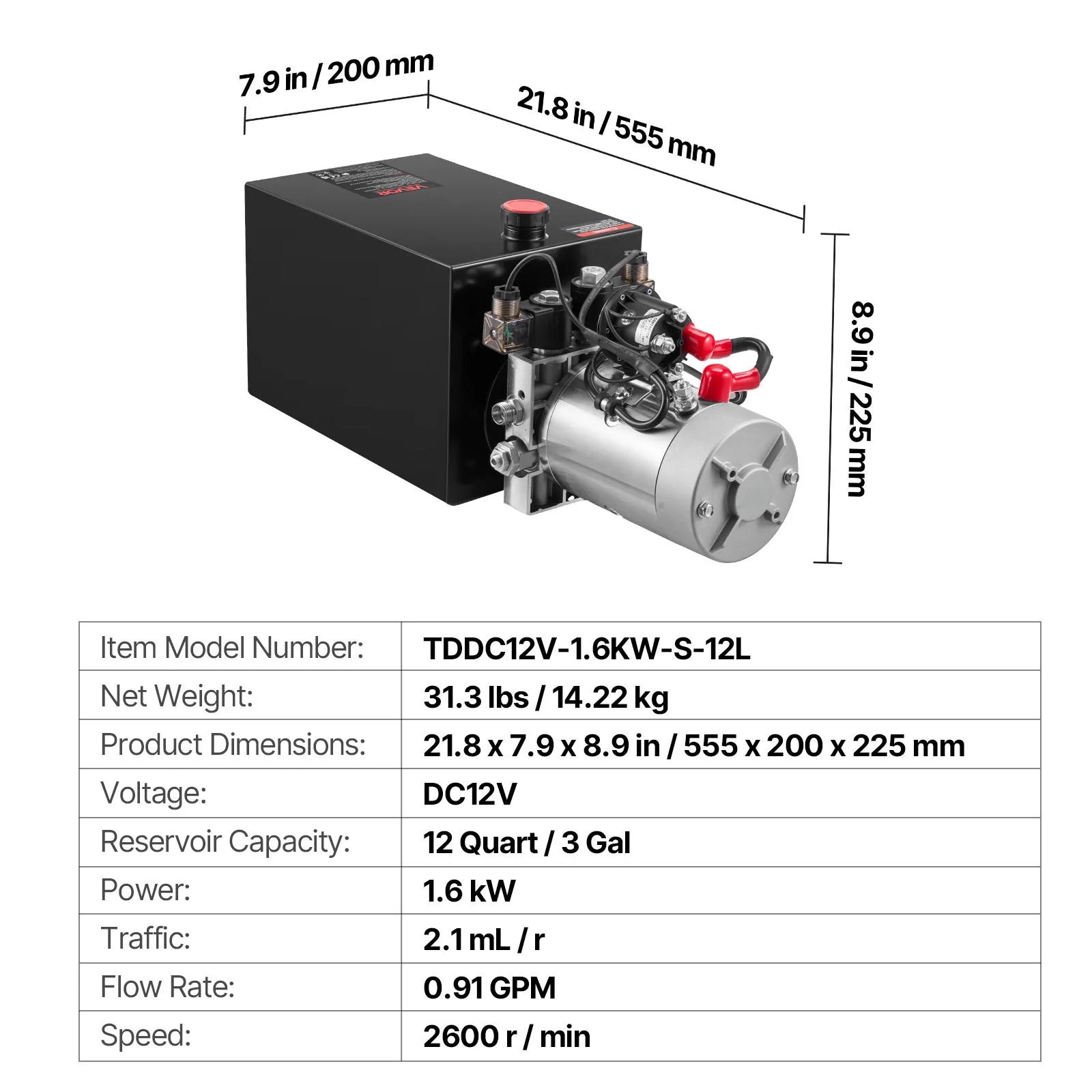

Product Specifications

Model number: TDDC12V-1.6KW-S-12L

Voltage: 12 V DC

Function: double-action

Tank capacity: 11.4 L

Power: 1.6 kW

Flow rate: 3.4 L/min

Speed: 2,600 rpm

Volume per revolution: 2.1 mL/rev.

Net weight (including all accessories): 14.22 kg

Product dimensions: 555 × 200 × 225 mm
