Magnētiskā sistēma Miboxer 48 V

Description

The magnetic track lighting system is a modern and versatile lighting solution suitable for both residential and commercial spaces. It features a strong magnetic mounting system that allows the track lights to be easily installed, repositioned, and removed without tools. The suspended installation allows for flexible placement in rooms with high ceilings, open floor plans, or areas where recessed mounting is not possible. The track is compatible with magnetic diffused-light luminaires, foldable grid luminaires, grid luminaires, spotlights, and pendant lights for commercial or task lighting projects in art galleries, museums, shopping centers, offices, and other similar locations. These fixtures are equipped with 2.4 GHz RF or Zigbee 3.0 and 2.4 GHz control modules, making them easy to integrate into smart home systems. The magnetic track system is made of extruded aluminum, and its surface is anodized to provide protection against oxidation and ensure a longer service life. The standard length of a single rail is 1 m or 2 m. Available in black and white. The set includes suspension cable kits. Various LED magnetic track connectors are sold separately and can be used to connect magnetic tracks in square, triangular, and rectangular configurations.

Link: Magnetic Track Lights

Specifications
Models: AMMR20S15B / AMMR20S15C
Material: 6063 aluminum alloy
Dimensions, width × height: 26.8 × 51 mm
Color: Black
Length: 1 m or 2 m
Installation: Suspended
Compatible magnetic track lighting fixtures: Diffused lighting fixtures, grid lighting fixtures, foldable grid lighting fixtures, spotlights, and pendant lights
Strong magnetic hold for easy installation
Connectors and accessories: L-shaped horizontal corner connector, L-shaped vertical corner connector, T-shaped horizontal corner connector, X-shaped horizontal corner connector, straight connectors, 0.5–1 m or 1–2 m S-shaped suspension kit, L-shaped suspension kit
Warranty: 5 years

Type 0 surface-mounted magnetic track

Product type: Magnetic Lighting Track
Installation: Surface-mounted
Material: Aluminum
Length 1000 mm

Dimensions (cross-section):

• Width: 26.8 mm
• Internal width: 23 mm / 17 mm
• Height: 51 mm

Type 20 surface-mounted magnetic track

Product type: Magnetic Lighting Track
Installation: Surface-mounted
Material: Aluminum
Length2000 mm

Dimensions (cross-section):

• Width: 26.8 mm
• Internal width: 23 mm / 17 mm
• Height: 51 mm

This module is designed to connect magnetic rails at a corner, ensuring a continuous electrical connection and stable operation.

Description:

Flexible corner connector for a magnetic track profile

The flexible corner connector for magnetic track profiles is a versatile component for creating custom lighting configurations in magnetic track systems. Thanks to its flexible design and the corner connector principle, it allows rail profiles to be connected at various angles, creating smooth transitions and non-standard shapes.

Advantages

Flexibility: allows profiles to be connected at various angles to create custom lighting configurations.

Reliability: Made from high-quality materials, ensuring a long service life.

Efficiency: Ensures a stable electrical connection between the components of the lighting system.

Simple installation: easy to install in a magnetic rail profile.

Longevity: Service life exceeds 30,000 hours.

Versatile application: suitable for various types of magnetic track profiles.

Application

The flexible corner connector allows for a variety of lighting system solutions and enables the creation of unique, functional magnetic track configurations. It is suitable for lighting niches and shelves, creating accent lighting, and connecting track systems in places where the direction of the profile needs to be changed.

Specifications:
Brand: Miboxer
Product type: flexible corner connector for magnetic rail profile
Application: electrical connectors
Rated voltage: 48V DC
Number of contacts: 4
Housing material: plastic
Housing color: black
Weight: 50g
Service life: more than 30,000 hours
Warranty: 36 months
SKU: AMMRL20CMB00

“The module is designed for T-type connections of magnetic rails, ensuring a continuous electrical connection and stable operation.”

The L-shaped horizontal corner connector, designed for surface-mounted magnetic track systems, ensures an aesthetically pleasing and precise connection of the tracks at a 90° angle.

Product Specifications

• MR200N-20B Length 270 mm, Width 22 mm, Height 45 mm


  Product Specifications

  Product Name	100W Magnetic Lamp Power Supply	200W Magnetic Lamp Power Supply	100W Magnetic Lamp Power Supply	200W Magnetic Lamp Power Supply
  Model No.	MR100N-20B	MR200N-20B	MR100W-20B	MR200W-20B
  Input voltage	AC180V~265V 50/60Hz	AC180V~265V 50/60Hz	AC100V~265V 50/60Hz	AC100V~265V 50/60Hz
  Output voltage	DC48V 2.1A	DC48V 4.2A	DC48V 2.1A	DC48V 4.2A
  Rated power	100W	200W	100W	200W
  Operating temperature (Ta)	40°C	40°C	40°C	40°C
  Maximum temperature (Tc)	85°C	85°C	85°C	85°C
  Product Dimensions (Length x Width x Height)	223 × 22 × 45 mm (W × D × H)	270 × 22 × 45 mm (W × D × H)	223 × 22 × 45 mm (W × D × H)	270 × 22 × 45 mm (W × D × H)
  Weight (including packaging)	0.318 kg	0.362 kg	0.318 kg	0.362 kg
  Package Quantity	50 pcs.	50 pcs.	50 pcs.	50 pcs.
  Gross Weight (G.W.)	16.9 kg	19.1 kg	16.9 kg	19.1 kg




Description:

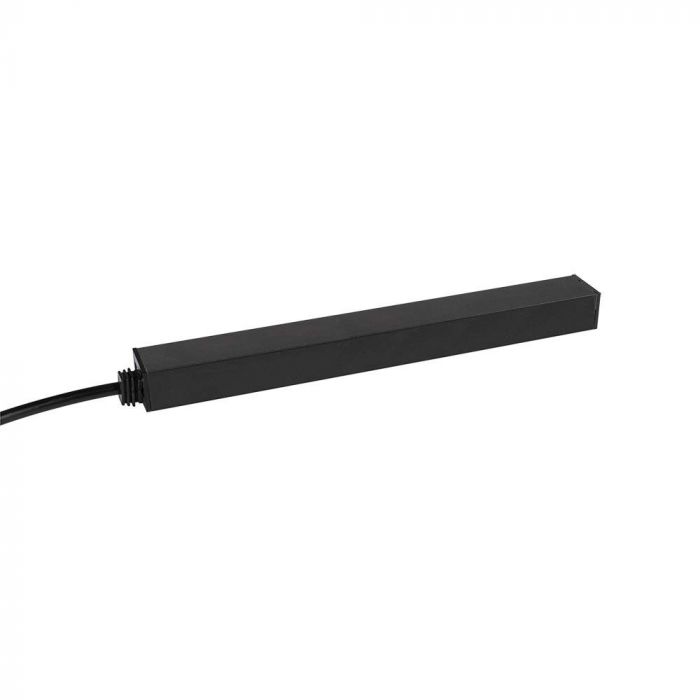

100W power supply for a magnetic lighting system

The Miboxer WZ-CX2010048N is a 100W power supply for magnetic track lighting systems. It converts 180–265V AC, 50/60Hz mains voltage to 48V DC and provides up to 2A of output current.

High operational efficiency

The power supply unit has an efficiency of ≥90%, ensuring efficient electrical power conversion and stable operation of the magnetic track lighting system. The rated output power is 100W.

Short-Circuit Protection

The built-in protection system is capable of detecting a short circuit and activating the protection to reduce the risk of damage to the power supply unit and connected lighting fixtures.

Overload Protection

The power supply unit also features built-in overload protection. In the event of an overload, the device responds automatically, helping to protect the system's components.

Operating Temperature Parameters

The manufacturer specifies an ambient temperature parameter Ta of 35°C and a maximum housing control point temperature Tc of 70°C.

Compact design

The power supply unit weighs 0.32 kg including the packaging, and the manufacturer specifies the packaging dimensions as 275 x 99 x 27 mm.

Application

Suitable for 48V magnetic track lighting systems.

Designed to power LED lights via a magnetic rail.

Suitable for installing magnetic track lighting systems in residential, commercial, and other indoor spaces.

Specifications:
Product Type: Power supply for the
magnetic track lighting system Brand: Miboxer
Rated Power: 100W
Input Voltage: 180–265V AC
Input frequency: 50/60Hz
Output voltage: 48V DC
Output current: 2A
Efficiency: ≥90%
Ambient temperature parameter Ta: 35°C
Case temperature parameter Tc: 70°C
Short-circuit protection: yes
Overload protection: Yes
Weight with packaging: 0.32 kg
Package dimensions: 275x99x27 mm

The magnetic pendant lamp is compatible with 20 different types of track systems.

Designed with RF 2.4G wireless transmission technology featuring low power consumption, flexible network configuration, and high signal stability against interference.

Individual and group lighting control—suitable for both commercial and residential applications.

It works with a gateway, providing wireless dimming, remote control, a timer, group control, and a music rhythm feature.

Supports 2.4 GHz RF remote control.

Additional Features

• CCT operating modes
• Narrow 24° beam angle, improved center-field illumination performance
• 4,096-level smooth dimming, minimum brightness 0.1%
• Control range: 2.4 GHz, up to 30 m
