SMART Magnetic track accessories

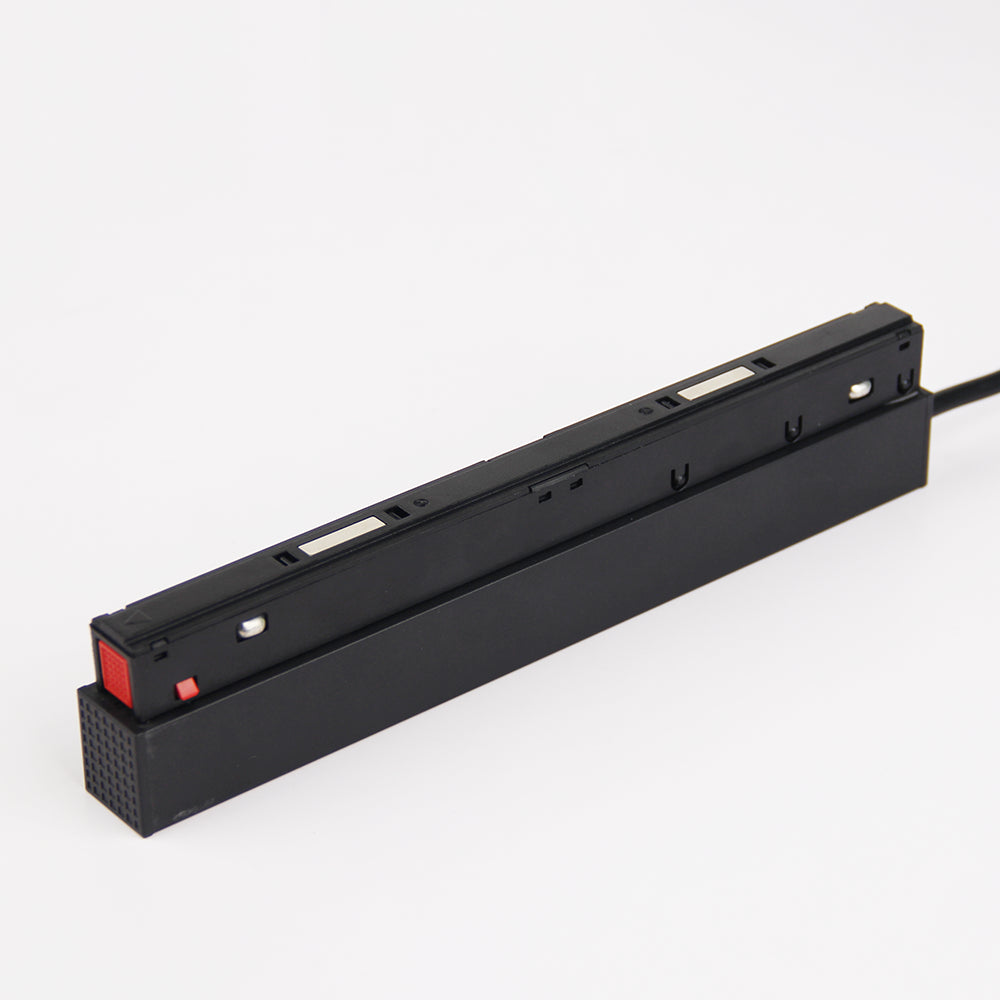

• MR200N-20B Length 270 mm, Width 22 mm, Height 45 mm


  Product Specifications

  Product Name	100W Magnetic Lamp Power Supply	200W Magnetic Lamp Power Supply	100W Magnetic Lamp Power Supply	200W Magnetic Lamp Power Supply
  Model No.	MR100N-20B	MR200N-20B	MR100W-20B	MR200W-20B
  Input voltage	AC180V~265V 50/60Hz	AC180V~265V 50/60Hz	AC100V~265V 50/60Hz	AC100V~265V 50/60Hz
  Output voltage	DC48V 2.1A	DC48V 4.2A	DC48V 2.1A	DC48V 4.2A
  Rated power	100W	200W	100W	200W
  Operating temperature (Ta)	40°C	40°C	40°C	40°C
  Maximum temperature (Tc)	85°C	85°C	85°C	85°C
  Product Dimensions (Length x Width x Height)	223 × 22 × 45 mm (W × D × H)	270 × 22 × 45 mm (W × D × H)	223 × 22 × 45 mm (W × D × H)	270 × 22 × 45 mm (W × D × H)
  Weight (including packaging)	0.318 kg	0.362 kg	0.318 kg	0.362 kg
  Package Quantity	50 pcs.	50 pcs.	50 pcs.	50 pcs.
  Gross Weight (G.W.)	16.9 kg	19.1 kg	16.9 kg	19.1 kg




Product Specifications

This module is designed to connect magnetic rails at a corner, ensuring a continuous electrical connection and stable operation.

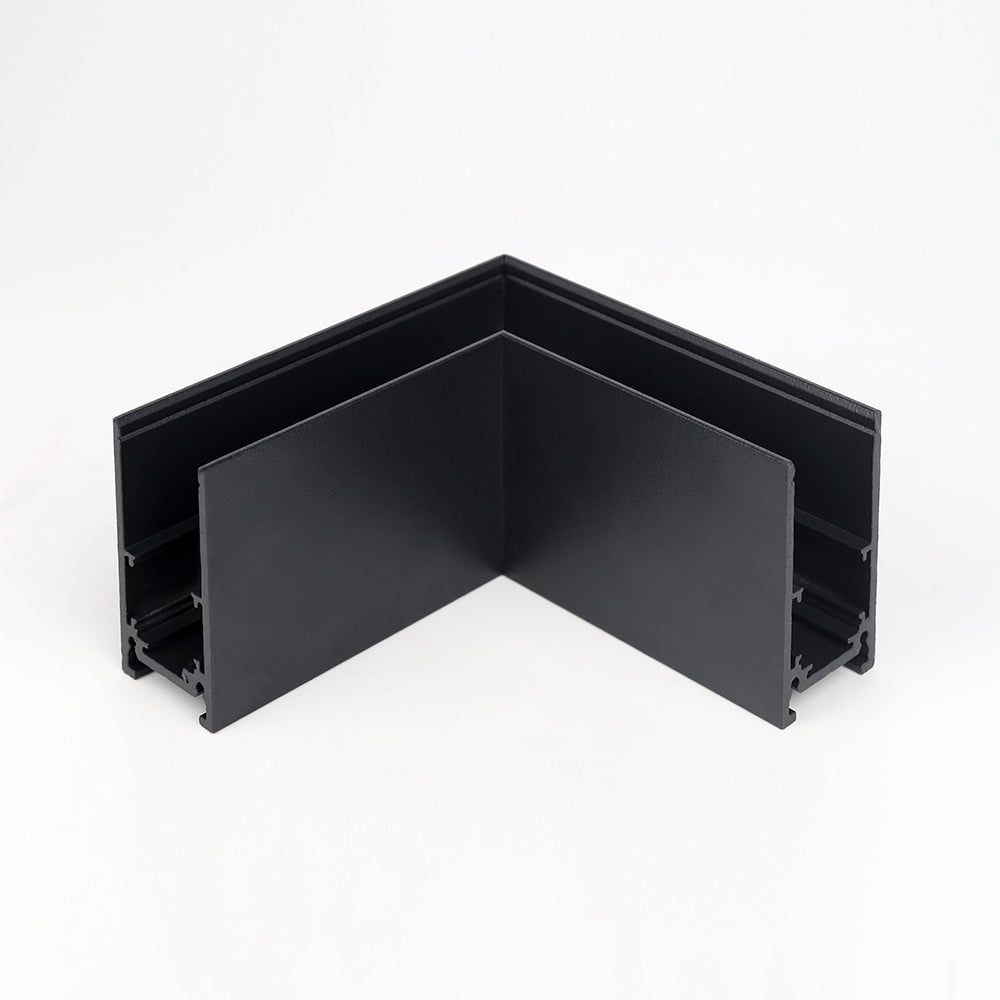

The L-shaped horizontal corner connector, designed for surface-mounted magnetic track systems, ensures an aesthetically pleasing and precise connection of the tracks at a 90° angle.

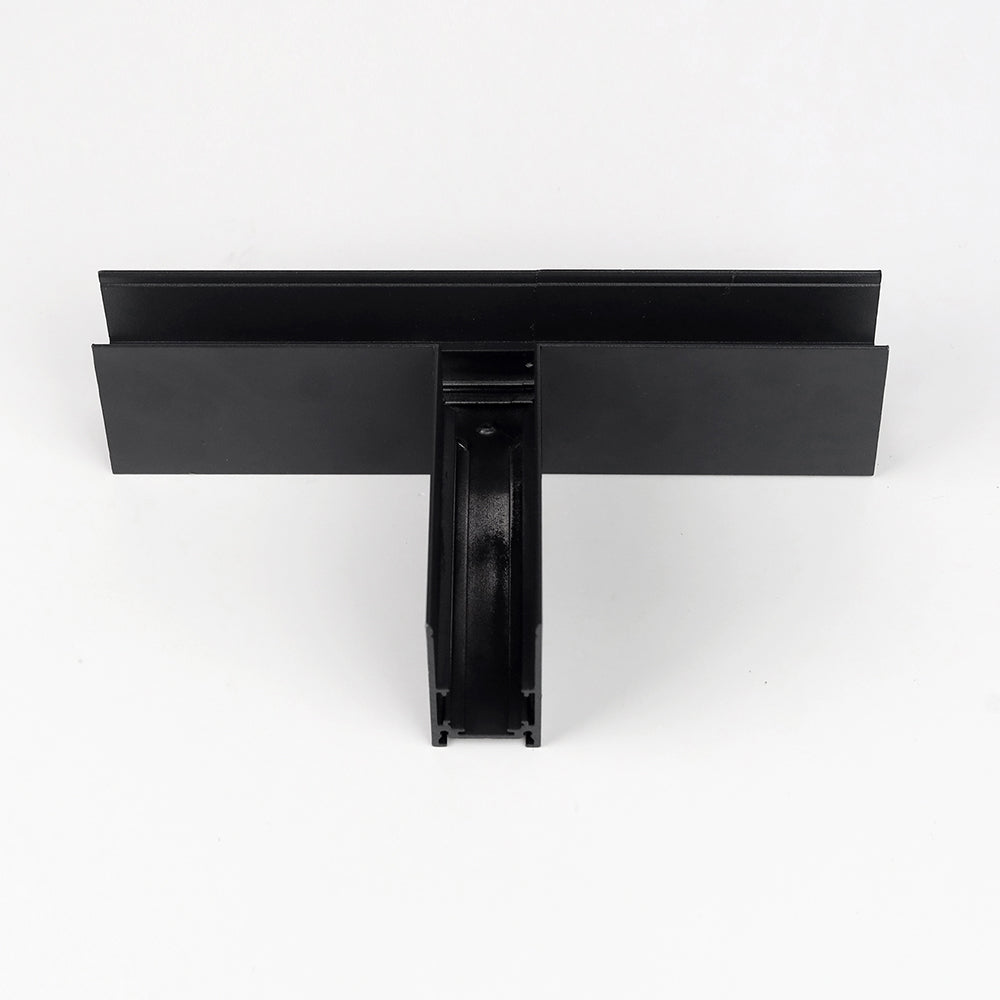

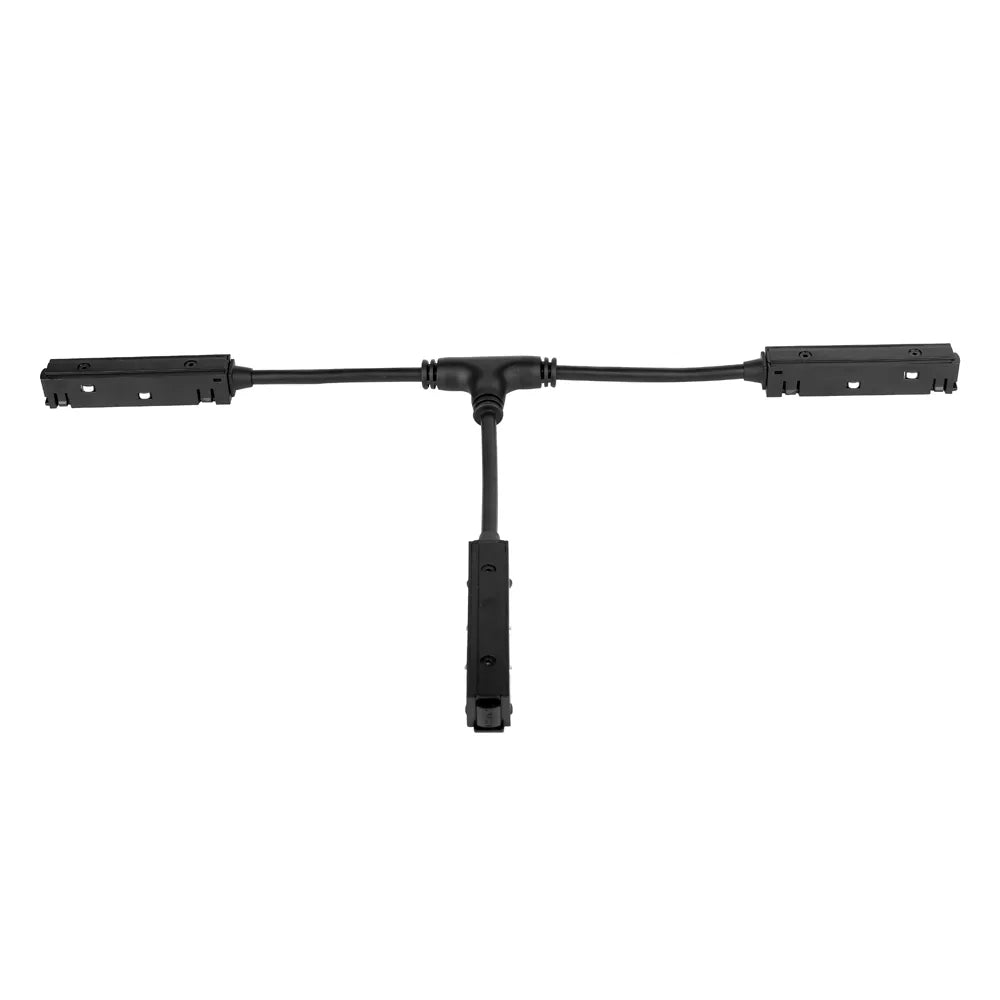

“The module is designed for T-type connections of magnetic rails, ensuring a continuous electrical connection and stable operation.”

Description:

100W power supply for a magnetic lighting system

The Miboxer WZ-CX2010048N is a 100W power supply for magnetic track lighting systems. It converts 180–265V AC, 50/60Hz mains voltage to 48V DC and provides up to 2A of output current.

High operational efficiency

The power supply unit has an efficiency of ≥90%, ensuring efficient electrical power conversion and stable operation of the magnetic track lighting system. The rated output power is 100W.

Short-Circuit Protection

The built-in protection system is capable of detecting a short circuit and activating the protection to reduce the risk of damage to the power supply unit and connected lighting fixtures.

Overload Protection

The power supply unit also features built-in overload protection. In the event of an overload, the device responds automatically, helping to protect the system's components.

Operating Temperature Parameters

The manufacturer specifies an ambient temperature parameter Ta of 35°C and a maximum housing control point temperature Tc of 70°C.

Compact design

The power supply unit weighs 0.32 kg including the packaging, and the manufacturer specifies the packaging dimensions as 275 x 99 x 27 mm.

Application

Suitable for 48V magnetic track lighting systems.

Designed to power LED lights via a magnetic rail.

Suitable for installing magnetic track lighting systems in residential, commercial, and other indoor spaces.

Specifications:
Product Type: Power supply for the
magnetic track lighting system Brand: Miboxer
Rated Power: 100W
Input Voltage: 180–265V AC
Input frequency: 50/60Hz
Output voltage: 48V DC
Output current: 2A
Efficiency: ≥90%
Ambient temperature parameter Ta: 35°C
Case temperature parameter Tc: 70°C
Short-circuit protection: yes
Overload protection: Yes
Weight with packaging: 0.32 kg
Package dimensions: 275x99x27 mm
