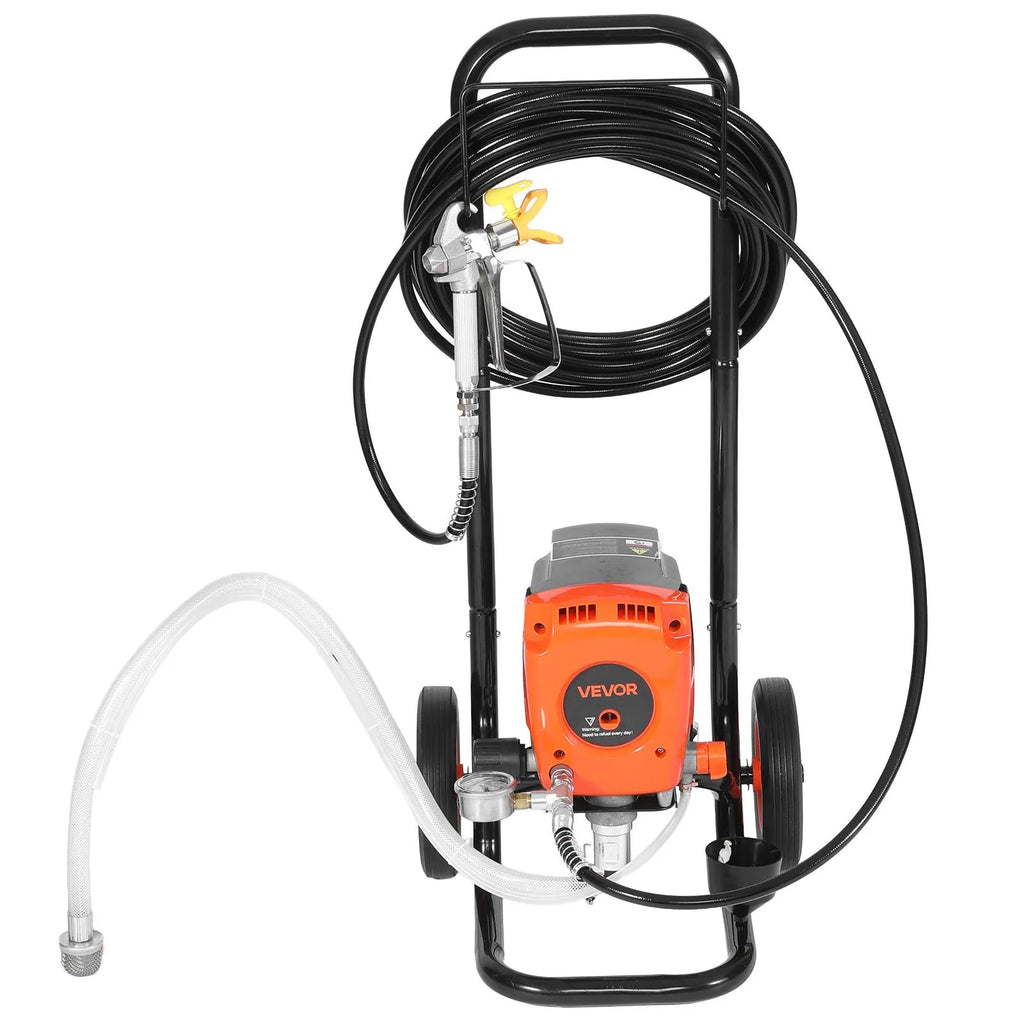

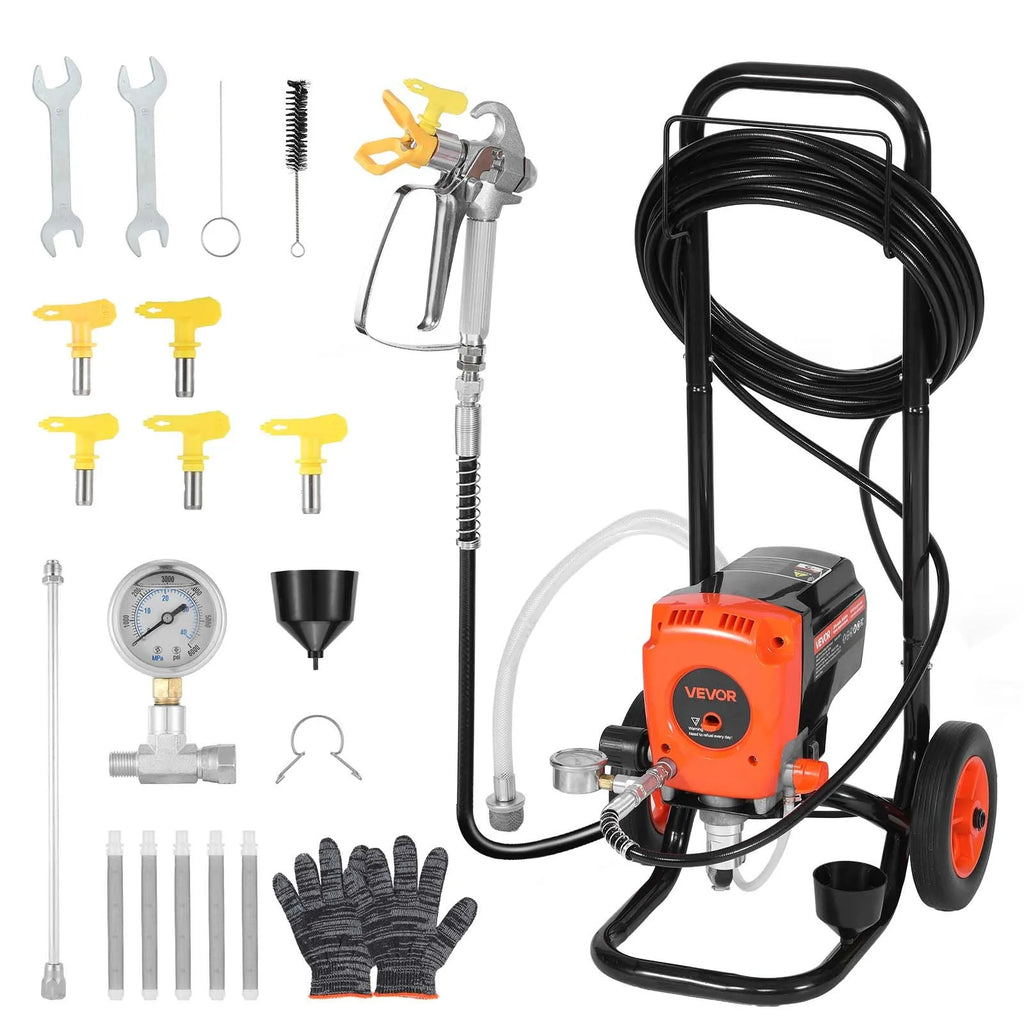

VEVOR Tripod-Style Airless Paint Sprayer, 900 W, 22.8 MPa High-Pressure Airless Paint Sprayer with Cart, Cleaning Brush, hose, extension pole, and nozzles; electric paint sprayer for interior and exterior home use

Features and Details

Efficient coating: A 900-watt motor, 1.78 l/min flow rate, and 22.8 MPa pressure deliver a painting speed up to 6 times faster than a roller and up to 15 times faster than a brush. This tripod-style airless paint sprayer is suitable for large-scale projects, such as row houses and industrial buildings.

High-quality coating: A high-quality nozzle ensures precise control and reduces overspray. The airless paint sprayer is equipped with a filter and seals that prevent clogging and leaks, ensuring an even and smooth finish.

Easy cleaning and maintenance: The set includes a cleaning brush for easy maintenance. The removable pump housing and accessories make it easy to replace parts and perform maintenance, keeping the equipment in optimal working condition.

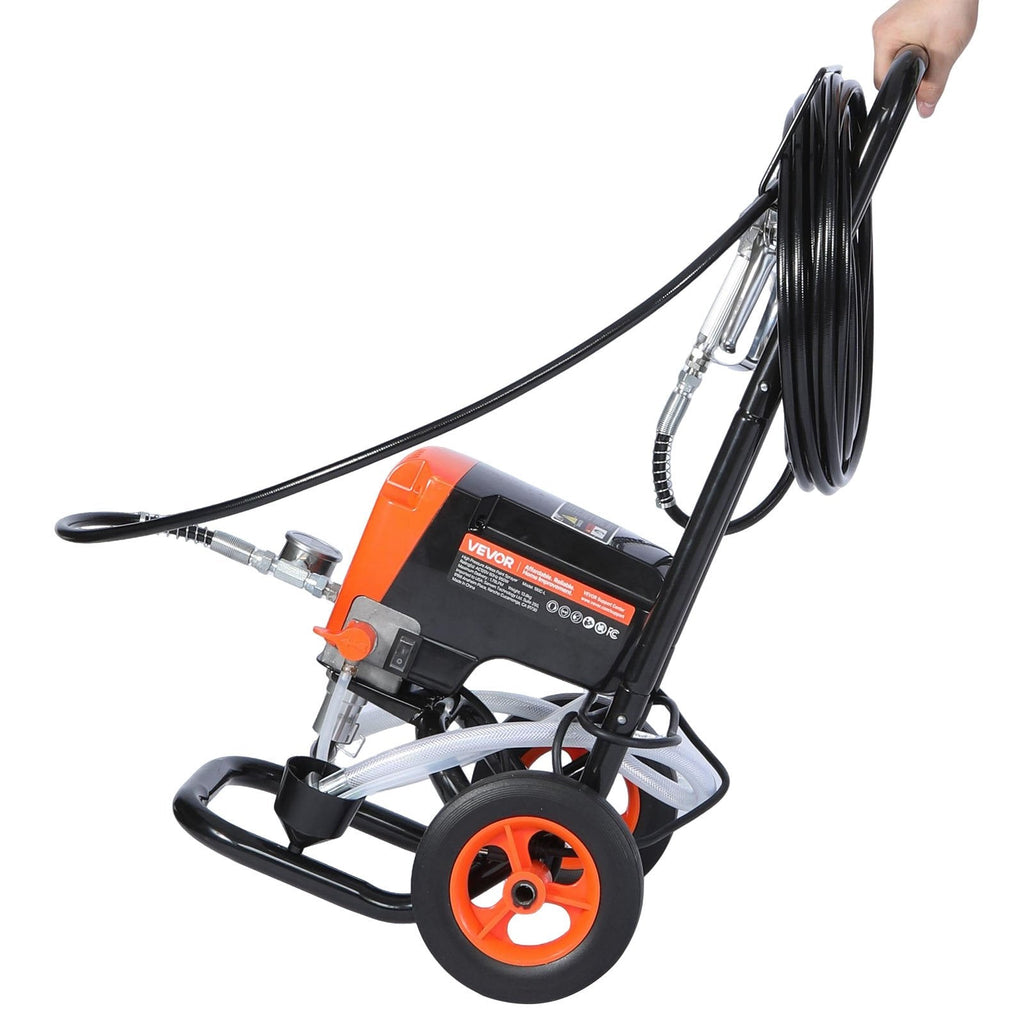

Convenient design: The cart’s base ensures smooth movement, while the extension pole allows you to easily reach high and low surfaces, reducing the need to climb or bend over. The flexible suction hose allows you to use paint from buckets ranging from 3.8 to 18.9 liters.

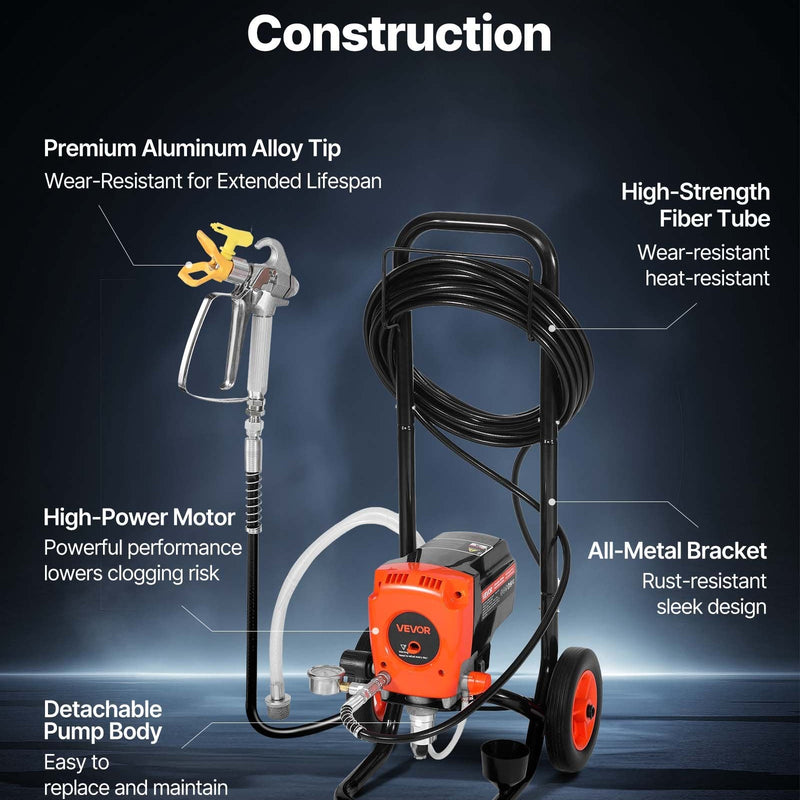

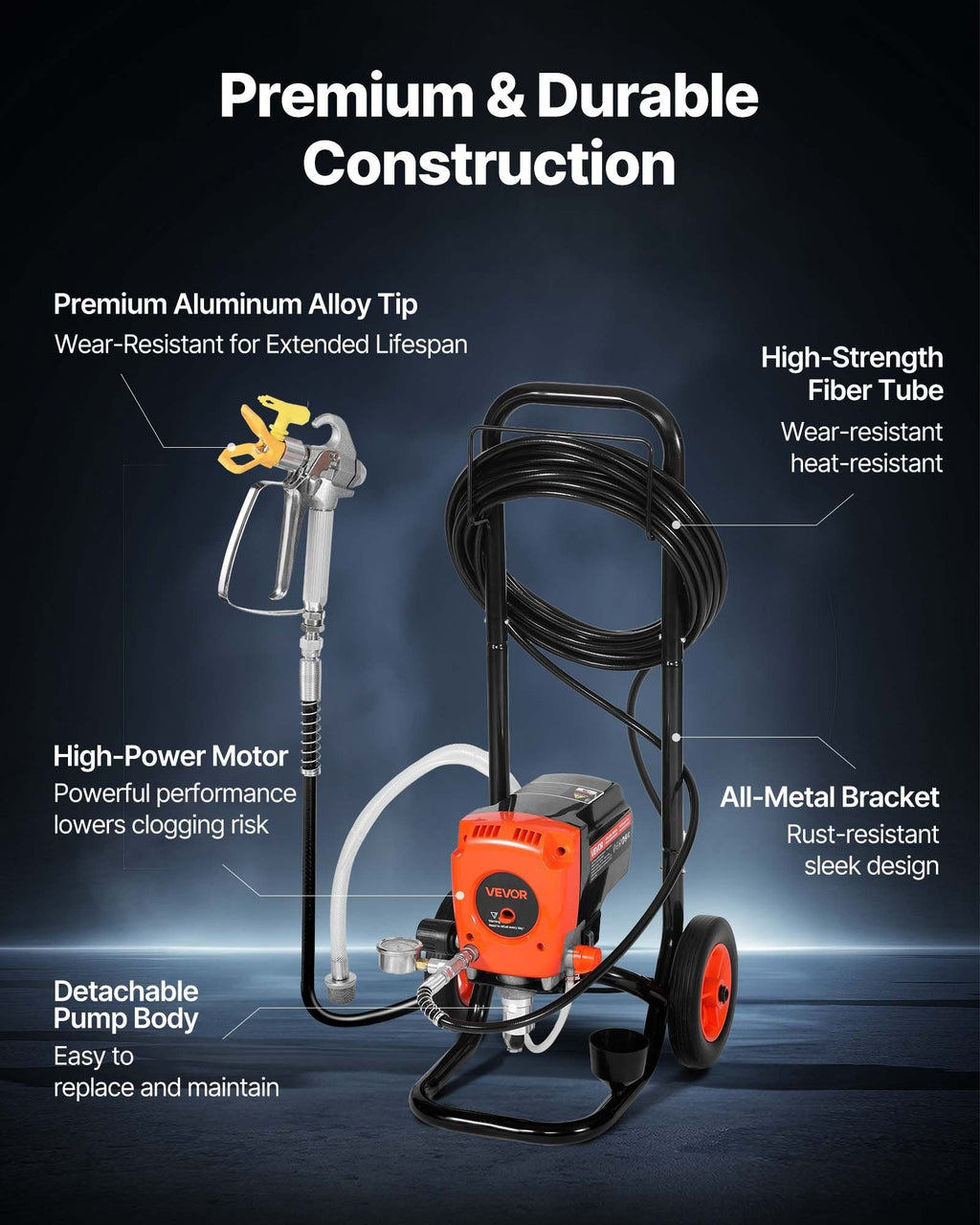

Durable and reliable: High-pressure airless sprayer equipped with an adjustable motor, a professional rubber hose, and an all-metal frame, which reduces the risk of damage and ensures stable and reliable operation from start to finish.

This tripod-style airless paint sprayer uses an advanced fan-type atomization system, ensuring a uniform and fine spray while preventing clogging and leaks. The all-metal frame and removable pump make cleaning and maintenance easy. The wheels and extension pole improve work efficiency and convenience.

•


•


•
  Make your work easier
  Chosen by 100,000+ users
  Versatile applications

•


•


•


•
  Pressure regulator
  Extension rod
  Flexible suction hose
  Flexible spray gun

•


•


•


•



Why Choose Us
Choose a Nozzle Size
Cleaning Steps
Preventing Clogging

Q1: What preparatory steps should be taken before using a spray gun?
A1: 1. Safety first! Wear safety goggles, a respirator (or mask), gloves, and protective clothing.
2. Prepare the paint: stir the paint thoroughly and strain it to remove any particles that could clog the nozzle.

J2: How do you adjust the pressure correctly? How do you determine the appropriate pressure for a specific paint?
A2: Always perform a test spray before starting work. Hold the spray gun 30 cm away from the surface. Adjust your speed: too fast if the coat is too thin; too slow if it is too thick. Adjust the pressure to the lowest possible level that produces an even fan pattern without a “tail” at the top.

Q3: How often should an airless sprayer be cleaned?
A3: After each use, and thoroughly. Be sure to also clean the filters, the housing, the spray gun, and the nozzle.

Q4: What should I do if the nozzle is clogged?
A4: Rotate the nozzle 180° and briefly press the trigger to clear the clog, then return the nozzle to its original position.

Q5: How can you tell if a nozzle needs to be replaced?
A5: If the nozzle produces a round spray pattern instead of an elongated fan-shaped one.

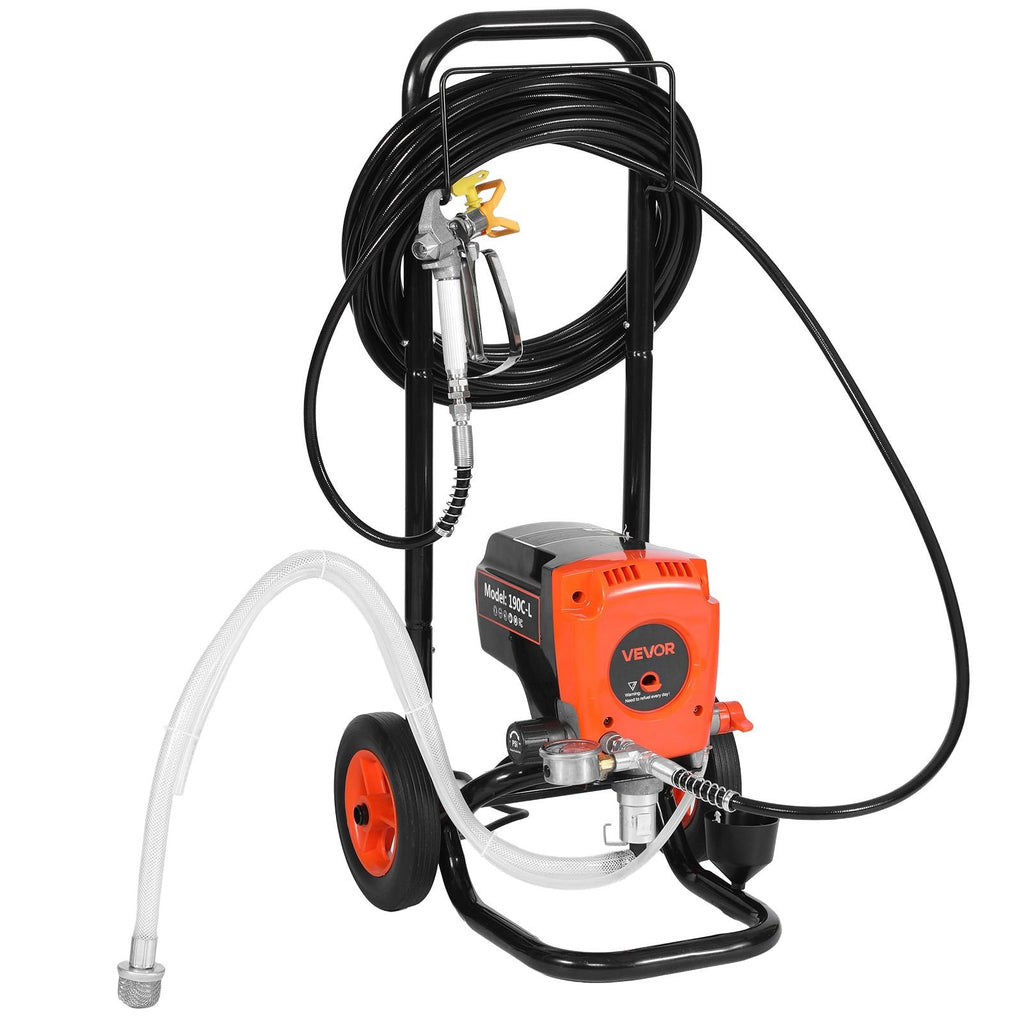

Product Specifications

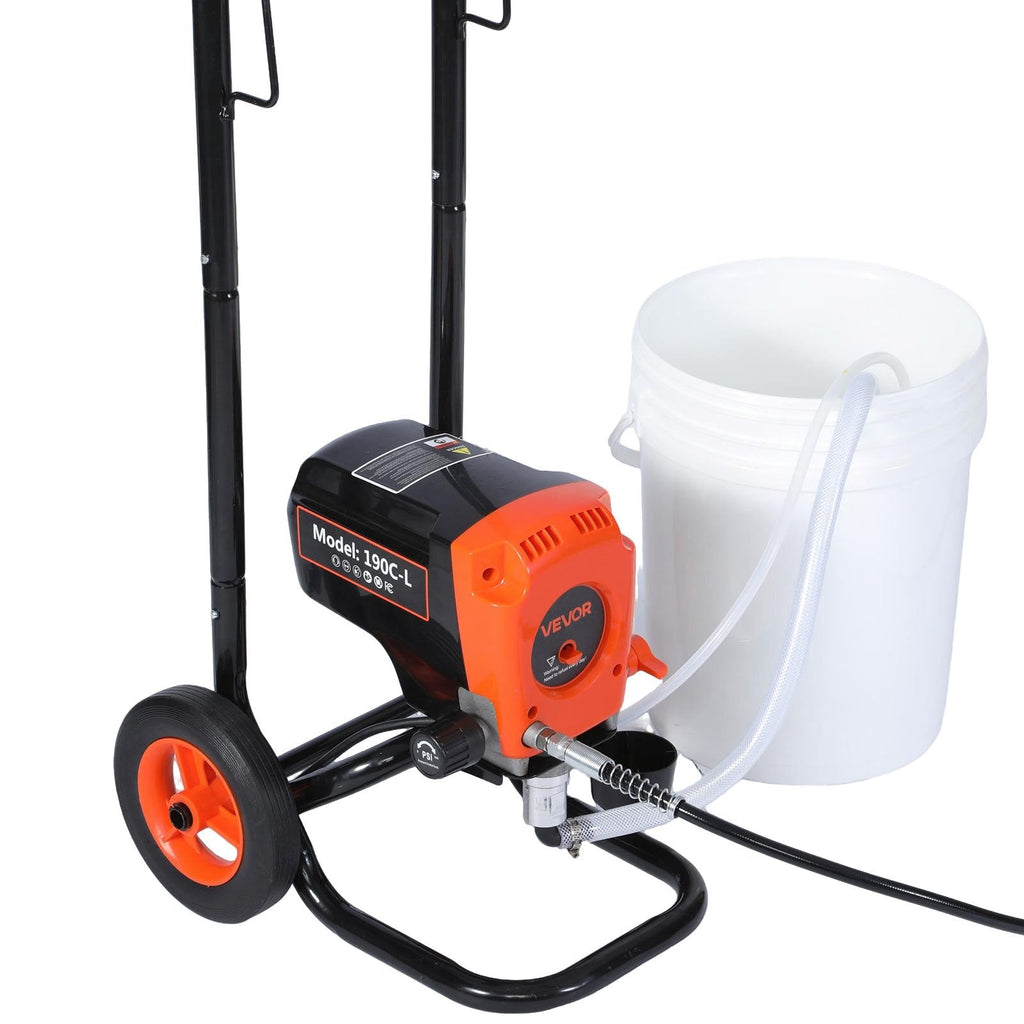

Model number: 190C-L
Power: 900 W (517 nozzle)
Maximum pressure: 22.8 MPa
Maximum flow rate: 1.78 l/min
Nozzles included in the set: 317/417/515/517/519
Extension rod length: 480 mm
Hose length: 15.24 m
Spray gun model: 818
Thread: 1/4-18NPSM-2A
Main materials: ABS housing + Q235 steel frame
Net weight (with all accessories): 13.8 kg
Product dimensions (L × W × H): 420 × 390 × 890 mm
