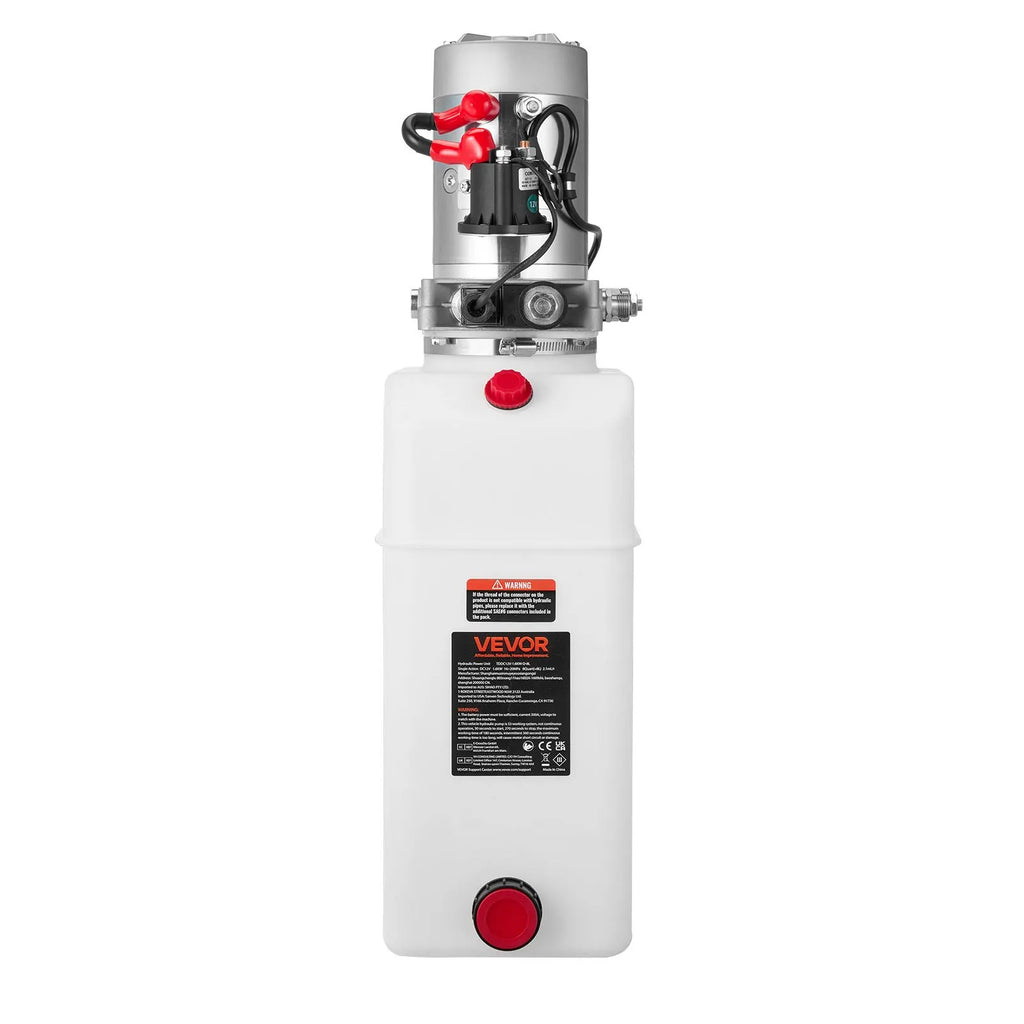

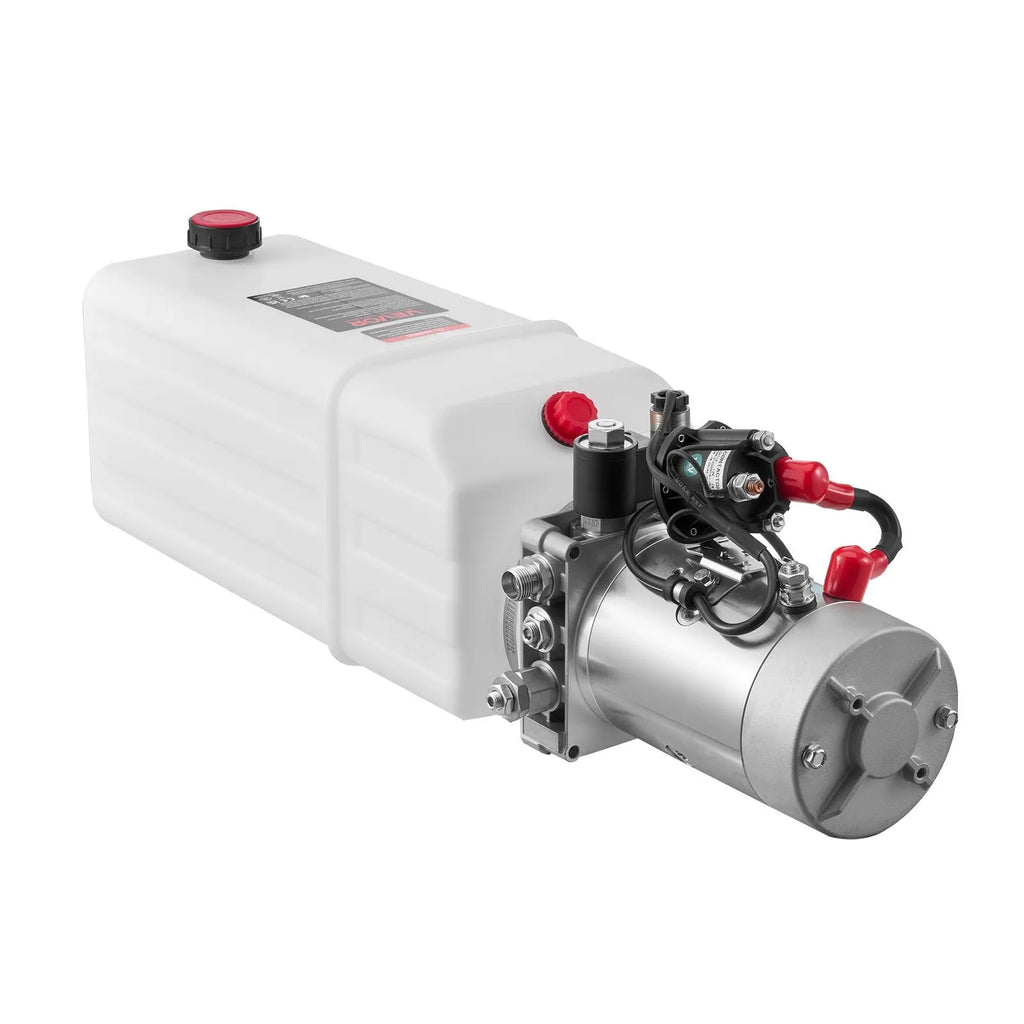

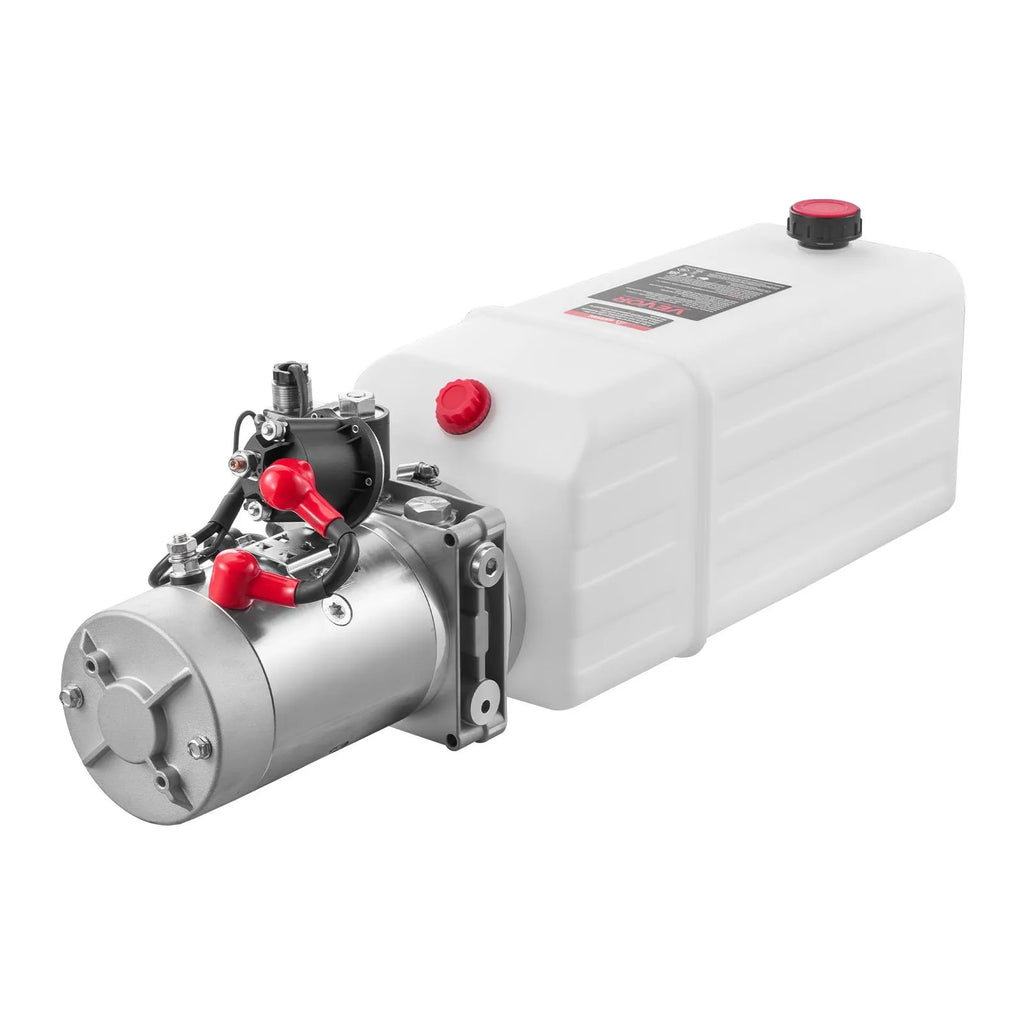

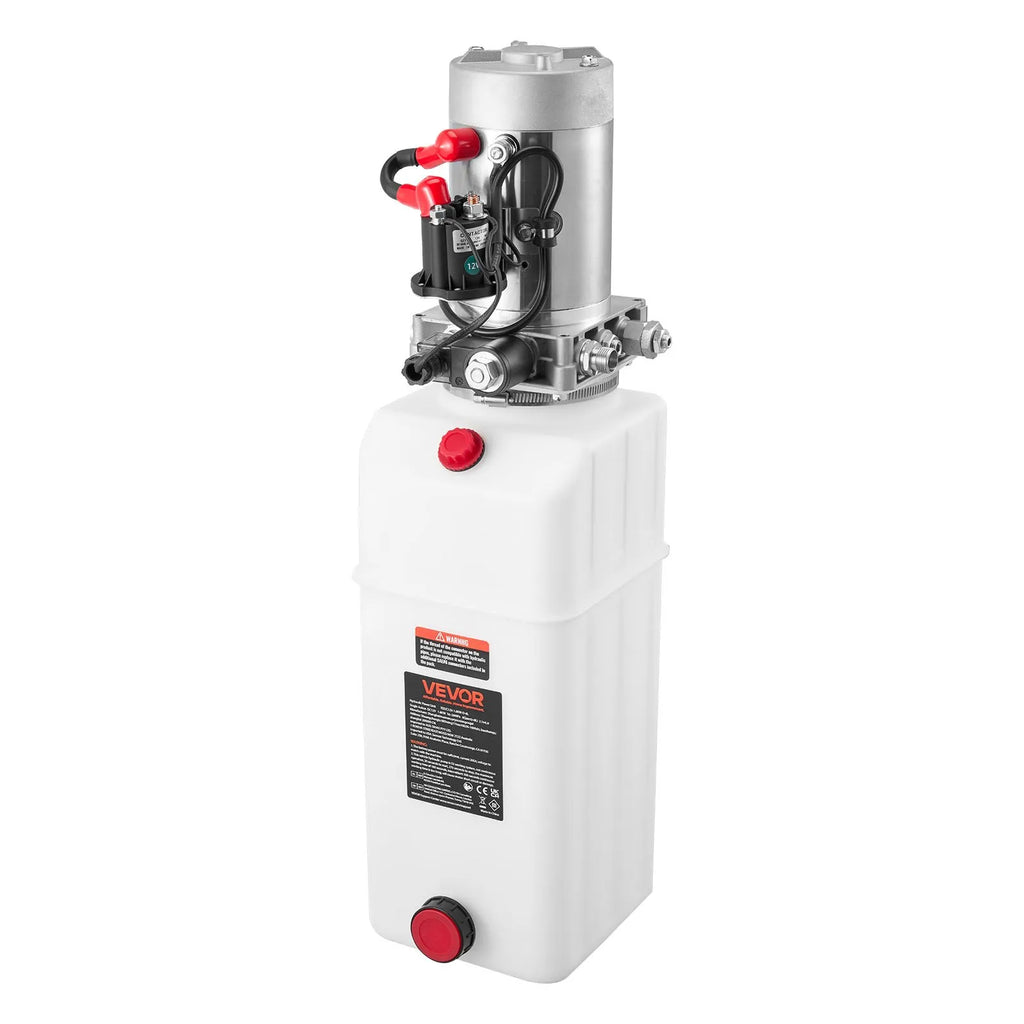

VEVOR 8-liter hydraulic power unit, single-acting hydraulic pump for a self-unloading trailer, 22 MPa maximum pressure and 3.4 l/min flow rate, 12 V DC hydraulic pump with metal reservoir for lifting cars

Features and Details

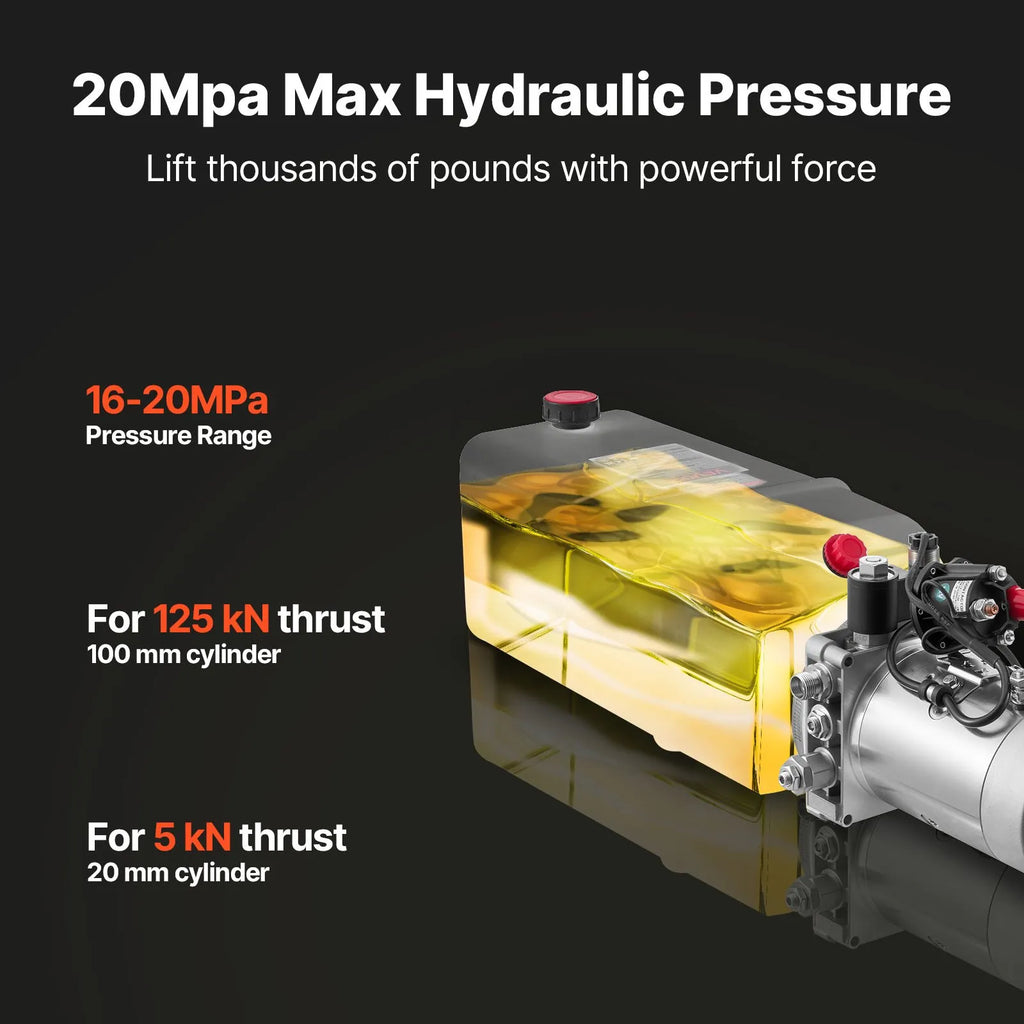

Power you can feel: This 12 V DC, 1.6 kW hydraulic power unit delivers a flow rate of 3.4 l/min with an 8-liter reservoir, a working pressure of 16–20 MPa, and a maximum pressure of 22 MPa, ensuring stable and reliable power for lifting heavy equipment

Faster ascent, smooth descent: This single-acting hydraulic pump ensures reliable lifting and lowering using gravity. The built-in safety valve automatically equalizes excess pressure, ensuring stable and simple operation

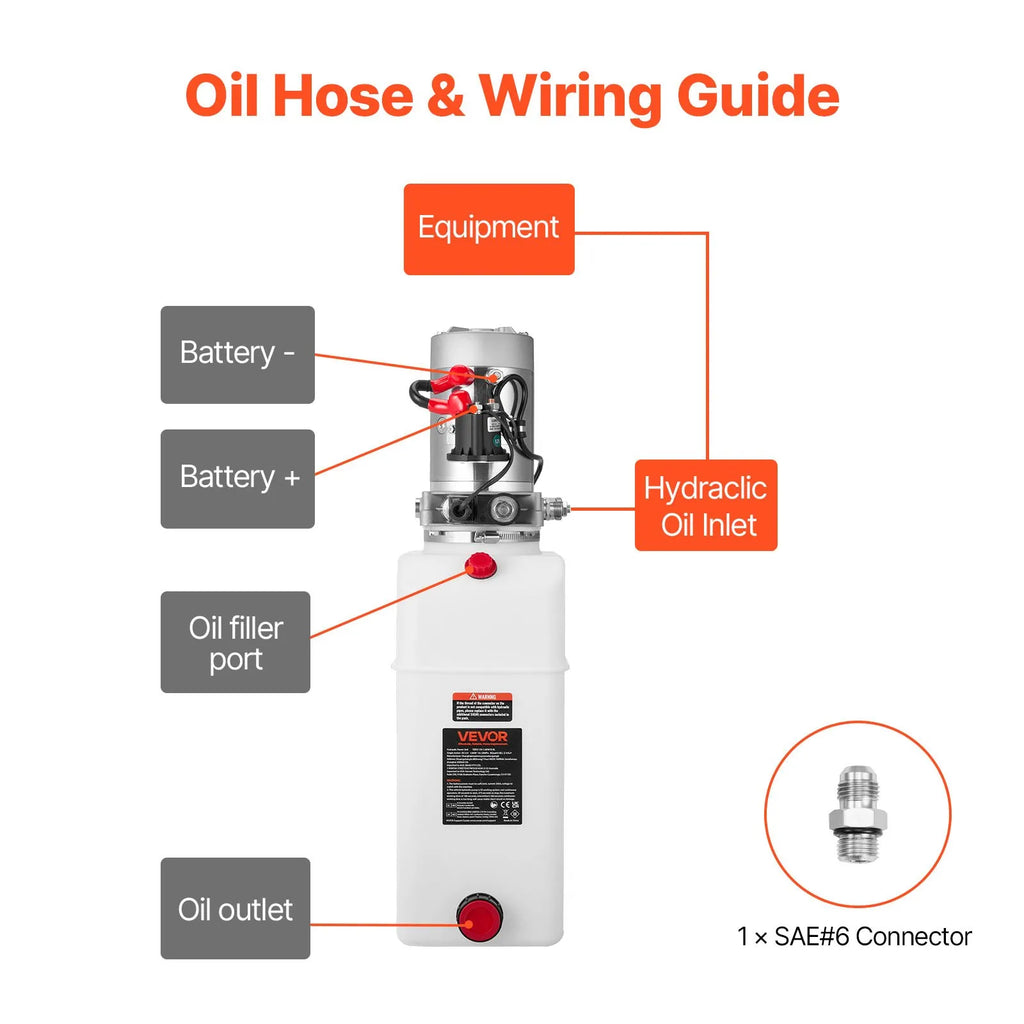

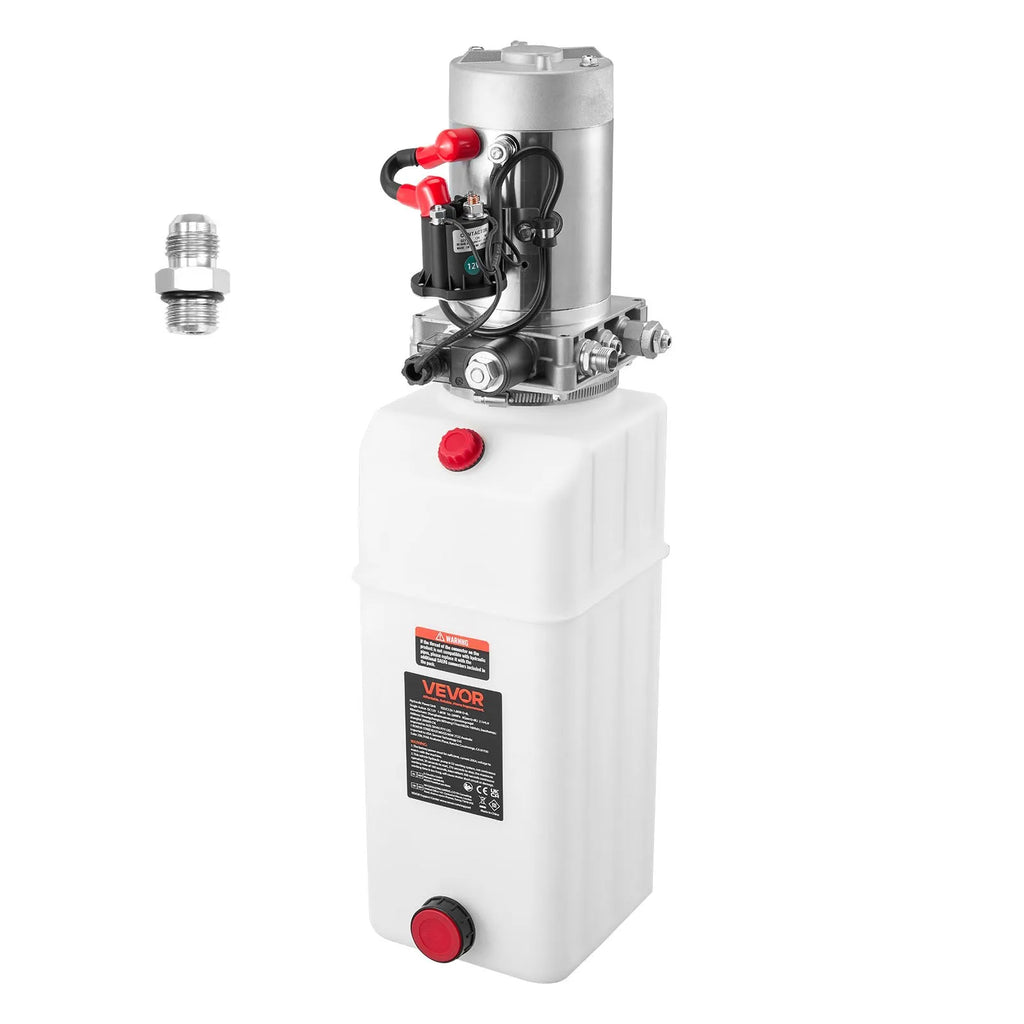

Easy installation: This hydraulic pump for a dump trailer is delivered pre-assembled. Just add hydraulic oil, power lines, and hoses—and the unit is ready to go. SAE #6 fittings allow for quick connection of standard hydraulic lines

Durable and reliable: The hydraulic pump on this dump trailer is hermetically sealed to prevent leaks, while the durable plastic reservoir is designed for daily use, ensuring long-lasting and reliable operation of the hydraulic system

Designed for various tasks: This electric hydraulic pump is suitable for dump trailers, lifting platforms, scissor lifts, lifting tables, small presses, and bucket conveyors, providing versatile power in workshops and on job sites

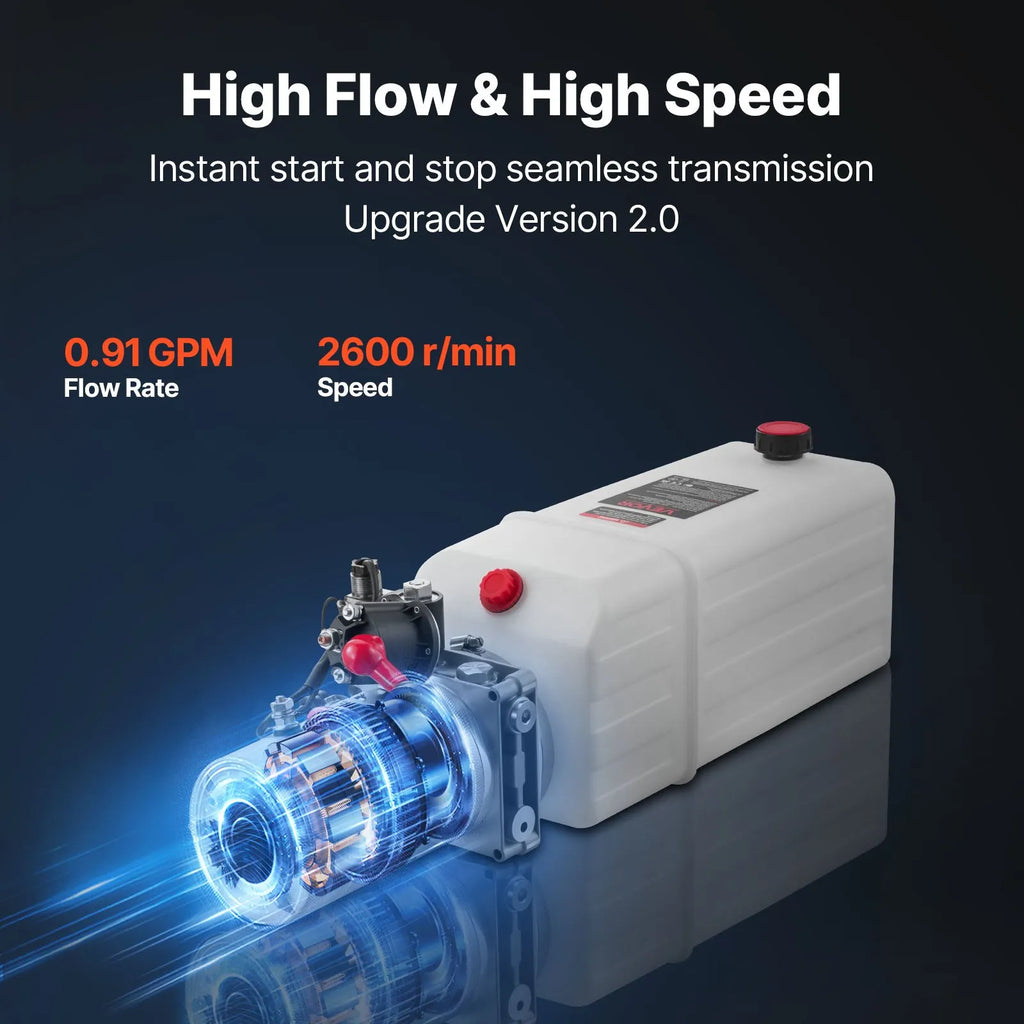

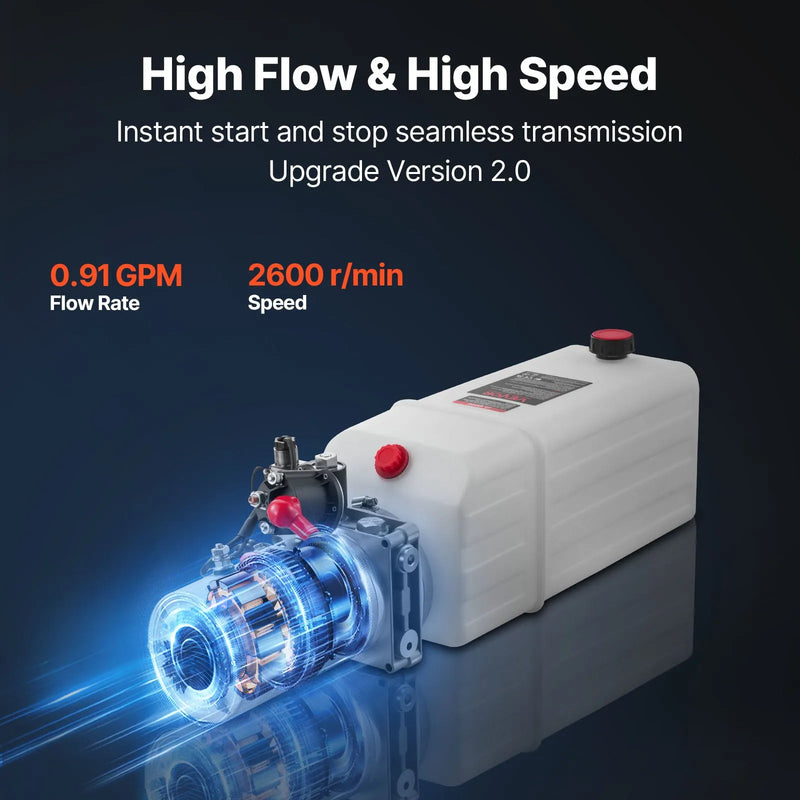

This hydraulic power unit uses a 1.6 kW motor running at 2,600 rpm, providing an operating pressure of 16–20 MPa and a maximum pressure of 22 MPa. This allows for the safe operation of cylinders, ensuring high lifting capacity and stable performance for demanding tasks.

The large pump tank on the self-dumping trailer, combined with a powerful pump, ensures quick startup and smooth lifting and lowering cycles. This reduces downtime, shortens wait times, and maintains continuous operation of the hydraulic system.

It features a reliable hydraulic pump with a built-in safety valve and throttle valve, making operation safer and reducing the risk of oil leaks.

Please note that prolonged continuous operation is not recommended. When operating in S3 mode, the hydraulic pump motor operates cyclically: 30 seconds of operation, 270 seconds of pause; the maximum continuous operating time is 180 seconds. For extended use, an intermittent operating mode with up to 360 seconds of continuous operation is permitted.

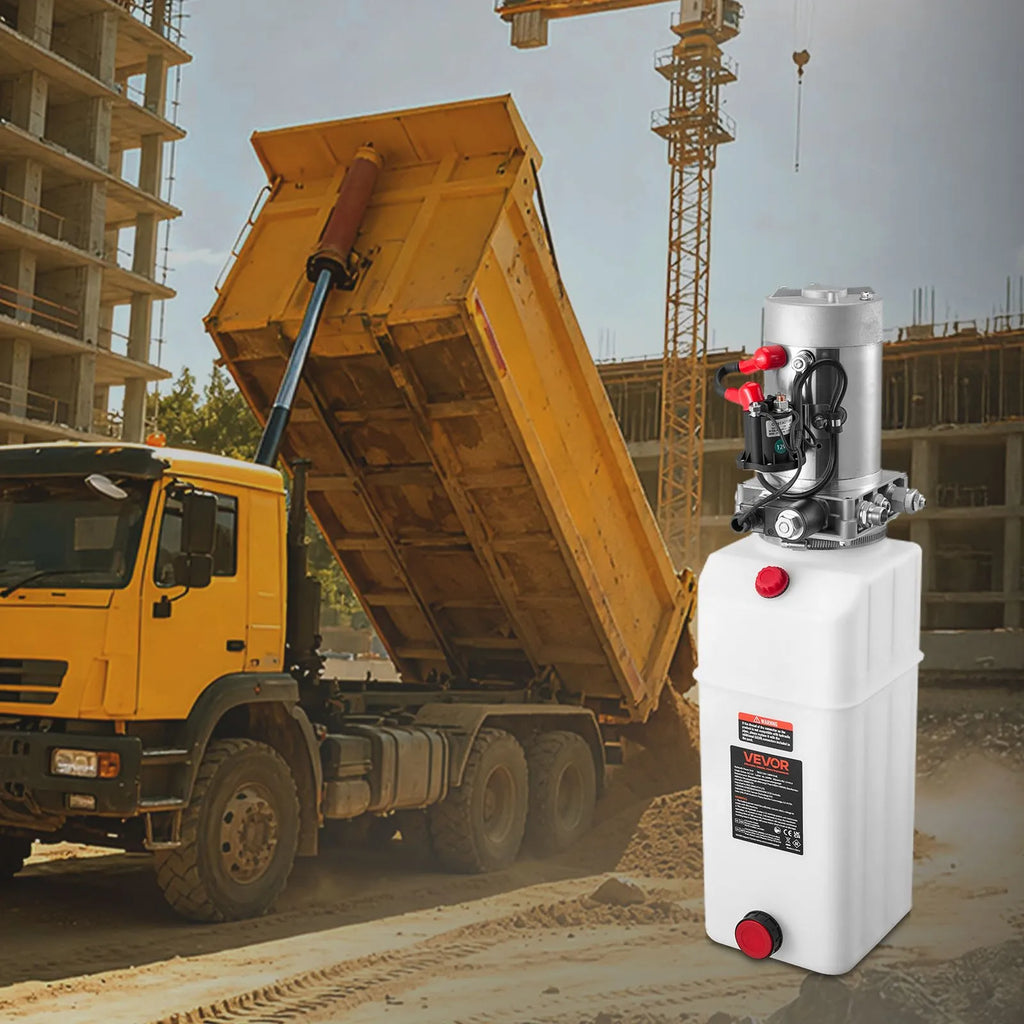

This hydraulic pump for dump trailers helps professional mechanics and auto repair shops get the job done quickly. It is suitable for dump trailers, forklifts, scissor lifts, lifting tables, material handling equipment, and many other lifting platforms for general use in workshops.

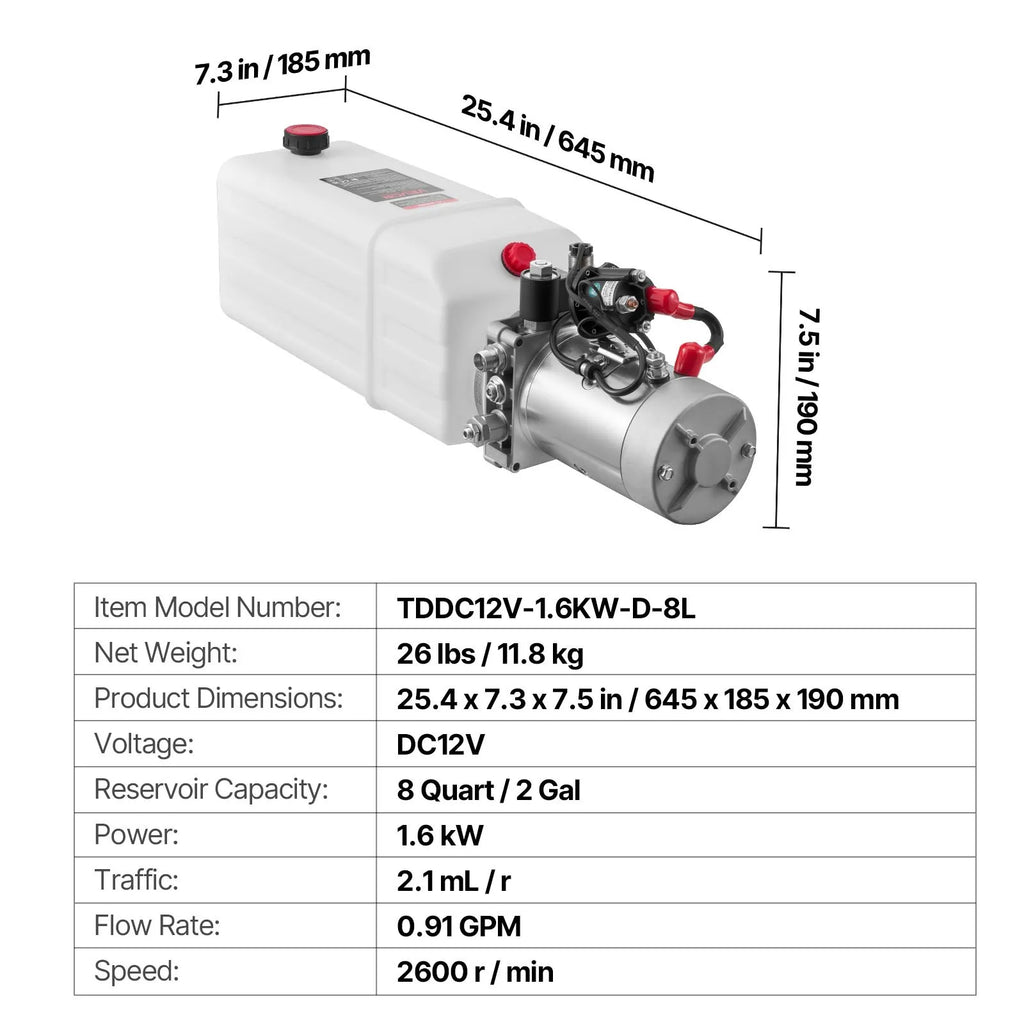

Product Specifications

Model Number: TDDC12V-1.6KW-D-8L
Voltage: DC 12 V
Function: Single-direction operation
Tank capacity: 8 L
Power: 1.6 kW
Flow rate: 3.4 L/min
Speed: 2600 rpm
Displacement: 2.1 mL/rpm
Net weight: 11.8 kg (including all accessories)
Product dimensions: 645 x 185 x 190 mm
