Specifications

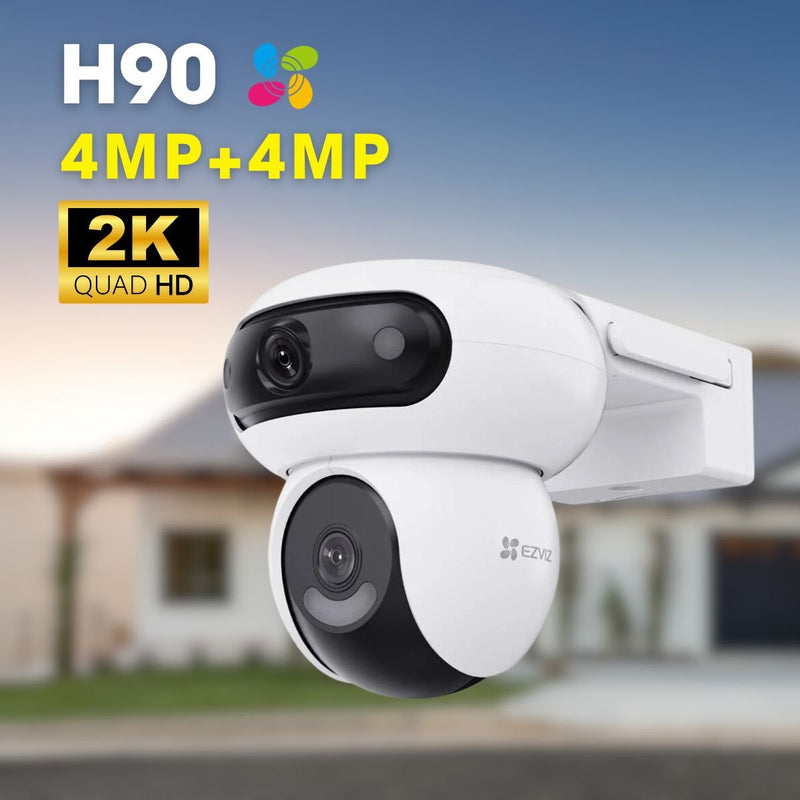

Model CS-H90-R100-8H44WKFL
Camera
Image sensor 1/3" progressive scan CMOS
Lens Top lens: 2.8 mm @ F1.6, field of view: diagonal 110°, horizontal 96°, vertical 54°
Lower lens: 6 mm @ F1.6, Field of view: Diagonal 60°, Horizontal 52°, Vertical 28°

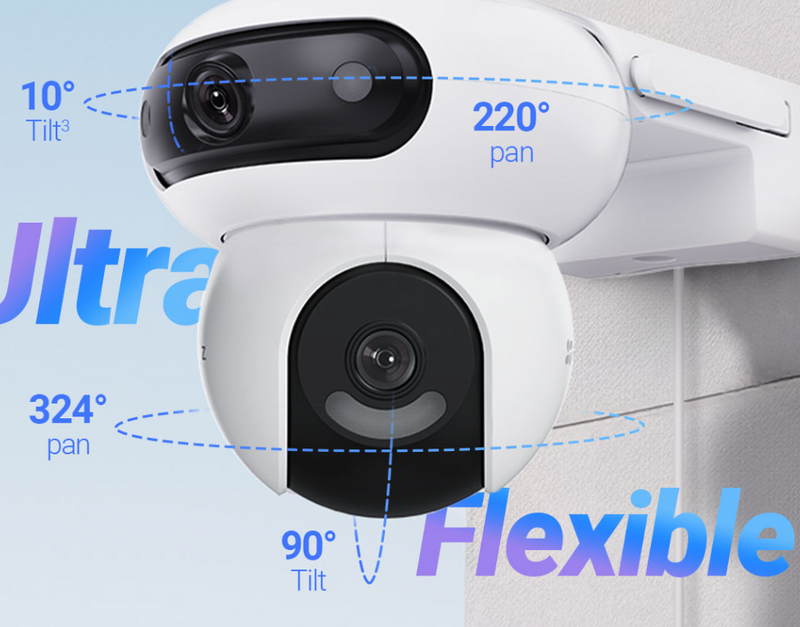

PT angle
Top lens: Pan: 220°, Tilt: 10° (manual adjustment for vertical angle)
Lower lens: pan: 324°, tilt: 90°
Minimum illumination
0.5 Lux (F1.6, AGC ON),
0 Lux with IR (*data obtained from EZVIZ labs)DNR 3D DNR
WDR Digital WDR

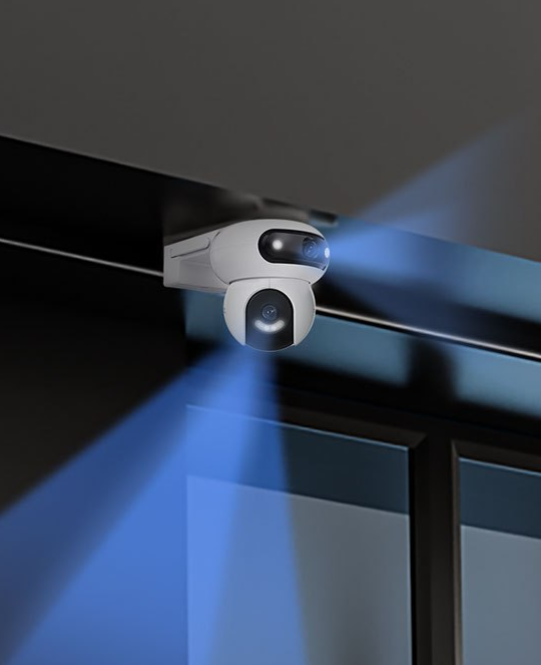

IR night vision 30 m
Colour night vision
Up to 40 m when two lenses are pointed in the same direction
Video & Audio
Maximum resolution 2K+ (2560×1440)
Frame rate Self-adapts during network transmission
Video compression H.265/H.264
H.265 type main profile
Wi-Fi standard IEEE802.11b, 802.11g, 802.11n
Frequency range 2.4GHz ~ 2.4835GHz
Channel bandwidth supports 20MHz
Security WPA-PSK/WPA2-PSK
Transmission speed 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing AP Connectivity
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Wired RJ45 × 1 (10 M / 100 M adaptive Ethernet port)
Features
Smart Alarm
AI-powered human shape detection
AI-powered vehicle shape detection
Motion detection
Auto-tracking support
Two-way talk support
Preset location support
General anti-flicker, dual stream, heartbeat, password protection, watermark
Storage
Local storage supports microSD card (max. 512 GB)
Cloud storage supports EZVIZ CloudPlay storage (subscription required)
Operating conditions
-30°C to 50°C (-22°F to 122°F)

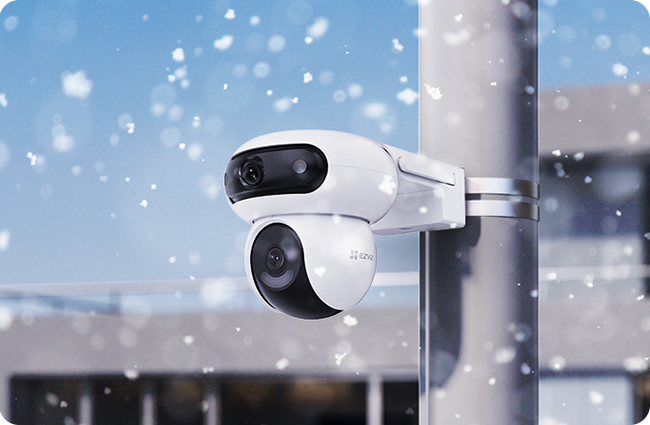

IP-rated weatherproof design
Power supply IP65 + 2h rainfall
Power consumption MAX. 18W

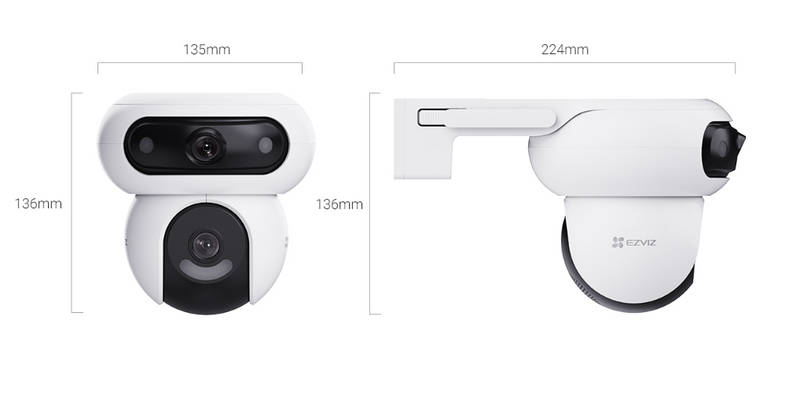

Dimensions 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 in.)
Package dimensions 255 × 176 × 194 mm (10.04 × 6.93 × 7.64 in.)
Weight
Net weight: 723 g Box - H90 Dual 2K+ Camera
- Power Adapter
- Drilling Template
- Waterproof Kit
Certificates
CE / UL / WEEE / RoHS / REACH
