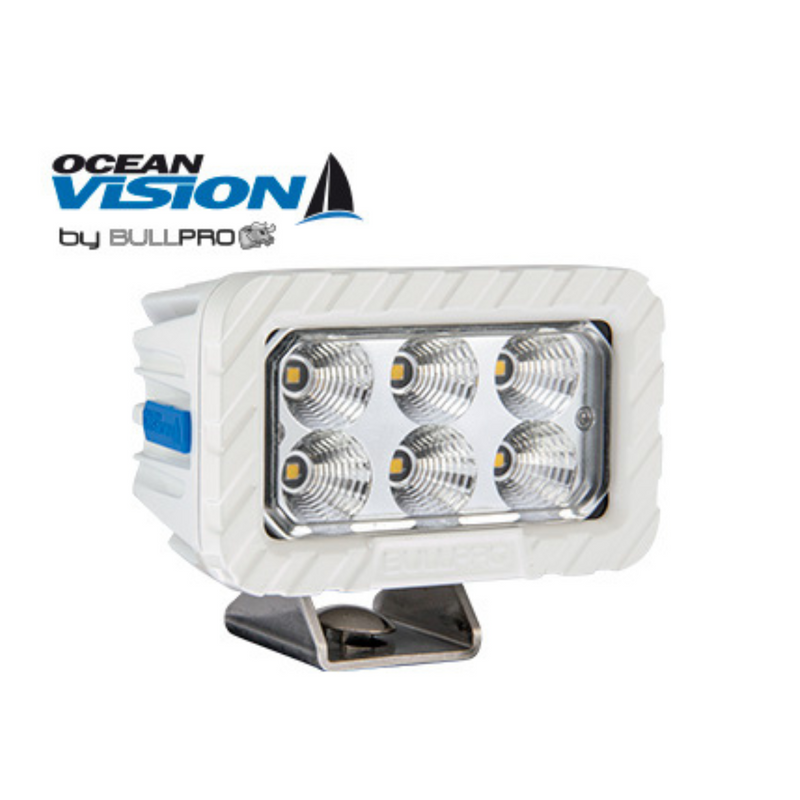

OCEAN VISION 60W (5000 lm) LED Work Light, 3800 lm measured light output, 12–48 V, 6x9W OSRAM LEDs, focused beam, IP68, ADR, EMC CISPR 25 Class 5, 4000K

Description:

Powerful LED Work Light

The OCEAN VISION LED work light provides a theoretical luminous flux of up to 5,000 lm, while the measured actual luminous flux is 3,800 lm. The light uses six 9W OSRAM LEDs and is designed for effective work area illumination in vehicles, machinery, and other professional applications.

Concentrated beam of light

The headlight has a concentrated, or spot-type, beam that projects light over a greater distance and is suitable for situations where it is necessary to illuminate a specific work area in front of a vehicle or piece of equipment.

Neutral white 4000K light

A color temperature of 4000K provides neutral white lighting. This light is suitable for use even in the most challenging weather conditions, such as rain or fog, ensuring natural and comfortable visibility.

12–48 V operating voltage

The wide 12–48V DC operating voltage range allows the light to be used in the electrical systems of various vehicles, trucks, work machinery, and other mobile equipment. At 12 V, the current consumption is 3.08 A, while at 24 V, it is 1.51 A.

IP68 protection rating

The IP68 protection rating provides a very high level of protection against dust and water ingress. This makes the light suitable for use in challenging outdoor conditions, in damp environments, and in locations where lighting equipment is regularly exposed to water and dirt.

Corrosion-resistant aluminum housing

The lamp housing is made of aluminum and coated with an anti-corrosion protective paint. This design is particularly well-suited for use in damp and harsh environments, including near water and in marine conditions.

Glass lens and stainless steel mount

The front lens is made of glass, while the mounting bracket is made of 316-grade stainless steel. These materials ensure high resistance to moisture and corrosion during long-term use.

Integrated Deutsch DT-2 Connector

For electrical connection, the light is equipped with an integrated two-pin Deutsch DT-2 connector and a rubber-coated cable, ensuring a durable and practical connection to the vehicle's electrical system.

High vibration resistance

The light is rated for vibration resistance up to 20 Grms in the 24–2000 Hz frequency range. This design is suitable for construction equipment and vehicles where the lighting is subjected to constant vibrations during operation.

ADR and EMC CISPR 25 Class 5 Compliance

The headlight complies with ADR requirements and meets the EMC CISPR 25 Class 5 electromagnetic compatibility standard. This helps reduce electromagnetic interference in a vehicle’s electronic systems and makes the light suitable for professional transportation installations.

Wide operating temperature range

The light is designed for use at temperatures ranging from -40°C to +85°C, ensuring it is suitable for both very low winter temperatures and hot working conditions.

2-year warranty

For this specific product with code 1603-300287, the technical specifications provided by Latvian retailers indicate a 24-month, or 2-year, warranty.

Specifications:
Product type: LED work light
Power: 60W
LED diodes: 6x9W OSRAM
Theoretical luminous flux: 5000 lm
Measured luminous flux: 3800 lm
Color temperature: 4000 K
Light color: neutral white
Light beam: concentrated
Operating voltage: 12–48 V DC
Current consumption at 12 V: 3.08 A
Current consumption at 24 V: 1.51 A
Protection rating: IP68
Housing material: aluminum
Housing coating: anti-corrosion paint
Housing color: white
Lens material: glass
Mounting material: 316 stainless steel
Connector: integrated Deutsch DT-2, 2-pin
Cable: rubber
Vibration resistance: 20 Grms, 24–2000 Hz
Operating temperature: -40°C to +85°C
Compliance: ADR
Electromagnetic compatibility: EMC CISPR 25 Class 5
Certification: CE
Dimensions: 126x78(101)x70 mm
EAN code: 6438255002878
Warranty: 2 years
