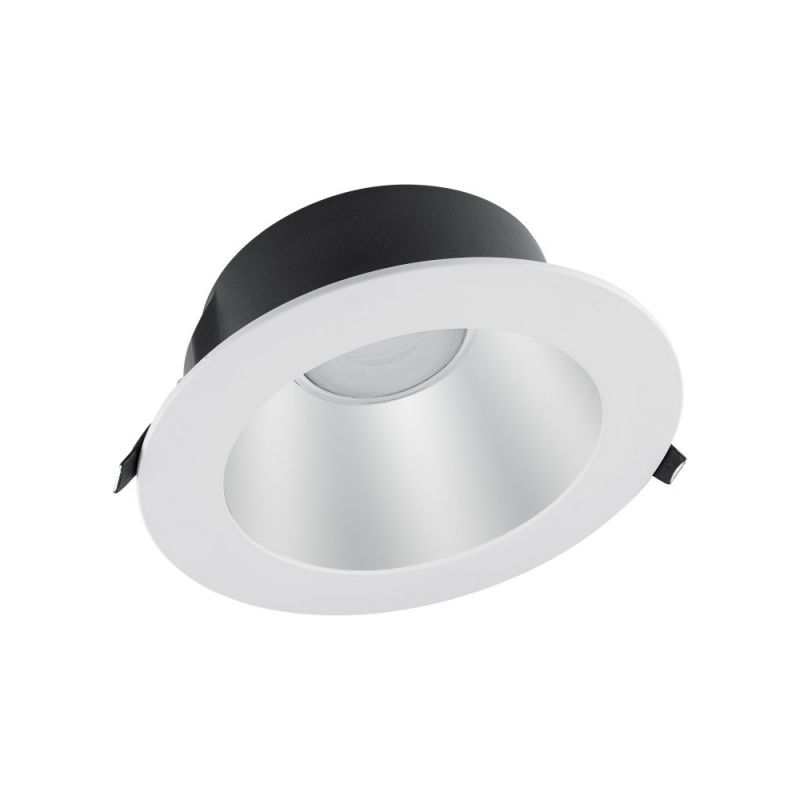

SALE_21W(2400Lm) LEDVANCE LED recessed luminaire, IP54, IK03, warranty 5 years, warm white light 3000K

ELECTRICAL DATA
Rated power 21.00 W
Nominal voltage 220...240 V
Network frequency 50...60 Hz
Nominal current 120 mA
Inrush current 30 A
Trigger current time Th50 200 µs
Max. No. from lum. in a circuit break. B16 A 120
Max. No. from lum. in a circuit break. C16 A 120
Max. No. from lum. in a circuit break. C10 A 80
Power factor λ ≥0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver
PHOTOMETRIC DATA
Light flux 2400 lm
Light output 115 lm/W
Color temperature 3000K
Light color (designation) Warm white
Color rendering index Ra ≥80
Color matching standard deviation ≤5 sdcm
Light intensity -
Low flicker Yes
Blinking Metric (Pst LM) —
Strobe Effect Metric (SVM) —
Photobiological safety group acc. according to EN62778 RG1
Photobiological safety group acc. to EN62471 RG0
Beam angle 65°
UGR < 19
DIMENSIONS AND WEIGHT
Diameter 220.00 mm
Height 82.00 mm
Product weight 900.00 g
MATERIALS AND COLORS
Product color White
Body color White
Body material Aluminum
Coating material polycarbonate (PC)
Light-emitting surface material polycarbonate (PC)
Filament test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
USE AND ASSEMBLY
Ambient temperature range -20...+45 °C
Storage temperature range -40...+70 °C
Connection type Screwless terminal
Type of protection IP54/IP20
Protection class IK (impact resistance) IK03
Dimmable no
Mounting type Recessed
Installation location Ceiling
Indoor application environment
Mounting diameter 195.0 mm
Installation depth 120 mm
LED module replaceable Not replaceable
With light source Yes
LIFETIME
Service life L70/B50 at 25 °C 70000 h
Service life L80/B10 at 25 °C 60000 h
Service life L90/B10 at 25 °C 40000 h
Number of switching cycles 100,000
CONTROL DEVICES
Output current 700 mA
ECG - Output Ripple Current < 10%
ECG - Length 114.0 mm
ECG - Width 45 mm
ECG - Height 28 mm
Recommended control mechanism OSRAM OTI DALI 50/220-240/1A4 NFC
CERTIFICATES AND STANDARDS
Standards CE, CB, ENEC, TÜV SÜD, EAC
