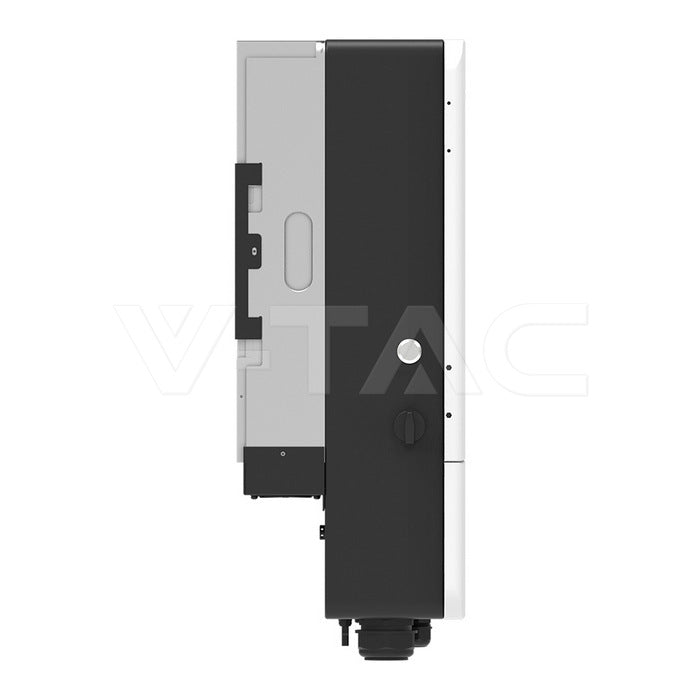

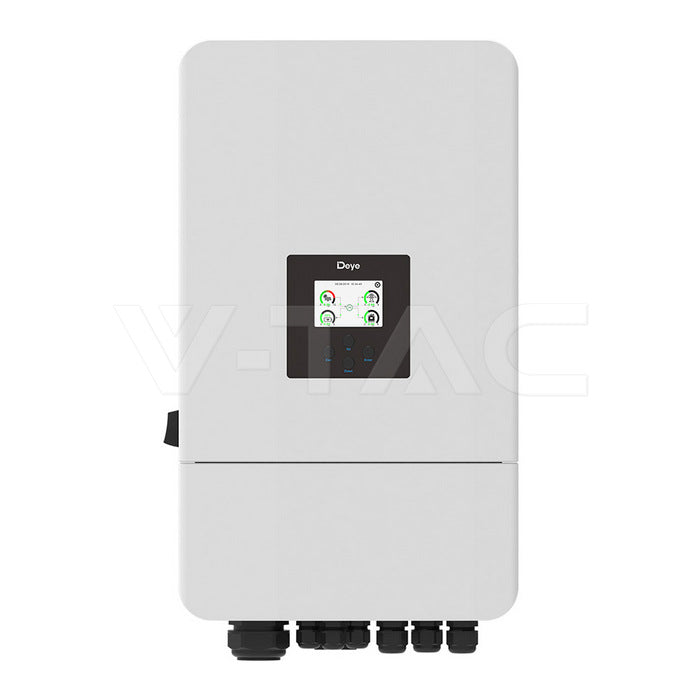

10 kW hybrid solar inverter, three-phase

Specification

General Information
Brand: Deye
Model/Product Code: SUN-10K-SG05LP3-EU-SM2
Order Code: 12343
Release Date: 18.07.2025
Warranty: 10 years
Weight: 35,2 kg

Electrical data
Maximum PV input power: 16 000 W
Rated AC input/output active power: 10 000 W
Max. Power (off-grid): 2× rated power, 10 s
Max. PV input current: 26 A + 26 A
Max. PV short-circuit current: 39 A + 39 A
Rated AC input/output current: 15.2 A / 14.5 A
Max. AC Input/Output Current: 16.7 A / 16 A

Phase: Three-phase
Frequency:
Rated grid frequency/range: 50 Hz (45-55 Hz), 60 Hz (55-65 Hz)

Voltage data
Max. PV input voltage: 800 V
MPPT operating range: 200-650 V
Nominal PV input voltage: 550 V
Switch-on voltage: 160 V
Power factor: 0.8 (conducting) to 0.8 (lagging)

Options
Protection class: IP65

Operating conditions
Temperature range: -40 °C to +60 °C (derating occurs at >45 °C)

Dimensions
Size (L × W × H): 386 × 660 × 250 mm

Certification
IEC/EN 61000-6-1/2/3/4
IEC/EN 62109-1
IEC/EN 62109-2
