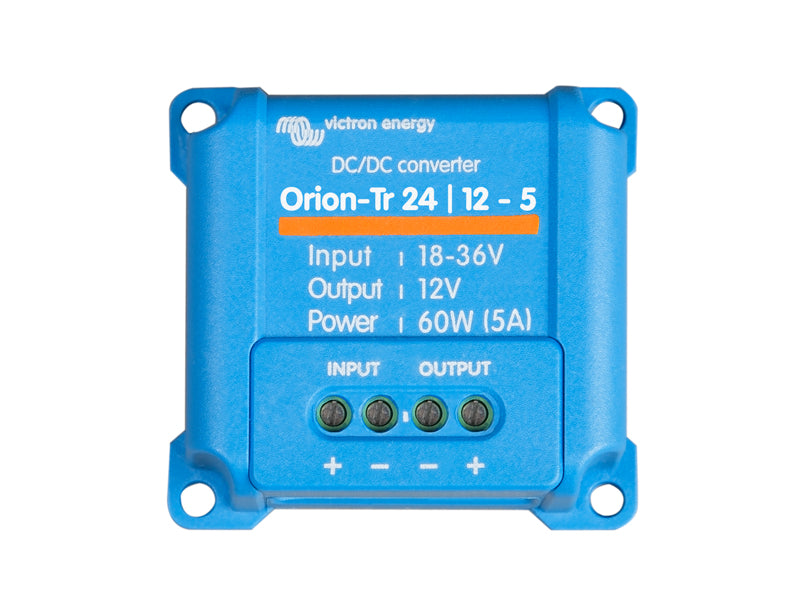

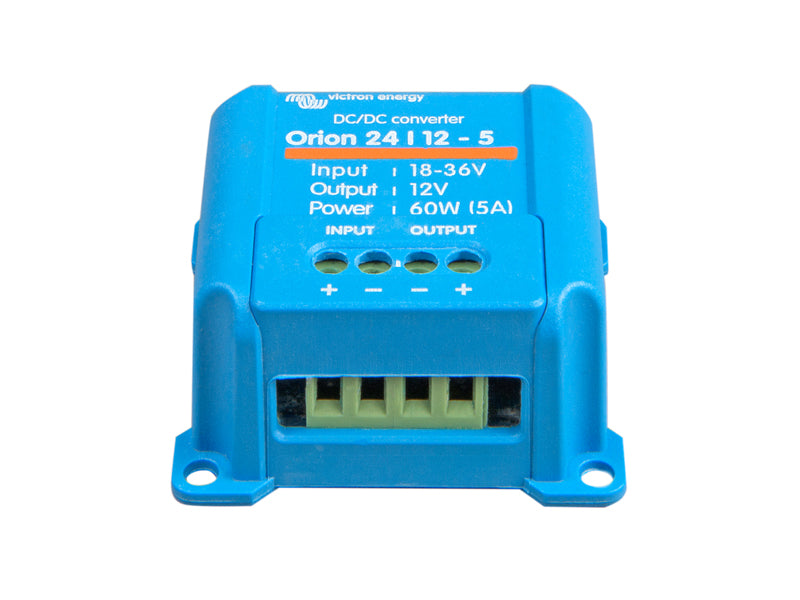

24V→12V 60W 5A Voltage Reducer 5A Orion-Tr 24/12-5, IP43, ECE R10-4, EN 60950, EN 61000-6-1/-6-2/-6-3, EN 55014-1/-2

Roll over image to zoom in Click on image to zoom

24V→12V 60W 5A Voltage Reducer 5A Orion-Tr 24/12-5, IP43, ECE R10-4, EN 60950, EN 61000-6-1/-6-2/-6-3, EN 55014-1/-2

Name: 24V→12V 60W 5A Voltage Reducer 5A Orion-Tr 24/12-5, IP43, ECE R10-4, EN 60950, EN 61000-6-1/-6-2/-6-3, EN 55014-1/-2
Brand: Ledakcijas
SKU: 1702-87362
Price: 24.2 EUR
Availability: InStock

SKU: 1702-87362

€24,20

Share this product

Dimensions: 53.00 x 51.00 x 27.00 mm
Weight: 90g (net 90g)
Type: Orion-Tr 24/12-5
Voltage: 24V→12V
Power: 60 W
Current: 5 A
IP rating: IP43
Approvals: ECE R10-4, EN 60950, EN 61000-6-1/-6-2/-6-3, EN 55014-1/-2
Information: Short-circuit safe, parallel, high temperature protected, input: 18-35V, output nominal: 12.7V, output voltage tolerance: ±0.2V, rms, maximum current: 5A (cont.7A (10s @ nominal output voltage), maximum cable size 3.3 mm², efficiency 95%, no-load current <20mA, IP43 (when screw terminals installed oriented downwards), operating temperature -20°C ... +55°C, RH 95% (non-condensing), fixation: 4xM4
