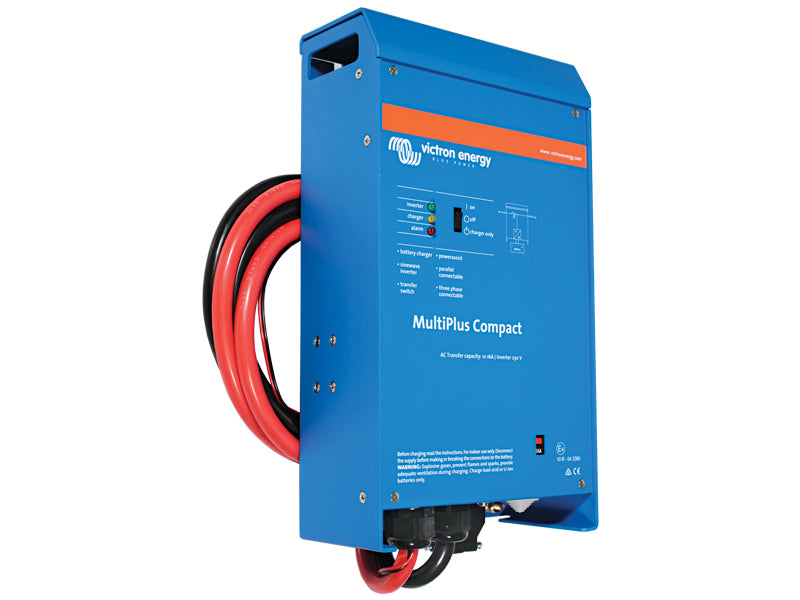

Victron MultiPlus Compact 800VA Inverter/Charger 230 V / 12 V, 700 W, 35 A battery charger, pure sine wave inverter, IP21

Specifications

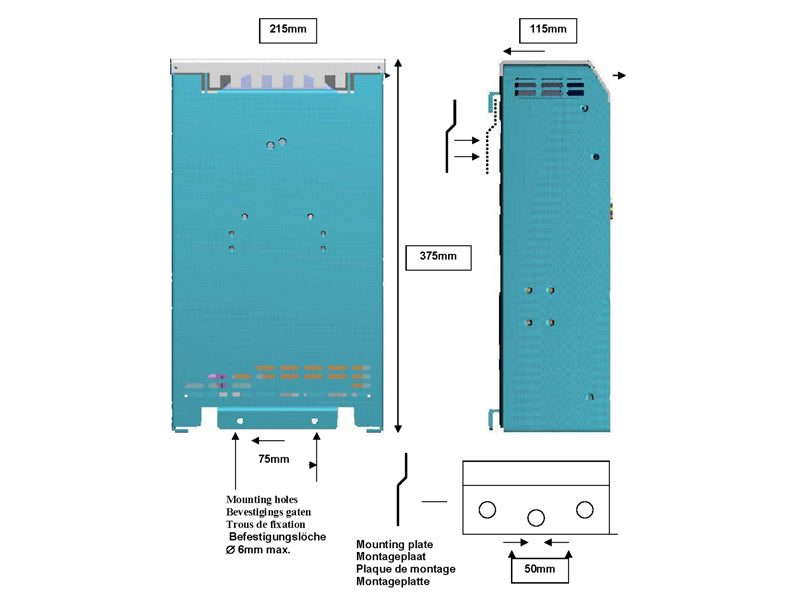

Dimensions: 375 × 214 × 110 mm

Weight: 12.00 kg (net weight 11.50 kg)

Model: MultiPlus Compact 800VA

Voltage: 230 VAC / 12 V

Housing material: Aluminum

Protection class: IP21

Certifications: ECE R10-4, EN-IEC 60335-1/-2-29, IEC 62109-1, EN 55014-1/-2, IEC 61000-6-1/-6-2/-6-3

Information

35 A battery charger, a powerful pure sine wave inverter, a modern battery charger with adaptive charging technology and a fast 16 A AC switch, all in one compact unit.

PowerAssist feature

Prevents overloading of a limited AC power source. Battery charging is automatically reduced if there is a risk of overload, and the required additional power is drawn from the battery.

Uninterrupted power supply

The NO BREAK feature ensures an automatic switch to battery power in less than 20 ms, maintaining uninterrupted operation of connected devices.

Parallel and Three-Phase Operation

Three units can be configured in a three-phase system. In parallel operation, up to 6 devices or 6 sets of 3 devices each can be connected to achieve higher power output.

Programmable relay.

Defense

Protection against:

• output short circuit
• overload
• battery voltage that is too low or too high

Inverter Specifications

Input: 9.5–17 V
Output: 230 VAC ±2% / 50 Hz ±0.1%
Power at 25 °C:

• 700 W continuous
• 1,600 W maximum

Maximum efficiency: 92%

Standby power consumption: 8 W

Charger Specifications

Suitable for 40–200 Ah batteries

AC input: 187–265 VAC

Charging current:

• Main battery: 35 A
• Starting battery: 4 A

The kit includes a battery temperature sensor and a remote on/off function.

Operating temperature: -40 °C to +65 °C

Maximum relative humidity: 95%, non-condensing

Battery cables: 1.5 m

AC connection: G-ST18i

Warranty: 60 months
