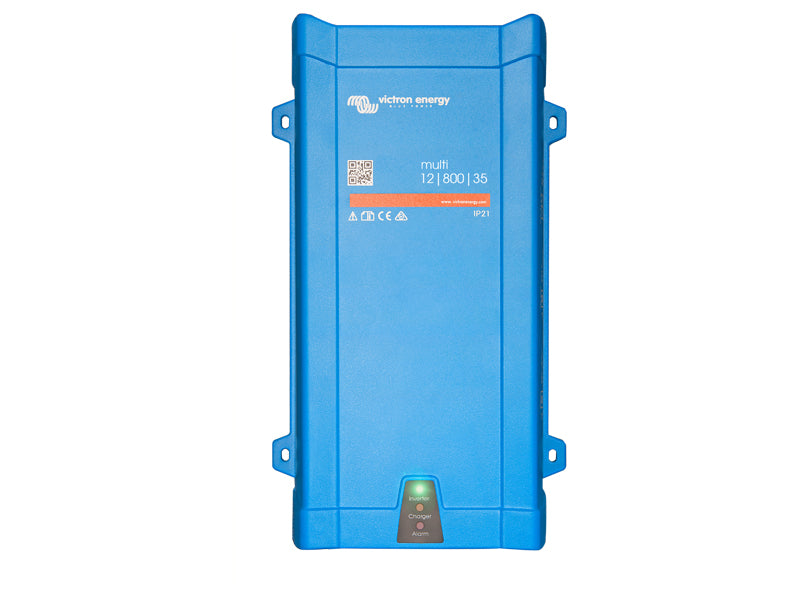

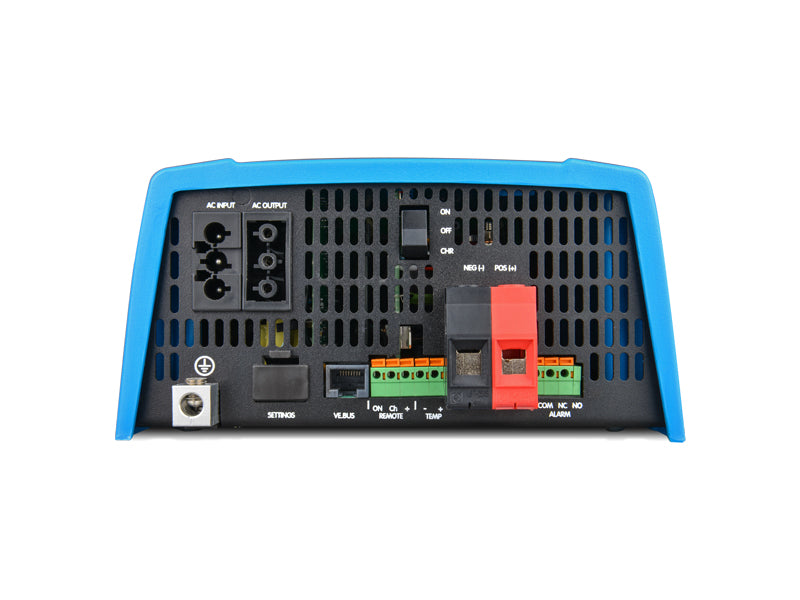

Victron MultiPlus 12/800/35 Inverter/Charger, 230 V / 12 V, 800 W, 35 A Battery Charger, IP21

Specifications

Dimensions: 360 × 240 × 100 mm

Weight: 7.50 kg (net weight 6.50 kg)

Model: MultiPlus 12/800/35

Voltage: 230 VAC / 12 V

Protection class: IP21

Certifications: ECE R10-5, EN-IEC 60335-1/-2-29, EN 62109-1, EN 55014-1/-2, EN-IEC 61000-3-2/-3-3/-6-1/-6-2/-6-3

Information

35 A battery charger with the POWER ASSIST function, which extends the capacity of the alternative power source. During peak load, the battery charge is automatically reduced to prevent overload, and the required power is drawn from the battery. When the load decreases, the excess current is used to charge the battery.

The NO BREAK feature ensures an uninterrupted power supply. Up to six Multi devices can be operated in parallel for higher power output, while three devices can be configured for a three-phase system.

4-stage charging system and dual battery charging

Powerful charging with customizable charging software optimizes the automatic three-stage charging process based on the battery's condition and adds a fourth trickle-charging mode for extended operation.

High starting power

Suitable for devices with high inrush current, such as LED lamps, halogen lamps, and power tools.

SEARCH MODE

Power consumption is reduced by approximately 70% when there is no load. In inverter mode, the device shuts off when the load is very low and briefly activates every two seconds to check its status. If a sufficient load is detected, the inverter continues to operate.

Programmable Relay and Remote Control

The relay can be used as an alarm relay. System configuration, monitoring, and control are available via the web. The device is ready for use immediately after installation. The battery charging voltage and SEARCH MODE can be adjusted using DIP switches.

Inverter Specifications

Input: 9.5–17 V DC
Output: 230 VAC 50 Hz
Maximum power: 1600 W
Maximum efficiency: 92%
No-load power consumption: 7 W (2 W in SEARCH MODE)

Charger Specifications

Input: 187–265 VAC
Output voltage:

• 14.4 V (absorption)
• 13.8 V (float)
• 13.2 V (storage)

Charging current:

• Main battery: 35 A
• Starting battery: 1 A

Includes a temperature sensor.

General Information

Built-in 150 A DC fuse.
Protection against:

• short circuit
• overload
• battery voltage that is too high or too low
• overheating
• 230 VAC at the inverter output
• excessive voltage ripple

Communication port: VE.Bus

Operating temperature: -40 °C to +65 °C

Maximum relative humidity: 95% non-condensing

Warranty: 60 months
