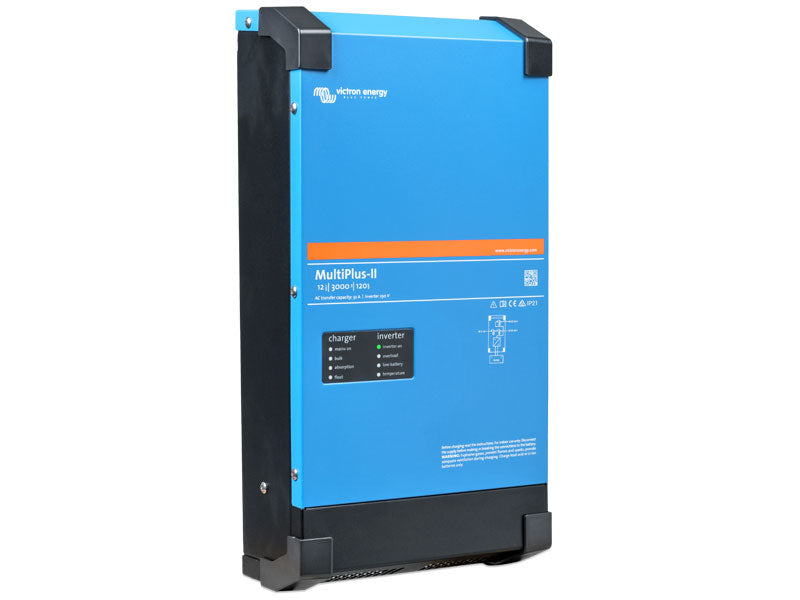

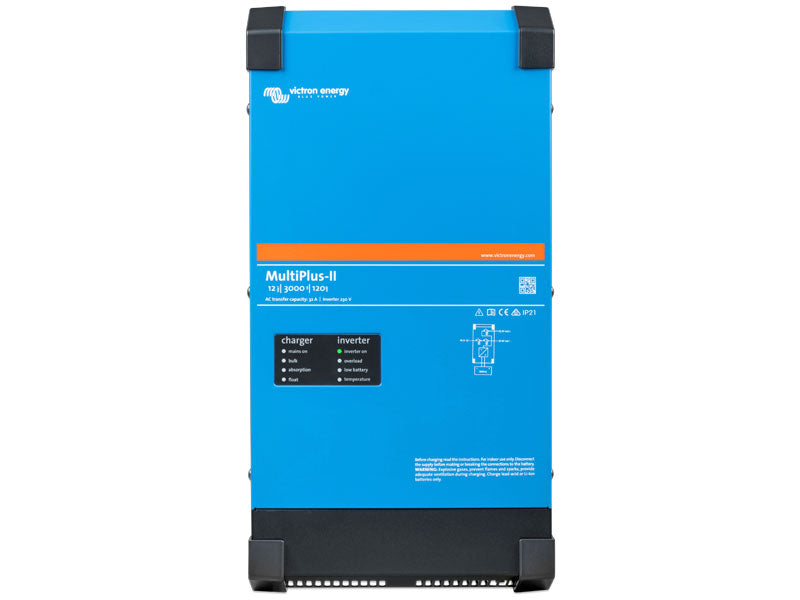

VEVOR MultiPlus II Inverter/Charger 230 V 12 V 3000 W with ESS System, Pure Sine Wave Inverter, 120 A battery charger, IP22, designed for solar and off-grid systems

Specifications

Dimensions: 546 × 275 × 147 mm

Weight: 21.70 kg (net weight 18.85 kg)

Model: MultiPlus II 230V

Voltage: 230 VAC / 12 V

Protection class: IP22

Certifications: EN-IEC 60335-1/-2-29, EN-IEC 62109-1/-2, EN 55014-1/-2, EN-IEC 61000-3-2/-3-3/-6-1/-6-2/-6-3

Information

MultiPlus II 230V 12/3000/120-32 with ESS (Energy Storage System) — a powerful pure sine wave inverter, a state-of-the-art battery charger with adaptive charging technology, and a fast 32 A AC switch. An external current sensor option (50/100 A) is available. Ideally suited for professional use in marine applications, yachts, vehicles, and off-grid power systems.

Built-in anti-islanding function and a wide range of ESS certifications for various countries. Several system configurations are available.

PowerControl and PowerAssist features

You can set the maximum current for the grid or generator. The device analyzes other AC loads and uses the remaining power to charge the battery, preventing the generator or grid from overloading (PowerControl). PowerAssist automatically reduces the battery charging current in the event of an overload and supplements the required power from the battery.

Support for Solar Energy

AC power is available even in the event of a grid outage. Suitable for off-grid and grid-connected solar power systems. Compatible with solar charge controllers and grid inverters.

Two AC outputs

The main output, which operates continuously, switches in less than 20 ms, ensuring uninterrupted operation of computers and electronic devices. The second output operates only when AC power is available; it is suitable for loads that should not drain the battery, such as water heaters.

Parallel and Three-Phase Operation

Virtually unlimited power expansion is possible. Up to 3 units can be configured in a three-phase system, while up to 6 units or 6 sets of 3 units each can be operated in parallel for higher power.

Configuration and Remote Management

The settings can be changed in a matter of minutes using a computer and the VEConfigure software (MK3-USB interface). A Cerbo GX or other GX device is required for remote control. Data can be stored and monitored on the VRM platform free of charge.

Inverter Specifications

Input: 9.5–17 V
Output: 230 VAC ±2% / 50 Hz ±0.1%
Power at 25 °C: 2400 W continuous / 5500 W maximum
Maximum efficiency: 93%
No-load power consumption: 13/9 W

Charger Specifications

Suitable for lead-acid and lithium-ion batteries
AC input: 187–265 VAC, 45–65 Hz
Maximum charging current: 120 A
Battery temperature sensor
Programmable relay
Fan cooling
Operating temperature: -40 °C to +65 °C
Maximum humidity: 95% non-condensing

Defense

Protection against short circuits, overloads, excessively high or low battery voltage, overheating, low inverter output, and excessive input voltage ripple.

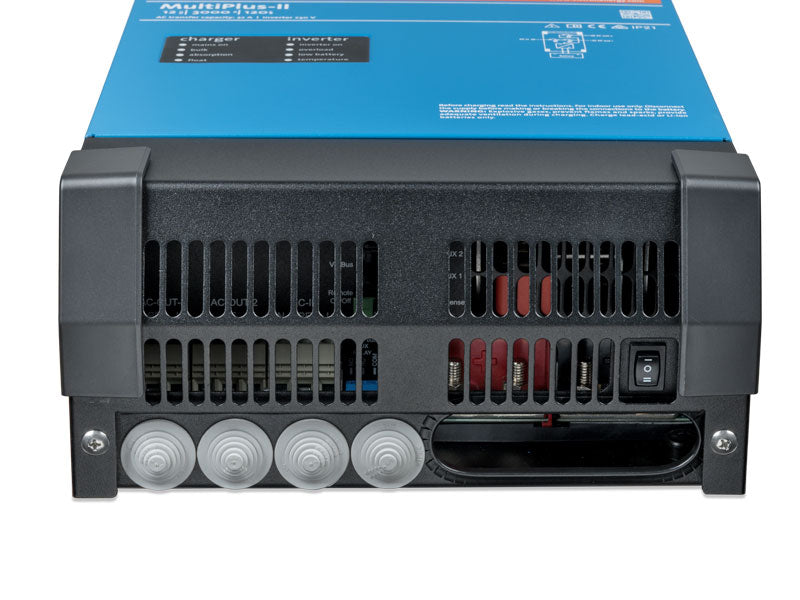

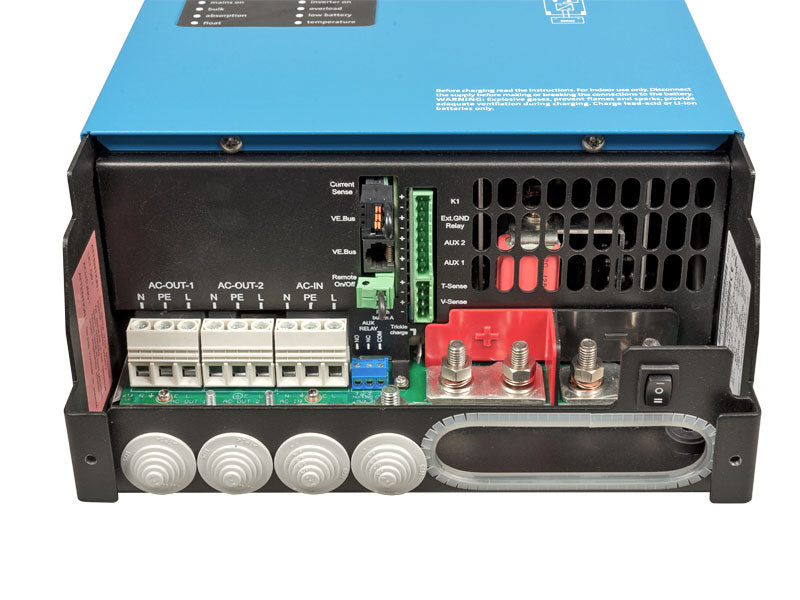

Battery connections: M8
AC connections: screw terminals 13 mm²

Wall mount included.

Warranty: 60 months
