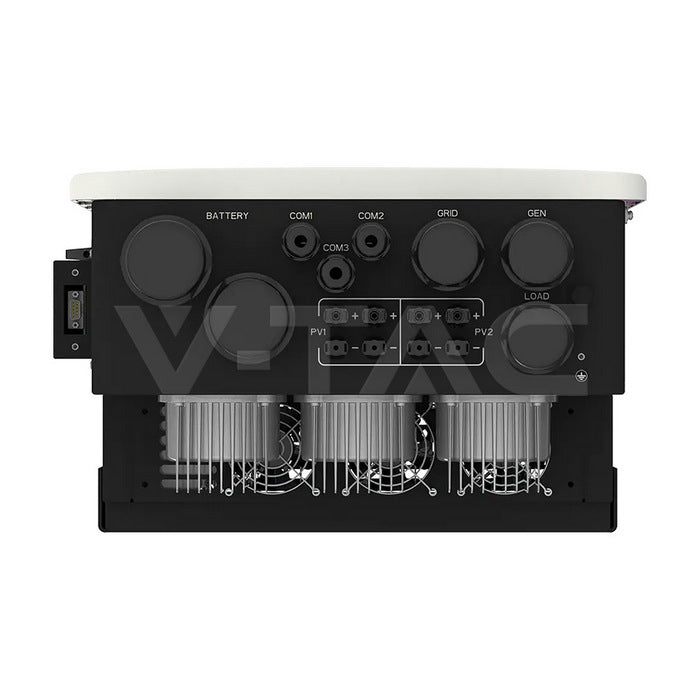

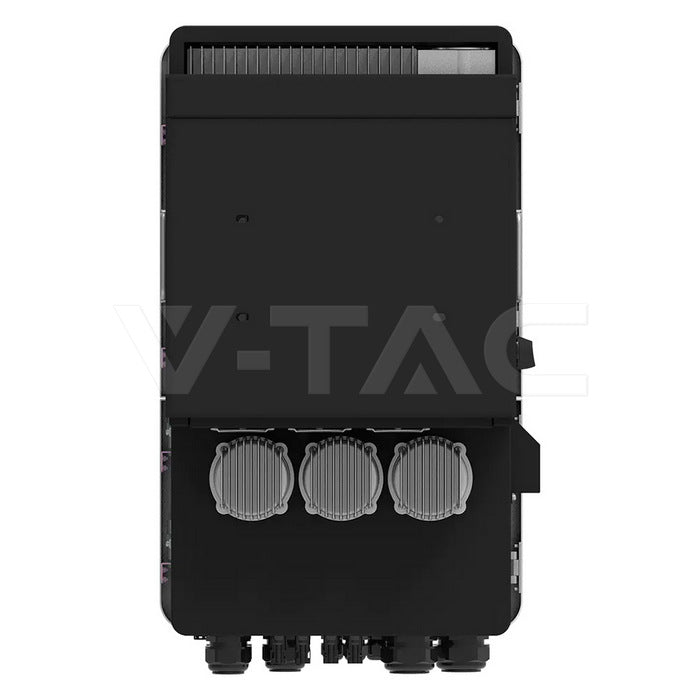

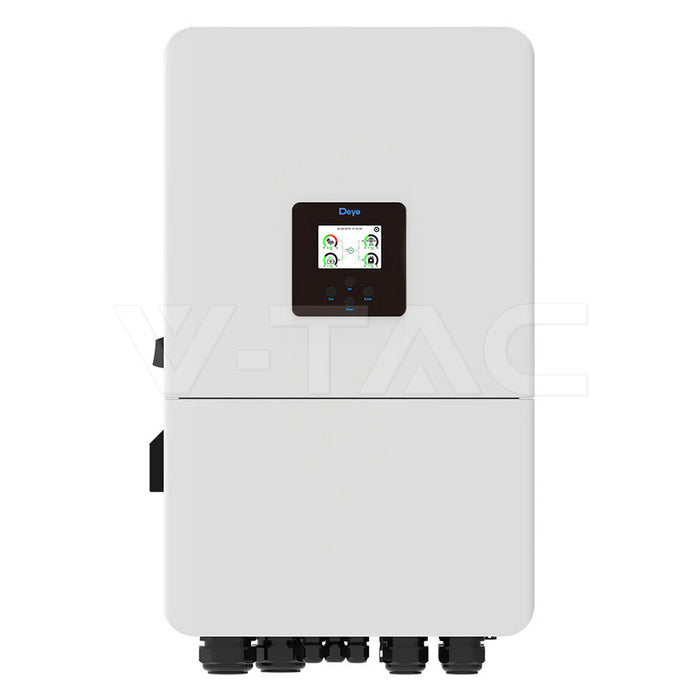

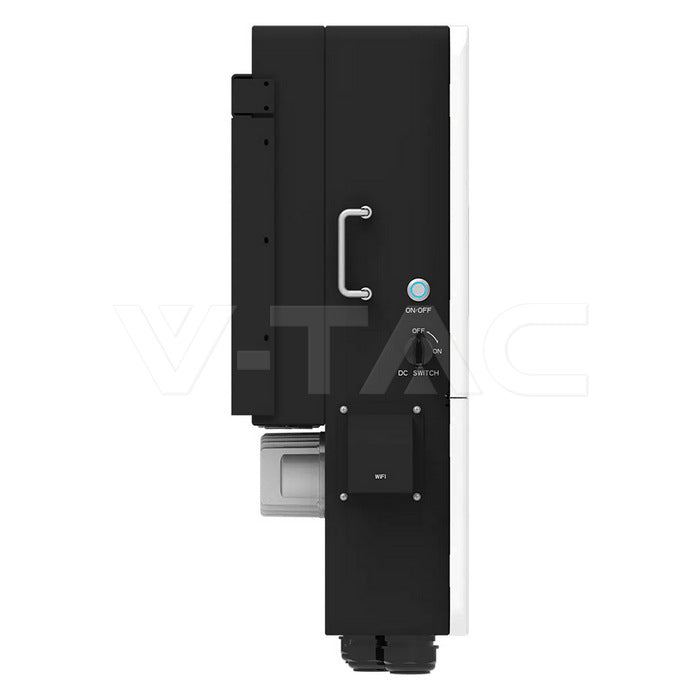

V-TAC 14 kW Three-Phase Hybrid Solar Inverter SUN-14K-SG05LP3-EU-SM2

Description

14 kW three-phase low-voltage hybrid solar inverter with a maximum PV input power of 22.4 kW and a maximum connectable PV power of 28 kW. The inverter's rated AC input/output active power is 14 kW, while the maximum AC input/output apparent power is 15.4 kVA.

The maximum PV input voltage is 800 V, the MPPT operating range is 160–650 V, the rated PV input voltage is 550 V and the start-up voltage is 160 V.

The inverter is designed for three-phase systems. In off-grid mode, the peak power reaches twice the rated power for up to 10 seconds.

The IP65 protection rating provides protection against dust and water ingress. The operating temperature range is -40 to +60 °C, with power derating at temperatures above +45 °C.

The noise level is below 60 dB. The manufacturer's warranty is 10 years.

Specification

Order code: 12781
Product model number: SUN-14K-SG05LP3-EU-SM2
Number of phases: 3
Max. PV input operating current: 36 + 36 A
Max. PV input short-circuit current: 54 + 54 A
Rated AC input/output current: 21.3/20.3 A
Max. AC input/output current: 23.4/22.4 A
Max. continuous AC pass-through current: 70 A
Max. PV input power: 22,400 W
Max. connectable PV power: 28,000 W
Rated AC input/output active power: 14,000 W
Max. AC input/output apparent power: 15,400 VA
Peak power in off-grid mode: 2 × rated power, 10 s
Max. PV input voltage: 800 V
MPPT range: 160–650 V
Rated PV input voltage: 550 V
Start-up voltage: 160 V
Rated grid input/output frequency and range: 50 Hz / 45–55 Hz, 60 Hz / 55–65 Hz
Power factor: 0.8 leading to 0.8 lagging
IP protection rating: IP65
Operating temperature: -40 to +60 °C
Power derating: at temperatures above +45 °C
Dimensions: 456 × 750 × 268.5 mm
Product weight: 51.9 kg
Quantity per pack: 1 pc.
Brand: Deye
Noise level: <60 dB
Warranty: 10 years
