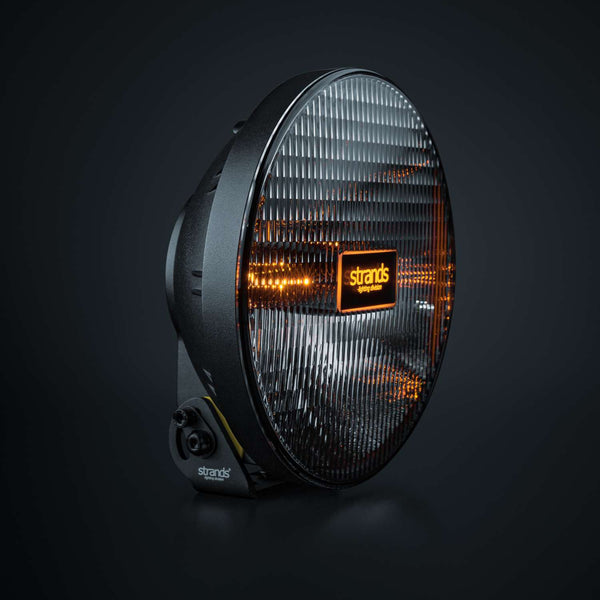

SIBERIA X DRIVING LIGHT 9″ LED High-Beam Headlight 10-32V DC 18,000 LM. Black

Voltage (V DC) 10-32V DC
Consumption (W) E-mode: 19W Xperience mode: 164W
Consumption-specific function (W)
White gauge light: 6.9w Amber gauge light: 7.1w
Functions High beam, Amber and white spotlight, Separate Hello function for spotlight, Logo light
Theoretical lumen 18,000
Actual lumen E mode: 1,430 Xperience mode: 1,350
1 LUX @ m
E mode: 319 Xperience mode: 881
Colour temperature (kelvin) 5700 thou
Beam pattern Long distance beam
Position light White and amber
Connection DT-4
Cable length (mm) 150
Colour body Black
Colour lens Main lens: transparent, External lens cap: Black and yellow flood versions Colour LEDs White and amber

Length (mm) 220.4
Depth (mm) 99.3
Height (mm) 212.6
Height including bracket (mm) 233,1
IP class 68/69 th
Operating temperature -30°C - +65°C
E-approved
Yes
In compliance with regulation
ECE R148(R7), R149(R112)
Reference number
20
EMC
ECE R10, CISPR25 3. Class
