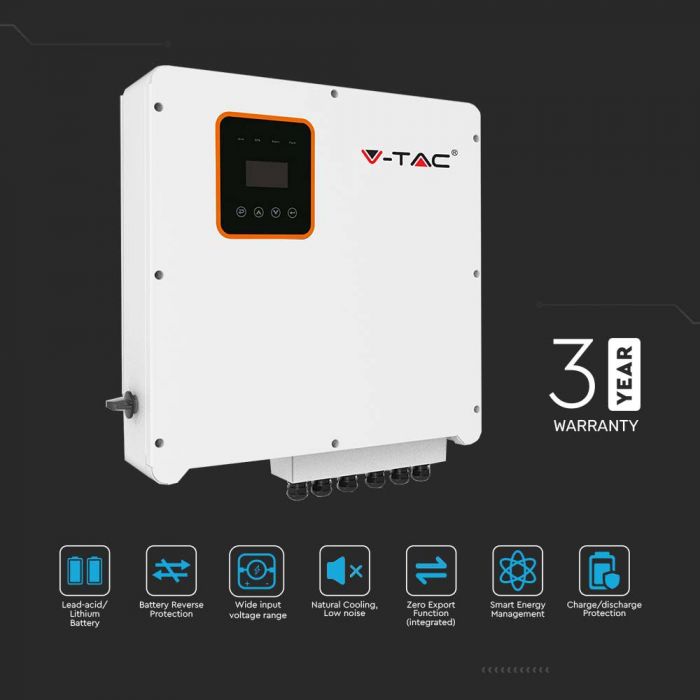

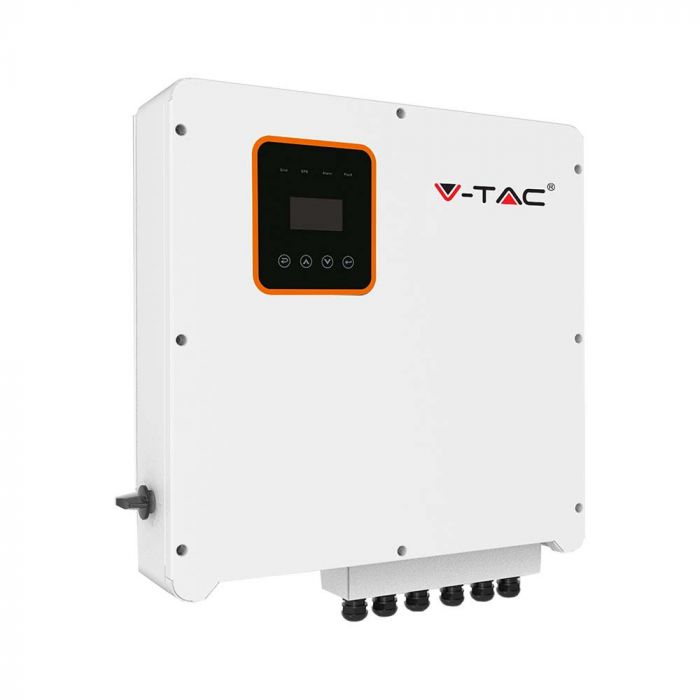

Description
- Easily check the status and settings with the built-in LCD display
- Designed to prevent electric bill surcharge from reverse current flow
- IP65 rated aluminium enclosure ensures protection from moisture and dust
- Safely operate within the extensive input voltage range designed to accommodate three phases whether on/off grid
- Natural heat dissipation means no fan is required resulting to low noise operation
- Ensures that the inverter functions at an appropriate rate and there's zero reverse feed going into the grid
Registered on the Distribution Network as V-TAC Exports Limited VT-6608303
|

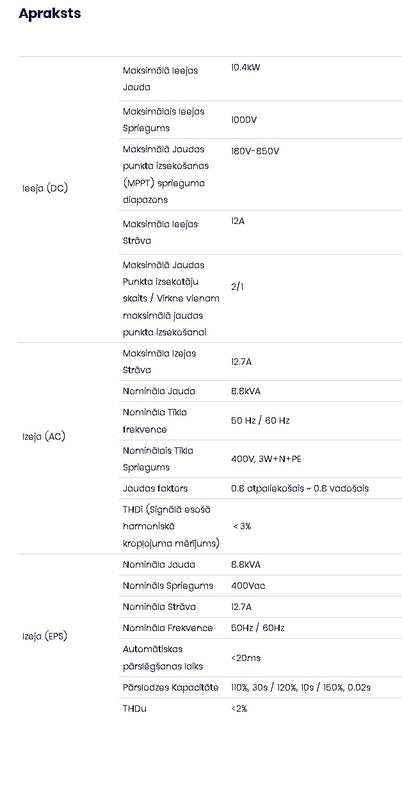

Input (DC)
|
Maximum Input Power |
10.4kW
|
|
Maximum Input Voltage |
1000V |
|
|
Maximum Power Point Tracking (MPPT) Voltage Range |
180V-850V
|
|
|
Maximum Input Current |
12A
|
|
|
Number of Maximum Power Point Trackers / String per Maximum Power Point Tracker |
2/1
|
|
|
Output (AC)
|
Maximum Output Current |
12.7A |
|
Rated Power |
8.8kVA |
|
|
Rated Mains Frequency |
50 Hz / 60 Hz |
|
|
Rated Mains Voltage |
400V, 3W+N+PE |
|
|
Power factor |
0.8 lagging ~ 0.8 leading |
|
|
THDi (Harmonic Distortion Distortion in Signal) |
＜3% |
|
|
Output (EPS) |
Rated Power |
8.8kVA |
|
Rated Voltage |
400Vac |
|
|
Rated Current |
12.7A |
|
|
Rated Frequency |
50Hz/60Hz |
|
|
Automatic switching time |
<20ms |
|
|
Overload Capacity |
110%, 30s/120%, 10s/150%, 0.02s |
|
|
THDu |
<2% |
|
|

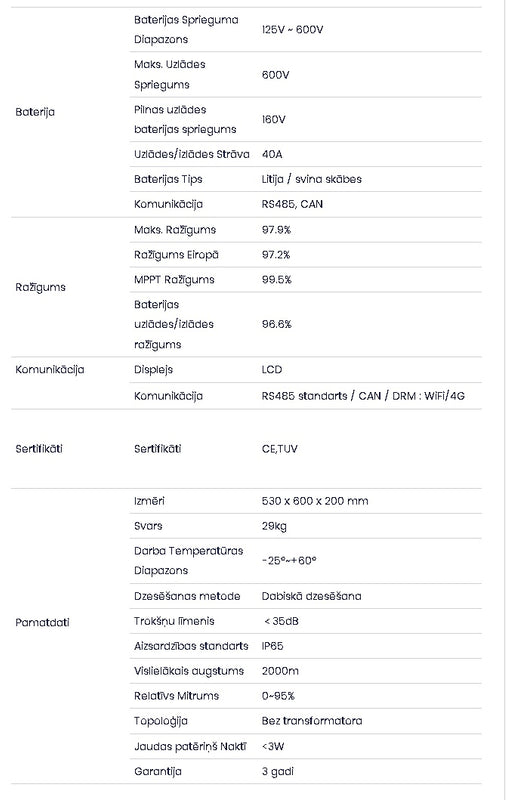

Battery |
Battery Voltage Range |
125V ~ 600V |
|
Max. Charging Voltage |
600V |
|
|
Full battery voltage |
160V |
|
|
Charging/Discharging Current |
40A |
|
|
Battery Type |
Lithium/lead acid |
|
|
Communication |
RS485, CAN |
|
|
Productivity
|
Max. Productivity |
97.9% |
|
Productivity in Europe |
97.2% |
|
|
MPPT Productivity |
99.5% |
|
|
Battery charge/discharge yield |
96.6% |
|
|
Communication
|
Display |
LCD |
|
Communication |
RS485 standard / CAN / DRM : WiFi/4G |
|
|
Certificates
|
Certificates |
CE,TUV |
|
Basic data
|

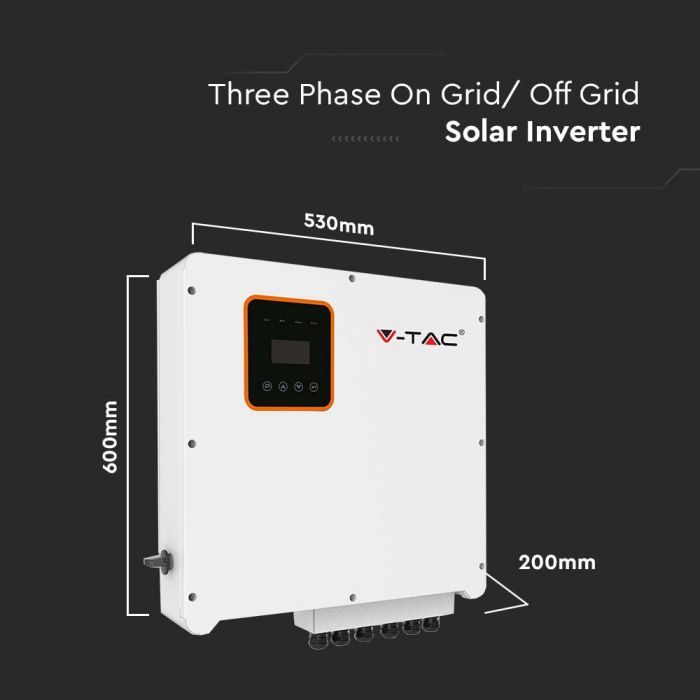

Dimensions |
530 x 600 x 200 mm |
|
Weight |
29kg |
|
|
Operating Temperature Range |
-25º~+60º |
|
|
Cooling method |
Natural cooling |
|
|
Noise level |
＜35dB |
|
|
Protection standard |
IP65 |
|
|
Maximum height |
2000m |
|
|
Relative Humidity |
0~95% |
|
|
Topology |
Without transformer |
|
|
Power consumption at night |
<3W |
|
|
Warranty |
3 years |
