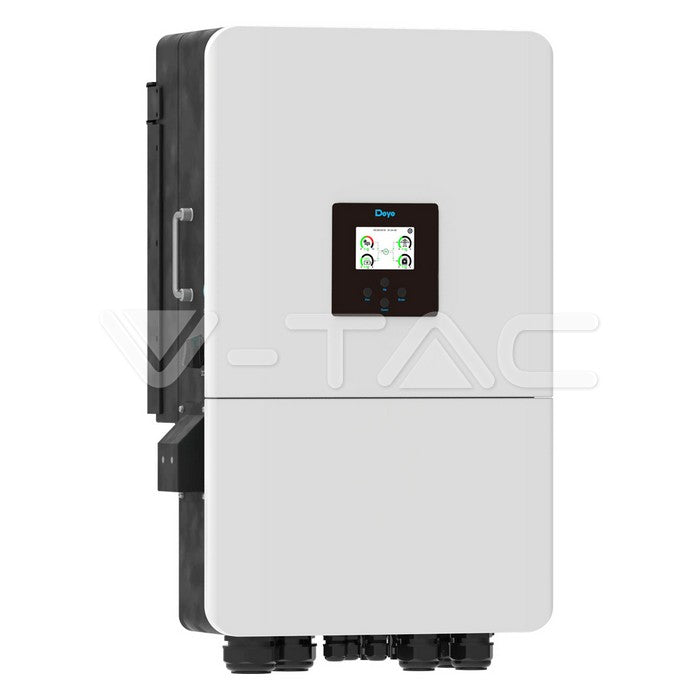

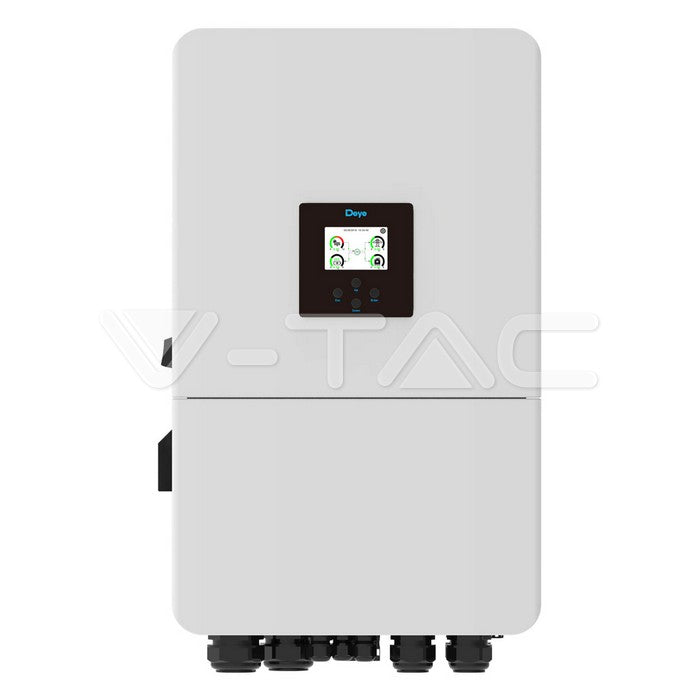

15kW Hybrid Solar Inverter Three Phase Low Voltage

SKU: 12184
Regular price€4.026,99 Sale price€3.020,00
Save €1.006,99

Tax included Shipping calculated at checkout

Description

Specifications
General information
Electrical data
Current
Max. Operating PV input current (A): 36+20 ;
Max. Input short-circuit current (A): 54+30;
Rated AC input/output current (A): 22.8/21.8;
Max. AC Input/Output Current (A): 22.8/21.8
Max. Continuous AC: 70A;
Power
Max. Input Power: 22500W;
Rated AC Input/Output Active Power: 15000W;
Max. AC input/output apparent power (VA) 16500;
Voltage
Rated PV input voltage: 550V;
MPPT range: 160-650V;
Rated input/output voltage/range (V) 220/380V, 230/400V 0.85Un-1.1Un;
Start-up voltage: 160V;
Frequency
Rated input/output grid frequency/range (Hz) 50/45-55, 60/55-65
Power factor 0.8 leading to 0.8 lag
Capabilities
IP rating IP65
Operating conditions `-40 to +60℃, >45 ℃ Reduction
Dimensions
Size 456 × 750 × 268.5 mm (excluding connectors and brackets)
Product data
Order code 12184
Product code SUN-15K-SG05LP3-EU-SM2
Product weight 50.6 kg
Products per case 1
Brand V-TAC
Warranty5 years/10 years
