Description
- Allows connecting arrays with different solar azimuth & tilt angles, string lengths, modules
- 160% DC Input Oversizing to accommodate maximum power possible
- Performs data-based analysis on the I-V curve of PV modules
- Protection against electrical surges and spikes. Prevents the spread of overvoltages in the electrical installations and protects the loads
- Easily detects grid-related faults
- With the integrated Arc-Fault Circuit Interrupter (AFCI), the current is interrupted to extinguish an electric arc when it is detected in the PV array
|

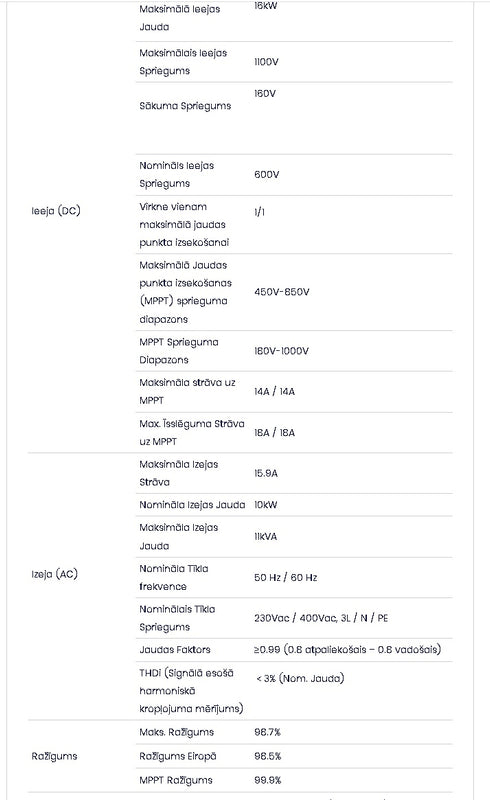

Input (DC)
|
Maximum Input Power |
16kW
|
|
Maximum Input Voltage |
1100V |
|
|
Starting Voltage
|
160V
|
|
|
Rated Input Voltage |
600V |
|
|
Series for tracking one maximum power point |
1/1
|
|
|
Maximum Power Point Tracking (MPPT) voltage range |
450V-850V |
|
|
MPPT Voltage Range |
180V-1000V |
|
|
Maximum current on MPPT |
14A / 14A |
|
|
Max. Short-circuit Current on MPPT |
18A / 18A |
|
|
Output (AC)
|
Max Output Current |
15.9A |
|
Rated Output Power |
10kW |
|
|
Maximum Output Power |
11kVA |
|
|
Rated Mains Frequency |
50 Hz / 60 Hz |
|
|
Rated Mains Voltage |
230Vac / 400Vac, 3L/N/PE |
|
|
Power Factor |
≥0.99 (0.8 lagging - 0.8 leading) |
|
|
THDi (Harmonic Distortion Distortion in Signal) |
＜3% (Nom. Power)
|
|
|
Productivity
|
Max. Productivity |
98.7% |
|
Productivity in Europe |
98.5% |
|
|
MPPT Productivity |
99.9% |
|
|

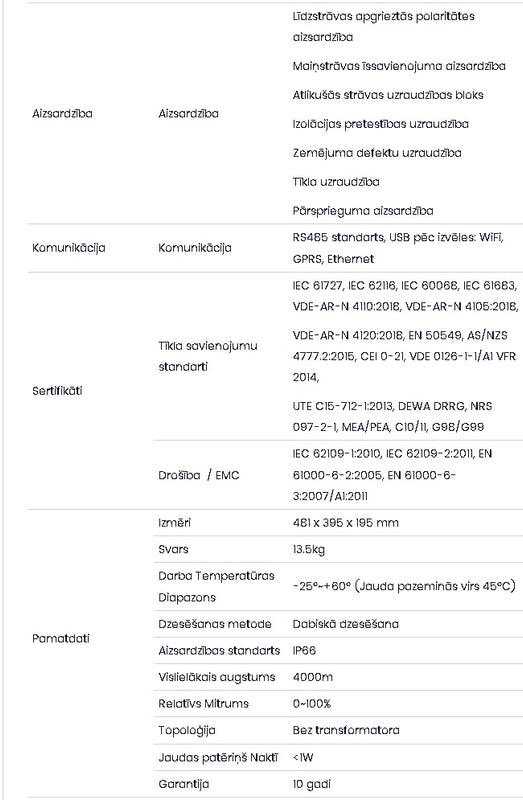

Protection |
Protection |
DC reverse polarity protection AC short-circuit protection Residual current monitoring unit Insulation resistance monitoring Earth fault monitoring Network monitoring Surge protection |
|
Communication |
Communication |
RS485 standard, USB optional: WiFi, GPRS, Ethernet |
|
Certificates
|
Network connection standards |
IEC 61727, IEC 62116, IEC 60068, IEC 61683, VDE-AR-N 4110:2018, VDE-AR-N 4105:2018, VDE-AR-N 4120:2018, EN 50549, AS/NZS 4777.2:2015, CEI 0-21, VDE 0126-1-1/A1 VFR 2014, UTE C15-712-1:2013, DEWA DRRG, NRS 097-2-1, MEA/PEA, C10/11, G98/G99 |
|
Safety / EMC |
IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 |
|
|
Basic data
|
Dimensions |
481 x 395 x 195 mm |
|
Weight |
13.5kg |
|
|
Operating Temperature Range |
-25º~+60º (Power drops above 45ºC) |
|
|
Cooling Method |
Natural cooling |
|
|

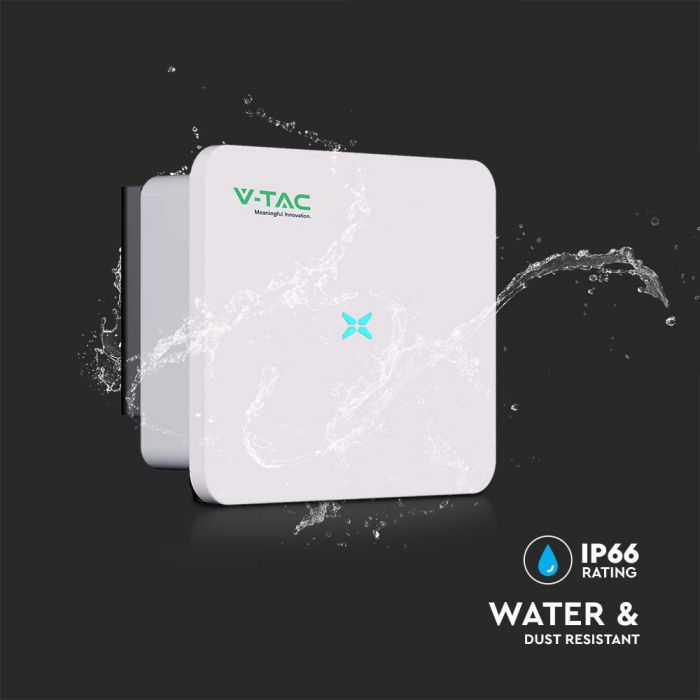

Protection standard |
IP66 |
|
|
Maximum height |
4000m |
|
|
Relative Humidity |
0~100% |
|
|
Topology |
Without transformer |
|
|
Power consumption at night |
<1W |
|
|

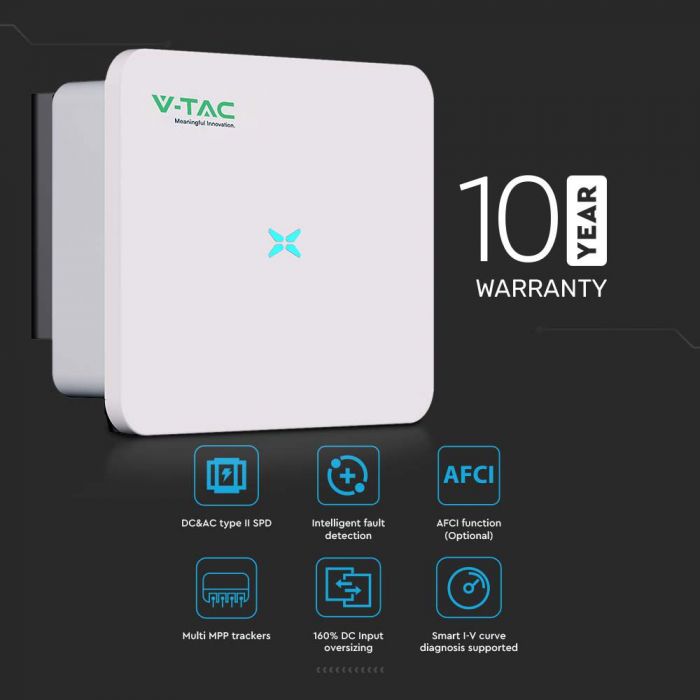

Warranty |
10 years |
