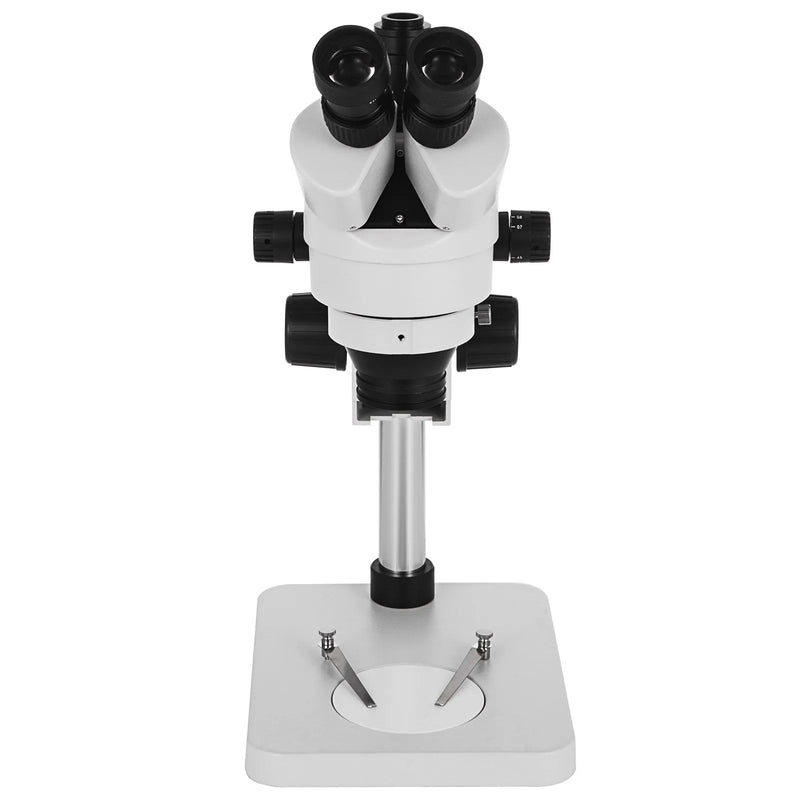

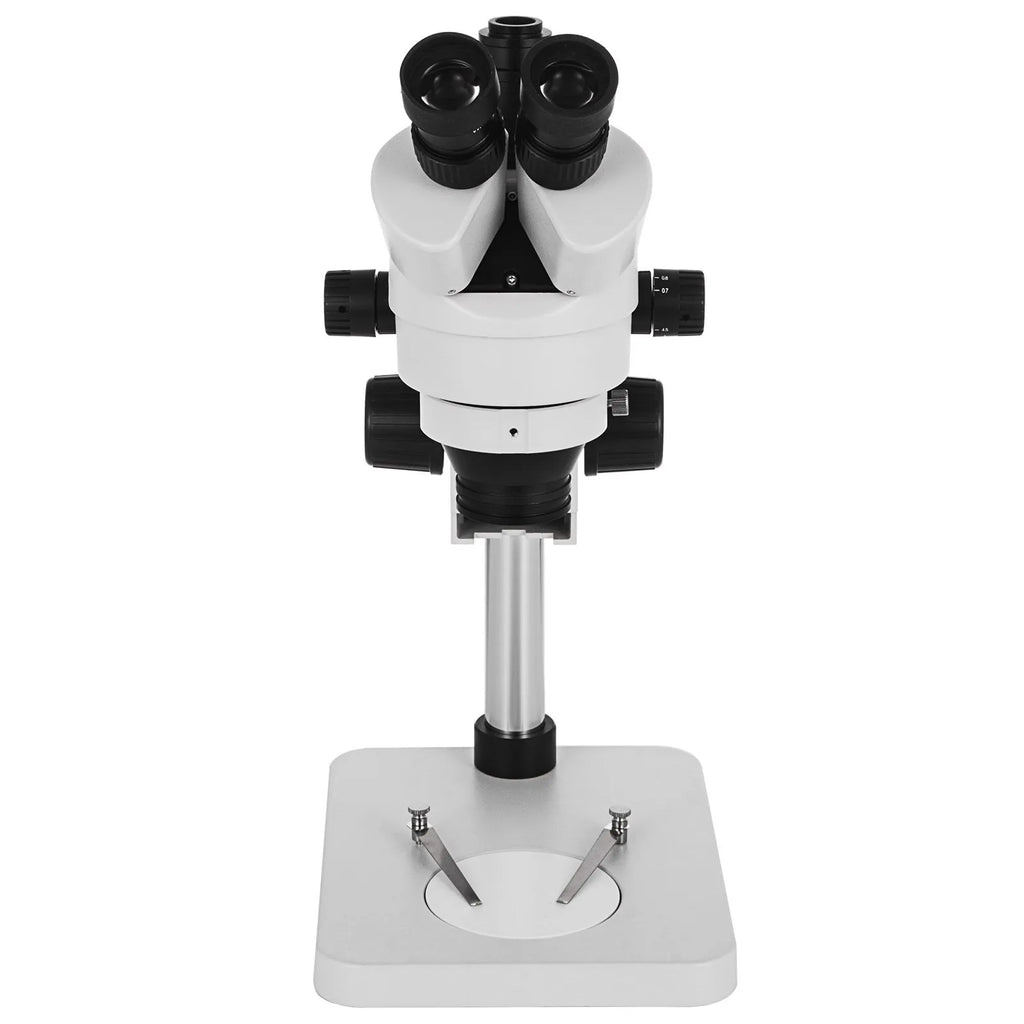

VEVOR Trinocular Stereomicroscope with Column Stand, 3.5–90× Magnification, 360° Rotating Head

Features and Details

High quality: The stereomicroscope provides 3.5–90× magnification and is equipped with 0.5× and 2.0× objectives, as well as WF10×/20 eyepieces. The optical glass lenses provide a sharp and clear three-dimensional image with excellent contrast and vivid colors.

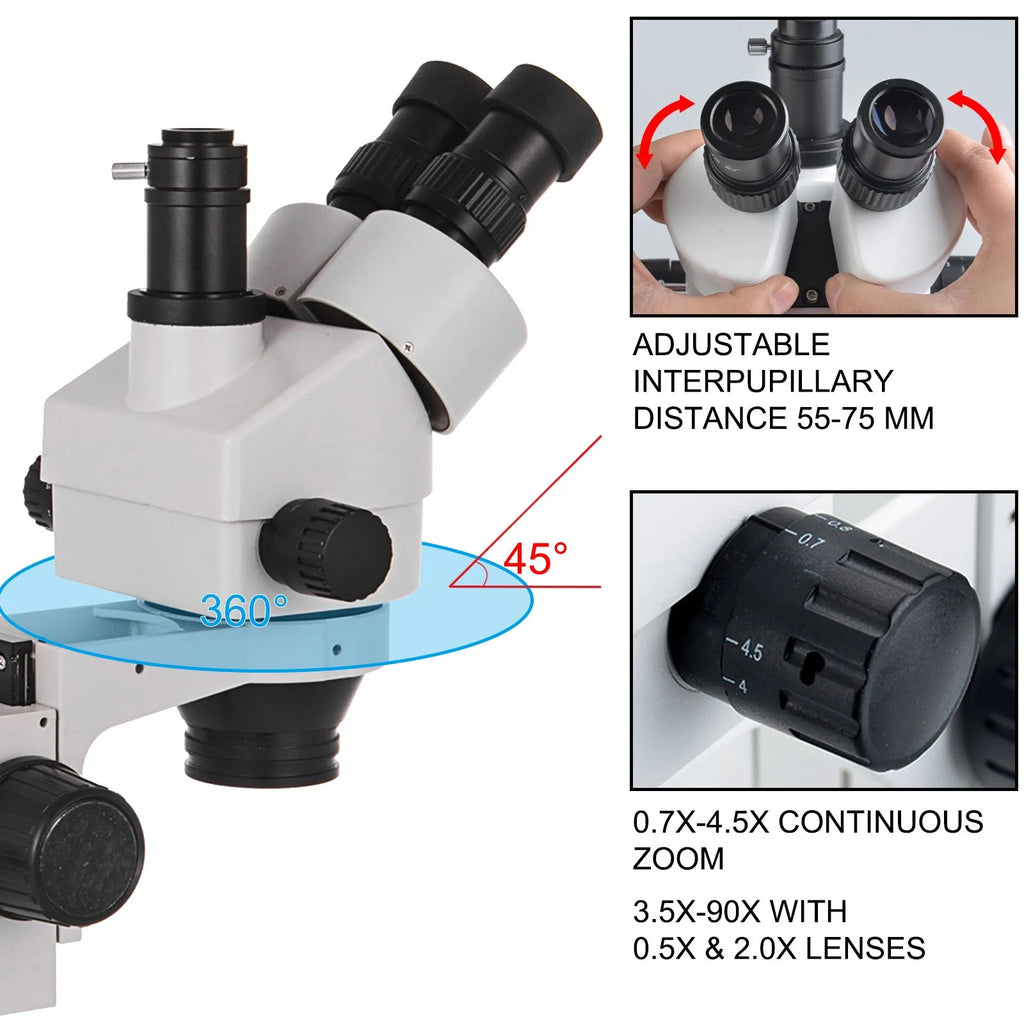

Versatile adjustments: The digital microscope features a 45° tilting and 360° rotating head with adjustable interpupillary distance and diopter. Fine and coarse focus knobs allow you to adjust the microscope for various tasks.

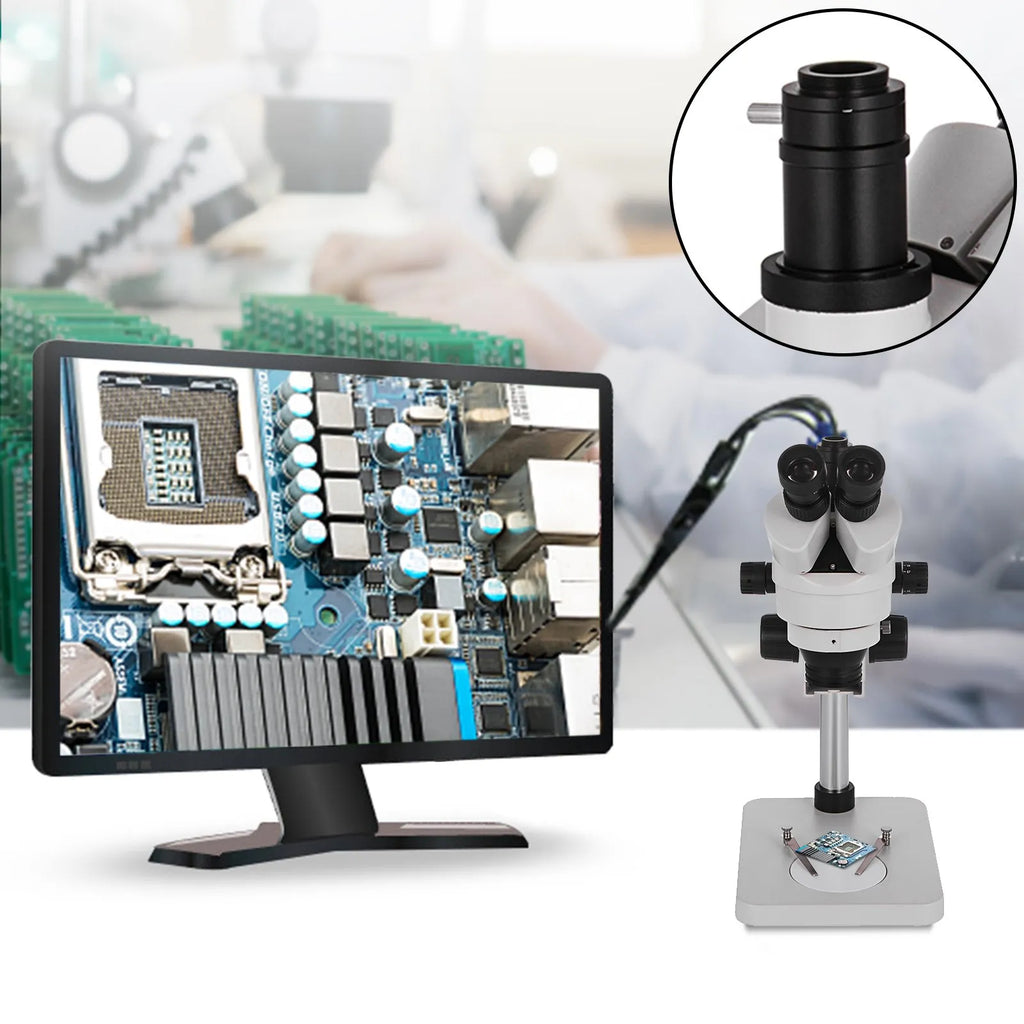

Trinocular port: The microscope is equipped with an upper extension port for connecting a camera or display, allowing multiple users to view the sample image or a live feed on a larger screen at the same time.

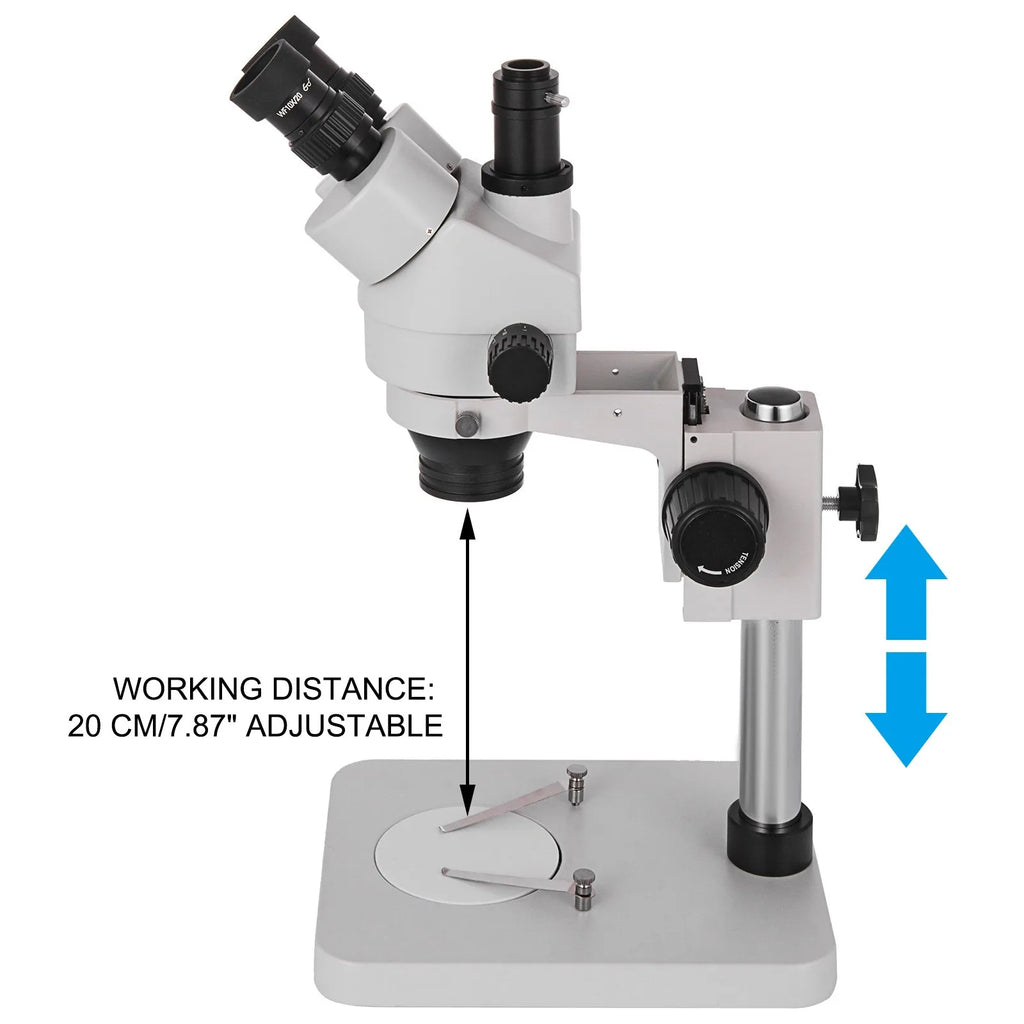

Long working distance: This trinocular stereomicroscope with a stable column stand provides a working distance of up to 200 mm and a 20 mm field of view for precise alignment and extended observations.

Wide range of applications: The stereo zoom microscope is suitable for observing insects, plants, rocks, stamps, jewelry, solder joints, and microelectronic components. Ideal for watchmakers, jewelers, engravers, mold makers, philatelists, and students.

3.5–90× Trinocular Stereomicroscope

This professional trinocular stereomicroscope is designed to meet a variety of microscopy needs. With 0.5× and 2.0× objectives (included), it offers a magnification range of 3.5–90×. The digital microscope features adjustable working distance, interpupillary distance, and diopter. It is widely used for printed circuit board (PCB) soldering repairs, insect observation, jewelry identification, and more.

High quality

Diverse Regulation

Trinocular port

Long working distance

VEVOR is a leading brand specializing in the manufacture of equipment and tools. With thousands of motivated employees, VEVOR is committed to providing customers with durable tools and equipment at exceptionally attractive prices. Currently, VEVOR operates in more than 200 countries and serves over 10 million customers worldwide.

Why Choose VEVOR?
Top quality
Exceptionally low prices
Fast and secure delivery
30-day free returns

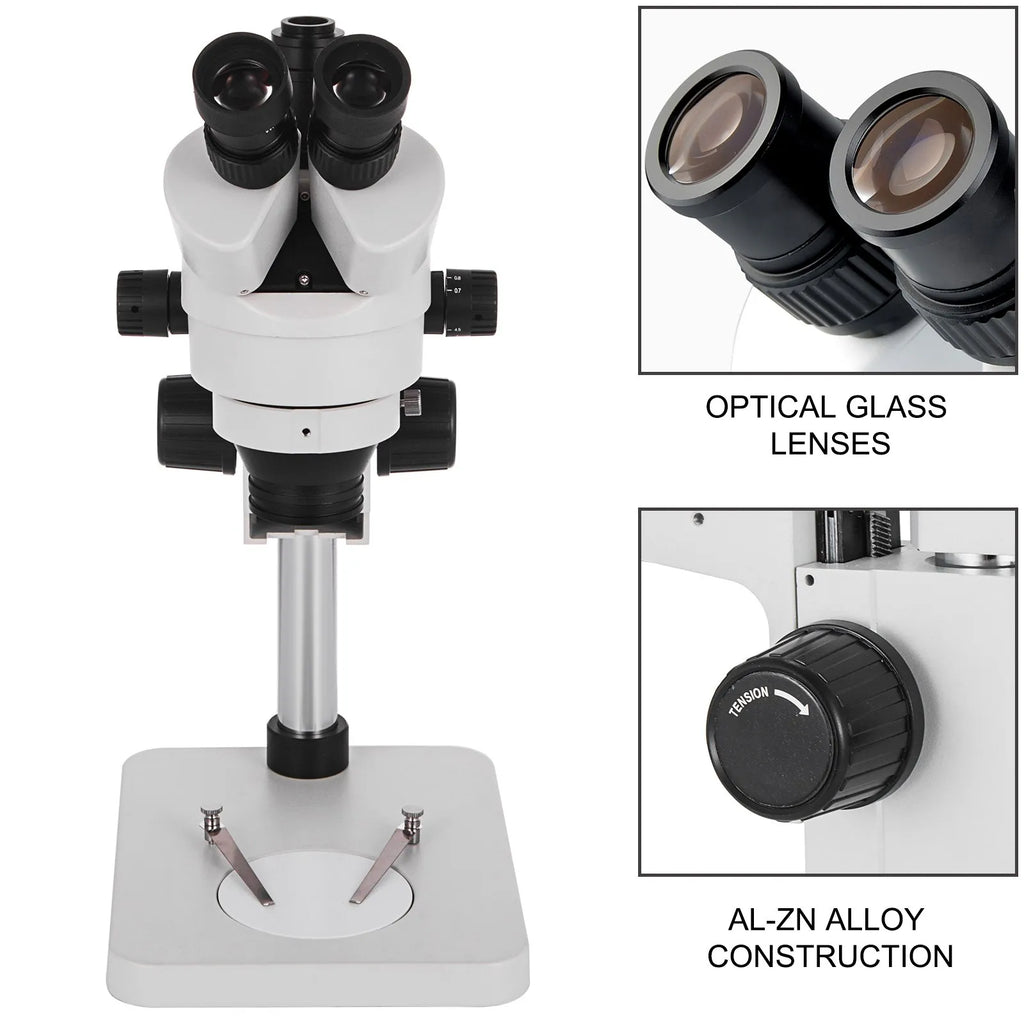

Al-Zn Alloy and Optical Lenses

The stereomicroscope is made of a durable aluminum-zinc (Al-Zn) alloy with high strength and is equipped with high-quality optical glass lenses that provide a high-resolution image.

Binocular Stereoscopic Imaging

The microscope is equipped with binocular stereoscopic imaging technology, which provides a continuous 3.5–90× zoom range and an adjustable interpupillary distance.

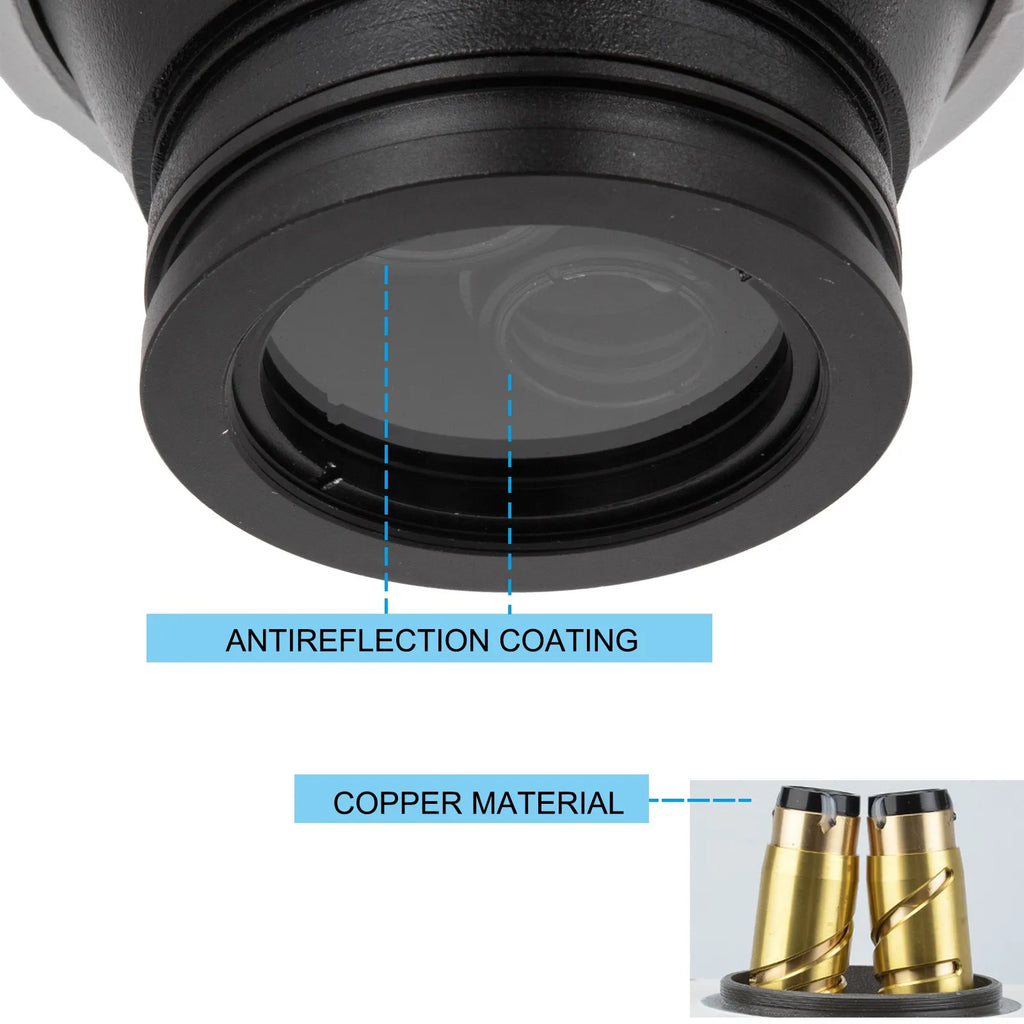

Wide-aperture lens element

The lens elements are made of pure copper and coated with an anti-reflective layer, ensuring a wide aperture and a bright field of view.

Camera Connection Support

An expansion interface is located at the top for connecting a camera, computer, or LCD screen, providing a wider field of view and more detailed monitoring.

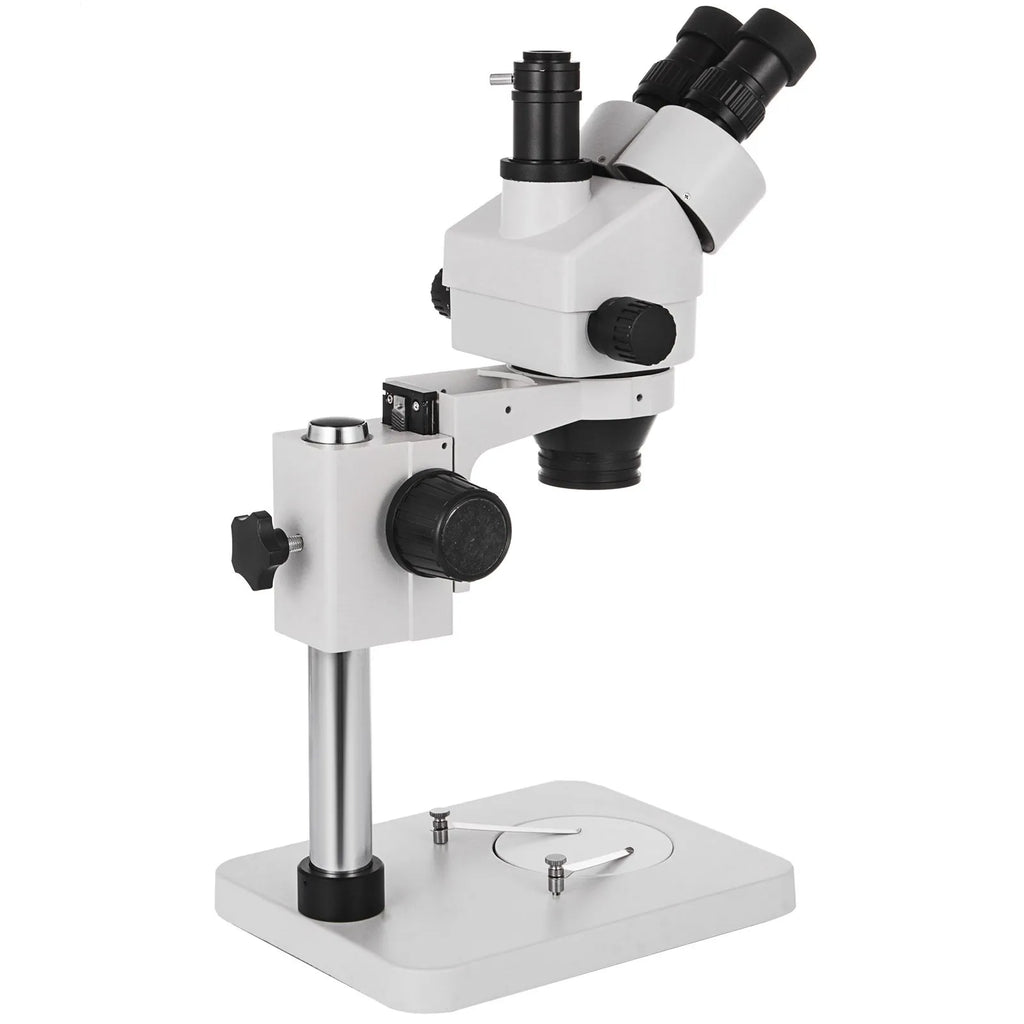

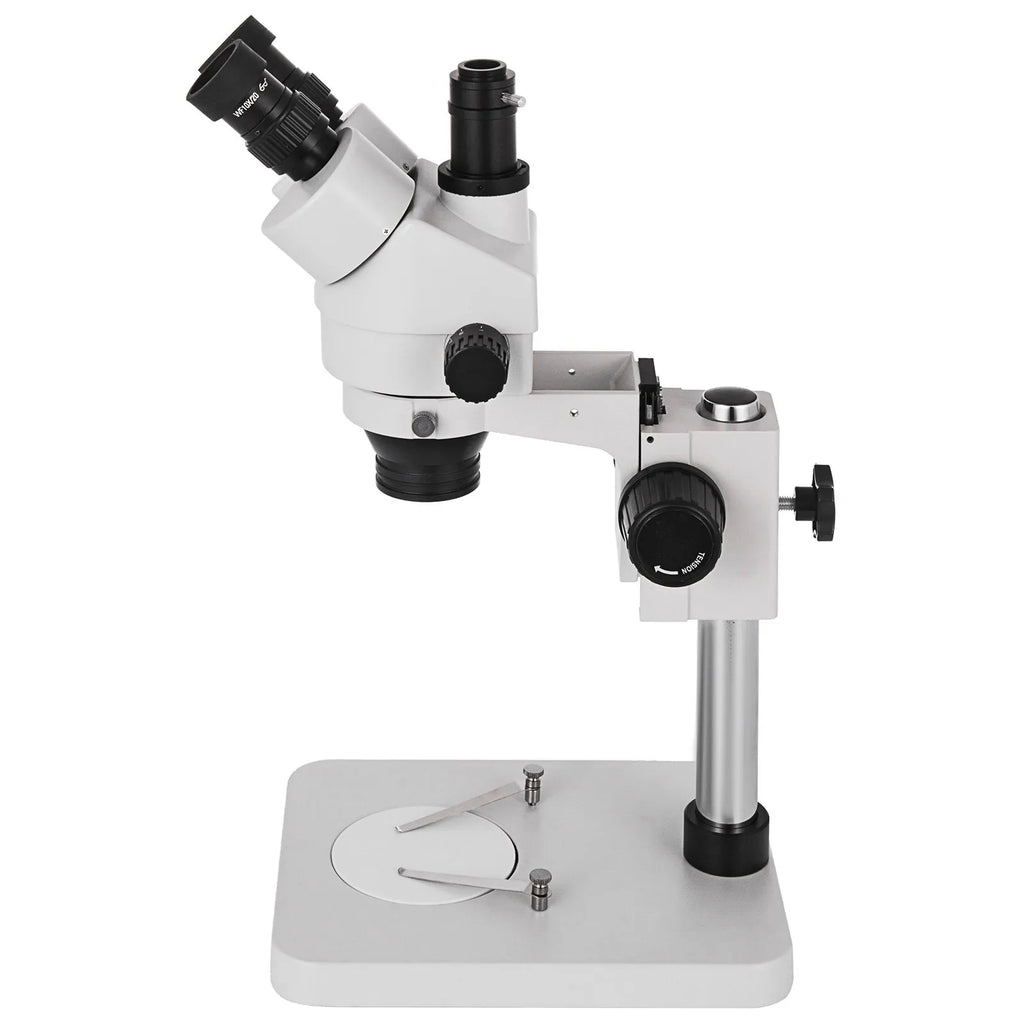

Adjustable column stand

The height of this digital microscope stand is adjustable, with a working distance of 200 mm, providing variable magnification to suit various needs.

Wide range of applications

This digital microscope kit is widely used in electrical engineering, insect observation, scientific research, jewelry identification, and the textile industry.

Specifications

Material: aluminum-zinc (Al-Zn) steel + optical lenses

Trinocular head: rotates 360° and tilts 45°

Eyepiece port diameter: 30 mm

Eyepieces: WF10×/20 mm

Magnification range: 3.5×–90×

Lens: 0.7×–4.5×

Additional lenses: 0.5× and 2.0×

Diopter adjustment: ±5 dpt

Spacing between characters: 55–75 mm

Working distance: 200 mm (adjustable)

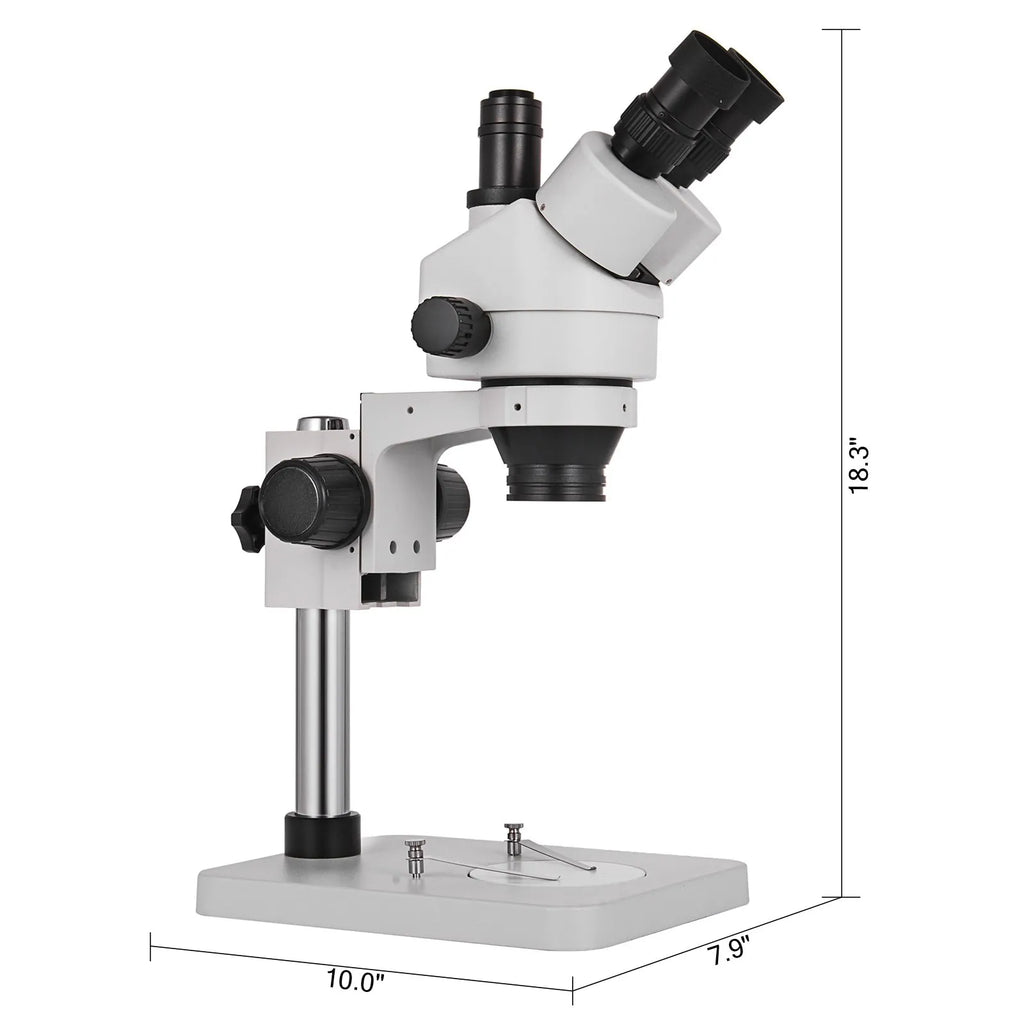

Stand dimensions: 250 × 200 × 270 mm

Product dimensions: 254 × 200 × 465 mm

Weight: 6 kg

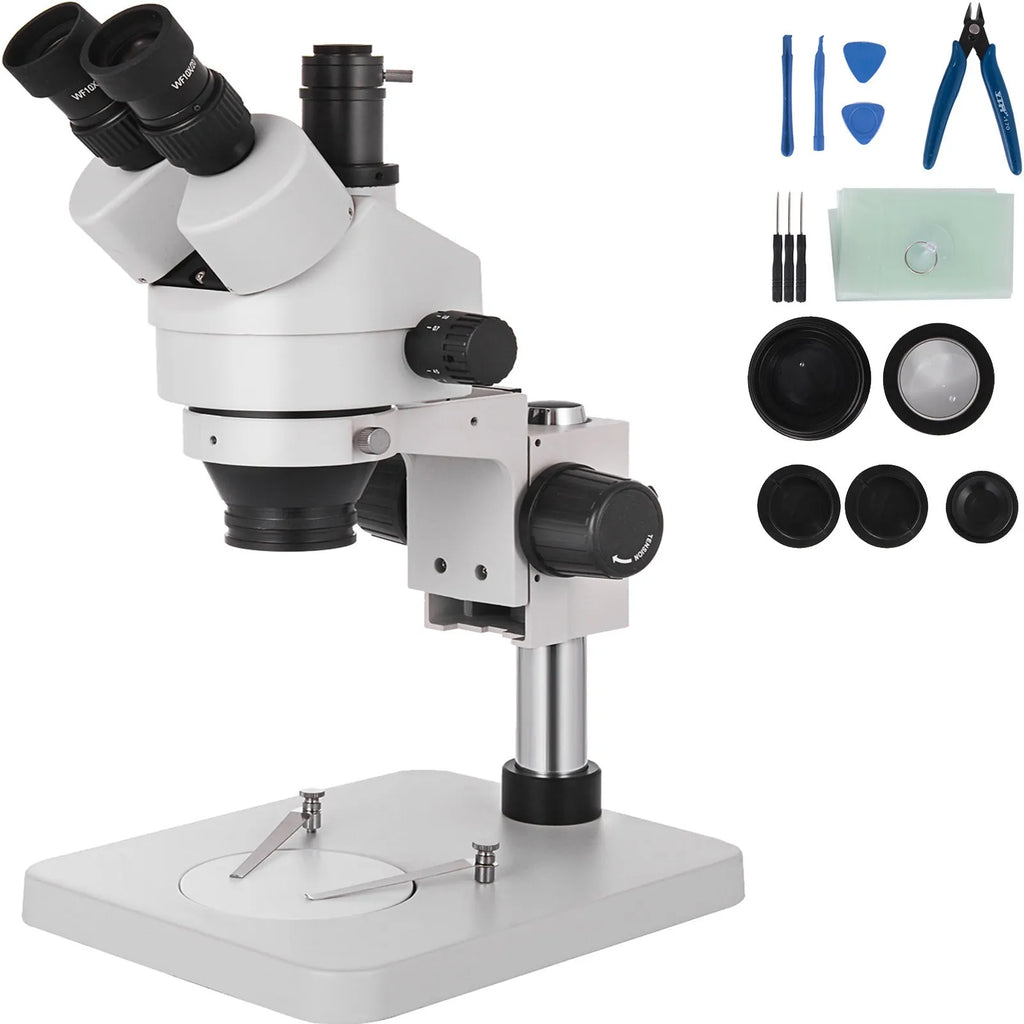

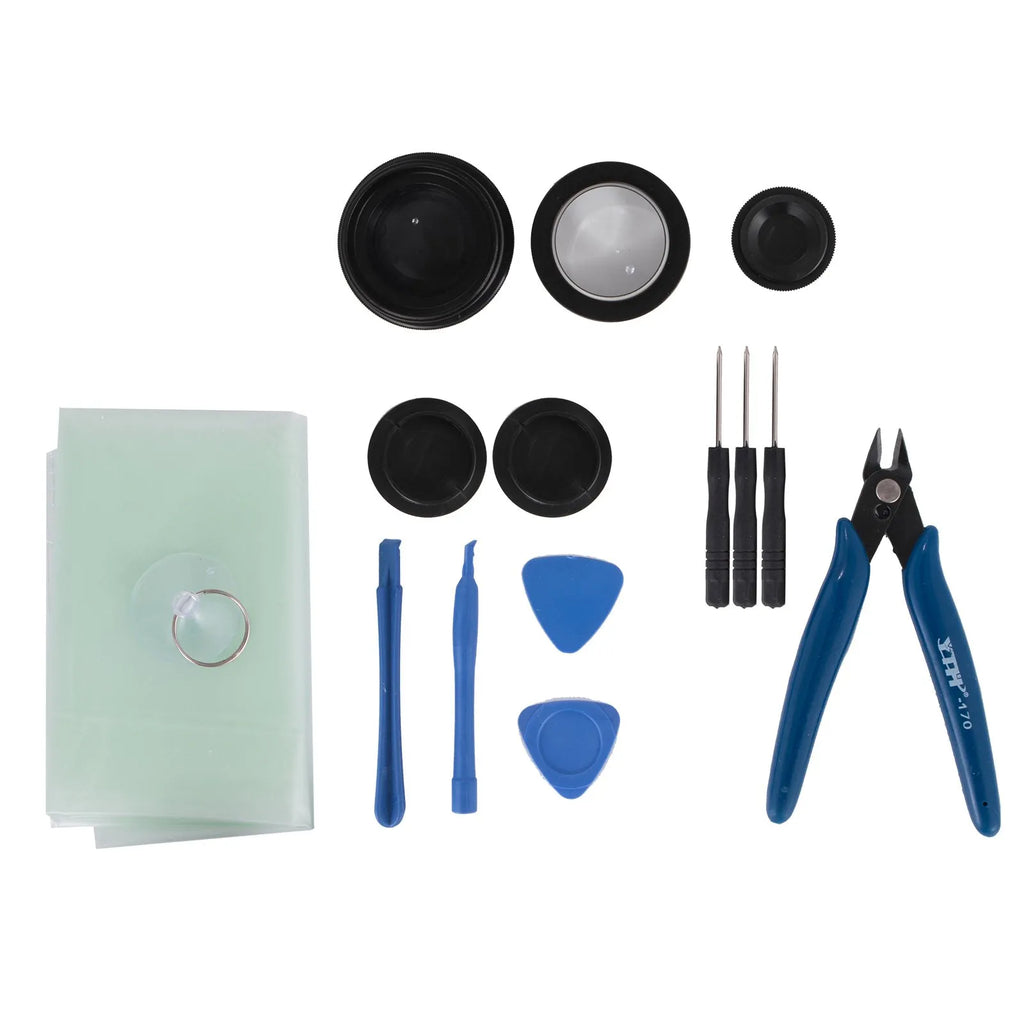

Package Contents

1 × stereomicroscope
2 × 10× eyepieces
1 × column-type bench stand
1 × focusing mechanism
1 × 0.5× Barlow lens
1 × 2,0× Barlow lens
1 × eyepiece repair kit
1 × wrench
1 × dust-proof cover
1 × pliers
4 × protective eyepiece caps
1 × user manual
