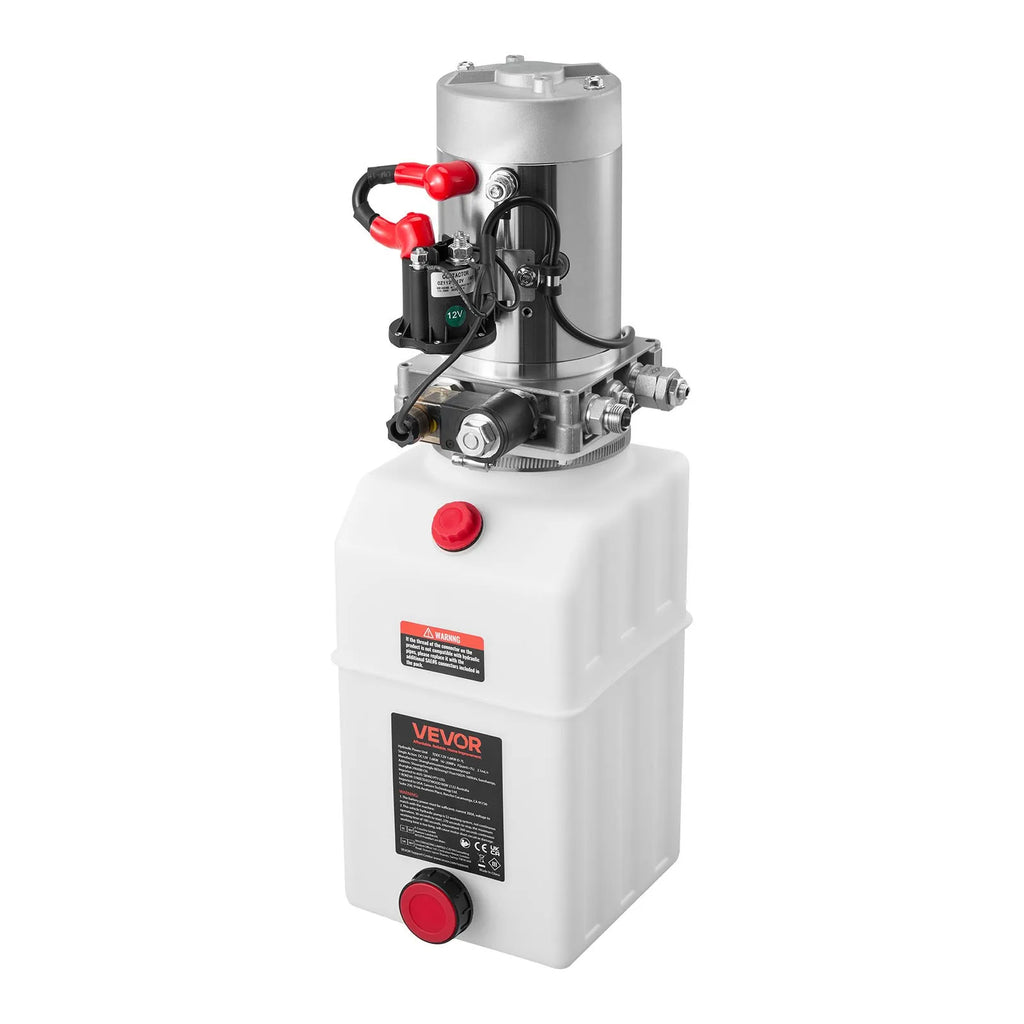

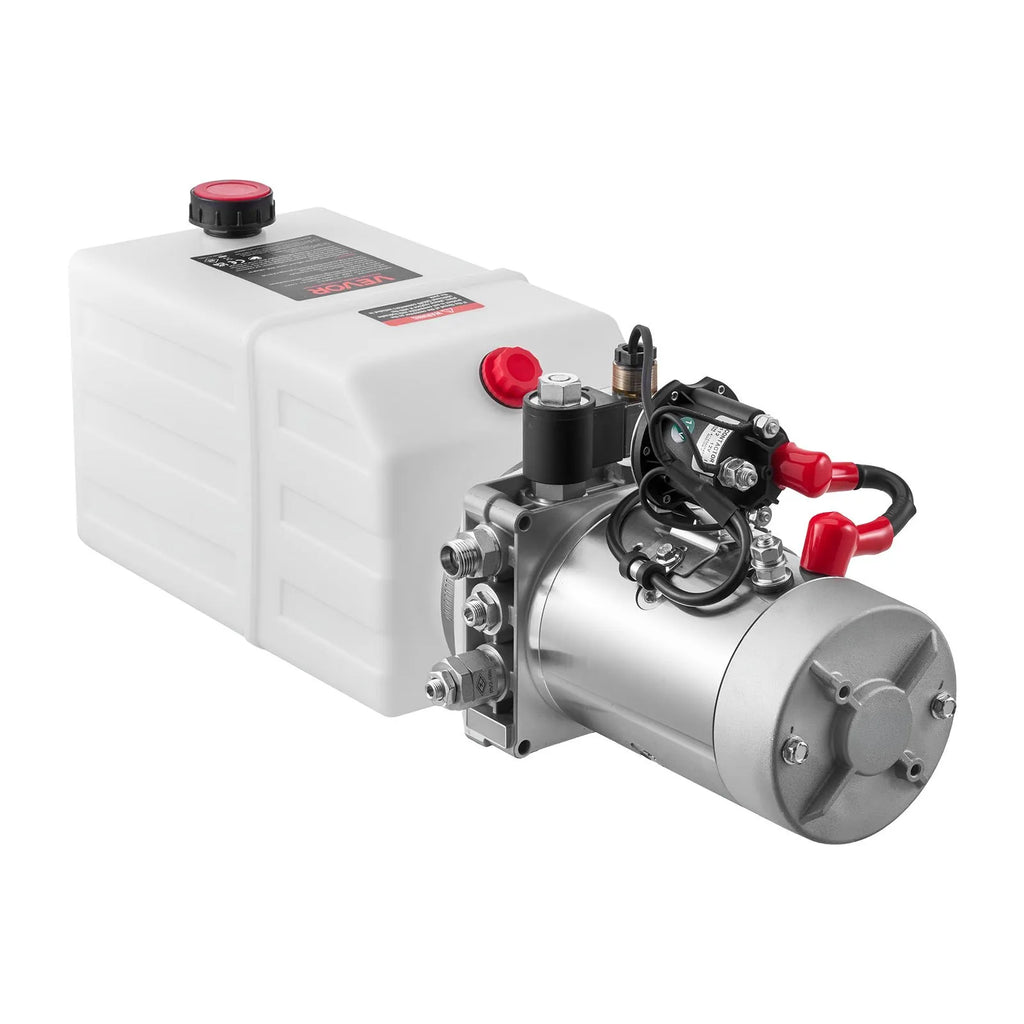

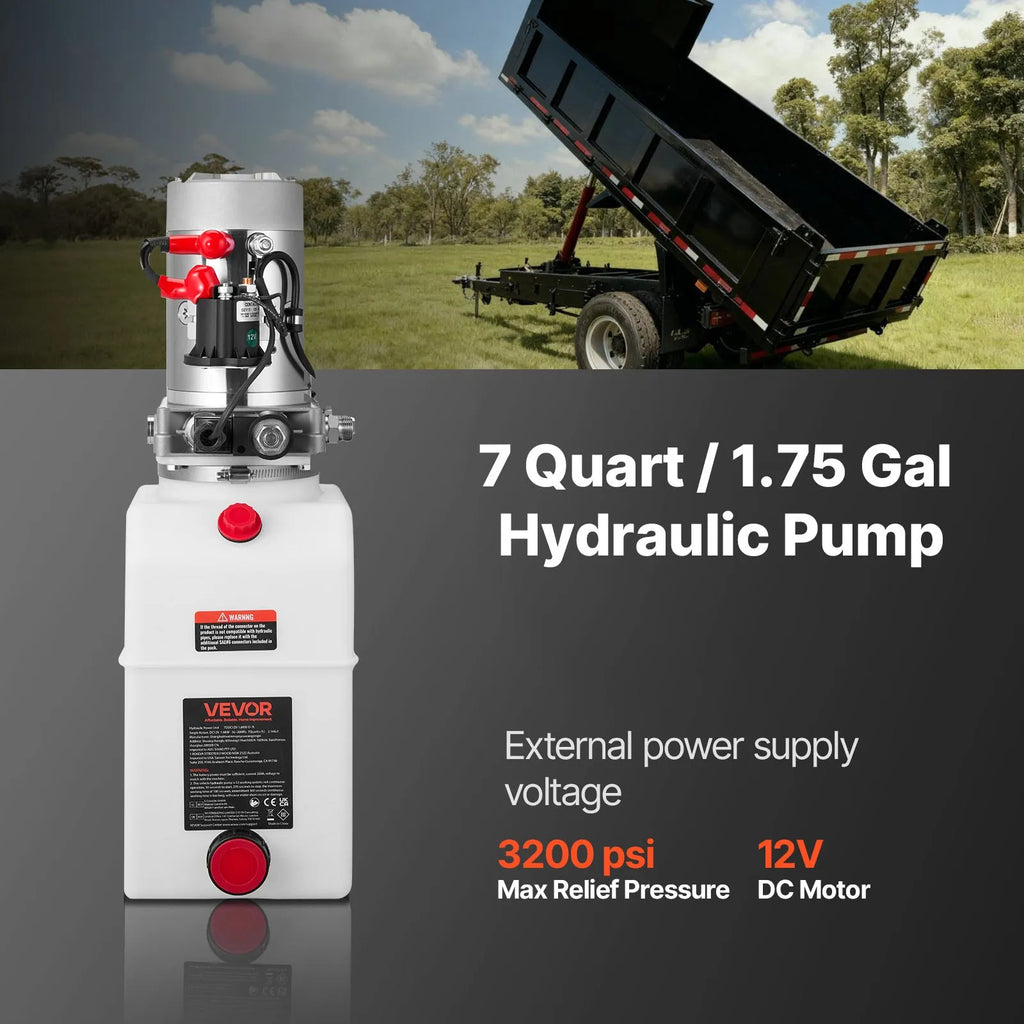

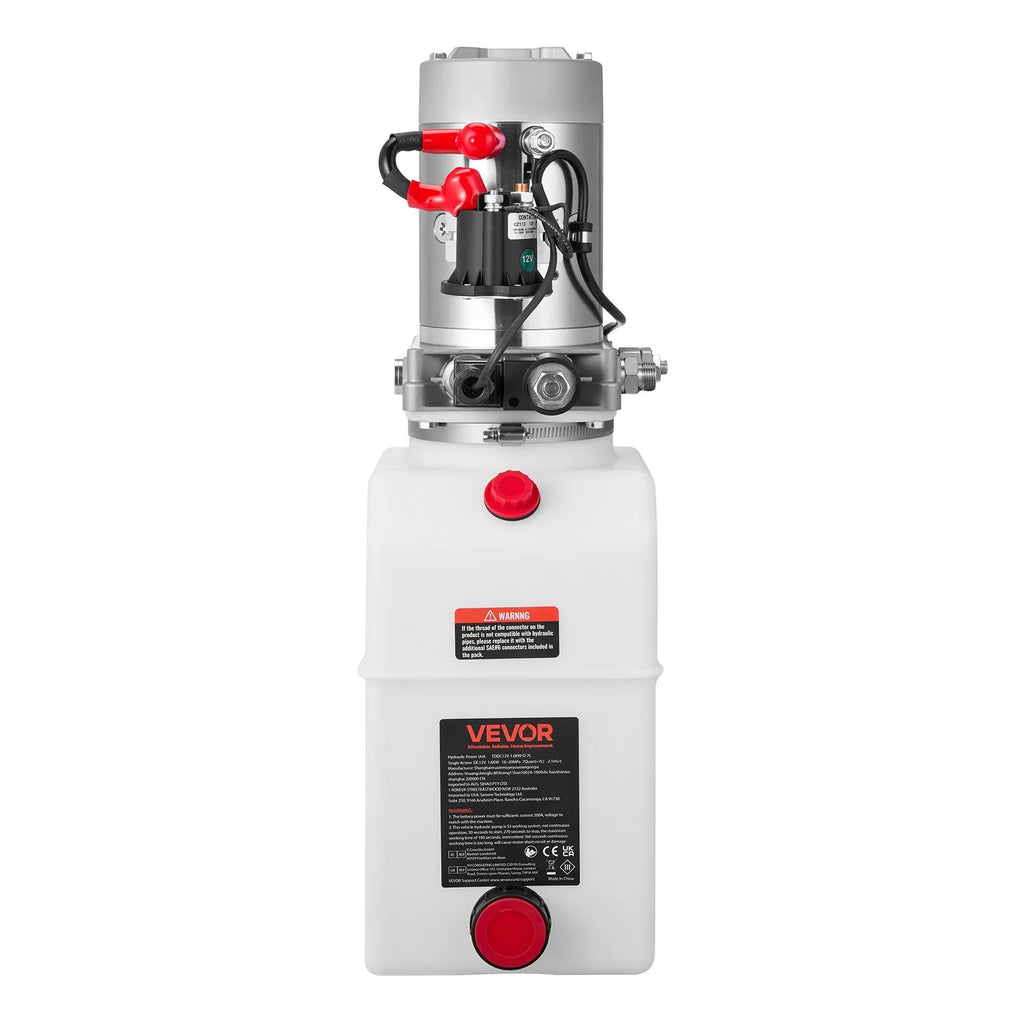

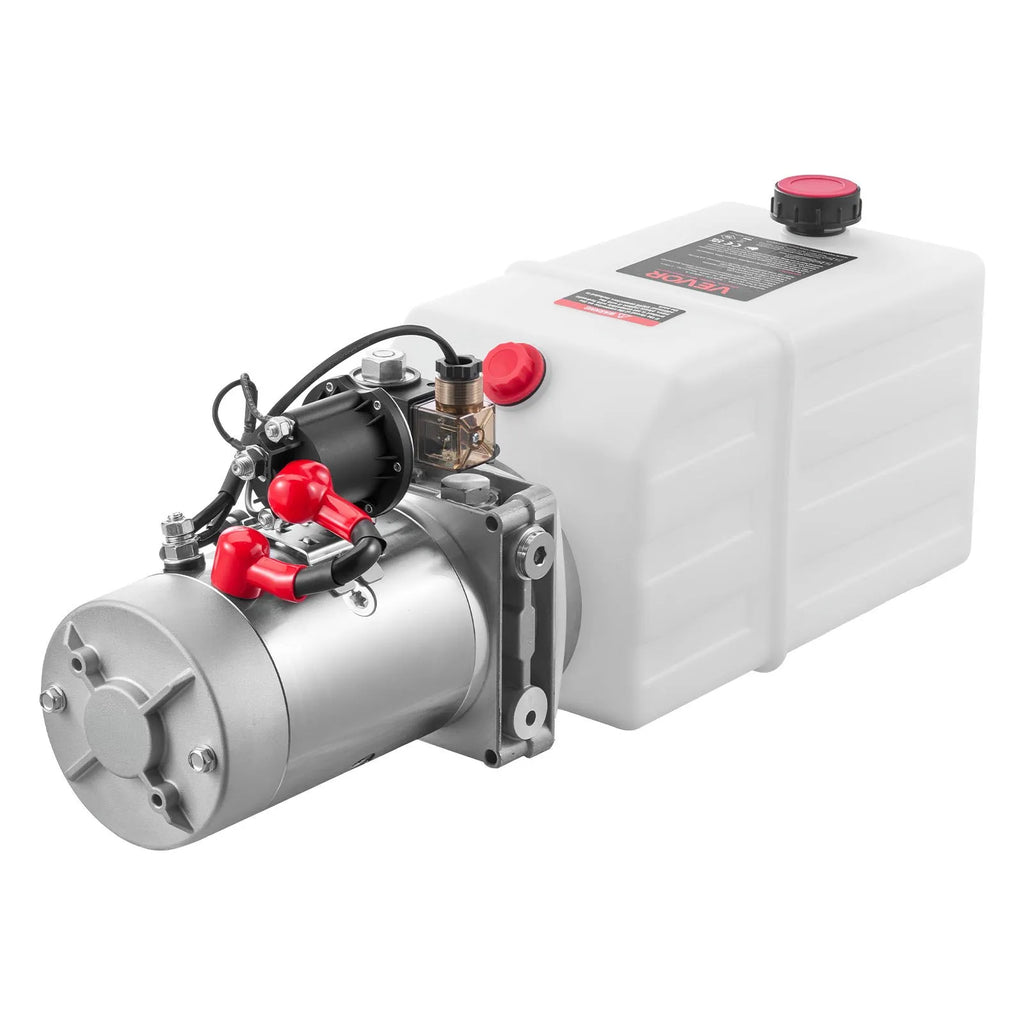

VEVOR 7-liter hydraulic power unit, single-direction dump trailer pump, maximum pressure 22 MPa, flow rate 3.4 l/min, 12 V DC hydraulic pump with metal reservoir for lifting trailers and vehicles

Features and Details

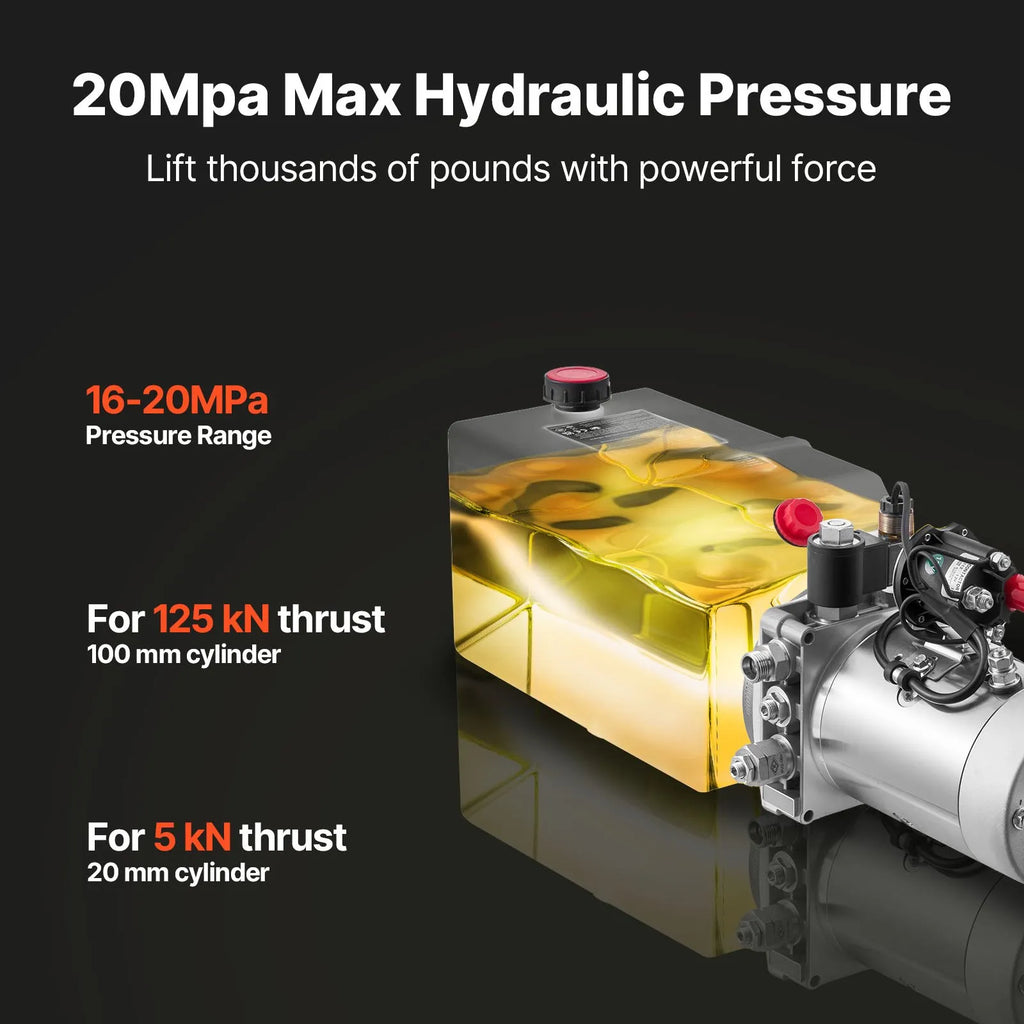

Perceived power: This 12 V DC, 1.6 kW hydraulic power unit provides a flow rate of 3.4 l/min with a 6.6 l reservoir, a working pressure of 16–20 MPa, and a maximum pressure of up to 22 MPa, ensuring stable and reliable power for lifting heavy loads.

Faster ascent, smooth descent: This single-acting hydraulic pump ensures reliable lifting and lowering using gravity. The built-in safety valve automatically relieves excess pressure, ensuring stable and smooth operation.

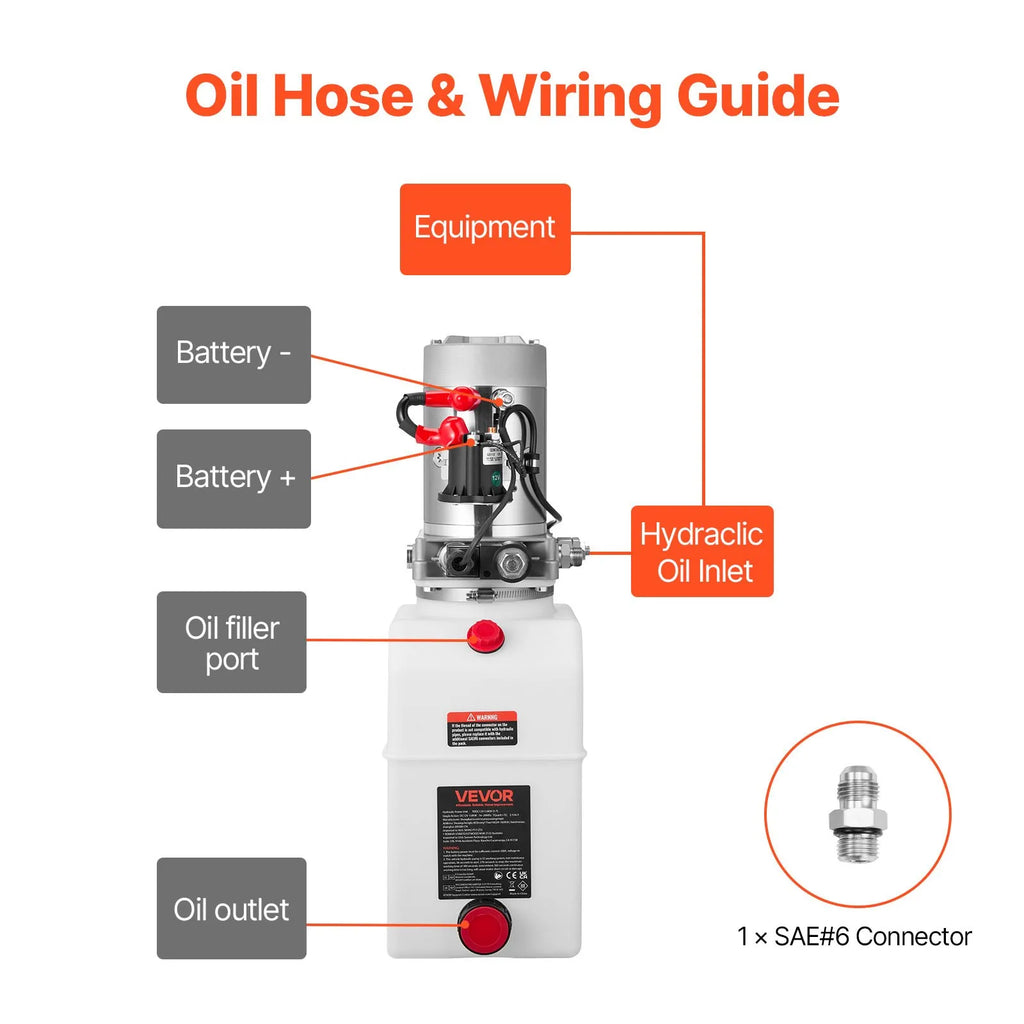

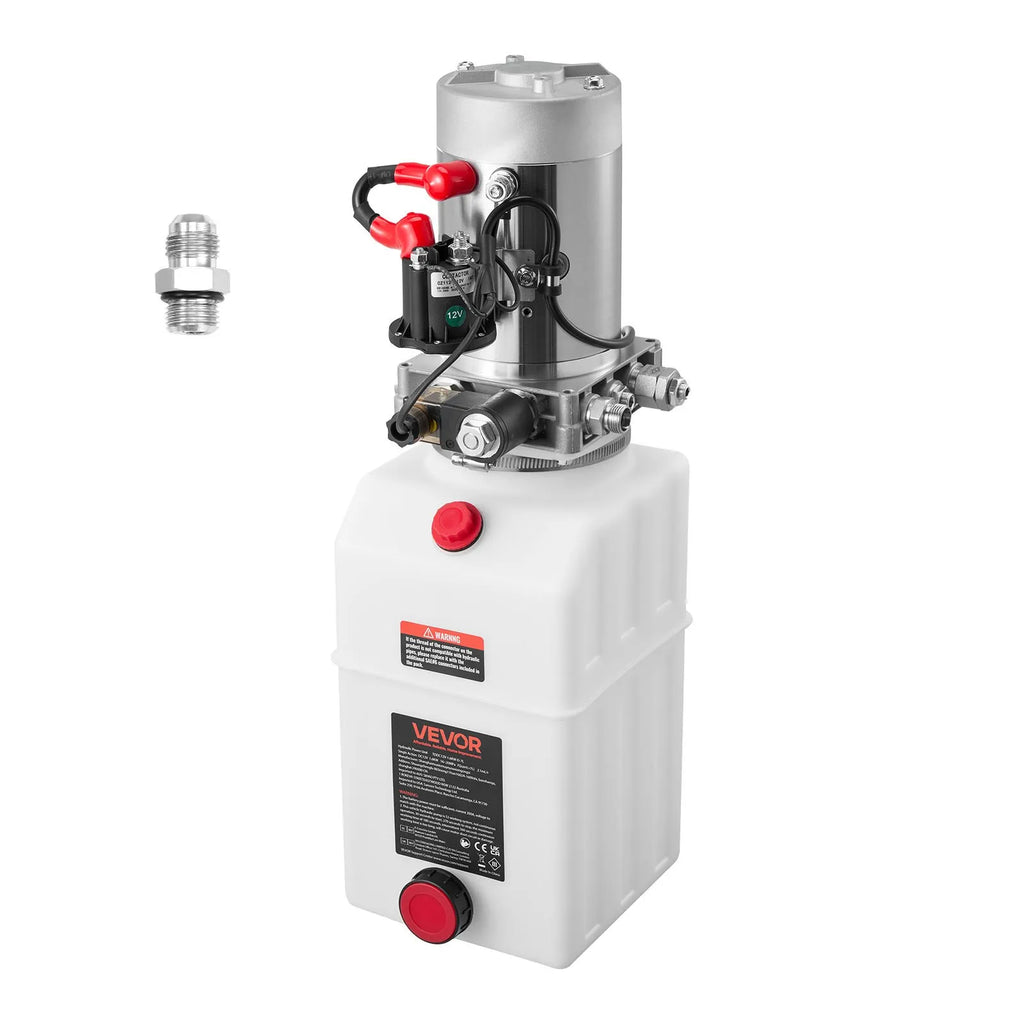

Easy installation: The hydraulic pump for this dump trailer is delivered fully assembled. All that is required is to fill it with hydraulic oil and connect the power lines and hoses. SAE #6 fittings allow for quick connection of standard hydraulic lines.

Durable and reliable: The hydraulic pump on the dump trailer is hermetically sealed to prevent leaks, and the durable plastic tank can withstand daily impacts, ensuring long-term use.

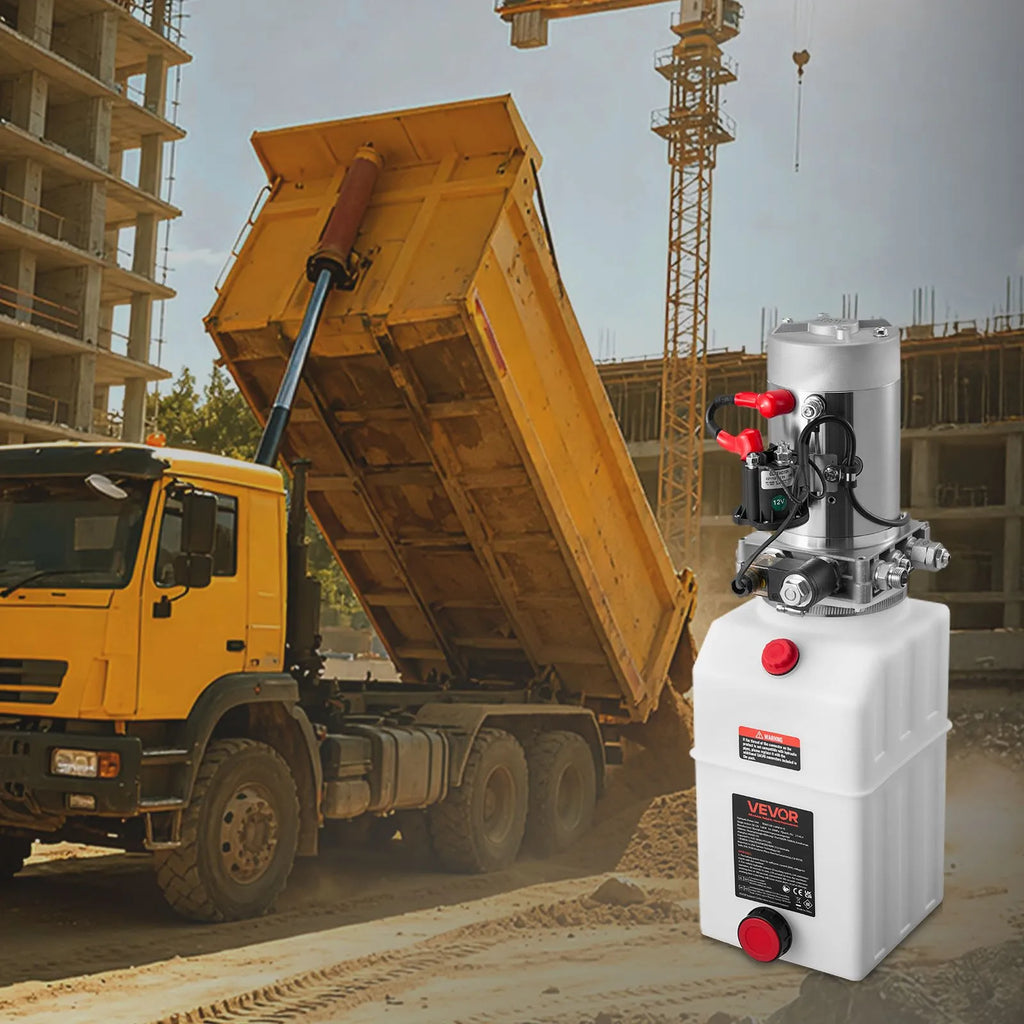

Designed for various tasks: This electric hydraulic pump is suitable for dump trailers, lift gates, scissor lifts, lifting tables, small presses, and bucket conveyors, providing versatile power in the workshop and on the job site.

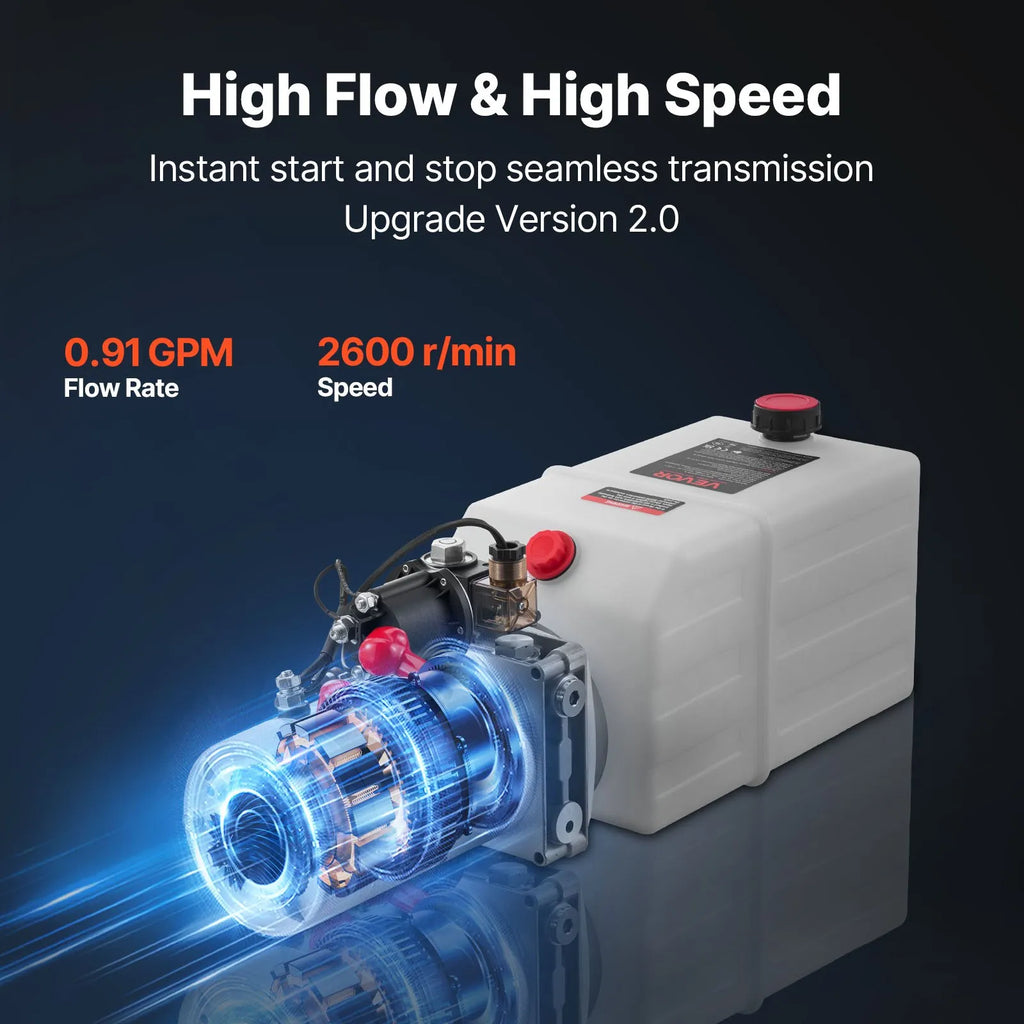

This hydraulic power unit uses a 1.6 kW motor running at 2,600 rpm, providing an operating pressure of 16–20 MPa and a maximum pressure of up to 22 MPa. It delivers powerful, high-performance cylinder lifting and consistent power for demanding applications.

The high-capacity tank of the tipper trailer pump, combined with a powerful pump, ensures quick startup and smooth lifting and lowering cycles. This reduces the risk of downtime, shortens wait times, and ensures uninterrupted daily operations with stable hydraulic power.

It features a reliable hydraulic pump with a built-in safety valve and throttle valve, which make operation safer, while the fuel tank is durable and not prone to damage or oil leaks.

Please note that continuous, long-term operation is not recommended. When operating in S3 mode, the hydraulic pump motor runs in cycles: 30 seconds on, 270 seconds off, with a maximum continuous operating time of 180 seconds. For longer periods of use, the intermittent mode is recommended, with a continuous operating time of 360 seconds.

This hydraulic pump for dump trailers helps professional mechanics and auto repair shops get the job done quickly. It is suitable for dump trailers, forklifts, scissor lifts, lifting tables, material-handling equipment, and many other compatible lifting platforms for versatile workshop use.

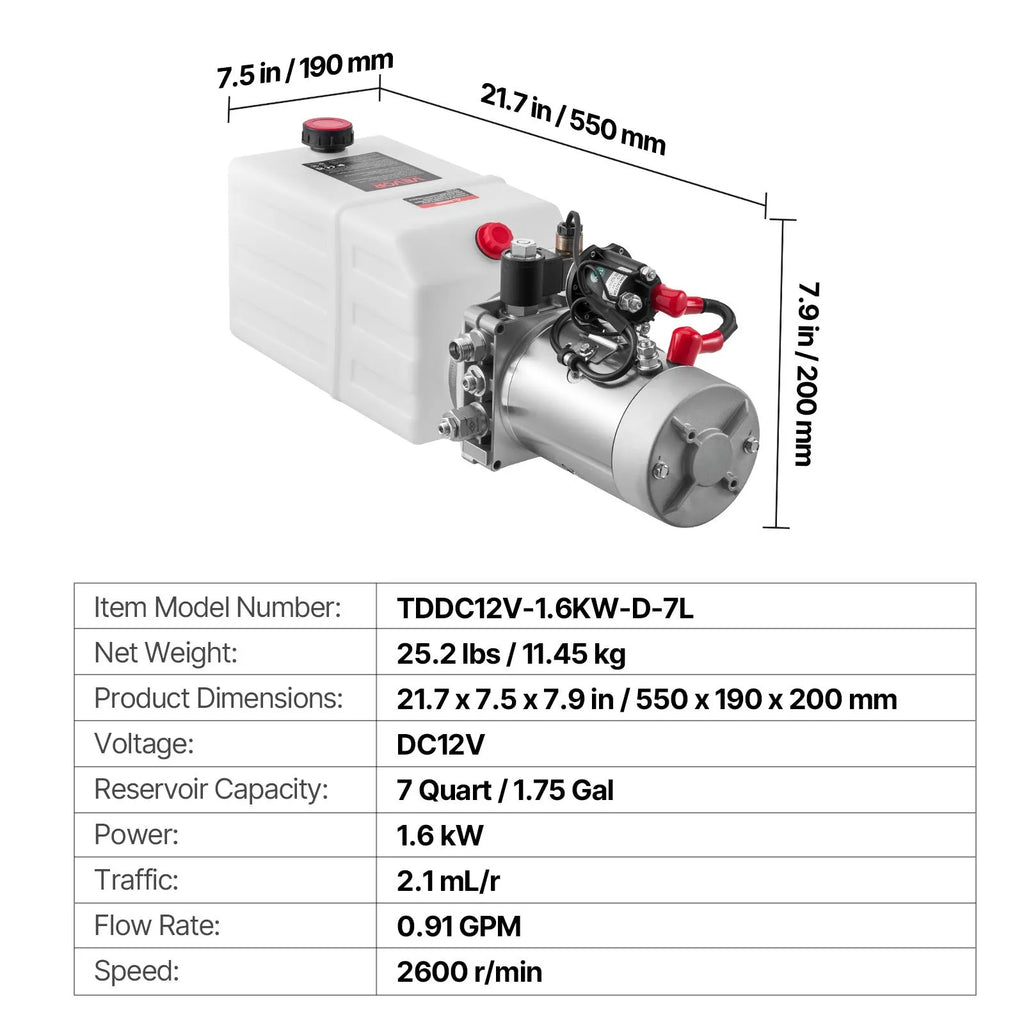

Product Specifications

Model number: TDDC12V-1.6KW-D-7L
Voltage: 12 V DC
Operating mode: Unidirectional
Tank capacity: 6.6 L
Power: 1.6 kW
Flow rate: 3.4 L/min
RPM: 2,600 rpm
Displacement: 2.1 mL/rev
Net weight: 11.45 kg (including all accessories)
Product dimensions: 550 × 190 × 200 mm
