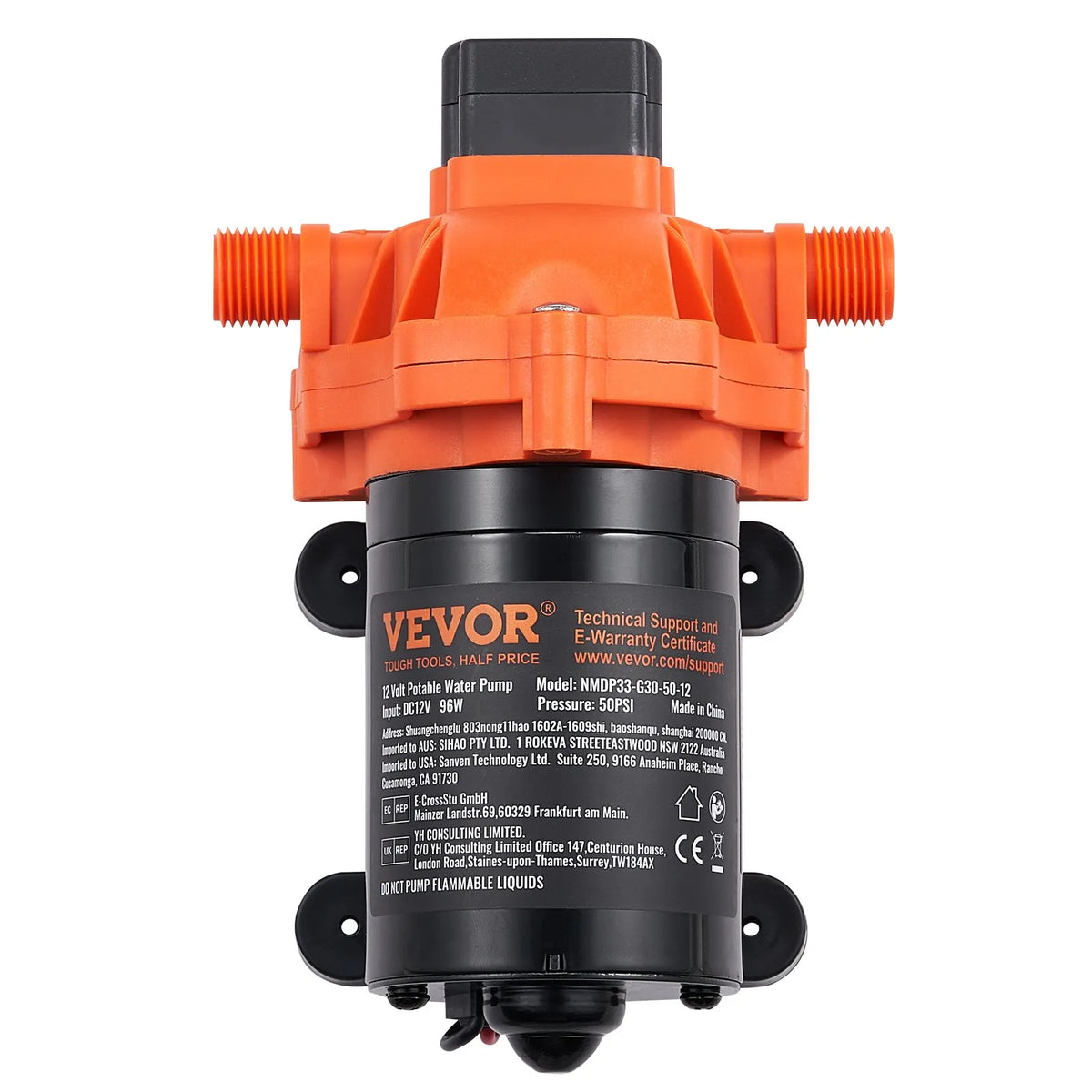

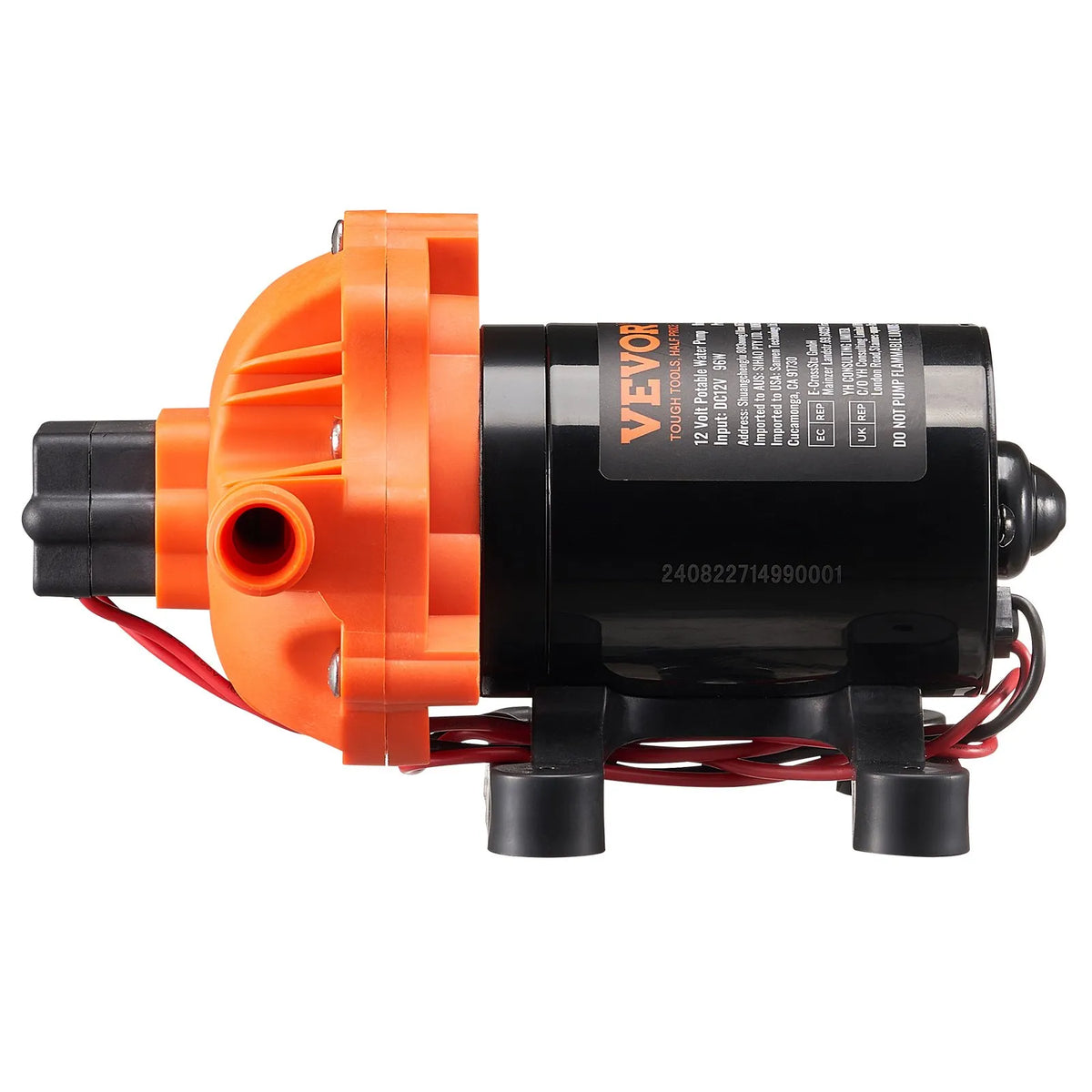

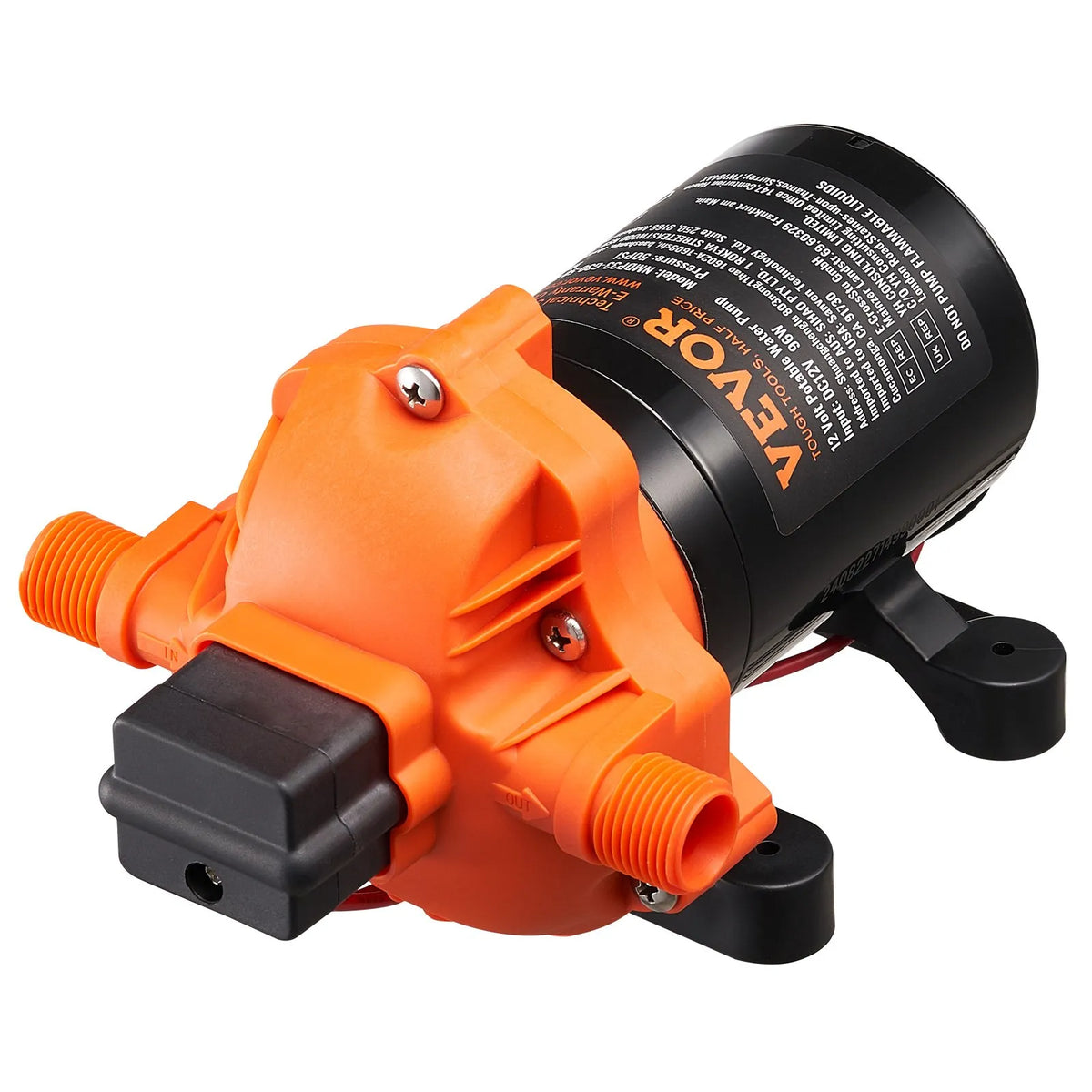

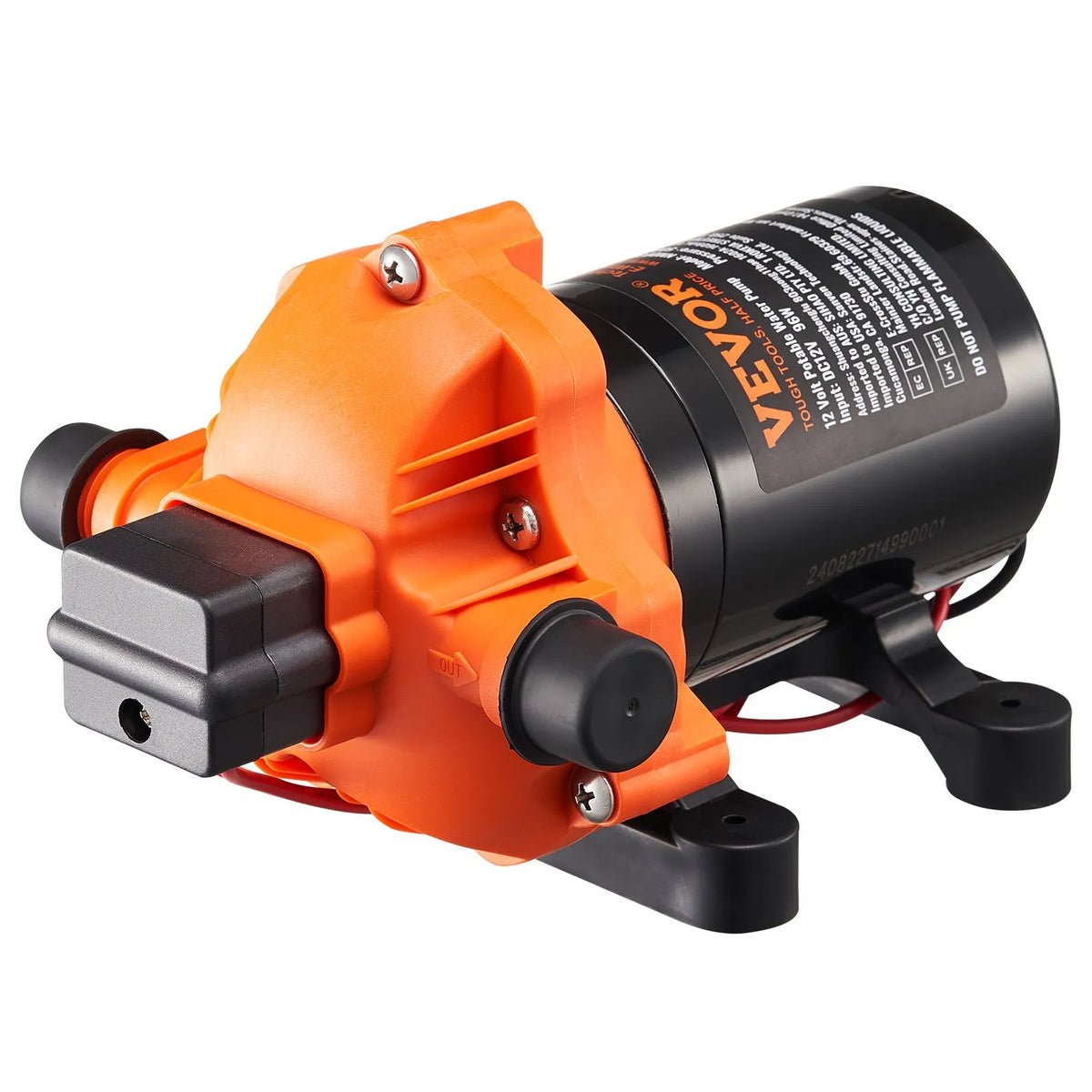

VEVOR 12 V diaphragm water pump, 11.36 l/min, 3-chamber design, automatic pressure switch with adjustable pressure from 2.7 to 6.9 bar, nominal pressure 3.4 bar, 12.7 mm MNPT connection

Features and Information

Say goodbye to low water pressure:
Upgrade your system with a 3-chamber 12 V water pump that delivers a high flow rate of 11.36 l/min at a stable pressure of 3.4 bar. It is designed to efficiently and reliably meet your daily water needs, saving you time.

Automatic pressure switch:
Adjust the water pressure within the adjustable range of 2.7 to 6.9 bar. The pressure switch automatically turns the pump on when the faucet is opened and turns it off when the faucet is closed. Durability tested for over 200,000 cycles.

Exceptionally quiet operation:
The 12 V diaphragm pump with a pure copper motor ensures smooth and quiet operation. The plastic pump housing and noise-dampening base effectively reduce noise levels.

Reliable Safety:
Certified in accordance with CE and RoHS requirements. Equipped with overheating and overload protection, designed for long-term use. Supports operation without water and is equipped with a built-in check valve bypass for continuous water supply.

Standard size, easy to replace:
Equipped with standard 12.7 mm MNPT inlet and outlet connections, ensuring quick replacement. Suitable for campers, boats, trailers, food trucks, and other mobile applications.

This 12 V diaphragm pump delivers a flow rate of 11.36 l/min and a preset pressure of 3.4 bar, ensuring an efficient and reliable water supply. It features adjustable pressure from 2.7 to 6.9 bar, a pure copper motor, and a 12.7 mm MNPT connection. Upgrade your water system today.

Easily adjust the water pressure with our 12-volt diaphragm pump. Use a screwdriver to open the pressure valve, locate the central adjustment screw, and turn it clockwise to increase the pressure, or counterclockwise to decrease it. Adjust the water flow to suit your needs and save water effectively.

Our 12-volt water pump with a pressure switch is equipped with a high-quality motor and a plastic pump housing that effectively reduces noise levels. The anti-vibration base and shock-absorbing design further reduce noise, providing a quiet and efficient water pumping solution for a peaceful environment.

Both the inlet and outlet are equipped with standard 12.7 mm MNPT connections; our 12 V water pump with a pressure switch ensures compatibility with your existing pump. Replacement and installation are quick and easy.

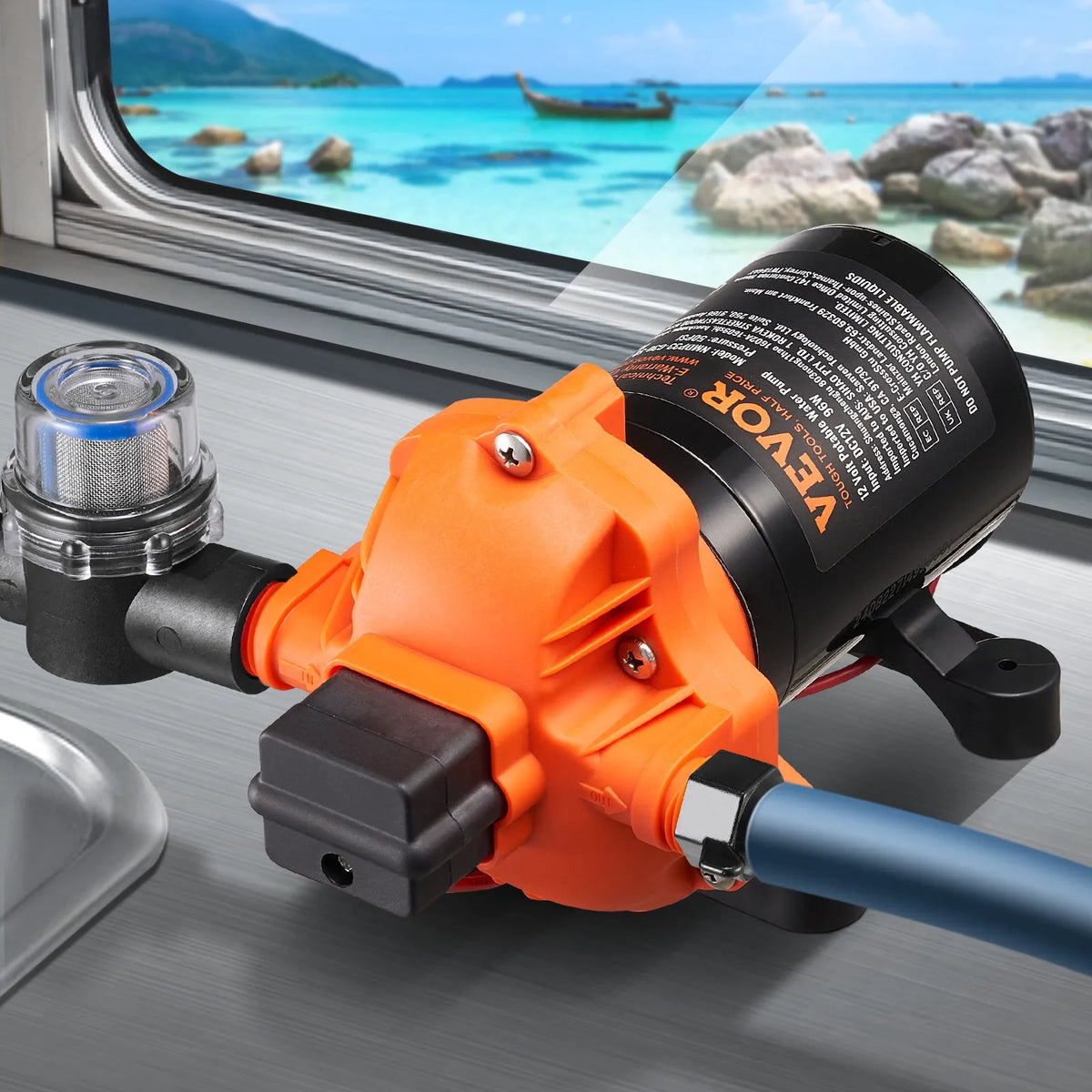

Our 12-volt camper water pump effortlessly meets all your water needs—from washing and showering to toilet and kitchen use. Enjoy camper life to the fullest with a pump that reliably supports you every day.

Product Specifications
Model number: NMDP33-G30-50-12

Voltage: 12 V DC

Power: 96 W

Maximum pressure: 3.4 bar

Maximum flow rate: 11.36 L/min

Inlet/outlet diameter: 12.7 mm MNPT (outer diameter 20.955 mm)

Net weight: 1.91 kg

Product dimensions: 207 × 138 × 125 mm
