V-TAC VT-8178 ceiling light with microwave motion sensor, 2xE27, max. 2x20W, 220–240V, 180°/360°, IP44, white, Ø277x112.4mm, 5-year warranty

Description:

Ceiling light with a microwave motion sensor

The V-TAC VT-8178 is a round ceiling light fixture with a built-in microwave motion sensor and E27 light bulb sockets. The sensor automatically turns on the light when it detects motion within its detection zone, making the fixture suitable for hallways, stairwells, entrance areas, utility rooms, and other locations where automatic lighting control is needed.

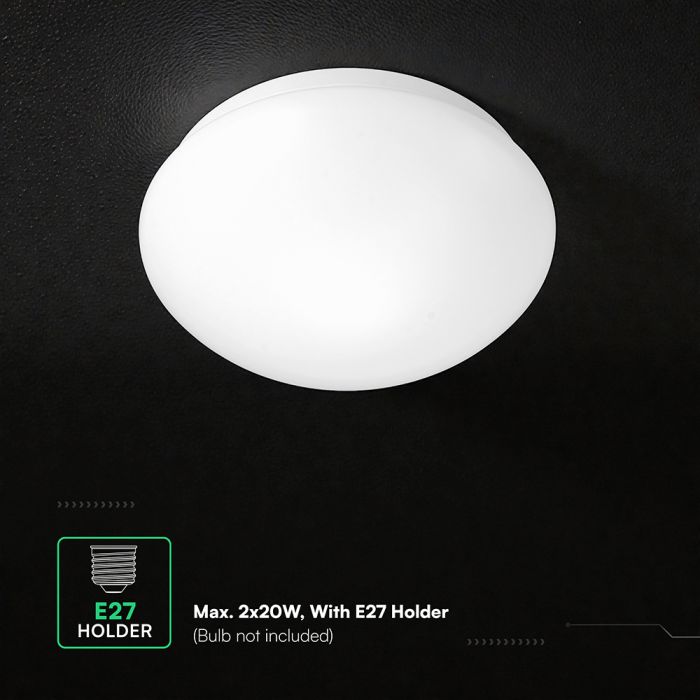

Two E27 bulbs, up to 20W

The light fixture is designed for two E27 bulbs with a maximum power of 20W each. Light bulbs are not included in the package, so you can choose suitable E27 LED bulbs with the desired light color and luminous flux.

Detection of Microwave Motion

The integrated 24 GHz microwave sensor uses continuous-wave radar technology. The sensor's detection range is 180° for wall mounting and 360° for ceiling mounting.

Adjustable motion detection range

When mounted on a wall, the maximum motion detection range is up to 6 meters. When mounted on the ceiling, the adjustable detection radius is approximately 2–8 meters.

Adjustable operating time

Once motion is detected, the lighting duration can be adjusted from approximately 10 seconds to 12 minutes. This allows you to tailor the light fixture's operation to the specific room and operating conditions.

Adjustable ambient light level

The light threshold for sensor activation is adjustable within a range from less than 3 lx to 2,000 lx. This allows you to determine whether the light should turn on only in the dark or also in brighter ambient conditions.

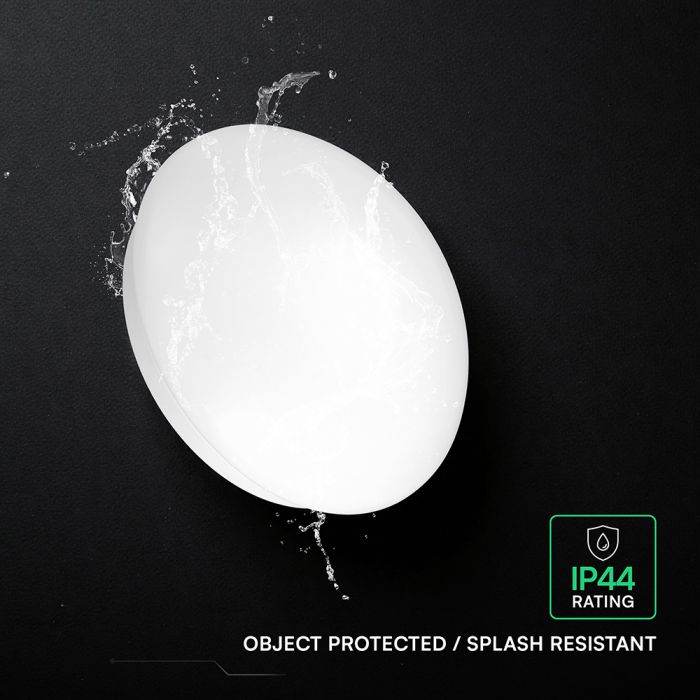

IP44 protection rating

The IP44 protection rating ensures that the light fixture is protected against solid particles and water splashes, making it suitable for rooms where increased protection against moisture is required.

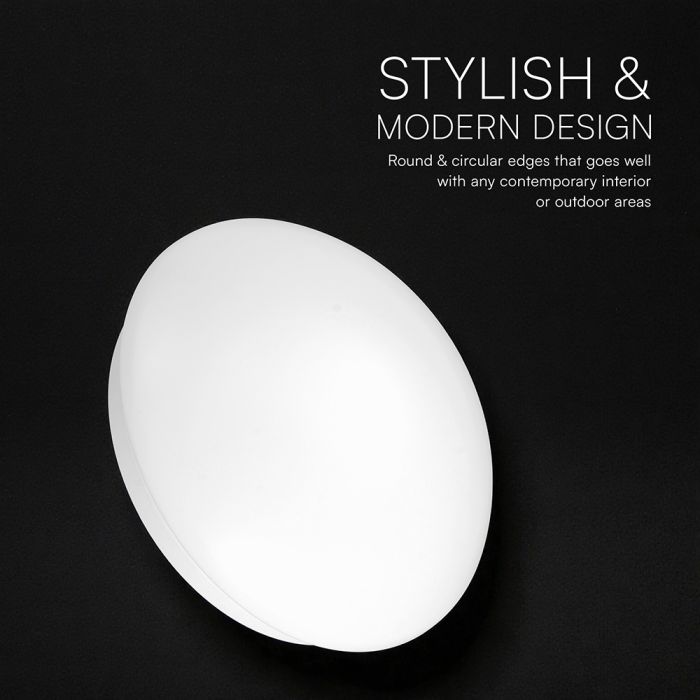

Durable PC and PMMA housing

The lamp housing is made of PC and PMMA. Its white color and round shape give it a neutral look that suits a variety of interior styles.

Suitable for ceiling and wall mounting

The sensor's specifications allow for installation of the light fixture on both the ceiling and the wall. The recommended mounting height on the wall is 1–2.5 m, while on the ceiling it is 2–4 m.

5-Year Warranty

The manufacturer's documentation for the V-TAC VT-8178 light fixture specifies a 5-year warranty, subject to compliance with the installation and operating conditions.

Specifications:
Product type: ceiling light with microwave motion sensor
Light bulb socket: E27
Number of light bulbs: 2
Maximum bulb wattage: 20W each
Maximum rated load: 2x20W
Input voltage: 220–240V AC
Frequency: 50/60Hz
Sensor type: microwave sensor
Sensor frequency: 24GHz
Detection angle at the wall: 180°
Detection angle near the ceiling: 360°
Maximum detection distance near a wall: 6m
Detection diameter near the ceiling: 2–8m
Mounting height near a wall: 1–2.5m
Mounting height near the ceiling: 2–4m
Time delay: 10 s ±3 s to 12 min ±1 min
Ambient light sensitivity: <3–2000 lx
Sensor transmission power: <0.2 mW
LED switching capacity: 300 W
Protection rating: IP44
Housing material: PC+PMMA
Color: white

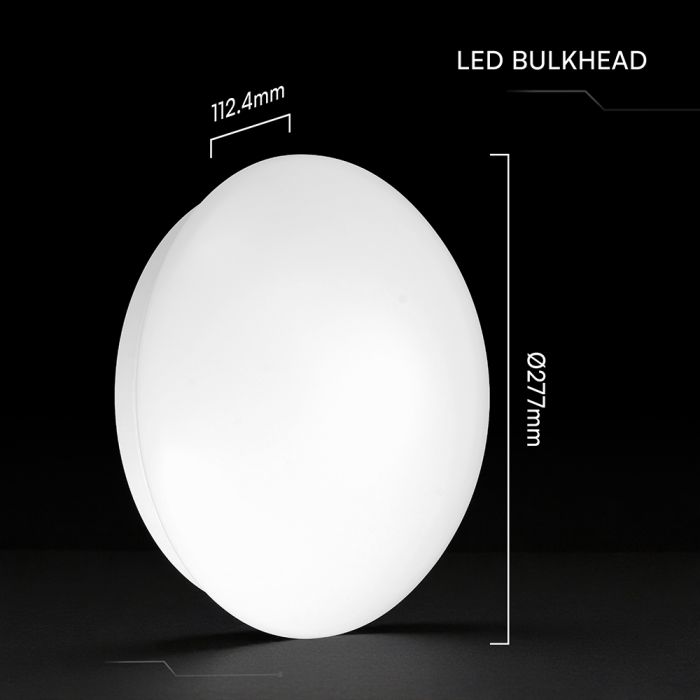

Dimensions: Ø277x112.4mm
Net weight: 0.85kg
EAN code: 3800170260344
Certifications: CE, EMC, RoHS
Warranty: 5 years
