Product Description
High-capacity energy storage solution

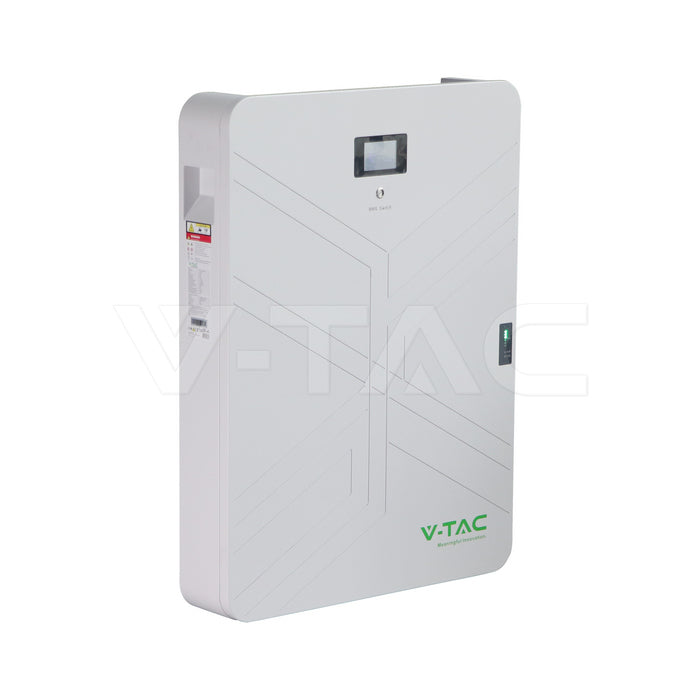

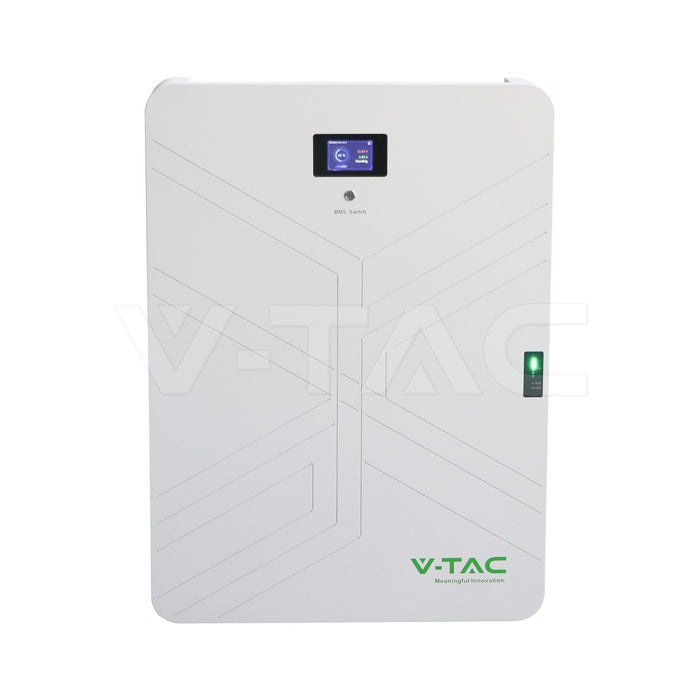

The V-TAC VT-14033 is a low-voltage LiFePO4 energy storage battery with a rated energy of 14.33 kWh and a capacity of 280 Ah. It is designed for solar energy storage systems and operates at a nominal voltage of 51.2 V.
Long service life—at least 8,000 cycles
LiFePO4 technology ensures a long service life. The V-TAC technical specifications indicate at least 8,000 charge/discharge cycles at 25 °C and a 90% depth of discharge (DOD). The manufacturer provides a 10-year warranty for this model.
High charge and discharge current
The standard charge and discharge current is 130 A, while the maximum continuous charge and discharge current reaches 140 A. The standard and maximum charge voltage is 57.6 V, while the end-of-discharge voltage is 43.2 V.
CAN Communication
The battery uses a CAN communication interface designed for exchanging data with compatible energy storage system equipment and the inverter.

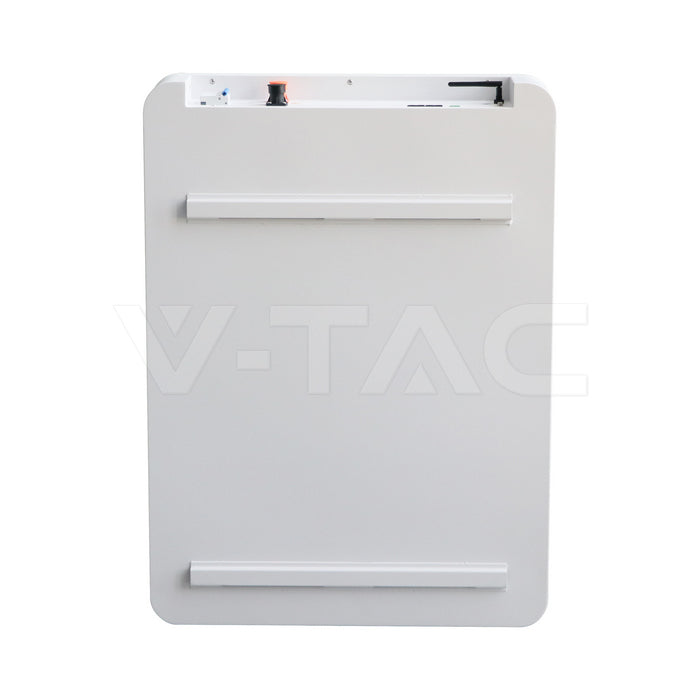

Extra-slim design for wall mounting

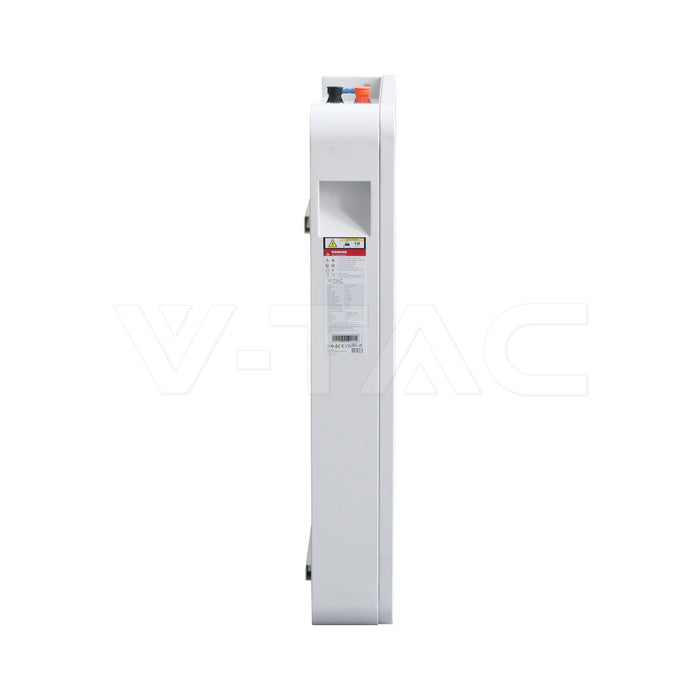

With a depth of just 154 mm, the housing allows the battery to be mounted on the wall, saving space in the utility room. The overall dimensions are 660 × 154 × 900 mm. The white housing version corresponds to SKU 12713.
IP20 protection class
The battery has an IP20 protection rating and is therefore intended for installation in dry indoor environments. The charging temperature range is 0 to +60 °C, while the discharging temperature range is −20 to +60 °C.
Product Specifications
Manufacturer: V-TAC
Model: VT-14033
SKU: 12713
EAN: 3800170260665
Type: low-voltage energy storage battery
Battery chemistry: LiFePO4
Nominal energy: 14.33 kWh
Nominal capacity: 280 Ah
Nominal voltage: 51.2 V
Standard charging current: 130 A
Standard discharging current: 130 A
Maximum continuous charging current: 140 A
Maximum continuous discharging current: 140 A
Standard charging voltage: 57.6 V
Maximum charging voltage: 57.6 V
End-of-discharge voltage: 43.2 V
Internal resistance: 16 mΩ
Communication: CAN
Number of cycles: ≥8,000 at 25 °C, DOD 90%
End-of-life criterion: ≥8,000 cycles at 25 °C, EOL 80%
Cell configuration: 16 in series × 1 in parallel
Protection class: IP20
Mounting: wall-mounted
Charging temperature: 0 to +60 °C
Discharge temperature: −20 to +60 °C
Dimensions: 660 × 154 × 900 mm
Color: white
Number of units per package: 1
Warranty: 10 years
