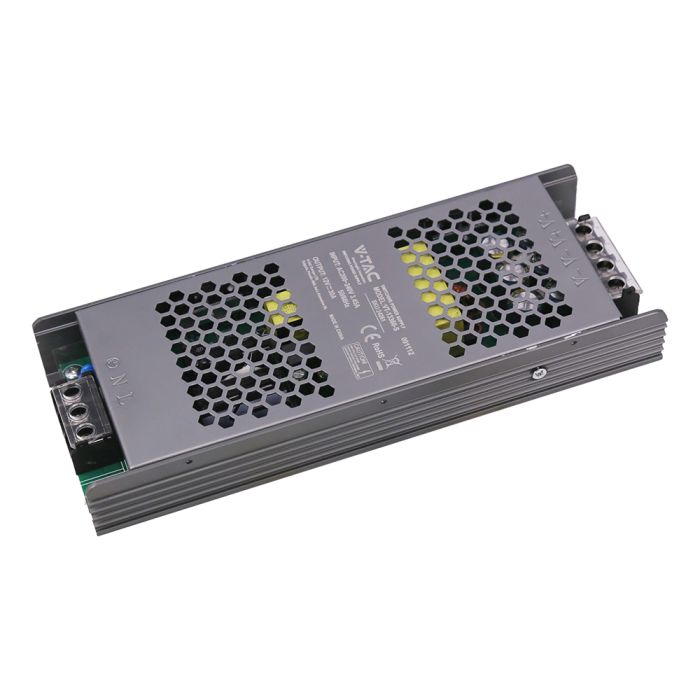

V-TAC Plan LED Power Supply, 360 W, 12 V, 30 A, with a metal housing and IP20 protection

Features

Suitable for LED lighting

The power supply is designed for LED strips, LED displays, and other 12-volt LED lighting systems.

Surge Protection

The built-in overvoltage protection shuts down the power supply unit if the voltage reaches 115–135% of the rated value.

Short-Circuit Protection

Short-circuit protection and a stable output voltage help ensure reliable operation of connected LED devices.

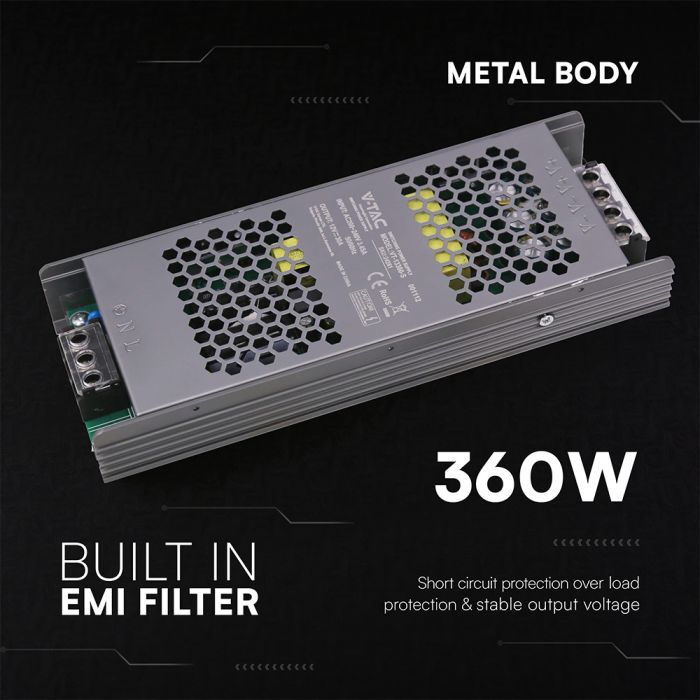

Built-in EMI filter

The built-in electromagnetic interference filter helps reduce electrical interference and ensures more stable operation.

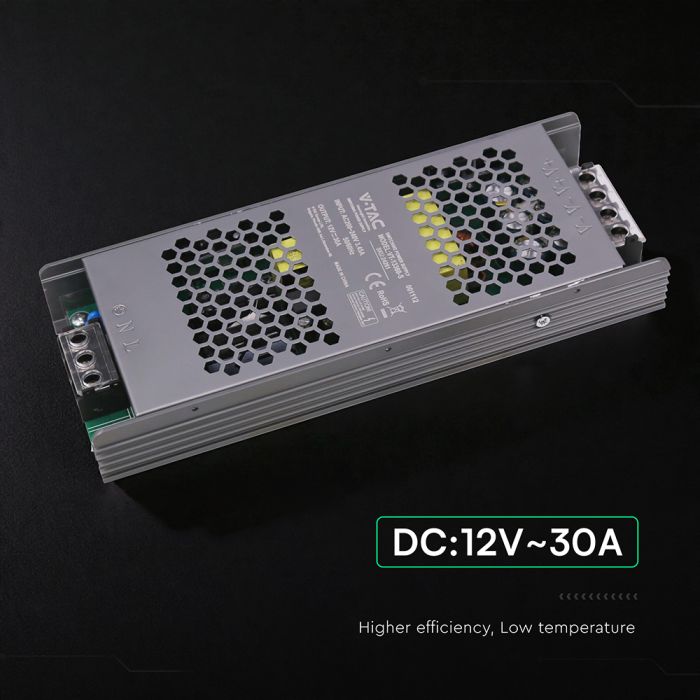

High efficiency

The efficient design ensures reduced heat generation and a lower operating temperature.

Tested under full load

The power supply unit has been thoroughly tested under continuous operation at 100% load.

Specifications
Product Code: 24261
EAN code: 3800170259119
Model: VT-13360-S
Power: 360 W
Input Voltage: 176–264 V AC
Frequency: 50/60 Hz
Output voltage: 12 V DC
Output current: 30 A
Dimmable: No
Housing material: metal

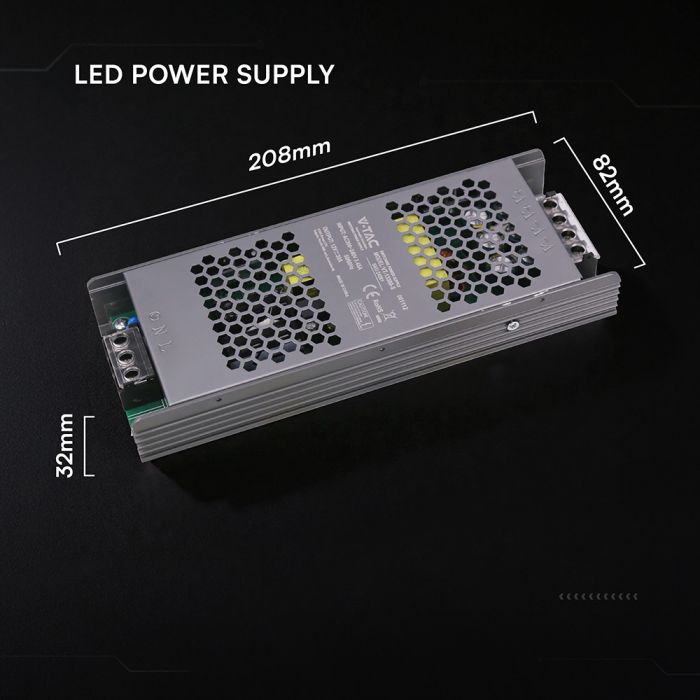

Dimensions: 208 × 82 × 32 mm
Operating temperature: –35 to +55 °C
Protection class: IP20
Number of on/off cycles: more than 15,000
Service life: 20,000 hours

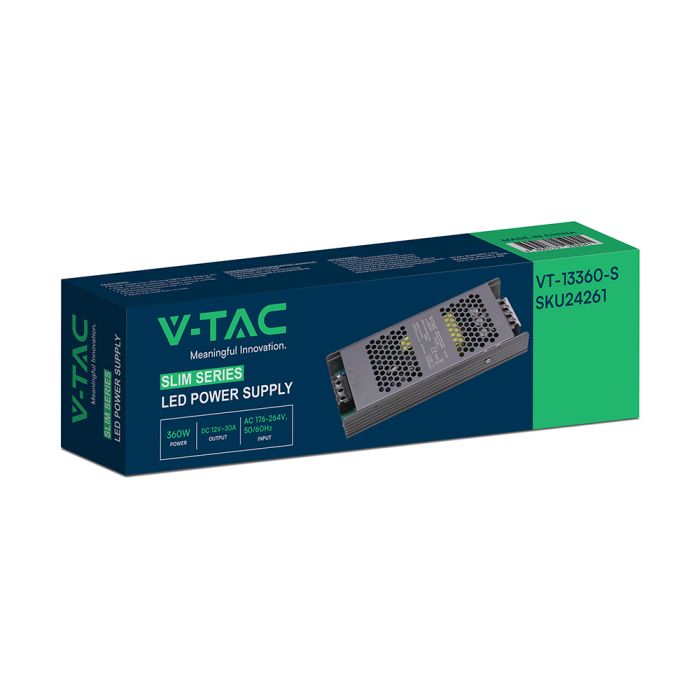

Packaging
Package length: 253 mm
Package width: 68 mm
Package height: 34 mm
Package volume: 0.000794 m³
Gross weight: 0.55 kg
Quantity per box: 30 pcs.
Quantity per pallet: 1,200 pcs.
Product code: 85044095
