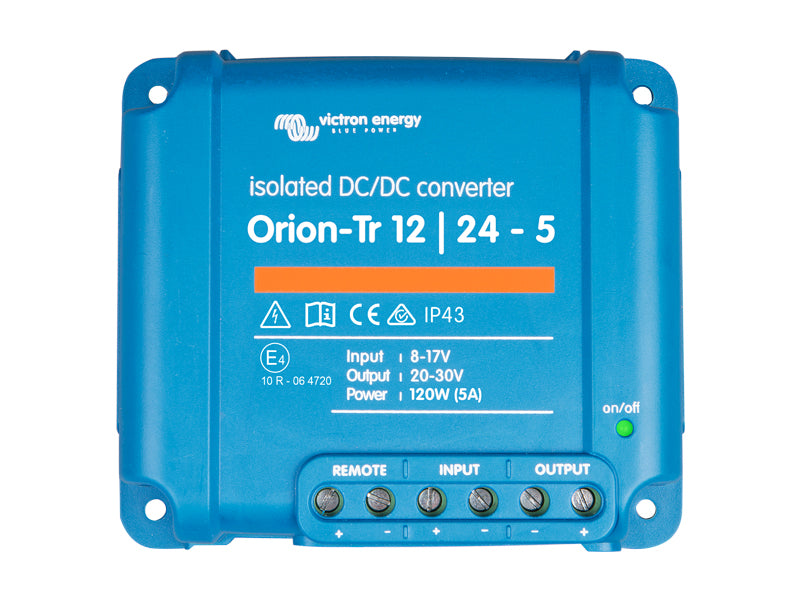

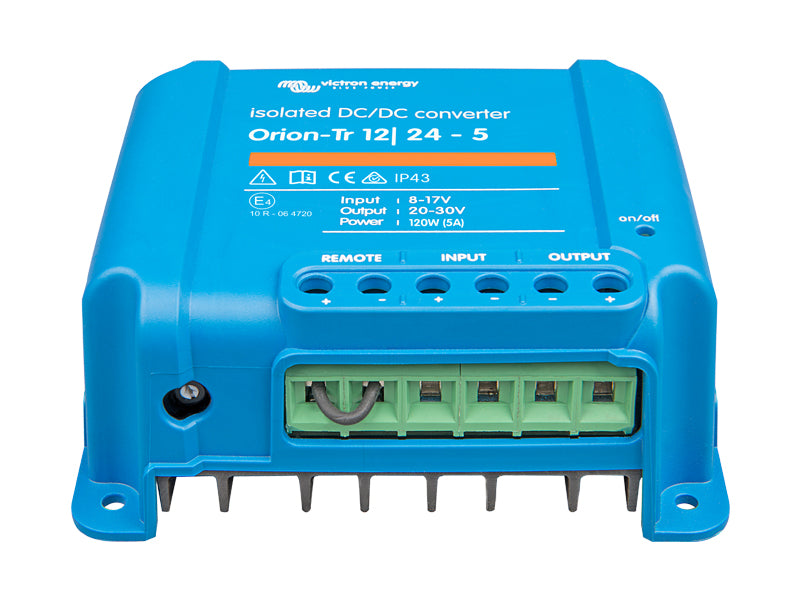

Orion-Tr Isolated Voltage Converter, 12 V to 24 V, 120 W, 5 A, with galvanic isolation, adjustable output voltage, IP43

Description

Galvanic isolation for safe operation
Provides 200 VDC isolation between the input, output, and housing, ensuring safe and stable operation in sensitive systems.

Adjustable output voltage
The output voltage can be adjusted within a range of 20 to 30 V, with a nominal value of 24.2 V and a high accuracy of ±0.2 V.

Remote On/Off
The remote on/off function allows you to control the device without having to use a high-current switch in the input circuit.

High Efficiency and Protection
Efficiency up to 88%, protection against short circuits and overheating, and the ability to operate multiple units in parallel.

Reliable operation in challenging conditions
Designed for operation at temperatures ranging from -20 °C to +55 °C with relative humidity up to 95% (non-condensing).

Flexible installation
. Compact design with screw mounting (4 × M4), suitable for various installation configurations.

Product Specifications
Model: Orion-Tr Isolated
Voltage: 12 V → 24 V
Power: 120 W
Current: 5 A (continuous), 6.3 A (10 s)
Input voltage: 8–17 V
Output voltage: 24.2 V (adjustable from 20–30 V)
Voltage accuracy: ±0.2 V
Noise level: 2 mV RMS
Short-circuit current: 23 A
Efficiency: 88%
No-load current: <80 mA
Protection class: IP43
Dimensions: 100 x 113 x 47 mm
Weight: 500 g
Cable cross-section: up to 6 mm²
Operating temperature: -20 °C to +55 °C
Humidity: up to 95% (non-condensing)
Mounting: 4 × M4 (spacing 84 x 99 mm)
Certification: ECE R10-5, EN 60950, EN 61000-6-1/-6-2/-6-3, EN 55014-1/-2
Warranty: 60 months
